Connect the air supply.

Never use air compressors with automatic oiling systems. Too much oil in the compressed air will
cause damage to the printed circuit board and to the air valve.
Keep the compressed air as dry and oil free as possible. Always use the Drader supplied air
filtration units and keep them well maintained.
The Drader Injectiweld, Model W30000 requires compressed air. The welder operates at 90 psi (6.2 bar) and
consumes 4 cfm (113 lt) at maximum output. The air compressor requirements are:
•
Air pressure: Minimum: 80 psi (5.5 bar), Maximum: 100 psi (6.9 bar)
•
Horsepower: At least 1.5 horsepower per welder (1120 Watt)
The W30000 kit ships with an air filter assembly. The filter helps to remove particulate, water and oils from the
compressed air. Use it at all times.
•
The Air filter assembly attaches directly to the welder's air line.

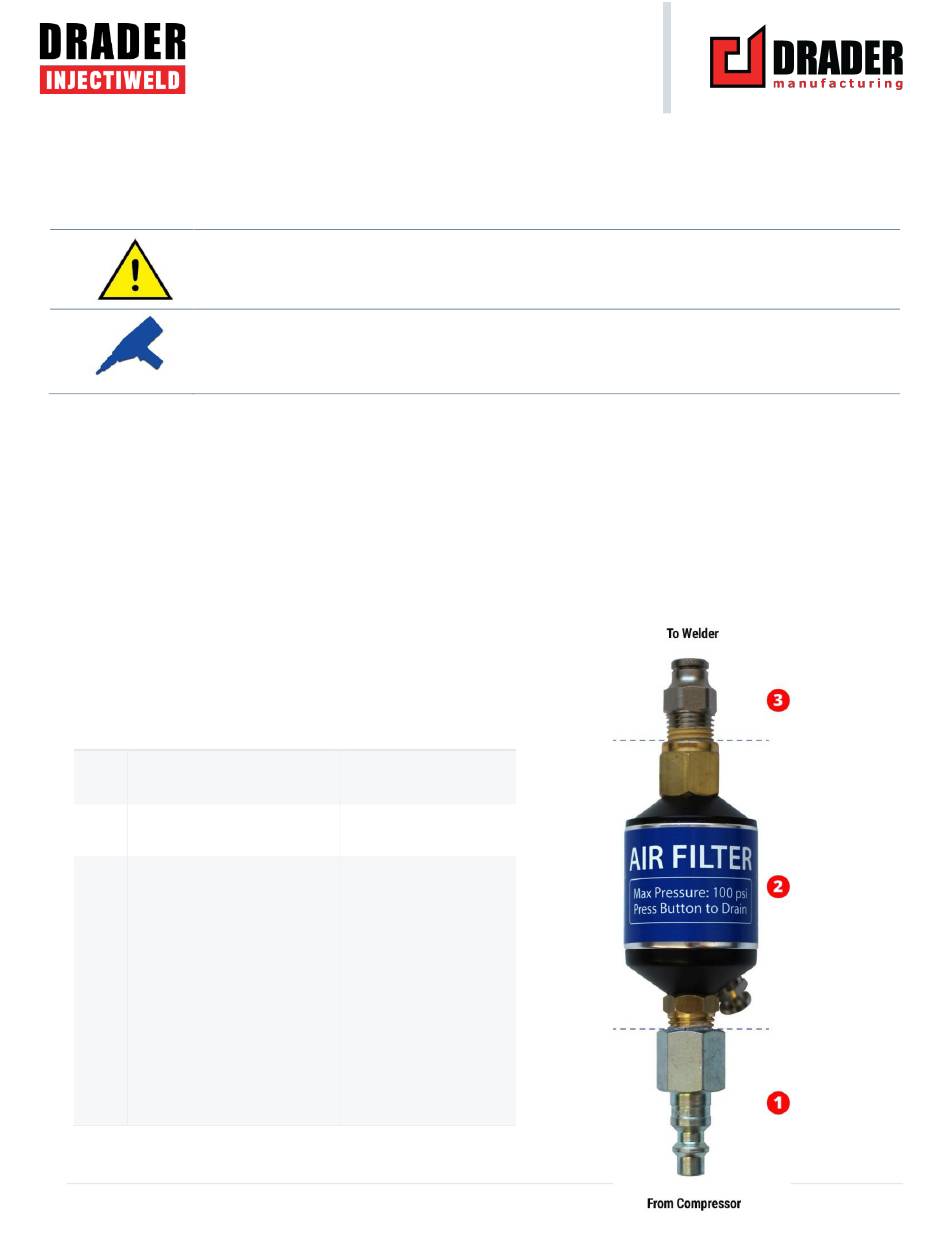

Air Filter Assembly (IASS-A-AIRFILT 2)
# Description
1
Quick Disconnect Fitting
2
Air Filter Unit
3
Air Line Fitting
Code
IPAR-A-FITQUICKF2
IPAR-A-AIRFILT2
IPAR-A-ARFITN2
