Make welds

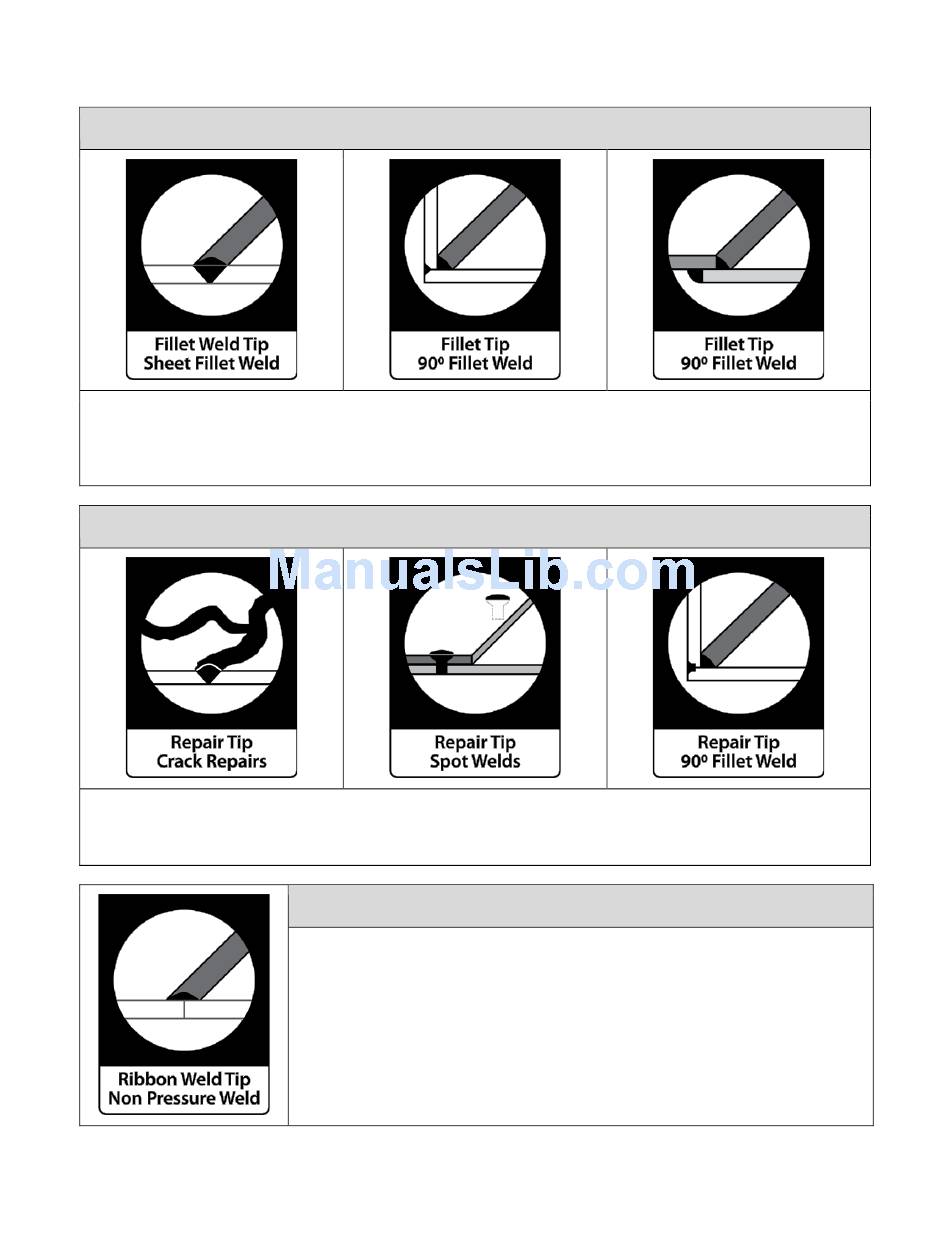

Fillet tips are used mainly for fillet welds [90º] and butt welds. The style of those tips allows one to weld
from inside corners out and be able to seal the corners without changing to another tip style. Fillet tips
can also be used for crack repairs, as long as the crack is somewhat straight. The longer preheat section
allows faster welding speed than welding cracks with the conical tip.
Repair tips are used for crack repairs, filling small holes, spot welding, for reaching tight areas, and for
prototyping. Because of their conical shape, the repair tip and prototyping tip offer similar types of welds.
Choose the size that best suits your application.
Fillet Welds
Repair Tip, Prototyping Tip
The Ribbon weld tip is used to make a seam weld on thermoplastic materials
such as belting and thin sheets. Because this welding tip does not weld
down to the root side, it should not be used for regular butt welds.
Ribbon Weld Tip
