- Page 1 SwellPro FPV Goggle User Manual Visit www.swellpro.com for the latest version of this manual and firmware updates for your drone and accessories. V1.0 – 2021.05...
-
Page 2: Table Of Contents
OPERATION ..................... 6 Quick Start ..........................6 Menu settings ........................7 Channel Searching ........................ 7 Recording ..........................8 Playback View ........................8 Deploy ........................... 9 SPECIFICATIONS ................... 10 List of channels ........................10 Specifications ........................10 Version Information......................11 2 ©2021 SwellPro... -
Page 3: Product Overview

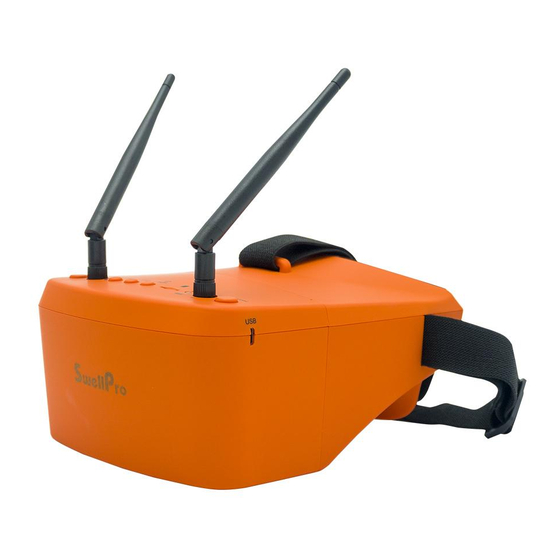

Product Overview GL1 is the carefully crafted FPV Goggle by SwellPro. It features smooth, high-definition wireless graphics transmission to give you an immersive fly experience. The modular, easy-to-assemble design allows you to enjoy the visual experience in different forms. More flight and operation guides are available on www.swellpro.com. -
Page 4: Product Diagram
[9] Band adjustment / Forward [3] Charging indicator [10] Micro USB charging port [4] Micro SD slot [11] OFF [5] Menu / Power [12] Headphone jack [6] Channel adjustment/Back [13] Display module [7] Record ON/OFF [14] Headset module 4 ©2021 SwellPro... -
Page 5: Keys Description
Recording: In preview, press REC to start recording and then press again to stop recording. Play/Pause: in video playback view, press REC to play and pause the video. Band+ [9] Band adjustment: in the preview, press Band+ to switch between bands A, B, E, F, and R. ©2021 SwellPro... -
Page 6: Osd Interface
• Install 2 included antennas, if you need to record videos, install the memory card. • Press and hold the Power key for 3 seconds to power on the device. • Press the Search key to auto search and configure the channel. 6 ©2021 SwellPro... -
Page 7: Menu Settings
REC Sound On /OFF REC Time OFF/3min/5min/10min Format Language Chinese / English Default Version Channel Searching If you don't know the exact channel of the transmitter, in preview, press the Search key to auto-search the channel. Automatic search interface ©2021 SwellPro... -
Page 8: Recording
[6] Playback mode [7] File number [8] File properties [9] Video length [10] Fast forward or backward [11] Video timeline Playback interface Press MENU to enter the menu settings. On DVR, press CH+ to enter playback mode. 8 ©2021 SwellPro... -
Page 9: Deploy
· Fast forward/backward: press Band+ to play 1x, 2x, 4x, 8x forward. Press CH+ to play 1x, 2x, 4x, 8x backward. Deploy FPV Goggle Mode Use the Goggle as a whole to get the immersive FPV flight experience. Remote Control Stand Detach the display module from the headset. -
Page 10: Specifications
DVR on: battery life is approximately 2.5 hours DVR off: battery life is approximately 3.5 hours Power Preview mode: The device operates at 3.7V, 400mA REC mode: The device operates at 3.7V, 620mA Dimensions 180mm * 140mm * 84mm Weight About 393 g 10 ©2021 SwellPro... -
Page 11: Version Information
Version Information SwellPro products are constantly improving, so as the product user guides. It is recommended to visit www.swellpro.com to check and download the latest user guide. Version 1.0 SwellPro FPV Goggle User Manual First Edition ©2021 SwellPro...
