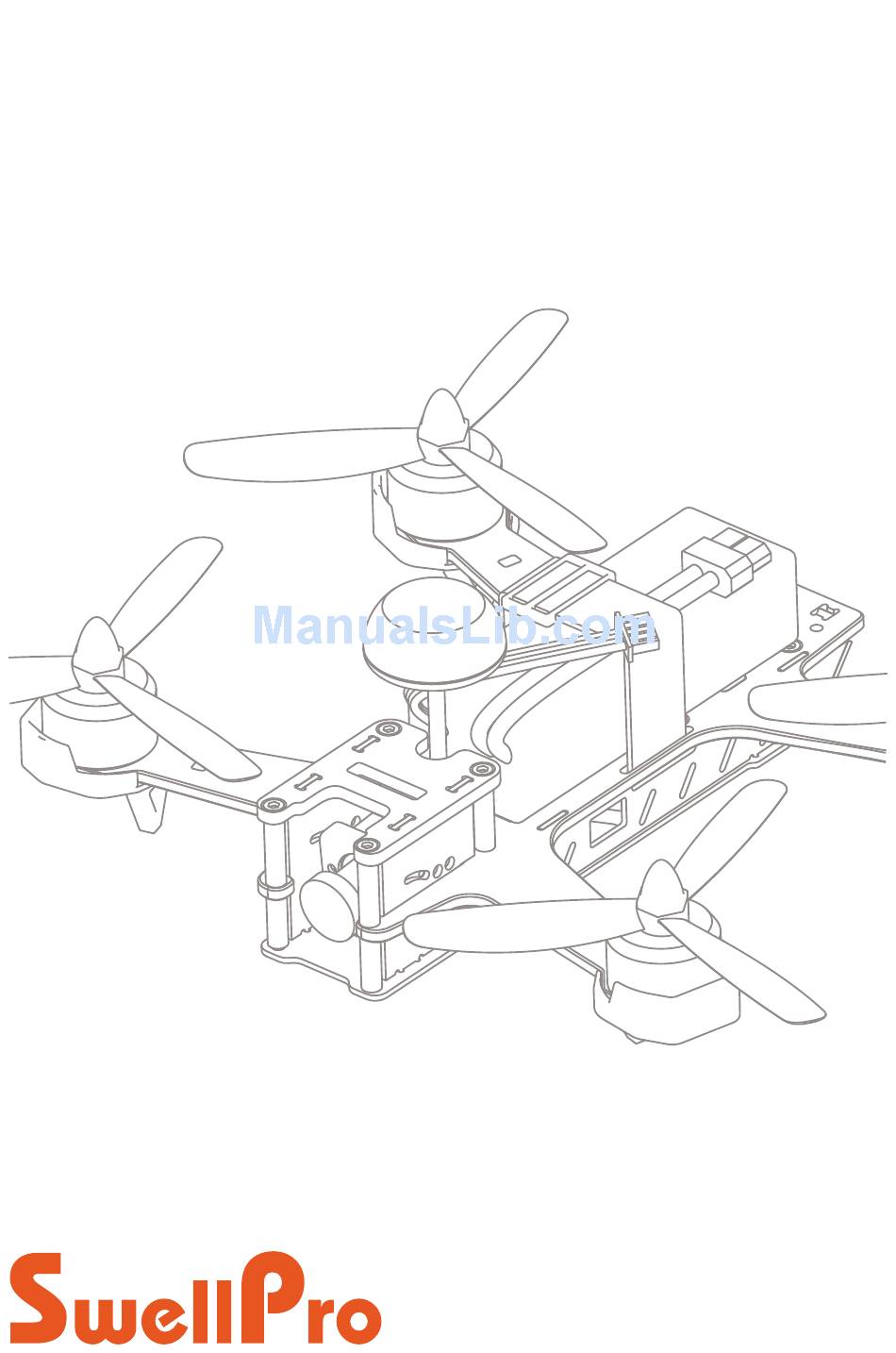

- Page 1 SWIFT 2 Racing drone User Manual Do not blink, because it’s fast! www.swellpro.com...
-
Page 2: Table Of Contents

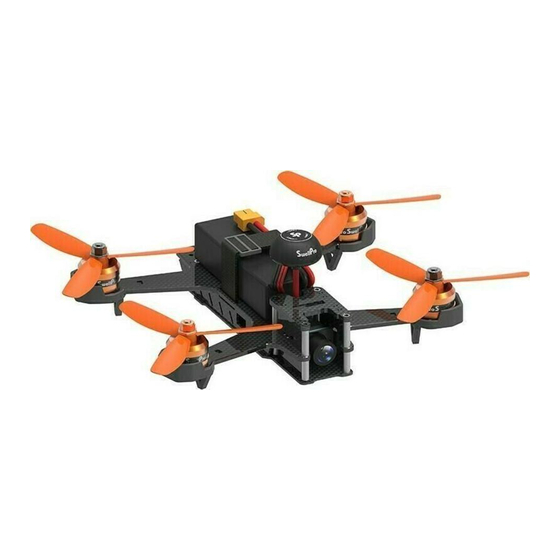

INDEX 1. Getting to know your aircraft............. 3 2. Getting to know your remote controller ....... 4 3. Speci cations .................. 6 4. Important – Before you y !............8 5. Charging the battery..............8 6. Preparing the drone ..............9 7. - Page 3 Swift User Manuzal Introducing the SWIFT 2 Racing drone A professional, compact and aggressive, ready to y, and yet elegant racing drone. Do not blink, because it’s fast! The Drone: Superior modular and highly integrated design. Championship level racing power system.
-
Page 4: Getting To Know Your Aircraft
Swift User Manual 1. Getting to know your Aircraft 8. Mushroom antenna 1. Camera 2. Propeller(CW) 9. Reciever antennas 3. Propeller(CCW) 10. Indicator lights – on the tail 4. Clockwise motor 11. Transmitter monitor 5. Counterclockwise motor 12. Transmitter control switch 6. -
Page 5: Getting To Know Your Remote Controller
Swift User Manual 2. Getting to know your remote controller Light ON / Light OFF Stablize / Advanced / Intermediate Wave wheel switch (No function) Wave wheel switch (No function) Lock Motor / Unlock Motor OSD ON / OSD OFF Left Joystick Right Joystick Power... - Page 6 Swift User Manual The Swift 2 system o ers 3 useful ight modes, STABILIZE Flight Mode INTERMEDIATE Flight Mode ADVANCED(RATE) Flight Mode Flight modes are selected by SWC.(Please select the appropriate mode according to your flight skills) Stablize Advanced Intermediate STABILIZE Flight mode: in this mode , the Swift’s operation is relatively stable, it can not roll, it is...
-
Page 7: Speci Cations
Swift User Manual 3. Speci cations Main carbon frame: 3.5mm 3K ultra strong carbon bre frame Aircraft Propeller: #5045 3 Blades Transmitter: 5.8G 40CH, Digital Channel Selector Axis Diameter:220mm Flight Time: 12~15 mins ( 2600mAh) Overall Dimensions (L x W x H):183 x 216 x 85mm Max Flight Speed: 150km/h Weight: 378g (Battery excluded) Max Flight Distance: 1000m... -
Page 8: Remote Controller
Swift User Manual Remote Controller Net Weight： 435g (Battery Excluded) Frequency Channel： 2405 ~ 2475MHz Remote Control Distance： 1.0 KM Receiver Sensitivity（1%PER）：-105dbm Working Current： 120 mA Battery Operating Voltage: 7.4V-11.1V Channels： 10 Camera Horizontal Resolution: 800TVL Video Options: PAL/NTSC Power input: 5V FOV: 120 Degree Aperture: F2.5 Transmitter... -
Page 9: Important - Before You Y
Swift User Manual 4. Attention: before your intended ight… The Swift is recommended for pilots, 15 years or older, with some RC hobby experience. Only y the Swift in dry weather, with low wind. Please do not y in rain or heavy foggy conditions. Always choose large open elds for ying. -
Page 10: Preparing The Drone
Swift User Manual 6. Preparation of the drone for ight. First, install the mushroom antenna to the mounting brackets as shown. Next, push the assembled mushroom antenna into the Video Transmitter. Finally tighten the rotating collar with the supplied wrench. Installation of the propellers Fix the clockwise propeller onto the clockwise motor according to the direction of blue arrow. -
Page 11: Battery Installation
Swift User Manual Battery installation First insert the battery anti-slip mat into the battery compartment. Put the battery on top of the anti slip mat. Move the battery forward-backwards as required to establish perfect balance, then rmly secure the battery with the velcro strap. Please read Fit &... -
Page 12: Ready For Ight
Swift User Manual 7. Ready for ight 1.Place the aircraft in a wide open space, with the rear facing you. 2.Please ensure that video receiving equipment is setup and ready for use, displaying an image and OSD information. 3.When all is setup, prepare for take o , and ight. Please consider the points mentioned below: Attention: Put the motor switch to the lock mode position, move the throttle to the lowest position. - Page 13 Swift User Manual 7.2 Motor unlock Place the throttle joystick at the lowest position. Move switch SWA to it’s lowest position to unlock the motors. -12-...
-
Page 14: Operating Instructions
Swift User Manual 8. Operation instructions Aircraft Reaction Remote Controller Instructions -the direction of the head） （ Throttle up/down (The rear toward operator) Pitch forward/backward (Indicator light instruction ) ROLL (lean) left/right (Indicator light instruction ) -13-... - Page 15 Swift User Manual Aircraft Reaction Remote Controller Instructions -the direction of the head） （ YAW(turn) left/right (Indicator light instruction ) The aircraft roll forward Intermediate Advanced Make sure y in the Intermediate&Advanced ight mode. The rear toward operator The aircraft roll backward Attention: Always select large open spaces with soft ground for ying.
- Page 16 Swift User Manual The aircraft roll left Intermediate Advanced Make sure y in the Intermediate&Advanced ight mode. The aircraft roll right Attention: Always select large open spaces with soft ground for ying. Rolls and ips are best suited for experienced pilots.
-
Page 17: At The End Of The Ight
Swift User Manual 9. Ending the ight Land the aircraft Lock the motors First Power o the aircraft, then turn o the radio. Finally, remove the battery from the aircraft. Please Note: 1. After 5 minutes without any operation, the indicator lights will ash and the motors will sound an alarm, to remind you of the powering o the motors. -
Page 18: Additional Instructions
Swift User Manual 10. Additional Instructions 10.1 Remote controller settings Attention: We strongly recommend that the default settings of remote controller are not changed. These setting changes are intended for senior pilots. Boot screen(Main interface) T1 \T2：Timer and setting menu FLY MODE: Current ight mode and setting menu TX/RX: Status and voltage settings menu Display actuator... - Page 19 Swift User Manual Main interface display. Making operation more easier and simple Sliding the screen to the right to check the channel status, Slide the screen to the left to check the sensor list. Click the wrench icon to enter the main menu. Slide the screen down to view the settings menu.
- Page 20 Swift User Manual End points The end points function changes the range of movement available to a channel. This can be used to limit the tilt of the Swift, therefore it is easier to control. The left box is the low end point, the right box is the high end point, marked below as low end point being blue and red being the high end point.
- Page 21 Swift User Manual output mode This function can select between the two output modes of the receiver, PWM mode and PPM mode. Select the applicable output mode according to requirements. The black dot icon indicates the currently selected mode. Below graphic Select [back] to save and return to the previous menu.
- Page 22 Swift User Manual display window Adjustment button Frequency：A,b, C,d,E Channel：1,2,3,4,5,6,7,8 Power：Blinking 1（25mW）,2(200mW),3(400mW) Power Switch-over：1（25mW）,2(200mW),3(400mW) Tuning Channels Once powering up the drone system, the current frequency will initially be displayed on the LED display, followed by the current channel, at-sight power is identi ed by blinking sequence of the red dot in the lower right corner.
- Page 23 Swift User Manual Power selection 1. Long press the button for 5s to enter into "Power switch-over" mode. The system will show the current power level, the number blinks slowly. 2. To enable the change of power level, short press the button once to select the desired power level from the following options: 1=(25mW) - 2=(200mW) 3=(400mW), the corresponding number will blink indicating the power level.
- Page 24 Please download and install the Clean ight in Google apps to adjust the ight controller. To adjust the ESCs, please download the application and documents at swellpro.com. Please Note: The power should be on when adjusting the ESCs. 10.6 LED indicator setting Factory default setting (the rear toward operator) The green indicators stay on solid after powering up the drone.
-
Page 25: Balance Charger - Instructions For Use
Swift User Manual To customize the LED light colors: For Detailed adjustment methods, please refer to the o cial website of the F3 Controller - (http://clean ight.com/ ) 11. Instructions for balance changer General speci cation of the balance changer Input voltage: AC100-240V Charging power : 35W Support battery: LiPo 2-4S... - Page 26 Swift User Manual Notice Do not leave the battery and charger unattended when charging. Place the charger in a dry and well ventilated place during charging. Do not charge waste , damaged or wet batteries. Do not charge di erent types of battery packs. Do not allow children under 15 years to use the charger, to avoid accidents.
- Page 27 Swift User Manual 12. Installation of Camera Mount 1. Using GoPro HERO 3,4 and 5 cameras. Loosen the screws and release the frame on the top of the camera. Fix the "G" mount on the top, with screws provided. Please ensure it is in the right direction.
-
Page 28: Installation Of Camera Mount
Swift User Manual 1. Runcam camera mount (Such as: GoPro HERO Session) Loosen the screws and release the frame on the top of the camera Fix the "R" mount on the top with screws in the right direction Fasten the camera with the strap, loosen the side screws, adjust the camera angle to your own preferred angle, and then tighten the screw. - Page 29 SWELLPRO TECHNOLOGY Co., LTD TEL：0755-82266175 Email: info@swellpro.com Address: D15.shengang Flower Center , Shohe West Road, ShenZhen, China 51800 V 1.1 2017.02.20 This manual is subject to renewal without prior notice.Please refer to the Swellpro o cial website for the latest version.
