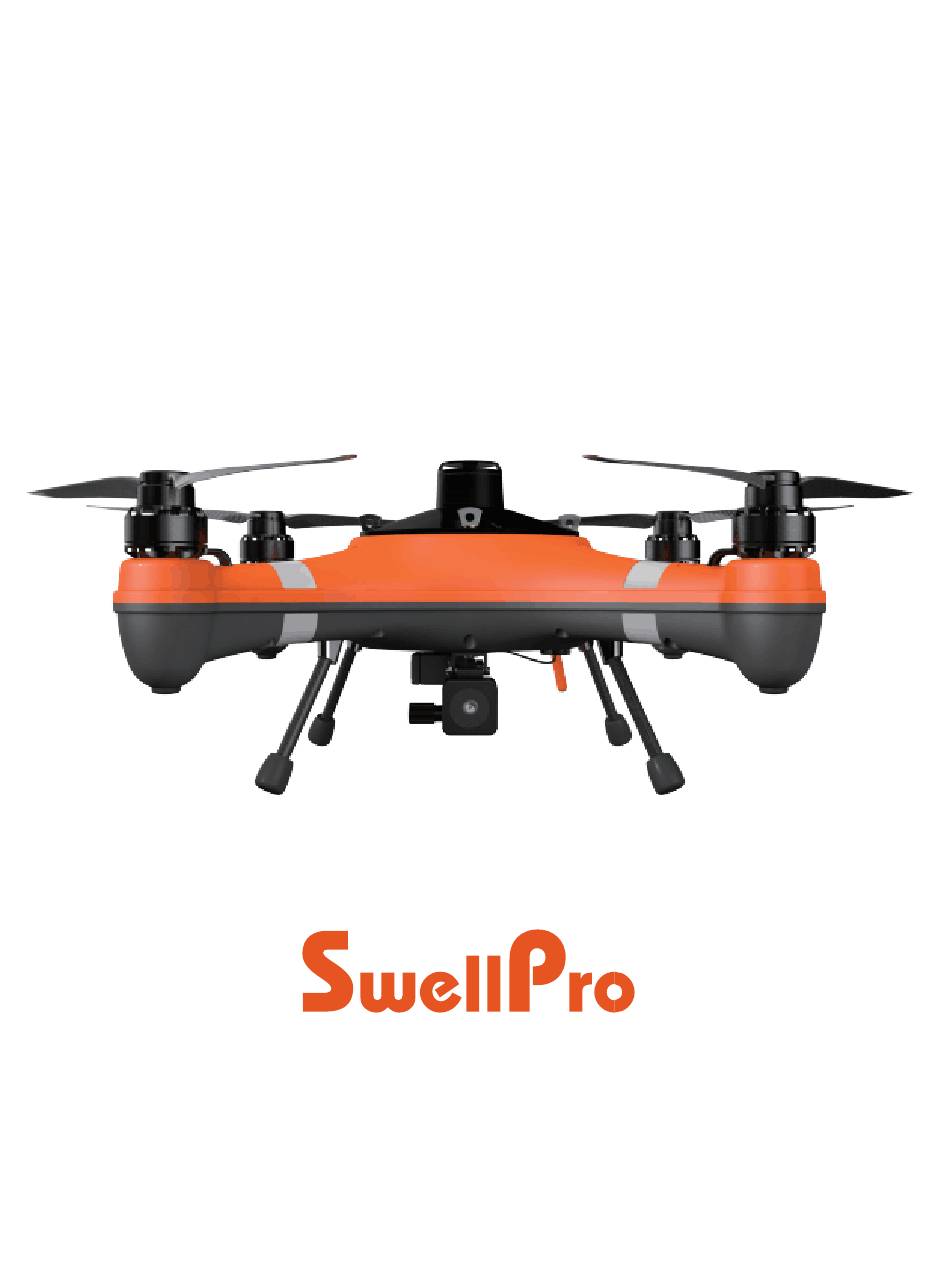

- Page 1 User Guide Visit www.swellpro.com for the latest version of this manual and firmware updates for your drone and accessories. V1.0 – June 2021...
-
Page 2: Thank You
Thank You Thank you for purchasing the SwellPro Fisherman (FD1). We have designed and manufactured the SwellPro Fisherman to the highest quality standards. Like any precision electronic device, long and trouble-free operations rely on proper care and maintenance. With proper care and maintenance, you should enjoy your drone for many years to come. -
Page 3: Social Media
Social Media Join our SwellPro Facebook page to meet other users who share their adventures with SwellPro. www.facebook.com/SwellPro/ Register Product Warranty Please register your product as soon as possible to ensure warranty coverage. https://www.SwellPro.com/info/register.html ©2021 SwellPro All Rights Reserved... -
Page 4: Table Of Contents
Using the Remote Controller ..............17 Flight ................... 20 Flight Safety and Environment ..............20 Flight Restrictions ..................21 Pre-Flight Checklist ..................21 Compass Calibration .................. 22 Gyroscope Calibration ................23 IMU Calibration ................... 24 Basic Flight Steps ..................25 ©2021 SwellPro All Rights Reserved... - Page 5 TrollSafe (Optional) ..................33 Appendix ................34 Specification ....................34 Flying Guide ....................35 Warranty Information .................. 36 Maintenance and Storage ................36 Battery Care and Maintenance ..............37 Disclaimer and Warning ................39 Version Information ..................40 ©2021 SwellPro All Rights Reserved...
-
Page 6: Product Overview
SwellPro Fisherman (FD1) is specifically designed by SwellPro for fishing enthusiasts and the drone fishing community. SwellPro has been focusing on the making of the world’s first and the best waterproof drones since 2015. Now, we put our focus on the making of the best fishing drone. -
Page 7: Aircraft Diagram
[11] Aircraft Head [02] GPS Cover Lock [07] Rubber Foot [12] Power Button [03] Propeller [08] Landing Gear [13] Payload Release [04] Motor [09] GPS Cover [05] Aircraft Status Indicator [10] Flight Control LED Indicator (see-through) ©2021 SwellPro All Rights Reserved... -
Page 8: Remote Controller Diagram
Drone GPS Location Accuracy ranges from 1-10 with 10 being the highest accuracy. A rating of 10 indicates a drone location accuracy <1m. 9=1.1 meters; 8=1.2 meters, 7=1.3 meters, 6=1.4 meters, 5=1.5 meters. In GPS mode, it is recommended to take off with at least 5. ©2021 SwellPro All Rights Reserved... -
Page 9: Remote Controller Screen
Voltage [07] Flight Mode (G: GPS/ H: Headless/ A: ATTI) [08] Remote Controller Signal [09] Remote Controller Battery Voltage [10] Pitch Angle [11] Yaw Angle [12] Latitude [13] Longitude [14] Flight Time [15] Roll Angle ©2021 SwellPro All Rights Reserved... -
Page 10: Install The Aircraft
[21] Hardware Version Install the Aircraft The SwellPro Fisherman has two pairs of propellers - two clockwise propellers and two counter-clockwise propellers. The hub of each motor shows the type of propeller used for that motor. Propellers should not be attached to the wrong motors. - Page 11 Before each flight, please check that the propellers are smooth all over and are correctly installed and securely fastened. Spin each propeller by hand to check that the motors are free of sand or salt and spin freely. ©2021 SwellPro All Rights Reserved...
- Page 12 2. Insert the battery into the aircraft chamber at an angle as shown above. 3. Tightly strap the battery with the Velcro strap. 4. Plug the yellow plug into the power port. Always strap the battery tightly to prevent the battery from moving or falling out. ©2021 SwellPro All Rights Reserved...
-
Page 13: Aircraft
2. GPS signal status indicators (green), which are on the rear arms. The red LED indicators are used to identify the head of the drone. All aircraft status indicators can be turned on or off on the APP setting. ©2021 SwellPro All Rights Reserved... -
Page 14: Low Battery Warning
3 red lights. The aircraft should plan to land the drone safely. The is going to proceed auto payload release, remote controller screen will prompt “Low then proceed to auto return-to-home. battery – Auto Landing”. ©2021 SwellPro All Rights Reserved... -
Page 15: Waterproof Barometric Membrane
Waterproof Barometric Membrane The waterproof barometric membrane is SwellPro’s featured technology. It allows air to pass through the internal chamber of the aircraft to ensure the barometer’s proper functioning yet keeps the water from getting in to ensure the SplashDrone 4’s all waterproof design. - Page 16 Remove the 3M paper from the waterproof barometric membrane and press it firmly on the barometric vent to ensure a tight seal. Attach the adhesive to the top cover and press it down over the waterproof barometric membrane. ©2021 SwellPro All Rights Reserved...
-
Page 17: Remote Controller
Power On/OFF Power On: Slide up Power Off: Slide down Flight Mode Switch G: GPS mode H: Headless mode A: ATTI mode Return to Home (RTH) Normal: RTH is off Return Home: turn on RTH ©2021 SwellPro All Rights Reserved... - Page 18 Throttle mode can be reconfigured on the remote controller, refer to the Remote Controller Diagram part for the reconfiguration steps. Default throttle mode is mode 2. Left Hand Throttle (Mode 2) Left Joystick Right Joystick ©2021 SwellPro All Rights Reserved...
- Page 19 Right-hand throttle (Mode 3) Left Joystick Right Joystick ©2021 SwellPro All Rights Reserved...
-
Page 20: Flight
Flight The drone relies on sensitive sensors to control flight positioning and stability. The SwellPro Fisherman is flight tested before shipment, however, an initial calibration of the compass is required for your first use. Before operating the drone from a ship or other moving platform, ensure all necessary calibrations have been completed before aboard as some calibrations require a completely stable surface. -
Page 21: Flight Restrictions
• Before flying in low temperatures, warm the battery to ~25℃ to maximize flight time. • Although the SwellPro Fisherman is waterproof, do not fly in fog or strong wind conditions. (For wind speed exceeding 20 m/s, or above Beaufort Force 8) -
Page 22: Compass Calibration
3. Pick up the aircraft and hold the drone horizontally and rotate clockwise about 2~3 turns until the rear indicators slowly flash green or the remote controller screen prompts “VERTICAL Calibration Clockwise NOSE DOWN”. ©2021 SwellPro All Rights Reserved... -
Page 23: Gyroscope Calibration
• The drone drifts during ascending or descending in GPS mode. • The drone has been crashed or subjected to the heavy shaking. • The remote controller screen prompts “WARNING Gyroscope error Calibrate Gyroscope”. Gyroscope Calibration Process: ©2021 SwellPro All Rights Reserved... -
Page 24: Imu Calibration
• The drone sways or drifts excessively during hovering in GPS mode. • The drone has been crashed or subjected to the heavy shaking. • The remote controller screen prompts "WARNING IMU error - Calibrate IMU". IMU Calibration Process ©2021 SwellPro All Rights Reserved... -
Page 25: Basic Flight Steps
11. After landing, keep the left(throttle) joystick down to its lowest position for 3 seconds until the motors stop, or you can use the disarm joystick command to stop the motors. ©2021 SwellPro All Rights Reserved... -
Page 26: Starting/Stopping Motors (Arming The Drone)
⚠Stopping the motors in flight may cause the drone to crash and should only be carried out in an emergency when stopping the motors will minimize potential damage. (For example, there is a risk that the drone ©2021 SwellPro All Rights Reserved... -
Page 27: Water Takeoff And Landing
• The Smooth+ controls are useful to finely control and balance the drone position during this operation. • For your safety, it is not recommended to launch or land the SwellPro Fisherman from your hands. ©2021 SwellPro All Rights Reserved... -
Page 28: Power Flip
In ATTI mode, the drone maintains a fixed height but not a fixed position. Therefore, when there is no input to the remote controller, the drone is going to drift with the wind while maintaining its height. The maximum flight speed is 20 m/s. ©2021 SwellPro All Rights Reserved... -
Page 29: Return To Home (Rth)
14.6V. The remote controller screen will prompt “LOW BATTERY; Return Aircraft”. Front drone status indicators will flash a pattern of 3 red lights. The aircraft is going to proceed auto payload release, then proceed to auto return-to-home. ©2021 SwellPro All Rights Reserved... - Page 30 Low battery auto payload release will be initiated when the aircraft reaches level 1 low battery warning. On level 1 low battery warning, the aircraft will automatically release the payload then initiates low battery auto Return-to- Home process. ©2021 SwellPro All Rights Reserved...
-
Page 31: Payload Module
2 kg. FPV Camera The FPV camera gives you a pair of eyes during drone fishing. The camera provides a WDR vision, together with SwellPro Goggle (GL1), you are going to search for where fishes are from above accomplish precision bait drop. -
Page 32: Swellpro Goggle (Gl1)
The modular, easy-to-assemble design allows you to enjoy the visual experience in different forms. Different ways of using SwellPro Goggle Remote Control Stand Detach the display module from the headset. The display module can be mounted to the remote control using the FD1 remote control connector. -
Page 33: Trollsafe (Optional)
TrollSafe (Optional) TrollSafe is an adjustable tension release module. When the tension exceeds the set tension, the attached bait is going to release. TrollSafe is great for bait luring. ©2021 SwellPro All Rights Reserved... -
Page 34: Appendix
#1242 carbon fiber quick release propellers Working Temperature -10℃ - 40℃ Battery 4S 15.2V 6500mAh LiHV Battery Weight 630 g Charge Time 90 min Remote Controller Weight 378 g (battery not included) Dimension 174*89*190 mm ©2021 SwellPro All Rights Reserved... -
Page 35: Flying Guide
• Unless it is an emergency, NEVER Lock or STOP the motors in flight as this will cause the drone to fall to the ground and crash. ©2021 SwellPro All Rights Reserved... -
Page 36: Warranty Information
Look for the "After-sales Service Policy" and submit a service request if needed. Maintenance and Storage ⚫ After flying over the sea, sand, or water, the SwellPro Fisherman and modules must be thoroughly washed with freshwater within 2 hours and dried - especially the motors, gimbals, and camera. -
Page 37: Battery Care And Maintenance
⚫ Never use or charge swollen, leaky, or damaged batteries. If your batteries are abnormal, please contact SwellPro or a SwellPro authorized dealer for further assistance. - Page 38 2 minutes, and take off after the battery is fully warmed up. Battery Charging ⚫ Always use a SwellPro approved charger to charge the battery of the drone, and the radio controller. SwellPro takes no responsibility if the battery is charged using a non- SwellPro charger.
-
Page 39: Disclaimer And Warning
SwellPro is exempt from the user's liabilities for damage(s) to person/s or property, or injuries incurred directly or indirectly from the use of this product in the following conditions: •... -
Page 40: Version Information
• Other Damage(s) or injuries that are not SwellPro's liability. Version Information SwellPro products are constantly improving, so as are the product user guides. It is recommended to visit www.swellpro.com to check and download the latest user guide.
