Sintra Bedside Table
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz

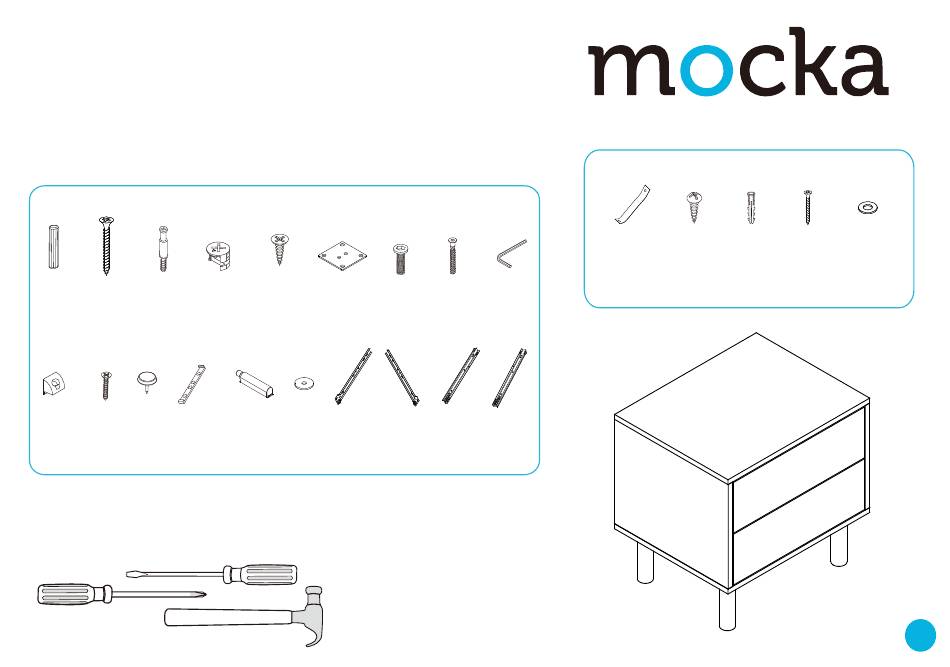

A
B
C
screw
bolt
dowel
locking
x10
x12
x14
nut x14
J
K
L
M
plastic
wedge
screw
bracket
x4
x2
x4
glide
x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
E
F
D
screw
bolt
bracket
x4
x16
x26
N
O
P
cover
slide
slide
seal
rail x2
rail x2
x2
x2
Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G
H
I
Allen
long
key
x8
bolt
x1
Q
R
S
slide
slide
rail x2
rail x2
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1
