Page 1 MODEL X 2015–2020 OWNER'S MANUAL Software version: 2022.12 North America...
Page 2 You can find safety information in your Model X Owner's Manual on the touchscreen. For detailed information about your Model X, go to the Tesla website for your region, log on to your Tesla account, or sign up to get an account.
Page 3: Table Of Contents
Active Spoiler.................. 81 Subsystems...................205 Towing and Accessories............. 82 Wheels and Tires................ 207 Cold Weather Best Practices.............91 Roadside Assistance........214 Autopilot..............93 Contacting Tesla Roadside Assistance........214 About Autopilot................93 Instructions for Transporters........... 215 Traffic-Aware Cruise Control............ 96 Consumer Information........218 Autosteer..................101 Navigate on Autopilot............... 106 About this Owner Information..........
Page 4: Overview
Exterior Overview 1. Exterior lights (Lights on page 2. Front doors (Keys and Doors on page 3. Falcon wing doors (Keys and Doors on page 4. Charge port (Charging Instructions on page 176) 5. Active spoiler (optional) (Active Spoiler on page 6.
Page 5: Interior Overview
Interior Overview 1. Interior door handles (Opening Doors from the Interior on page 2. Autopilot stalk (Traffic-Aware Cruise Control on page 96 Autosteer on page 101) 3. Turn signal stalk (High Beam Headlights on page Turn Signals on page Wipers and Washers on page 4.
Page 6 Interior Overview 18. Hazard warning lights (Hazard Warning Flashers on page 19. Cup holders (Cup Holders on page MODEL X Owner's Manual...
Page 7: Touchscreen Overview
Touchscreen Overview WARNING: Always pay attention to road and traffic conditions when driving. To minimize driver distraction and ensure the safety of vehicle occupants as well as other road users, avoid using the touchscreen to adjust settings while the vehicle is in motion. Use the touchscreen to control many features that, in traditional cars, are controlled using physical buttons (for example, adjusting the cabin heating and air conditioning, headlights, etc.).
Page 8 Touchscreen Overview Status of the front passenger airbag (see Airbags on page 42). Displays when a software update is available (see Software Updates on page 169). Add, configure, or quickly switch driver profiles (including Valet Mode and Easy Entry). See Driver Profiles on page Control or program HomeLink devices (if equipped) (see...
Page 9 Touchscreen Overview 9. Volume Control: Controls the volume of media player and phone calls (see Volume Controls on page 148). The volume of navigation instructions is controlled separately (see Maps and Navigation on page 143). Popup messages appear at the bottom of the touchscreen. For example, a seat belt reminder appears if a seat belt is unfastened in an occupied seat, an alert appears to notify you of an incoming phone call, a text message appears (when applicable), and voice commands appear when in use.
Page 10: Opening And Closing
Model X, with the use it. Model X has sensors around the driver's door that Tesla badge representing the front. The key fob has can recognize the presence of a key fob within a range three buttons on the top that feel like softer areas on the of approximately three feet (one meter).
Page 11 Follow these steps to replace it: ◦ Double-click to open/close the associated falcon wing door. NOTE: Tesla recommends replacing the battery in all key ◦ Single-click to stop movement of the associated fobs at the same time.
Page 12 If you lose a key fob or require an additional one, CAUTION: The battery should press against the contact Tesla. Model X can recognize up to eight key spring on the positive contact. Do not place the fobs.
Page 13 Keys and Doors the driver's door by double-clicking the key fob's lock/ unlock button. A subsequent double-click opens the front passenger door. You can also specify that you want to unlock only the driver's door when you shift into Park by touching Controls >...
Page 14 Keys and Doors Opening and Closing Falcon Wing Doors Model X has falcon wing doors that easily open and close by pressing a button, using a key fob, or touching the associated icon on the touchscreen. The falcon wing doors are equipped with several sensors that detect the presence of people and objects and, if an object is detected, the door stops moving.
Page 15 Keys and Doors NOTE: You can configure Model X to open the falcon Obstacle Detection wing doors to a lower height setting by using the touchscreen (Controls > Vehicle > Falcon Door Height). A falcon wing door stops moving when one of its many NOTE: If a falcon wing door detects an obstacle while sensors detects an obstacle, or when the door senses closing, it reverses a few inches before it stops moving.
Page 16 Keys and Doors Unlocking When the Key Fob NOTE: If a door or trunk is still open when you lock Model X, it locks when you close it. Doesn't Work Door Unlock Mode If Model X does not unlock when you walk up to it, or when you double-click the unlock button on the top of You can choose to unlock only the driver's door when your key fob, the key fob’s battery may be dead.
Page 17 Keys and Doors NOTE: Unlocking Model X using this method disables walk away locking. You must manually re-enable walk away locking after replacing the key fob’s battery. Opening Interior Doors with No Power If Model X has no electrical power, the front doors open as usual using the interior door handles.
Page 18: Windows
Windows Opening and Closing Press down on a switch to lower the associated window. Window switches operate at two levels: • To lower a window fully, press the switch all the way down and immediately release. • To lower a window partially, press the switch gently and release when the window is where you want it.
Page 19: Rear Trunk
Rear Trunk Opening If Model X detects a low ceiling (for example, in a garage), it opens the liftgate (and falcon wing doors) to a lower height, even if no obstacle is detected. You can To open the rear trunk, ensure Model X is in Park, then override this height by manually lifting it higher.
Page 20 Rear Trunk 1. Remove the cover by pulling its lower edge very firmly toward you. 2. Pull the cable to release the latch. 3. Push the rear trunk open. 3. Confirm that you have set it to the desired height by NOTE: The button glows for several hours after a brief closing the liftgate, then reopening it.
Page 21: Front Trunk
Front Trunk Opening To open the front trunk, ensure Model X is in Park, and then do one of the following before pulling the hood open: • Touch Controls > Front Trunk on the touchscreen. • Double-click the front trunk button on the key fob. •...
Page 22 1. Charge the low voltage battery (for instructions, contact Tesla). 2. Press the Front Trunk button on the touchscreen to reset the primary and secondary latches. MODEL X Owner's Manual...
Page 23: Interior Storage And Electronics
• USB 2.0 compatible. If using a USB 3.0 flash drive, it must support USB 2.0. • Properly formatted (described below). NOTE: In some market regions you can purchase recommended USB drives on http://www.tesla.com. Opening and Closing...
Page 24 Interior Storage and Electronics Formatting a USB Flash Drive The TeslaCam folder contains three sub-folders: • Recent Clips: When recording, Dashcam continuously To save and retrieve video footage, Model X requires a saves footage to Recent Clips in 60-minute cycles. USB flash drive formatted as exFAT, MS-DOS FAT (for Footage is overwritten every hour unless you Mac), ext3, or ext4 (NTFS is currently not supported).
Page 25 Interior Storage and Electronics NOTE: The wireless phone charger may not work if your phone case is too large or is made of metal. Try removing the phone from its case before placing in the charger. Low Voltage Power Socket Your Model X has a power socket located on the front of the center console.
Page 26 Interior Storage and Electronics Cup Holders To expose a front cup holder, slide back the armrest. To expose rear cup holders (if equipped), press and release the cup holder face plate located at the back of the center console. MODEL X Owner's Manual...
Page 27: Sun Visors
Sun Visors The sun visors in Model X are held in place by magnets. To protect occupants from sunlight coming through the windshield, release the sun visor from the pillar and pivot it toward the rear view mirror until the magnet snaps into place.
Page 28: Seating And Safety Restraints
Front and Rear Seats Correct Driving Position Adjusting the Front Seats The seat, head support, seat belt and airbags work together to maximize your safety. Using these correctly ensures greater protection. Position the seat so you can wear the seat belt correctly, while being as far away from the front airbag as possible: 1.
Page 29 Front and Rear Seats WARNING: Riding in a moving vehicle with the seat back reclined can result in serious injuries in a collision, as you could slide under the lap belt or be propelled into the seat belt. Ensure your seat back is reclined no more than 30 degrees when the vehicle is moving.
Page 30 Front and Rear Seats Adjusting Second Row Seat Backs Moving Second Row Bench Seats (Bench Seats) NOTE: Only bench seats in seven-seat vehicles can be moved forward and rearward. The bench seats in five- If your Model X is equipped with two seating rows, the seat vehicles are stationary.
Page 31 Front and Rear Seats Accessing Third Row Seats (if equipped) - Bench Seating A button is located on the backrest of each outboard bench seat in the second row. This button makes it easy for passengers to enter and exit the third row seating positions.
Page 32 Front and Rear Seats Folding Third Row Seat Backs (if WARNING: To avoid burns resulting from prolonged use, individuals who have peripheral equipped) neuropathy, or whose capacity to feel pain is limited because of diabetes, age, neurological injury, or some other condition, should exercise To fold a third row seat, press the button located in the caution when using the climate control system and top outside corner of the seat.
Page 33: Seat Belts
(such as a briefcase) from an unoccupied positioned correctly. seat. If the reminder light continues to stay on, contact Tesla. WARNING: Seat belts must be worn by passengers in all seating positions. To Fasten a Belt 1.
Page 34 The belt should not hang loose. If a seat belt does not fully retract, contact Tesla. Wearing Seat Belts When Pregnant Do not put the lap or shoulder sections of the seat belt over the abdominal area.
Page 35 Do not disassemble, remove, or replace components. If a seat belt fails any of these tests, contact Tesla immediately. For information about cleaning seat belts, see Seat Belts on page 191.
Page 36: Child Safety Seats
Child Safety Seats Guidelines for Seating Children Your Model X seat belts are designed for adults and larger children. You must restrain infants and small children in rear seats only, and you must use a suitable child safety seat appropriate for the child’s age, weight, and size. Never use child safety seats in the front passenger seat.
Page 37 Child Safety Seats Choosing a Child Safety Seat All children age 12 and under should ride in the second and third row seats. Always use a child safety seat suitable for a young child’s age and weight. The following table is based on child safety seat recommendations determined by the National Highway Traffic Safety Administration (NHTSA) in the United States (for more information, go to www.nhtsa.gov/equipment/car-seats-and-booster-seats).
Page 38 Child Safety Seats Installing Seat Belt Retained Child Seats First, make sure that the child safety seat is appropriate for the weight, height, and age of the child. Avoid dressing the child in bulky clothing and do not place any objects between the child and the restraint system.
Page 39 Child Safety Seats In the second row, install LATCH child safety seats in the outboard seating positions only. Use only a seat belt retained seat in the center position. NOTE: If Model X is equipped with two seats in the second row, both seats support the use of LATCH child safety seats.
Page 40 Child Safety Seats NOTE: To accommodate large rear-facing LATCH child safety seats, you may need to move the seat in the full rearward position, and move the corresponding front seat forward to the mid-track position (up to 13 cm forward of the rearmost position), raise the seat upward (3 cm from its lowest position), and angle the seat back to 15 degrees (or 10 degrees rearward from its forward- most position).
Page 41 Child Safety Seats Once installed, test the security of the installation before seating a child. Attempt to twist the child safety seat from side to side and try to pull it away from the seat, then check to ensure the anchors remain securely in place.
Page 42 Child Safety Seats For single-strap tethers, position the strap in the outboard seating positions over the outside-facing side of the head restraint (the same side of the head restraint as the seat belt retraction mechanism). In the center seating position (if equipped), center and position the Single Strap - Third Row Seats strap over the top of the head restraint.
Page 43 Child Safety Seats Child Safety Seat Warnings WARNING: Extreme hazard! Do not seat a child on the front passenger seat even if you are using a child safety seat. This seat has an airbag in front of it. Although this airbag is disabled when Model X detects a lightweight passenger, do not rely on technology to protect your child.
Page 44: Airbags
Airbags Location of Airbags Airbags are located in the approximate areas shown below. Airbag warning information is printed on the sun visors. Model X is equipped with an airbag and lap/shoulder belt at both front seating positions. The airbag is a supplemental restraint at those seating positions.
Page 45 ON. When the passenger accommodate a person with disabilities in a way airbag is ON, it may inflate when a that may affect the airbag system, contact Tesla. collision occurs. Types of Airbags Model X has the following types of airbags: •...
Page 46 These conditions can interfere with the occupancy sensor. If you have eliminated the above possibilities, and the airbag status is still incorrect, ask passengers to ride in the rear seats and contact Tesla to have the airbag system checked.
Page 47 If you have eliminated the above possibilities, on the floor: and the airbag status is still incorrect, instruct passengers to ride in the rear seats and contact Tesla to have the airbag system checked. NOTE: Tesla follows NHTSA (National Highway Traffic...
Page 48 If airbags have inflated, or if your vehicle has been in a collision, always have the airbags, seat belt pre- tensioners and any associated components checked and, if necessary, replaced by Tesla. In a collision, in addition to the airbags inflating: • Doors and liftgate unlock.
Page 49 WARNING: Following inflation, some airbag a few seconds. If it remains lit, contact components are hot. Do not touch until they have Tesla immediately and do not drive. cooled. Airbag Warnings WARNING: All occupants, including the driver,...
Page 50: Driving
Driver Profiles Creating a Driver Profile Selecting Between Driver Profiles When you first adjust the driver’s seat, steering wheel To adjust Model X based on a driver’s position, or exterior side mirrors, the touchscreen profile, touch the driver profile icon at the prompts you to create a driver profile to save these top of the touchscreen.
Page 51 NOTE: The PIN to Drive setting is not available when Valet mode is active. If you forget your valet PIN, reset it from inside Model X by entering your Tesla Account credentials (which also cancels Valet mode). You can also reset your PIN using the mobile app.
Page 52: Steering Wheel
◦ To mute the media volume, or to pause/play an drive and park. audio file, tap the scroll button. ◦ Standard - Tesla believes that this setting offers ◦ To choose what displays on the left side of the the best handling and response in most instrument panel, hold the scroll button briefly conditions.
Page 53 Steering Wheel NOTE: Regardless of how you customize the left side of ◦ Suspension. Display a real-time visualization of the instrument panel, it automatically changes to display how the suspension system is dynamically navigation instructions (if applicable), or to let you know adjusting each wheel’s damping to account for if a door or trunk is open when Model X is in Drive or changing road conditions.
Page 54 Steering Wheel MODEL X Owner's Manual...
Page 55: Mirrors
Mirrors Adjusting Exterior Mirrors The driver’s side mirror automatically dims at night, in proportion to the level of glare from the headlights of a vehicle behind you (except when in Reverse). Also, both Press the button associated with the mirror you want to exterior side mirrors have heaters that turn on and off adjust (left or right).
Page 56: Starting And Powering Off
Key Fob Battery on page 9. Or try using another key fob. If another key fob does not work, contact Tesla. A number of factors can affect whether Model X can detect the key fob. These include a low battery in the key fob, interference from other devices using radio signals, and objects between the key fob and receiver.
Page 57 Starting and Powering Off 3. After a few seconds, the Tesla logo appears. Wait approximately 30 seconds for the touchscreen to restart. If the touchscreen is still unresponsive or demonstrating unusual behavior after a few minutes, try power cycling the vehicle. See...
Page 58: Shifting
Shifting How to Shift Park Press the end of the drive stalk while Model X is When Model X is in Park, you must press the brake pedal stopped. to shift. Move the drive stalk up or down to shift into different drive modes.
Page 59: Lights
Lights Controlling Lights The front fog indicator displays on the instrument panel whenever the optional front fog lights are on. Touch Controls > Lights to control the lights. In addition to the lights that you can control from the touchscreen, Model X has convenience lights that turn NOTE: Depending on the market region and vehicle on and off automatically based on what you are doing.
Page 60 If the AFS fails, the instrument panel High beam headlights are on. Illuminates displays an alert. Contact Tesla Service. when high beams are on but the Auto High Beam setting is turned off or if the Auto High Beam setting is turned on but is temporarily unavailable.
Page 61 Lights The turn signals stop operating when canceled by the steering wheel, or when you return the stalk to the central position. When a turn signal is operating, the corresponding turn signal indicator lights up on the instrument panel and a clicking sound can be heard.
Page 62: Instrument Panel
When you press the brake, indicator lights flash on briefly along the top. Unless an indicator light applies to a current situation, it should turn off. If an indicator light fails to turn on or off, contact Tesla. NOTE: The following illustration is provided for demonstration purposes only. Depending on vehicle options, software version, and market region, the information displayed may be slightly different.
Page 63 Traction Control on page 70. If this indicator remains on, a fault is detected and you should immediately contact Tesla. If a fault is detected that reduces the performance of the air suspension system, this amber indicator light displays (see Air Suspension on page 157).
Page 64 Vehicle Hold on page Tire pressure warning. The pressure of a tire is out of range. If a fault with the Tire Pressure Monitoring System (TPMS) is detected, the indicator flashes. For a TPMS fault, contact Tesla. See Tire Care and Maintenance on page 184.
Page 65 Instrument Panel Flashes green when the right turn signal is operating. Both turn signal indicators flash green when the hazard warning flashers are operating. Driving...
Page 66 Instrument Panel Instrument Panel - Driving When Model X is driving (or ready to drive), the instrument panel shows your current driving status and a real-time visualization of the road as detected by the Autopilot components (see About Autopilot on page 93).
Page 67 Instrument Panel NOTE: Use the right steering wheel buttons to control what displays on the right side of the instrument panel (see Using Right Steering Wheel Buttons on page 51). 8. Pay attention to important alert messages that display here. If any alerts are in effect, you can view information about them by touching the alert icon (exclamation mark) on the touchscreen’s status bar (the topmost area of the touchscreen).
Page 68: Wipers And Washers
NOTE: The Auto setting is currently in BETA. If uncertain about using the Auto setting while in the BETA phase, Tesla recommends operating the wipers manually, as necessary. NOTE: You can also adjust the windshield wiper speed...
Page 69: Braking And Stopping
Hazard Warning Flashers on page 59). of the brake fluid is low. Contact Tesla immediately. Apply steady pressure and NOTE: When towing a trailer (if applicable), the brake keep the brakes firm to bring the vehicle to lights on the trailer also operate as described above, a stop when safe to do so.
Page 70 Model X slows down, reducing the braking, particularly when in the Standard setting need to use the brakes. and/or not using winter tires. Tesla recommends ◦ Low: Limits regenerative braking. When you using the Low setting (see To Set the Regenerative...
Page 71 CAUTION: In the unlikely event that Model X loses electrical power, you cannot access the touchscreen and are therefore unable to release the parking brake. Contact Tesla. WARNING: In snowy or icy conditions the rear wheels may not have sufficient traction to prevent Model X from sliding down a slope, particularly if not using winter tires.
Page 72: Traction Control
If the indicator stays on, a fault is detected with the traction control system. Contact Tesla Service. WARNING: Traction control cannot prevent collisions caused by driving dangerously or turning too sharply at high speeds.
Page 73: Park Assist
Park Assist How Park Assist Works WARNING: Never depend on Park Assist to inform you if an area you are approaching is free of objects and/or people. Several external factors can Model X has several sensors designed to detect the reduce the performance of Park Assist, causing presence of objects.
Page 74 Park Assist To mute the chimes temporarily, touch the speaker icon in the bottom corner of the Park Assist view. The chimes are muted until you shift or drive over 5 mph (8 km/h). Limitations and False Warnings The parking sensors may not function correctly in these situations: •...
Page 75: Vehicle Hold
Vehicle Hold When Model X is stopped, Vehicle Hold can continue to apply the brakes even after you remove your foot from the brake pedal. When driving on a hill or on a flat surface, brake as you normally would. After coming to a complete stop, simply press the brake pedal again (until the instrument panel displays the Vehicle Hold indicator light) to enable Vehicle Hold.
Page 76: Acceleration Modes
Acceleration Modes The acceleration settings available on your Model X vary While the battery is being heated, the touchscreen depending on options chosen at time of purchase: displays a status message providing you with an approximate wait time, and letting you know when the additional power is available.
Page 77 Acceleration Modes WARNING: Use Launch Mode only in appropriate locations where there is no cross traffic or pedestrians present. Launch Mode is designed for use on closed circuit driving courses. It is the driver’s responsibility to ensure that driving style and acceleration do not endanger or inconvenience other road users.
Page 78: Trip Information
Trip Information Displaying Trip Information Trip information displays on the touchscreen when you touch Controls > Trips. For the current trip, you can display distance, duration and average energy usage. You can also show distance and total and average energy used since your last charge and for additional trips.
Page 79: Getting Maximum Range
• Sentry mode. • Minimize the use of DC chargers (such as Superchargers) for optimal Battery health. • Tesla or third-party mobile app requests. It is normal for estimated range to decrease slightly over Tips to Maximize Range the first few months before leveling off. Over time, you may see a gradual, but natural, decrease in range at full charge –...
Page 80 Getting Maximum Range Range Assurance NOTE: The Trip chart displays energy usage only if you are currently navigating to a destination. The driving range displayed in Model X is based on Range Mode estimated remaining battery energy and EPA-rated consumption. It does not account for your personal driving patterns or external conditions.
Page 81: Rear Facing Camera(S)
Rear Facing Camera(s) Camera Location Cleaning a Camera To ensure a clear picture, the camera lens must be clean Model X is equipped with a rear view camera located and free of obstructions. Remove any build-up of dirt or above the rear license plate. debris by spraying water onto the camera lens with a spray bottle or pressure washer.
Page 82: Pedestrian Warning System
WARNING: If sound cannot be heard, pedestrians may not be aware of your oncoming vehicle, which may increase the likelihood of a collision resulting in serious injury or death. If the Pedestrian Warning System is not operating, immediately contact Tesla. MODEL X Owner's Manual...
Page 83: Active Spoiler
Controls > Service > Spoiler Mode > Automatic. To disable automatic movement of the spoiler and keep it in its extended position, choose the Extended setting. NOTE: If the spoiler can not automatically lower or raise, the instrument panel displays an alert. Contact Tesla Service. Driving...
Page 84: Towing And Accessories
NOTE: Go to www.tesla.com to purchase accessories for your Model X. Although third-party products are available, Tesla recommends and supports only Tesla-...
Page 85 SAE Class II - 3500 lb (1588 kg) *Tesla recommends a separate braking system on trailers with a loaded weight of over 1000 lbs (450 kg). The braking system must be appropriate for the weight of the trailer. Follow the instructions provided by the trailer brake manufacturer to ensure that trailer brakes are properly installed, adjusted, and maintained.
Page 86 Towing and Accessories Tire Pressures when Towing • Model X rests horizontally with the trailer attached. If the vehicle is tipped up at the front, and down at the rear, check that you are not exceeding the maximum When towing a trailer, tire pressures must be adjusted to towing capacity and tongue loads provided in accommodate the additional load.
Page 87 When towing a loaded trailer that weighs more than connected. 1000 lbs (450 kg), Tesla recommends that the trailer be equipped with its own brake system adequate for the weight of the trailer. Ensure compliance with local Model X detects a faulty electrical regulations.
Page 88 WARNING: Follow the instructions provided by the trailer brake manufacturer to ensure that trailer brakes are properly installed, adjusted, and maintained. Tesla is not responsible for damages caused by incorrect installation of trailer braking systems. WARNING: Never attempt to connect trailer brakes directly to the vehicle braking system.
Page 89 Towing and Accessories Parking with a Trailer NOTE: The trailer hitch assembly is attached to the body of the vehicle with 8 nuts. Whenever possible, avoid parking on a grade. However, if parking on a grade is absolutely necessary, place wheel chocks under the trailer wheels: •...
Page 90 Towing and Accessories NOTE: Tesla recommends making a note of the key code. You need this code if you lose the keys and need to order a replacement. 9. Close the dust cover to prevent dirt and debris from entering the lock. For newer version with push clips,...
Page 91 Towing and Accessories To attach a ball mount: 1. If necessary, remove the cotter pin from the locking bolt and slide the locking bolt out of the hitch assembly. 2. Slide the ball holder into the hitch assembly. 3. Align the hole in the ball holder with the one in the hitch assembly.
Page 92 Towing and Accessories WARNING: Use only the electrical connection designed by Tesla. Do not attempt to directly splice or attempt to connect trailer electrical wiring using any other method. Doing so can damage the vehicle electrical system and cause malfunctions.
Page 93: Cold Weather Best Practices
Supercharging due every 10° F (6° C) drop in outside temperature (see Tire to the latch being frozen in place, use your Tesla Care and Maintenance on page 184). Proper tire mobile app to precondition on HI for approximately...
Page 94 Battery temperature is optimal and ready to charge. This reduces the amount of time it takes to charge. Storage NOTE: Tesla recommends using Trip Planner to navigate to a Supercharger for at least 30-45 minutes before If you leave Model X parked for an extended period of...
Page 95: Autopilot
About Autopilot How It Works Your Model X includes the following components that actively monitor the surrounding area: 1. A camera is mounted above the rear license plate. 2. Ultrasonic sensors are located in the front and rear bumpers. 3. A camera is mounted in each door pillar. 4.
Page 96 Contact • Collision Avoidance Assist (see Collision Avoidance Tesla only if your Model X has not completed the Assist on page 127) calibration process after driving 100 miles (160 km) in •...
Page 97 • Extremely hot or cold temperatures. CAUTION: If a windshield replacement is needed, take your vehicle to Tesla Service. This ensures appropriate handling and mounting of the camera(s). Failure to do so can cause one or more Autopilot features to malfunction.
Page 98: Traffic-Aware Cruise Control
Traffic-Aware Cruise Control NOTE: Depending on market region, vehicle detected ahead of you, you can initiate Traffic-Aware configuration, options purchased, and software version, Cruise Control at any speed, even when stationary, your vehicle may not be equipped with Traffic-Aware provided Model X is at least 5 feet (150 cm) behind the Cruise Control, or the feature may not operate exactly as detected vehicle and certain vehicle and environmental described.
Page 99 Traffic-Aware Cruise Control WARNING: Do not rely on Traffic-Aware Cruise To increase/decrease speed by 1 mph (1 km/h), move the Control or Speed Assist to determine an stalk up or down to the first position and release. To accurate or appropriate cruising speed. It is the increase/decrease speed to the closest 5 mph (5 km/h) driver's responsibility to cruise at a safe speed increment, move the stalk up/down to the second...
Page 100 5 mph (5 km/h) increments – to as slow as collision can result in serious injury or death. 25 mph (40 km/h) – to better match the reported speeds of other Tesla vehicles that have driven at that HOLD State specific location. To override this and continue cruising...
Page 101 Traffic-Aware Cruise Control • You reach your set cruising speed. • Changing lanes takes too long. • Model X gets too close to the vehicle ahead. • You disengage the turn signal. As you rotate the Autopilot stalk, the instrument panel displays the current setting.
Page 102 Traffic-Aware Cruise Control When Traffic-Aware Cruise Control is unavailable or cancels, Model X no longer drives consistently at a set speed and no longer maintains a specified distance from the vehicle ahead. WARNING: Traffic-Aware Cruise Control can cancel unexpectedly at any time for unforeseen reasons. Always watch the road in front of you and stay prepared to take appropriate action.
Page 103: Autosteer
Autosteer NOTE: Depending on market region, vehicle configuration, options purchased, and software version, your vehicle may not be equipped with Autosteer, or the feature may not operate exactly as described. NOTE: Autosteer is a BETA feature. Autosteer builds upon Traffic-Aware Cruise Control (see Traffic-Aware Cruise Control on page 96), intelligently keeping Model X in its driving lane when cruising at a set...
Page 104 Autosteer In situations where Autosteer is temporarily unavailable, Apply slight turning force to steering the Autosteer icon disappears. For example, your driving wheel speed is not within the speed required for Autosteer to operate. Autosteer may also be unavailable if it is not receiving adequate data from the camera(s).
Page 105 Autosteer WARNING: Do not use Auto Lane Change on • You press the brake pedal. winding roads with sharp curves, on icy or slippery • You start steering manually. roads, or when weather conditions (such as heavy rain, snow, fog, etc.) may be obstructing the view •...
Page 106 Autosteer In situations where Auto Lane Change is unable to CAUTION: Stop Light and Stop Sign Warning operate at optimal performance, or cannot operate due requires on-board maps to know that a particular to inadequate data, the instrument panel displays a stop light or stop sign exists at a location.
Page 107 Autosteer • A vehicle is detected in your blind spot when you engage the turn signal. • Model X is being driven very close to a vehicle in front of it, which is blocking the view of the camera(s). WARNING: Many unforeseen circumstances can impair the operation of Autosteer.
Page 108: Navigate On Autopilot
Navigate on Autopilot NOTE: Depending on market region, vehicle change lanes to achieve the set cruising speed. The configuration, options purchased, and software version, Mild setting is more conservative about lane changes your vehicle may not be equipped with Navigate on and may result in a slightly longer driving time Autopilot, or the feature may not operate exactly as whereas Mad Max is designed to allow you to reach...
Page 109 Navigate on Autopilot Navigate on Autopilot activates and deactivates as WARNING: Navigate on Autopilot may not always appropriate, based on the type of road you are driving attempt to exit at an off-ramp or change lanes, on. For example, if Autosteer is active and Navigate on even when an exit or lane change is determined by Autopilot is enabled, Navigate on Autopilot the navigation route.
Page 110 Navigate on Autopilot WARNING: Navigate on Autopilot may not always attempt to exit at an off-ramp or change lanes, even when an exit or lane change is determined by the navigation route. Always remain alert and be prepared to manually steer onto an off-ramp, or make a lane change to prepare for, or to exit at, an off-ramp or interchange.
Page 111: Traffic Light And Stop Sign Control
How it Works driven by Tesla vehicles. Traffic Light and Stop Sign Control attempts to stop at all traffic lights and may also When Traffic Light and Stop Sign Control is enabled and stop at green lights.
Page 112 Traffic Light and Stop Sign Control WARNING: Traffic Light and Stop Sign Control is • The instrument panel on Model X is displaying an not a substitute for attentive driving and sound upcoming traffic light in "bold" format. Model X does judgment.
Page 113 Traffic Light and Stop Sign Control Traffic Lights When driving with Autosteer or Traffic-Aware Cruise Control engaged, and Traffic Light and Stop Sign Control enabled, Model X is designed to respond as follows when approaching intersections controlled by a traffic light: Type of Traffic Light Vehicle Intended Response At a solid green traffic light, or at a traffic light that is currently off (not...
Page 114 Traffic Light and Stop Sign Control Type of Traffic Light Vehicle Intended Response Model X slows down. To proceed, you must pull the Autopilot stalk toward you or briefly press the accelerator pedal. If you don’t, Model X stops at the red stop line displayed on the instrument panel.
Page 115 Traffic Light and Stop Sign Control Stop Signs and Road Markings When driving with Autosteer or Traffic-aware Cruise Control engaged, and Traffic Light and Stop Sign Control enabled, Model X is designed to respond as follows when approaching intersections controlled by stop signs, stop lines, or road markings: Type of Intersection Vehicle Intended Response...
Page 116 Traffic Light and Stop Sign Control Type of Intersection Vehicle Intended Response Stop Sign and Road Marking Road Marking WARNING: Model X also slows down and stops at a roundabout. You must take over steering (which cancels Autosteer) and pull the Autopilot stalk toward you or briefly press the accelerator pedal to confirm that you want to continue through the roundabout.
Page 117 Traffic Light and Stop Sign Control • Bright light (such as direct sunlight) is interfering with the view of the camera(s). • A camera is obstructed, covered, damaged, or not properly calibrated. • Driving on a hill or on a road that has sharp curves on which the cameras are unable to see upcoming traffic lights or stop signs.
Page 118: Autopark
Autopark To Use Autopark NOTE: Depending on market region, vehicle configuration, options purchased, and software version, your vehicle may not be equipped with Autopark. When driving, follow these steps to allow Autopark to maneuver Model X into a parking space: Autopark uses data from the cameras and ultrasonic sensors and GPS to simplify parking on public roads by 1.
Page 119 Autopark To Pause Parking To pause Autopark, press the brake pedal once. Model X stops and remains stopped until you touch Resume on the touchscreen. To Cancel Parking Autopark cancels the parking sequence when you manually move the steering wheel, shift, or touch Cancel on the touchscreen.
Page 120: Summon
Summon NOTE: Depending on market region, vehicle WARNING: Parking in a narrow space limits the configuration, options purchased, and software version, ability of the sensors to accurately detect the your vehicle may not be equipped with Summon, or the location of obstacles, increasing the risk of feature may not operate exactly as described.
Page 121 Summon WARNING: Model X cannot detect obstacles that • Align Model X within 39 feet (12 meters) of the are located lower than the bumper, are very parking space so Model X can follow a straight path narrow, or are hanging from a ceiling (for example, into or out of the space in either Drive or Reverse.
Page 122 Summon NOTE: To cancel the parking maneuver before exiting the vehicle, touch Cancel on the popup screen. NOTE: If you do not choose a direction of travel on the touchscreen, Summon does not start a parking maneuver when you exit. Stopping or Canceling Summon Stop Model X at any time while Summon is active by using the mobile app or by pressing any button on the...
Page 123: Smart Summon
NOTE: The map also has an icon that allows you to display/hide satellite imagery. • Download the latest version of the Tesla mobile app to your phone, and ensure your phone has cellular service and GPS enabled.
Page 124 Smart Summon Standby Mode Immediately after initiating Smart Summon in either mode, hazard lights briefly flash, mirrors fold, and Model X shifts into Drive or Reverse. Model X then slowly To keep Model X ready to Summon and reduce the time moves to within 3 feet (1 meter) of you (COME TO ME) it takes to warm up, turn on Standby Mode.
Page 125 Smart Summon Limitations Smart Summon is unlikely to operate as intended in the following types of situations: • GPS data is unavailable due to poor cellular coverage. • The driving path is sloped. Smart Summon is designed to operate on flat roads only (up to 10% grade).
Page 126: Active Safety Features
Lane Assist Steering Interventions Model X monitors the markers on the lane you are driving in as well as the surrounding areas for the presence of vehicles or other objects. Lane Assist provides steering interventions if Model X drifts into (or close to) an adjacent lane in which an When an object is detected in your blind spot or near object, such as a vehicle, is detected.
Page 127 Lane Assist Emergency Lane Departure • Lane markings are excessively worn, have visible previous markings, have been adjusted due to road Avoidance construction, or are changing quickly (for example, lanes branching off, crossing over, or merging). Emergency Lane Departure Avoidance automatically •...
Page 128 Lane Assist • Lane markings are excessively worn, have visible previous markings, have been adjusted due to road construction or are changing quickly (for example, lanes branching off, crossing over, or merging). WARNING: The lists above do not represent every possible situation that may interfere with Lane Assist features.
Page 129: Collision Avoidance Assist
Collision Avoidance Assist The following collision avoidance features are designed to increase the safety of you and your passengers: • Forward Collision Warning - provides visual and audible warnings in situations when Model X detects that there is a high risk of a frontal collision (see Forward Collision Warning on page 127).
Page 130 Collision Avoidance Assist Automatic Emergency Braking WARNING: Several factors can affect the performance of Automatic Emergency Braking, causing either no braking or inappropriate or Model X is designed to determine the distance from a untimely braking, such as when a vehicle is detected object traveling in front of it.
Page 131 It is the driver’s responsibility to avoid collisions by staying alert, paying attention, and taking corrective action as early as possible. CAUTION: If a fault occurs with a Collision Avoidance Assist feature, Model X displays an alert. Contact Tesla Service. Active Safety Features...
Page 132: Speed Assist
Speed Assist How Speed Assist Works • Off - Speed limit warnings do not display and chimes are not sounded. Model X displays a speed limit on the instrument panel • Display - Speed limit signs display on the instrument and you can choose if and how you are warned when panel and the sign increases in size when you exceed you exceed the speed limit.
Page 133 Speed Assist • Traffic signs do not conform to standard recognizable formats. • A road or a speed limit has recently changed. WARNING: The list above does not represent an exhaustive list of situations that may interfere with proper operation of Speed Assist. Speed Assist may fail to provide warnings for many other reasons.
Page 134: Using The Touchscreen
Controls Controls - Overview Steering Mode: Adjust the amount of effort required to turn the steering wheel (see Adjusting Steering Effort on page 50). Touch Controls on the bottom corner of the touchscreen to control features and Regenerative Braking: When you release the accelerator customize Model X to suit your when driving, regenerative braking slows Model X and preferences.
Page 135 Controls Charging • Set Speed: When you engage Traffic-Aware Cruise Control or Autosteer, choose whether you want the initial cruising speed set to the Speed Limit or your View charging status and adjust settings related to Current Speed (see Traffic-Aware Cruise Control on charging Model X (see Charging Instructions on page page...
Page 136 Park . Display Car Left Open Notification: Choose whether you want Model X to send a notification to your Tesla mobile app if your car remains open for over approximately 10 Customize characteristics of the touchscreen and minutes after you have left: instrument panel: •...
Page 137 Tire Pressure: Choose to display tire pressures using Safety BAR or PSI. Trips Allow Mobile Access: Allow your Tesla mobile app to access your Model X (see Mobile App on page 171). View the odometer and view and reset up to two trip...
Page 138 Dashcam, Sentry Mode , if equipped (see USB Drive Tesla elsewhere (for example, via the web). Requirements for Recording Videos on page 21). Towing: Prepare Model X to be transported by keeping it...
Page 139 HomeLink programming, etc.) and restore all settings to their factory defaults. This is useful when transferring ownership of Model X. Before erasing, you must enter the credentials for your Tesla account. Jack Mode: Disables self-leveling of the air suspension system.
Page 140: Climate Controls
Climate Controls Overview of Climate Controls Climate controls are available at the bottom of the touchscreen. By default, climate control is set to Auto, which maintains optimum comfort in all but the most severe weather conditions. When you adjust the cabin temperature while in the Auto setting, the system automatically adjusts the heating, air conditioning, air distribution, and fan speed to maintain the cabin at your selected temperature.
Page 141 Climate Controls NOTE: For one-touch access to seat heaters and defrosters, you can add these controls to My Apps. See Customizing My Apps on page 1. Touch to turn the climate control system on or off. 2. Touch Auto to turn the Auto setting on or off. 3.
Page 142 Climate Controls 10. Touch the passenger's side seat icon to adjust seat heaters for the front passenger. The seat operates at three levels from 3 (highest) to 1 (lowest). For one-touch access to seat heaters, you can add them to the touchscreen's bottom bar (see Customizing My Apps on page 11.
Page 143 Camp. Never rely on your vehicle to protect you can play music, browse the internet, play games in something irreplaceable. the arcade, or watch shows in Tesla Theater. You can also control media and climate settings from a paired WARNING: You can adjust and monitor the climate phone.
Page 144 Climate Controls NOTE: Cabin Overheat Protection operates until 12 hours has elapsed since you exited Model X, or until the Battery energy drops below 20%, whichever comes first. WARNING: Never leave children or pets in the vehicle unattended. Due to automatic shut-off or extreme outside conditions, the inside of the vehicle can become dangerously hot, even when Cabin Overheat Protection is enabled.
Page 145: Maps And Navigation
NOTE: Touching this icon while proximity of the corresponding stations on navigating to a destination displays the the map. Charging locations include Tesla route overview. Superchargers, destination charging sites, third-party fast chargers, and public The route overview is available when you chargers that you have used previously.
Page 146 Android™ device using the "share" functionality on This volume setting applies only to the navigation your device after allowing access to the Tesla mobile system's spoken instructions. Volume for Media app. Player and Phone is not changed.
Page 147 Maps and Navigation I'm Feeling Lucky, Hungry If Navigate on Autopilot (if available in your market region) is enabled, you can turn it on for the navigation route by touching Navigate on Autopilot in the turn-by- NOTE: "I'm Feeling Lucky" and "I'm Feeling Hungry" may turn direction list.
Page 148 Maps and Navigation NOTE: Once a Home or Work location is saved, Model X The Supercharger location is experiencing may prompt you to navigate to your Work location in a high volume of users and you may need the mornings and to your Home location in the evenings to wait before charging.
Page 149 Maps and Navigation Predicting Energy Usage When Trip Planner is enabled and charging is required to reach your destination, the turn-by-turn direction list includes Supercharger stops, recommended charging When navigating to a destination, Model X helps you times at each Supercharger, and an estimate of how anticipate your charging needs by calculating the much energy will be available when you arrive at the amount of energy that remains when you reach your...
Page 150: Media
(for example, Wi-Fi or Premium functions associated with what's playing. Connectivity). For some media services, you can use a default Tesla account. For others, you may need to enter Media Player displays content and options associated account credentials the first time you use it.
Page 151 Media • Tone: Drag the sliders to adjust the subwoofer and To add a currently playing station, podcast, any of the five frequency bands (Bass, Bass/Mid, Mid, or audio file to your Favorites list, touch Mid/Treble, and Treble). If equipped with premium the Favorites icon on Media Player.
Page 152 Media Your Bluetooth device begins playing the audio file that is currently active on your device. If no audio file is playing, use your device to choose the audio file you want to listen to. When the chosen file begins to play, you can then use Media Player's next and previous icons (or use the left scroll button on the steering wheel) to play other tracks.
Page 153: Entertainment
Then, roll the scroll button to highlight Readout then press the scroll button again. Mars The map shows your Model X as a rover on the Martian landscape, and the About Your Tesla box displays SpaceX's interplanetary spaceship. Using the Touchscreen...
Page 154 Sketchpad Channel your inner Picasso. Show us what you got! Touch Publish to submit your artistic compositions to Tesla for critiquing. TRAX It's never too late to follow your dream of becoming a world-famous DJ. With TRAX, you can turn your vehicle into your own personal music studio.
Page 155 Entertainment 2. Plug the USB drive into a front USB port. 3. Choose sounds from your USB drive by selecting them in the Boombox dropdown menus. Using the Touchscreen...
Page 156: Phone And Calendar
Phone and Calendar 5. Choose the phone with which you want to pair. ® Within a few seconds, the Bluetooth settings screen Bluetooth Compatibility displays a randomly generated number. Your phone also display a number. You can use your Bluetooth-capable phone 6.
Page 157 Phone and Calendar Unpairing a Bluetooth Phone WARNING: To minimize distraction and ensure the safety of vehicle occupants as well as other road users, do not view or send text messages If you want to disconnect your phone and use it again when the vehicle is in motion.
Page 158 Using the calendar requires that: • The Tesla mobile app is running, you are logged in, and the mobile app's Calendar Sync setting is turned on. The mobile app can then periodically (and automatically) send calendar data from your phone to Model X.
Page 159: Air Suspension
If the problem persists, The settings associated with Adaptive Suspension contact Tesla. Damping provide real-time adjustments to the If a fault is detected that disables the suspension system to optimize both ride and handling.
Page 160 Air Suspension NOTE: The instrument panel can also display a real-time visualization of how the suspension system is dynamically adjusting each wheel’s damping to account for changing road conditions. To view, hold the respective steering wheel scroll button briefly until the available options are displayed.
Page 161: Voice Commands
Examples of Voice Commands Navigation Here is a list of example voice commands. This is not an exhaustive list. Tesla is constantly working to improve To search for, or navigate to, a location, say: voice commands. • "Where is [location]?"...
Page 162 To protect your privacy, these short recordings are not associated with your personal information or with your vehicle's identification number. Tesla assures that it is not possible to search any system for a recording associated with a specific customer or vehicle.
Page 163: Security Settings
If you forget your driving PIN, touch the link to enter detects motion inside the cabin, enable Tilt/Intrusion your Tesla login credentials on the PIN to Drive popup, (see Tilt/Intrusion (if equipped) on page 161).
Page 164: Dashcam And Sentry Mode
To pause recording, press and hold saved locally to onboard memory or the USB flash drive. the icon. Recordings are not sent to Tesla. Using Dashcam PAUSED: Shows that Dashcam is paused. To resume recording, touch the icon. To...
Page 165 CAUTION: Sentry Mode may not activate the Alternatively, you can use voice commands or the Tesla security alarm in all situations involving damage mobile app. To enable Sentry Mode using voice to the vehicle. Sentry Mode uses many factors commands, say "Keep Tesla safe,"...
Page 166 Dashcam and Sentry Mode • Recent Clips: When recording, Dashcam continuously saves footage to Recent Clips in 60-minute cycles. Footage is overwritten every hour unless you manually save it. Four videos are recorded for each clip, one from each camera (front, rear, left, and right).
Page 167: Homelink Universal Transceiver
Using a device without 2. Check that the device's remote control has a healthy these safety features increases the risk of injury or battery. Tesla recommends replacing the battery in death. the device's remote control before Programming HomeLink.
Page 168 As you approach (or drive away from) a device that is device's remote control positioned within two inches set to operate automatically, the HomeLink status icon (five cm) of the Tesla emblem. displays a count-down message to let you know when the device automatically opens or closes. In situations •...
Page 169 HomeLink Universal Transceiver For additional assistance or compatibility questions, contact HomeLink (www.homelink.com or call 1-800-355-3515). Using the Touchscreen...
Page 170: Connecting To Wi-Fi
NOTE: If more than one previously connected network is within range, Model X connects to the one most recently used. NOTE: At Tesla Service Centers, Model X automatically connects to the Tesla Service Wi-Fi network. Hotspots and Connectivity You can also use a mobile hotspot or your phone's...
Page 171: Software Updates
• Sentry Mode you receive updates as soon as they are available for your specific vehicle, you may not be in the first Tesla NOTE: On an as-needed basis, Tesla also sends software group of Tesla owners to receive the update.
Page 172 Software Updates Tesla strongly recommends reading all release notes. They may contain important safety information or operating instructions for your Model X. MODEL X Owner's Manual...
Page 173: Mobile App
• Navigate the Tesla Shop. 1. Download the Tesla mobile app to your phone. • Access the Tesla inbox. 2. Log in to the Tesla mobile app by entering your Tesla • Manage your account information and view your account credentials.
Page 174 In cases where you cannot remove or insert the charge cable, or the vehicle is not Supercharging due to the latch being frozen in place, use your Tesla mobile app to Add and remove access permission for an additional precondition your vehicle on HI for approximately 30-45 driver from the Tesla mobile app.
Page 175: Charging
Electric Vehicle Components High Voltage Components 1. Front Motor 2. Air Conditioning Compressor 3. Forward Junction Box 4. High Voltage Cabling 5. Battery Coolant Heater 6. DC-DC Converter 7. Cabin Heater 8. High Voltage Battery 9. On-board Charger 10. Charge Port 11.
Page 176 WARNING: In the unlikely event that a fire occurs, immediately contact your local fire emergency responders. Charging Equipment Charging equipment designed specifically to charge your Model X is available from Tesla. A Tesla Wall Connector, which installs in your parking space, is the fastest way to charge Model X in daily use.
Page 177: High Voltage Battery Information
NOTE: When left idle and unplugged, your vehicle battery). If the vehicle is still unresponsive, contact Tesla. periodically uses energy from the Battery for system tests and recharging the low voltage battery when Temperature Limits necessary.
Page 178: Charging Instructions
Supercharging due to the Tesla charge cable to open the charge port door. latch being frozen in place, use your Tesla mobile app to precondition your vehicle on HI for approximately 30-45 minutes (you must use your mobile app to precondition the vehicle;...
Page 179 Charging Instructions Charge Port Light • BLINKING GREEN: Charging is in progress. As Model X approaches a full charge, the frequency of the blinking slows. • WHITE (OR LIGHT BLUE): The charge port door is • SOLID GREEN: Charging is complete. open.
Page 180 CAUTION: Tesla strongly recommends leaving Model X plugged in when not in use. This NOTE: It is normal to hear sounds during charging. maintains the Battery at the optimum level of Particularly at high currents, the refrigerant compressor charge.
Page 181 Although you can NOTE: Scheduled Charging starts charging immediately manually increase it, Tesla recommends charging at if Model X is plugged in up to 6 hours after the the lower current until the underlying problem is scheduled start time.
Page 182 Charging Instructions Log into your Tesla account to view fees and details • Off-Peak Charging delays charging and automatically about Supercharger sessions, track the remaining starts charging in order to finish before your balance of free credits, set up a payment method, and scheduled departure time while also ensuring to make payments.
Page 183 Charging Instructions WARNING: Do not perform this procedure when your vehicle is charging, or if any orange high voltage conductors are exposed. Failure to follow these instructions can result in electric shock and serious injury or damage to the vehicle. If you are uncertain as to how to safely perform this procedure, contact your nearest Service Center.
Page 184: Maintenance
Daily Checks Your vehicle should generally be serviced on an as- • Check the Battery’s charge level, displayed on the needed basis. However, Tesla recommends the following instrument panel or mobile app. maintenance items and intervals, as applicable to your •...
Page 185 Maintenance Schedule *If the vehicle is used for towing, the brake fluid should be replaced every 2 years regardless of the health check. NOTE: Any damage caused by opening the Battery coolant reservoir is excluded from the warranty. High Voltage Safety Your Model X has been designed and built with safety as a priority.
Page 186: Tire Care And Maintenance
Tire Care and Maintenance Displaying Tire Pressures NOTE: Your vehicle’s tire pressures will drop in cold ambient temperatures. If the TPMS indicator light appears, inflate the tires before driving. The tires will You can display tire pressures on the instrument panel lose one PSI for every 10°...
Page 187 NOTE: In some cases, you can temporarily repair small retailer and installer for further guidance. tire punctures (under 1/4” (6 mm)) using an optional tire repair kit available from Tesla. This allows you to slowly drive Model X to Tesla or to a nearby tire repair facility. Maintenance...
Page 188 Monitoring System) sensors need to be reset to ensure cover until it aligns with the wheel surface. Press on they provide accurate warnings when tires are under- or the Tesla “T” in the center until the cap snaps into over-inflated (see Automatic Reset of TPMS Sensors on place.
Page 189 Tesla. If the Tire Pressure warning indicator displays frequently, contact Tesla to determine if a tire sensor needs to be replaced. If a non-Tesla Service Center repairs or replaces a tire, the tire sensor may not work until Tesla performs the setup procedure.
Page 190 When the TPMS tread pattern on all four wheels. Contact Tesla for winter malfunction indicator is on, the system tire recommendations. might not be able to detect or signal under- or over-inflated tires as intended.
Page 191 Tire Care and Maintenance • Avoid heavily loading Model X (heavy loads can reduce the clearance between the tires and the body). • Do not drive the vehicle without the chains properly installed. • Drive slowly. Do not exceed 30 mph (48 km/h). •...
Page 192: Cleaning
Cleaning Cleaning the Exterior Cleaning a Camera To ensure a clear picture, the camera lens must be clean To prevent damage to the paint, immediately remove and free of obstructions. Remove any build-up of dirt or corrosive substances (bird droppings, tree resin, dead debris by spraying water onto the camera lens with a insects, tar spots, road salt, industrial fallout, etc.).
Page 193 Vacuum cloth seats as needed to remove any loose dirt. the charge port while Model X is charging. Failure CAUTION: Aftermarket, non-Tesla seat covers may to follow these instructions can result in serious inhibit the sensitivity of a seat's occupancy sensors injury or damage to the vehicle, charging and may cause staining or damage.
Page 194 Using a Car Cover To preserve the cosmetic appearance of the body when Model X is not being used, use a genuine Tesla car cover. Car covers can be purchased from Tesla. See Parts and Accessories on page 198.
Page 195: Wiper Blades And Washer Jets
Wiper Blades and Washer Jets Checking and Cleaning Wiper Blades Periodically clean the edge of the wiper blades and check the rubber for cracks, splits, and roughness. If damaged, replace the blade immediately to prevent damage to the glass and improve visibility. Contaminants on the windshield, or on the wiper blades, can reduce the effectiveness of the wipers.
Page 196 Wiper Blades and Washer Jets WARNING: Do not operate the washers while cleaning Model X. Windshield washer fluid can irritate eyes and skin. Read and observe the washer fluid manufacturer’s instructions. MODEL X Owner's Manual...
Page 197: Fluid Reservoirs
Do not continue driving. Contact Tesla immediately. Fluid Level Check Tesla checks the brake fluid level and health at the regularly scheduled maintenance intervals. Topping Up the Brake Fluid CAUTION: The maintenance panel protects the front trunk from water. When re-attaching, make Do not top up your brake fluid.
Page 198 Fluid Reservoirs 1. Open the hood. 2. Clean around the filler cap before opening it to prevent dirt from entering the reservoir. 3. Open the filler cap. 4. While avoiding spilling, fill the reservoir until the fluid level is visible just below the filler neck. 5.
Page 199: Jacking And Lifting
Follow the steps below to lift Model X. Ensure that any WARNING: Do not work on an incorrectly non-Tesla repair facility is aware of these lifting points. supported vehicle. Doing so can cause serious damage, bodily injury, or death.
Page 200: Parts And Accessories
Body Repairs If your Model X is in a collision, contact Tesla or a Tesla- approved Body Shop to ensure that it is repaired with genuine Tesla parts. Tesla has selected and approved body shops that meet strict requirements for training, equipment, quality, and customer satisfaction.
Page 201: Specifications
Identification Labels Vehicle Identification Number You can find the VIN at the following locations: • Touch Controls > Software. • Stamped on a plate located at the top of the dashboard. Can be seen by looking through the windshield. • Stamped on the chassis under the sill panel on the rear passenger door.
Page 202: Vehicle Loading
Vehicle Loading Load Capacity Labeling It is important to understand how much weight your Model X can safely carry. This weight is called the vehicle capacity weight and includes the weight of all occupants, cargo and any additional equipment added to your Model X since it was manufactured.
Page 203 Vehicle Loading WARNING: Tire pressures printed on the Tire and Loading Information label DO NOT APPLY to towing. When towing, tire pressures must be increased. For information about the tire pressures required when towing, see Towing and Accessories on page Vehicle Certification Label The Vehicle Certification label provides: •...
Page 204 Vehicle Loading Driver and four passengers Description Total Vehicle capacity weight 954 lbs (433 kg) Subtract occupant weight (5 x 150 750 lbs (340 kg) lbs/68 kg) Available cargo weight 204 lbs (93 kg) The cargo weight should be distributed between the front and rear trunks.
Page 205: Dimensions And Weights
Dimensions and Weights Exterior Dimensions Overall Length 198.9 in 5,052 mm Overall Width (including mirrors) 89.4 in 2,271 mm Overall Width (including folded mirrors) 81.6 in 2,072 mm Overall Width (excluding mirrors) 78.7 in 1,999 mm Overall Height 66 in* 1,684 mm* Wheel Base 116.7 in...
Page 206 Dimensions and Weights Shoulder Room Front 60.7 in 1542 mm Rear 56.8 in 1442 mm Third 40 in 1016 mm Front 55.6 in 1412 mm Hip Room Rear 59 in 1498 mm Third 38.5 in 978 mm Cargo Volume Front Trunk Rear* Total Seven Seat Vehicles...
Page 207: Subsystems
Subsystems Motor Type Front Motor AC permanent magnet synchronous motor, liquid-cooled, with variable frequency drive Rear Motor AC induction motor, liquid-cooled, with variable frequency drive Nominal Voltage 320 volts Transmission Type Specifications Type Single speed fixed gear Overall Final Drive Ratio Small motor: 9.0:1 Large motor: 9.7:1 Reverse Gear...
Page 208 Subsystems Brakes Specifications Rear Brake Pad Thickness (excluding back 0.354”/9 mm plate) Parking brake Electrically actuated parking brake calipers Front: .31"/8 mm Brake Disc Friction Pair Rear: .28"/7 mm Suspension Suspension Specifications Front Independent, virtual pivot double wishbone Rear Independent, virtual pivot double wishbone Battery - Low Voltage Battery - Low Voltage Specifications...
Page 209: Wheels And Tires
(see Maintaining Tire Pressures on page 184). Winter tires can be purchased from a Tesla service center or may be available for purchase on the Tesla web site. Specifications...
Page 210 Wheels and Tires Understanding Tire Markings Laws require tire manufacturers to place standardized information on the sidewall of all tires. This information identifies and describes the fundamental characteristics of the tire. It also provides the tire identification number (TIN) for certification of safety standards, and in case of a recall. Tire category.
Page 211 Wheels and Tires 7 Speed rating. When stated, indicates the maximum speed (in mph) at which the tire can be used for extended periods. Q=99 mph (160 km/h), R=106 mph (170 km/h), S=112 mph (180 km/h), T=118 mph (190 km/h), U=124 mph (200 km/h), H=130 mph (210 km/h), V=149 mph (240 km/h), W=168 mph (270 km/h), Y=186 mph (300 km/h), (Y)=vehicle's top speed (exceeds the "Y"...
Page 212 Wheels and Tires Uniform Tire Quality Grading The following information relates to the tire grading system developed by the National Highway Traffic Safety Administration (NHTSA), which grades tires by tread wear, traction and temperature performance. Tires that have deep tread, and winter tires, are exempt from these marking requirements. Where applicable, quality grades are found on the tire’s sidewall between the tread shoulder and maximum section width.
Page 213 Pounds per square inch (the unit used to measure tire pressure). PSI (lbf/in Recommended Tire Tire inflation pressure, established by Tesla, which is based on the type of tires that are Inflation Pressure mounted on the vehicle at the factory. This information can be found on the Tire and Loading Information label located on the door pillar.
Page 214 Wheels and Tires Vehicle normal load on the Load on an individual tire that is determined by distributing to each axle its share of tire the curb weight, accessory weight, and normal occupant weight and dividing by two. Pneumatic Radial Tire Definitions Bead separation A breakdown of the bond between components in the bead.
Page 215 Wheels and Tires Snow tire A tire that attains a traction index equal to or greater than 110, compared to the ASTM E1136-93 (re-approved 2003, incorporated by reference, see §571.5) Standard Reference Test Tire when using the snow traction test as described in ASTM F1805-00 (incorporated by reference, see §571.5), and that is marked with an Alpine Symbol specified in S5.5(i) on at least one sidewall.
Page 216: Roadside Assistance
Contacting Tesla Roadside Assistance Tesla Roadside Assistance is available to you 24 hours a day, 365 days a year, for the duration of your warranty period. Tesla Roadside Assistance is also available to speak with roadside service professionals to answer any questions and explain the proper procedure for transporting your vehicle.
Page 217: Instructions For Transporters
Do not transport Model X using any method that is not Transport Mode on page 216) before winching specified by Tesla. Adhere to the instructions provided in Model X onto a flatbed truck (see Pull onto the the following sections and observe all warnings and Flatbed Truck - With Tow Eye on page 216).
Page 218 Instructions for Transporters 1. Touch Controls > Suspension on the touchscreen. 2. Remove the tow eye cover by inserting a small flat screwdriver into the slot located along the top of the 2. Press the brake pedal, then touch Very High to cover, then prying gently to release the cover from maximize height.
Page 219 Instructions for Transporters Pull onto the Flatbed Truck - CAUTION: Attaching the tie-down straps to the chassis, suspension or other parts of the vehicle's Without Tow Eye body may cause damage. CAUTION: To avoid damage, only pull the vehicle onto a flatbed truck using a properly-installed tow eye.
Page 220: About This Owner Information
In contrast, owner information that is provided by Tesla elsewhere is updated as necessary and may not contain information unique to your vehicle. Information about new features is displayed on the touchscreen after a software update, and can be viewed at any time by touching Controls >...
Page 221: Consumer Information
About this Owner Information All other trademarks contained in this document are the property of their respective owners and their use herein does not imply sponsorship or endorsement of their products or services. The unauthorized use of any trademark displayed in this document or on the vehicle is strictly prohibited.
Page 222: Disclaimers
Tesla's Privacy Notice at http://www.tesla.com/ equipment, can read the information if they have access about/legal. to the vehicle or the EDR. Tesla may also access the EDR remotely in some crash circumstances. Data Sharing Vehicle Telematics For quality assurance and to support the continuous...
Page 223 GPS information, except the location where a crash occurred. Consequently, Tesla is unable to provide historical information about a vehicle's location (for example, Tesla is unable to tell you where Model X was parked/traveling at a particular date/time). Quality Control You might notice a few miles/km on the odometer when you take delivery of your Model X.
Page 224: Reporting Safety Defects
If you believe that your Model X has a defect which could cause a crash or could cause injury or death, you should immediately inform Transport Canada, in addition to notifying Tesla. To contact Transport Canada, call their toll-free number: 1-800-333-0510. MODEL X Owner's Manual...
Page 225: Radio Regulatory Compliance
2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Tesla could void your authority to operate the equipment. La Operación de Este Equipo no está Sujeta a las dos following conditions: 1.
Page 226 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Tesla could void your authority to operate the equipment. IC Certification The following device is used in vehicles in Canada: •...
Page 227 • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications to the device not expressly approved by the manufacturer or Tesla could void your authority to operate the equipment.
Page 228: Troubleshooting Alerts
Troubleshooting Alerts (APP_w207) Autosteer temporarily unavailable Autosteer is currently unavailable. This could be a temporary condition due to external conditions that include: • Missing or faded lane markers • Narrow or winding roads • Poor visibility due to rain, snow, fog, or other weather conditions •...
Page 229 Troubleshooting Alerts Please note that the minimum speed to initiate Autosteer when there is no vehicle detected ahead of you and while driving on a road with visible lane markings is 18 mph (30 km/h), unless certain vehicle and environmental conditions are met.
Page 230 If the alert persists and camera calibration has not completed after your vehicle has driven 100 miles (160 km) or more, or Traffic-Aware Cruise Control and Autosteer remain unavailable despite successful camera calibration, contact Tesla Service at your earliest convenience. Your vehicle is OK to drive in the meantime. (APP_w304)
Page 231 Instructions on page 176. You can also try charging your vehicle using a Tesla Supercharger or Destination Charging location, all of which can be located through the map on your vehicle's touchscreen display. See Maps and Navigation on page 143 for more details.
Page 232 OFF the circuit breaker servicing the Wall Connector, wait 10 seconds, turn the circuit breaker ON again, then try reconnecting the Wall Connector to the vehicle. If the issue persists, consult your electrician or contact Tesla. For more information, see the installation guide for your Wall Connector.
Page 233 OFF the circuit breaker servicing the Wall Connector, wait 10 seconds, turn the circuit breaker ON again, then try reconnecting the Wall Connector to the vehicle. If the issue persists, consult your electrician or contact Tesla. For more information, see the installation guide for your Wall Connector.
Page 234 Troubleshooting Alerts What to do: Consult your electrician to ensure appropriate voltage on the circuit breaker that services the Wall Connector. For more information, see the installation guide for your Wall Connector. (CC_f008) Unable to charge - Input voltage too low Voltage must be within Wall Connector rating What this alert means: Over or under voltage protection.
Page 235 Troubleshooting Alerts 4. Once your electrician has completed all work and restored power to the Wall Connector, try charging again by reconnecting the Wall Connector to the vehicle. 5. If the issue persists, the Wall Connector requires service. For more information, see the installation guide for your Wall Connector.
Page 236 Troubleshooting Alerts Make sure the connector is fully inserted into the charge inlet in the vehicle's charging port, is not covered by anything, and there is no heat source nearby. If the issue persists in normal ambient temperatures (under 100°F or 38°C) , service is required.
Page 237 Troubleshooting Alerts (CC_f016) Unable to charge - Vehicle connection issue Insert charge handle fully into charge port What this alert means: A communication error occurred between the Wall Connector and the vehicle. What to do: Try charging again by disconnecting the Wall Connector from the vehicle and reconnecting. 1.
Page 238 Troubleshooting Alerts 3. If the issue persists, service is required. For more information, see the installation guide for your Wall Connector. (CC_f019) Unable to charge - Vehicle connection issue Insert charge handle fully into charge port What this alert means: A communication error occurred between the Wall Connector and the vehicle.
Page 239 Troubleshooting Alerts (CC_f021) Unable to charge - No primary Wall Connector Check that primary unit is powered and available What this alert means: Load sharing (circuit breaker sharing) network: Need one (and only one) Wall Connector set as primary. What to do: Only one Wall Connector can be set to a primary configuration.
Page 240 Troubleshooting Alerts What to do: Have your electrician adjust the Wall Connector’s internal rotary switch to a valid operating current setting. They should first make sure there is no power to the Wall Connector. The correlation between switch setting and current should be printed on the inside of the Wall Connector.
Page 241 Troubleshooting Alerts 4. Other hardware component issues What to do: An internal issue was detected by the Wall Connector. 1. Try charging again by disconnecting the Wall Connector from the vehicle and reconnecting. 2. If the issue persists, turn OFF the circuit breaker for the Wall Connector, wait 10 seconds, and turn the circuit breaker ON again.
Page 242 Troubleshooting Alerts Have your electrician adjust the Wall Connector’s internal rotary switch to a valid operating current setting. They should first make sure there is no power to the Wall Connector. The correlation between switch setting and current should be printed on the inside of the Wall Connector. Your electrician should also refer to the Set the Operating Current section in the Wall Connector Installation Manual.
Page 243 • Make sure any charge port inlet obstruction has been removed. You can also try charging your vehicle using a Tesla Supercharger or Destination Charging location, all of which can be located through the map on your vehicle's touchscreen display. See...
Page 244 • Try charging with multiple, different types of charging equipment at different locations. You can also try charging your vehicle using a Tesla Supercharger or Destination Charging location, all of which can be located through the map on your vehicle's touchscreen display. See...
Page 245 • Make sure any charge port inlet obstruction has been removed. You can also try charging your vehicle using a Tesla Supercharger or Destination Charging location, all of which can be located through the map on your vehicle's touchscreen display. See...
Page 246 • Contact an electrician to inspect the wiring and equipment at your normal charging location. You can also try charging your vehicle using a Tesla Supercharger or Destination Charging location, all of which can be located through the map on your vehicle's touchscreen display. See...
Page 247 • Contact an electrician to inspect the wiring and equipment at your normal charging location. You can also try charging your vehicle using a Tesla Supercharger or Destination Charging location, all of which can be located through the map on your vehicle's touchscreen display. See...
Page 248 Troubleshooting Alerts You can also try charging your vehicle using a Tesla Supercharger or Destination Charging location, all of which can be located through the map on your vehicle's touchscreen display. See Maps and Navigation on page 143 for more details.
Page 249 • Make sure any charge port inlet obstruction has been removed. You can also try charging your vehicle using a Tesla Supercharger or Destination Charging location, all of which can be located through the map on your vehicle's touchscreen display. See...
Page 250 You can also try charging your vehicle using a Tesla Supercharger or Destination Charging location, all of which can be located through the map on your vehicle's touchscreen display. See...
Page 251 • Try charging with multiple, different types of charging equipment. You can also try charging your vehicle using a Tesla Supercharger or Destination Charging location, all of which can be located through the map on your vehicle's touchscreen display. See...
Page 252 • Try charging with different charge equipment / at different stations. You can also try charging your vehicle using a Tesla Supercharger or Destination Charging location, all of which can be located through the map on your vehicle's touchscreen display. See...
Page 253 • Make sure any charge port inlet obstruction has been removed. You can also try charging your vehicle using a Tesla Supercharger or Destination Charging location, all of which can be located through the map on your vehicle's touchscreen display. See...
Page 254 Troubleshooting Alerts • Environmental / external conditions • Vehicle System Restraints: ◦ May include camera or radar lack of visibility • Valet Mode is active: ◦ For more information, see Valet Mode on page When any condition preventing Cruise Control activation is no longer present, Cruise Control should be available. If this alert persists throughout subsequent drives, schedule service at your convenience.
Page 255 • Vehicle system constraints Autopark should be available again during your next drive. If this alert persists throughout subsequent drives, contact Tesla Service at your earliest convenience. Your vehicle is OK to drive in the meantime. For more information, see...
Page 256 Continue to your destination. Your vehicle is OK to drive. If Vehicle Hold is not available during your next drive, contact Tesla Service. Your vehicle is OK to drive in the meantime.
Page 257 It is recommended that you have the low voltage battery replaced at your earliest convenient opportunity. You can schedule service via your Tesla Mobile App, or with an independent service provider that offers low voltage battery replacement for your vehicle. Please note that independent service provider options may vary, based on your vehicle configuration and your location.
Page 258 Do It Yourself Guide. If this alert does not clear after 24 hours, it is recommended that you schedule service via your Tesla Mobile App or with an independent service provider. Please note that independent service provider options may vary, based on your vehicle configuration and your location.
Page 259 Service is required Schedule service now This alert is set remotely by Tesla when a condition requiring service is detected on your vehicle. This alert can be set due to various conditions. When you schedule service, more information should be available.
Page 260 • Try charging with multiple, different types of charging equipment. You can also try charging your vehicle using a Tesla Supercharger or Destination Charging location, all of which can be located through the map on your vehicle's touchscreen display. See...
Page 261 • Try charging with different wall outlets. • Try charging with different charging equipment. You can also try charging your vehicle using a Tesla Supercharger or Destination Charging location, all of which can be located through the map on your vehicle's touchscreen display. See...
Page 262 If the outlet is worn, it should be replaced with a high-quality outlet. Consider upgrading to a Tesla Wall Connector for greater convenience and highest charging speed.
Page 263 8A while this condition persists. You can also try charging your vehicle using a Tesla Supercharger or Destination Charging location, all of which can be located through the map on your vehicle's touchscreen display. See...
Page 264 If the outlet is worn, it should be replaced with a high-quality outlet. Consider upgrading to a Tesla Wall Connector for greater convenience and highest charging speed.
Page 265: Index
Index Autopilot components: Autosteer: ABS (Anti-lock Braking System): average range: absolute speed limit: access panel, removing: accessories: backup camera: plugging into power socket: Battery (high voltage): 175, 195, accessory carrier: care of: adaptive headlights: coolant: adjacent lane speed: specifications: aero covers: temperature limits: air conditioning: battery (key), replacing:...
Page 266 USB ports: emission label: consumption chart: energy: 60, contact information: 215, gained from regenerative braking: roadside assistance: range information: Tesla: Energy app: copyrights: energy saving mode: cruise control: energy use predictions (navigating): cup holders: Entertainment: Erase & Reset:...
Page 267 Index Favorites (navigation): when using Summon: FCC certifications: hood: features, downloading new: horn: firmware (software) updates: hub caps: flash drive: flashers, warning: floor mats: I'm Feeling Lucky, Hungry: fluids: 182, IC certifications: replacement intervals: identification labels: reservoirs, checking: inductive phone charger: fog lights: instant range: forward collision warning:...
Page 268 Index lifting: lights: 57, 58, Obstacle-Aware Acceleration: adaptive headlights: occupancy sensor: hazard warning: occupant classification: headlights after exit: odometer: turn signals: Off-Peak Charging: load limits: offset from speed limit: location tracking: Online Routing: locking and unlocking doors: overhang dimensions: lug nut covers: overtake acceleration: lumbar adjustment: Owner Information, about:...
Page 269 Index Re-route: shifting: rear seats, accessing: 28, shortcuts: rear view camera: adding to My Apps: rear window switches, disabling: Show Calendar Upon Entry: 154, recent (Media Player): side camera(s): Recents (navigation): Side Clearance (Summon): recording: side collision warning: regenerative braking: slip start: relative speed limit: Smart Summon:...
Page 270 Index Battery (high voltage), limits: tow hitch, connecting: cabin, controls for: tow hitch, disconnecting: heated: towing: outside: towing a trailer: tires: towing capacity: Teslacam: towing guidelines: third row seats, accessing: 28, towing instructions: third row seats, folding and raising: Towing Label: tie-down straps: Toybox: tilt/intrusion detection:...
Page 271 Index View Live Camera: voice commands: volume control: volume control (media): Walk-Away Door Lock: Wall Connector: warning flashers: washer fluid, topping up: washer jets, cleaning: washers, using: wheel chocks: wheels: 185, 186, aero covers, removing and installing: alignment: lug nut covers, removing and installing: replacing: specifications: torque:...
Page 272 Publication date: 2022/4/14...

This manual is also suitable for:

X 2016 X 2017 X 2018 X 2019 X 2020

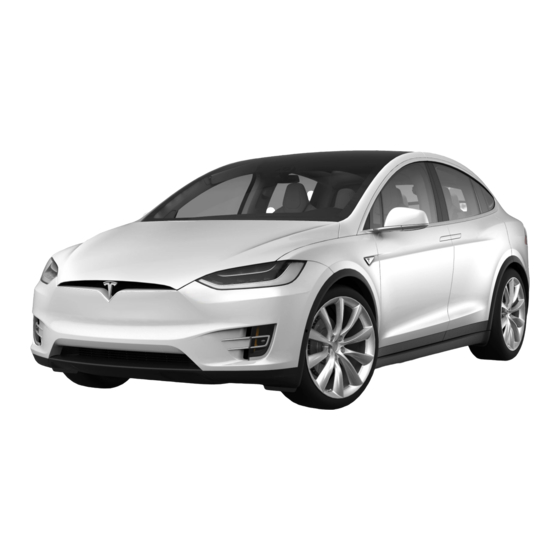

Tesla X 2015 Owner's Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tesla X 2015

Summary of Contents for Tesla X 2015

This manual is also suitable for:

Table of Contents
