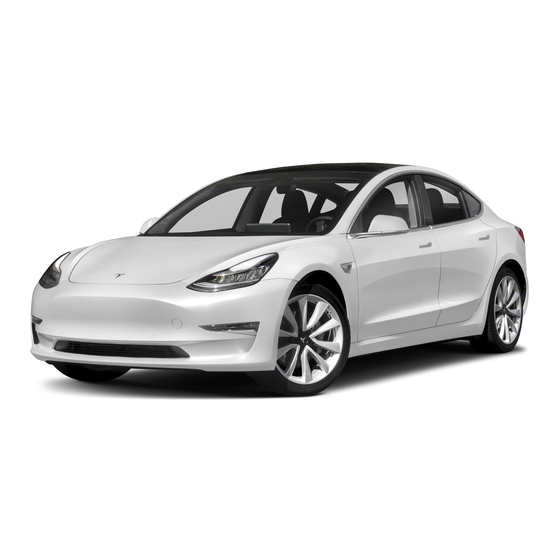

Tesla 3 2018 Roadside Service Manual
Hide thumbs
Also See for 3 2018:
- Owner's manual (160 pages) ,
- Owner's manual (275 pages) ,
- Owner's manual (263 pages)
Subscribe to Our Youtube Channel
Related Manuals for Tesla 3 2018
Summary of Contents for Tesla 3 2018

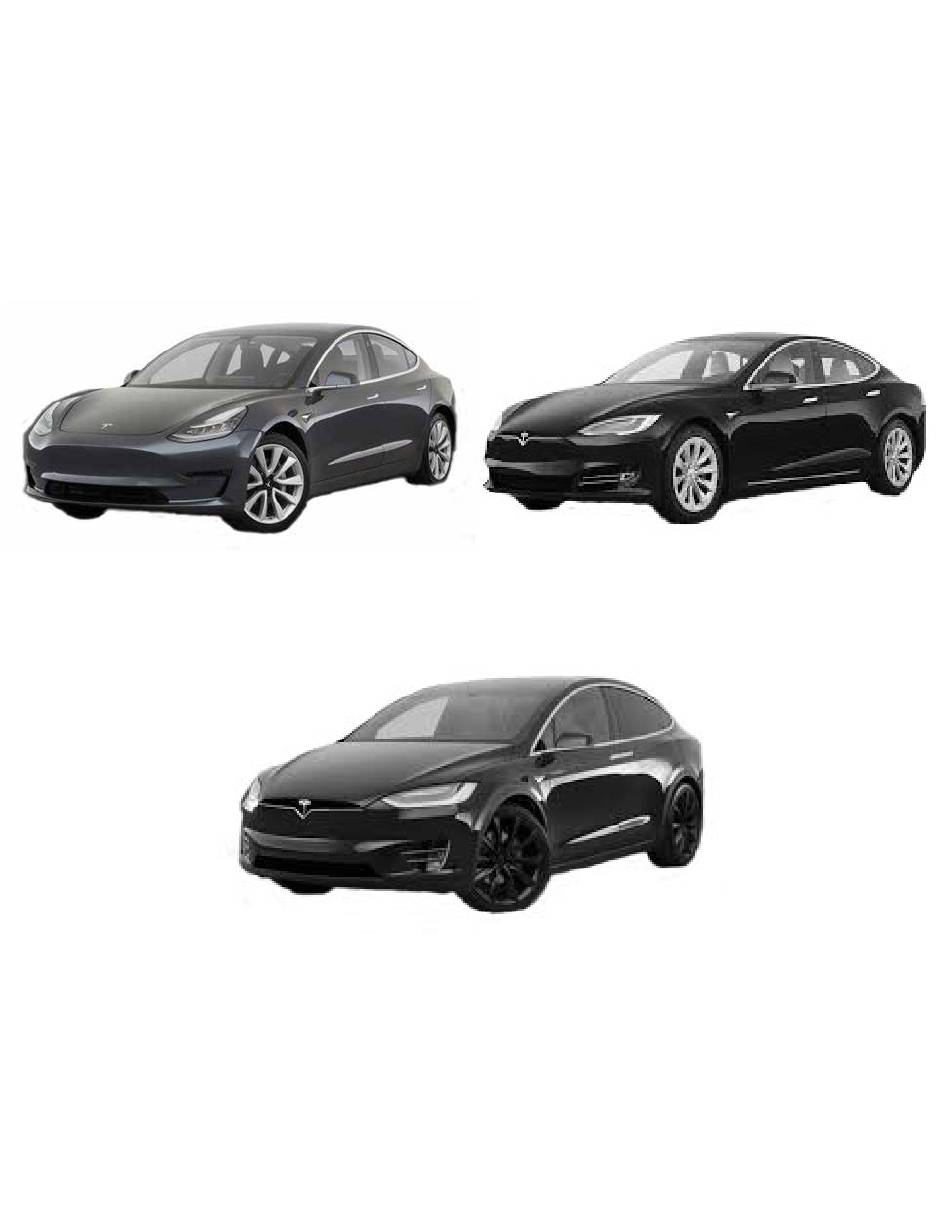

- Page 1 2018-2019 Tesla Models: 3 / S / X Roadside Service Guide Quality and Education Services AAA Automotive April 10, 2019 For the latest updates from AAA, visit: AAAcampus.aaa.biz...
- Page 2 Index Specifications Start/Stop Switch Electronic Key/Mechanical Key Electronic Key Not Detected Trunk Lid Release Hood Release Car Carrier Loading Front Towing Eyebolt Electronic Parking Brake Tires and Jacking High-voltage System Jump-Start Procedures Important Notice: This publication should not be used while driving. The procedures in this publication should only be used by qualified and trained personnel.
-
Page 3: Specifications
2018-2019 Tesla Models: 3, S & X SPECIFICATIONS: Model 3 Model X Model S Specifications Model 3 Model S Model X Curb Weight (pounds) 3,805 (RWD) / 4,100 (AWD) 4,941 5,531 Front Axle Weight 1,674 (RWD) / 1,886 (AWD) 2,273 2,434 Rear Axle Weight 2,131 (RWD) / 2,214 (AWD) - Page 4 When the vehicle turns on, the touch- screen will wake up. ELECTRONIC KEY: This vehicle is not equipped with a mechanical key. Below lists the key options available for each Tesla model referenced in this guide. Model 3 - Phone App, Key Card or Key Fob Model S - Key Fob...
-
Page 5: Hood Release
TRUNK LID RELEASE: Interior Button: • Press the interior release button in image A found on the touchscreen. Electronic Key: • Double-click button 1 in image B. NOTE: If the vehicle has a discharged 12v battery, power must be restored in order to access the trunk. - Page 6 CAR CARRIER LOADING AND TRANSPORTING: Special Precautions: • Car carrier equipment is the recommended method* of towing and transporting this vehicle. *NOTE: When the vehicle is inaccessible for loading by a car carrier, a wheel-lift with dollies may be used to move the vehicle to a location a car carrier can load it for transport. All wheels must be lifted from the ground before being moved at all times.
- Page 7 Car Carrier Loading Procedure: Front Eyebolt Location These vehicles are equipped with a towing eyebolt lo- cated under the front cargo area’s floor liner. It screws into a receiver in the driver’s front bumper. • Remove the eyebolt receiver cover from the loca- tions shown below. • Fully screw the towing eyebolt in, by turning it clockwise until secure.
-
Page 8: Electronic Parking Brake
Car Carrier Loading Procedures: • Before loading, if possible, place the vehicle in Neutral with the parking brake released. Only load the vehicle onto the car carrier enough to safely transport the vehicle. Stop loading when the winch line begins to pull the vehicle downward. - Page 9 TIRES AND JACKING: This vehicle comes equipped with an inflator kit located under the trunk floor panel. Accessory Power Outlet for Inflator Kit: The accessory power outlet is located inside the front center console. The vehicle has to be ON for the accessory power outlet to work. CAUTION: Make sure to secure the vehicle using wheel chocks prior to service.
-
Page 10: High-Voltage System
HIGH-VOLTAGE SYSTEM: NOTE: The high-voltage battery is not accessible. The high-voltage battery is located in the floor of the vehicle. Battery Type: Liquid-cooled Lithium-ion HV battery Battery Voltage: 300-360 volts CAUTION: Avoid all contact with orange loom because this connects the electrical mo- tors and generator (powered by the gas engine) with the high-voltage components. Model 3 Model X Model S... - Page 11 JUMP-START PROCEDURES: NOTE: These vehicles may not have enough 12v battery power to unlock the doors or open the hood using the touchscreen. If this occurs, refer to the HOOD RELEASE section on page 5 to access the 12v battery. The following jump-starting procedures should be followed for all models: •...
