EMS FireCell FCX-170-10 Installation Manual

Wireless Detector c/w Remote Indicator
Installation Guide
www.emsgroup.co.uk

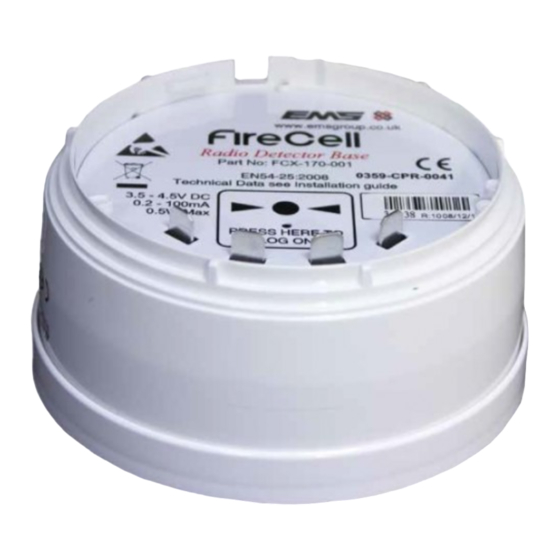

Radio Detector Base
IDENT
PRESS HERE TO
LOG ON
1 Pre installation
Installation must conform to applicable local installation
!
codes and should only be installed by a fully trained
competent person.
Ensure that the device is installed as per the site survey.
The use of a non-metallic spacer should be considered if
mounting the device on to a metal surface.
Do NOT Press the Log On button on a pre-programmed
device. This will cause communication with the Control Panel
to be lost. Should this happen, delete the device from the
system and add it back on.
This device contains electronics that may be susceptible to
damage from Electrostatic Discharge (ESD). Take appropriate
precautions when handling electronic boards.
3 Fix mounting plate
Remove the mounting
ANTICLOCKWISE, to release it from the mounting plate.
Use both mounting holes to ensure a firm fixing.
Use suitable fasteners and fixings.
5 Optional device locking
To lock the detector into
the wireless module,
insert a 1.5 mm allen key
into the allen key slot and
turn clockwise as shown.
To unlock, insert a 1.5
mm allen key into the
allen key slot and turn
anticlockwise as shown.
©2021 EMS Ltd. All rights reserved
Example shown:
Model FCX-170-101
plate by turning the
63 mm
Part no Product description
FCX-170-101 Wireless Detector Base c/w Remote Indicator Unit
5-RIM Remote Indicator Unit Only
2 Components
Remote indicator unit
1 2
1
Fixing screws
5
Detector 6
4 Power device
OBSERVE CORRECT POLARITY, USING SPECIFIED BATTERIES.
device
If fitting / re-fitting batteries; observe correct polarity, using
only specified batteries.
Connect the power jumper across the PIN header.
Once powered, reassemble the device.
6 Configuration
The device's loop address is configured within the user interface's
menu structure.
Refer to the programming manual for full programming details.
FireCell = MK98
Fusion = TSD062
WZM = TSD143
Free to download from
www.emsgroup.co.uk
Page 1 of 2
Wireless detector
3 4
3
2 Mounting plate
Front cover
Wireless module incl. 300mm cable
SIZE AA
SIZE AA
SIZE AA
SIZE AA
SIZE AA
SIZE AA
TSD033-99 Iss 6 23/11/2021
5 6 7
4
Dust cover
7
Mounting plate
device
unpowered
(pins unlinked)
device
powered
(both pins linked)
AJM
