NOIROT SPOT PLUS WI-FI

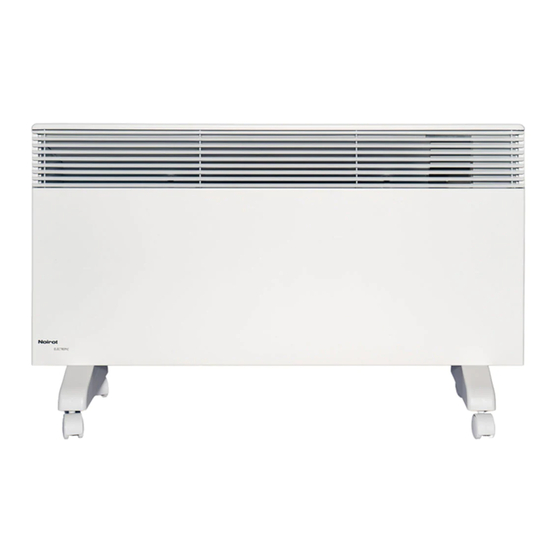

Noirot Spot Plus
Electric Convection Panel Heater
Model with Wi-Fi
Timer Model with Wi-Fi
Distributed by Olimpia Splendid Australia Pty Ltd.
Operating & Installation
Instructions
In Order To Qualify For Your Lifetime Warranty
Please Visit our Website and complete the Online Registration
Visit us at
www.olimpiasplendid.com.au
Advertisement
Related Manuals for Noirot SPOT PLUS WI-FI
Summary of Contents for Noirot SPOT PLUS WI-FI
- Page 1 NOIROT SPOT PLUS WI-FI Noirot Spot Plus Electric Convection Panel Heater Model with Wi-Fi Timer Model with Wi-Fi Distributed by Olimpia Splendid Australia Pty Ltd. Operating & Installation Instructions In Order To Qualify For Your Lifetime Warranty Please Visit our Website and complete the Online Registration Visit us at www.olimpiasplendid.com.au...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety …………………………..……….…..……3 2. Installation …………………………………….….5 3. Panel Mode Operation……………………….….9 4. Wi-Fi Set up ………………………..……………10 5. Maintenance ……………………………...……..12 6. Specifications ……………………………………12 7. Warning …………………………………………..12 8. Warranty ..…………………………………….…..13... -
Page 3: Safety
1. SAFETY Read the Installation and User Guide(*), especially the safety instructions below. WARNING - Certain parts of this product Caution, may become very hot and may cause hot surface burns. Pay extra attention to small children and vulnerable people when they are around the heater. - Page 4 1.1 SAFETY The heater risks overheating CAUTION : if it is covered. The following DO NOT COVER. logo reminds users of this risk. It is therefore strictly forbidden to cover or block the air intakes or outlets at the risk of causing an accident or damaging the heater. All service operations must be performed by a qualified and authorised person after the power has been switched off.
-
Page 5: Installation
2. INSTALLATION RECOMMENDATION FOR WALL INSTALLATION This heater is sold ready for DIY installation, with Wall bracket and flexible cord supplied. To remove the wall bracket from the heater you need to push down on the spring-loaded clips located at the top of the bracket. This can be done by using your fingers or, if preferred, a screwdriver (No: 1 Fig.1). - Page 6 2.1 INSTALLATION Fig. 2 For maximum efficiency, this heater is to be ANY OBSTACLE wall mounted between a minimum height of furniture 100mm and a maximum height of 150mm off the floor. This is to allow the necessary volume of air to flow freely through the vents. It is also important to allow a minimum of 100mm clearance at the top and sides of the heater and 500mm from the front (Fig.
- Page 7 2.2 INSTALLATION INSTRUCTIONS FOR MOUNTING CASTORS ON THE HEATER Please follow these instructions. 1. For maximum stability, space castors at 50mm from the edge of the base as shown 2. To lock castors into place, insert the black clips provided through the bottom of the castors into the base of the heater...
- Page 8 (smell) and haze. This is quite common and should disappear after a few minutes. If it should persist, switch the heater off and have it inspected. Noirot is distributed by Olimpia Splendid. For additional Support, please go to: www.olimpiasplendid.com.au...
-
Page 9: Panel Mode Operation
3. PANEL MODE OPERATION GENERAL VIEW On / Standby On/Off Main Functions Icon Description Switches unit On and Off, located on the top of the Switches unit On and Standby, located on the top of the Power Button panel, left of the display. panel, left of the display. - Page 10 4. WI-FI OPERATION Before you can connect your device, please download the Capa Connect app to your CAPA phone or tablet. When you launch the app, you will be prompted to register with either email, phone number, or social media credentials. Ensure Wi-Fi and Bluetooth settings on your smart device are ON.
-
Page 11: Maintenance
5. MAINTENANCE Your Noirot Electric Panel Heater requires very little maintenance. To remove surface dust use a soft cloth; to remove marks use a damp cloth. Never use abrasives or metal scourers which could damage the polyester coating. It is... -
Page 12: Warranty
2. This may require leaving the product at the place of purchase. 3. If the product is deemed faulty and under warranty, the place of purchase of the product will order a replacement heater to which Noirot Australia, at our cost, will deliver the heater to the place of purchase.
