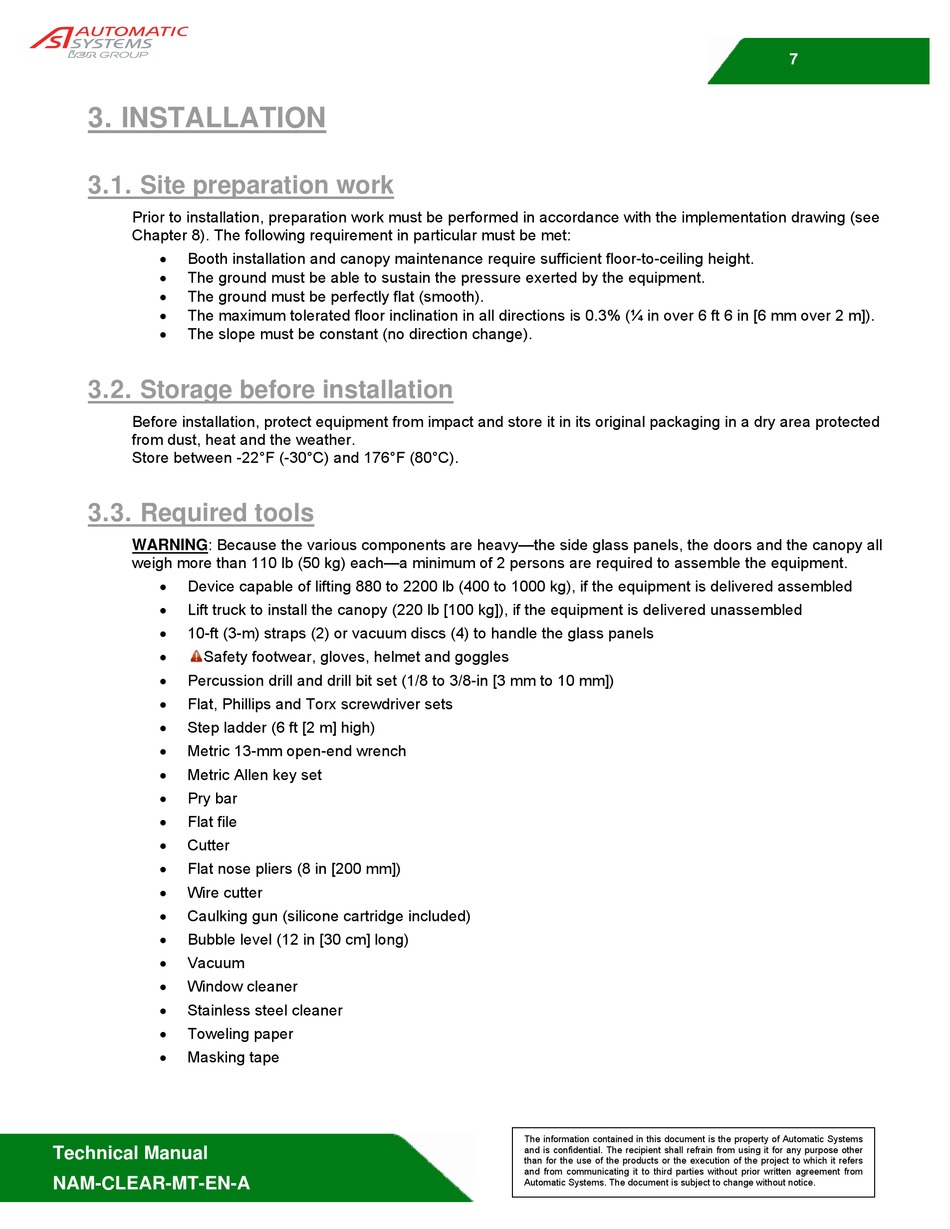

3. INSTALLATION

3.1. Site preparation work

Prior to installation, preparation work must be performed in accordance with the implementation drawing (see
Chapter 8). The following requirement in particular must be met:

Booth installation and canopy maintenance require sufficient floor-to-ceiling height.

The ground must be able to sustain the pressure exerted by the equipment.

The ground must be perfectly flat (smooth).

The maximum tolerated floor inclination in all directions is 0.3% (¼ in over 6 ft 6 in [6 mm over 2 m]).

The slope must be constant (no direction change).

3.2. Storage before installation

Before installation, protect equipment from impact and store it in its original packaging in a dry area protected
from dust, heat and the weather.
Store between -22°F (-30°C) and 176°F (80°C).

3.3. Required tools

WARNING: Because the various components are heavy—the side glass panels, the doors and the canopy all
weigh more than 110 lb (50 kg) each—a minimum of 2 persons are required to assemble the equipment.

Device capable of lifting 880 to 2200 lb (400 to 1000 kg), if the equipment is delivered assembled

Lift truck to install the canopy (220 lb [100 kg]), if the equipment is delivered unassembled

10-ft (3-m) straps (2) or vacuum discs (4) to handle the glass panels

Safety footwear, gloves, helmet and goggles

Percussion drill and drill bit set (1/8 to 3/8-in [3 mm to 10 mm])

Flat, Phillips and Torx screwdriver sets

Step ladder (6 ft [2 m] high)

Metric 13-mm open-end wrench

Metric Allen key set

Pry bar

Flat file

Cutter

Flat nose pliers (8 in [200 mm])

Wire cutter

Caulking gun (silicone cartridge included)

Bubble level (12 in [30 cm] long)

Vacuum

Window cleaner

Stainless steel cleaner

Toweling paper

Masking tape
