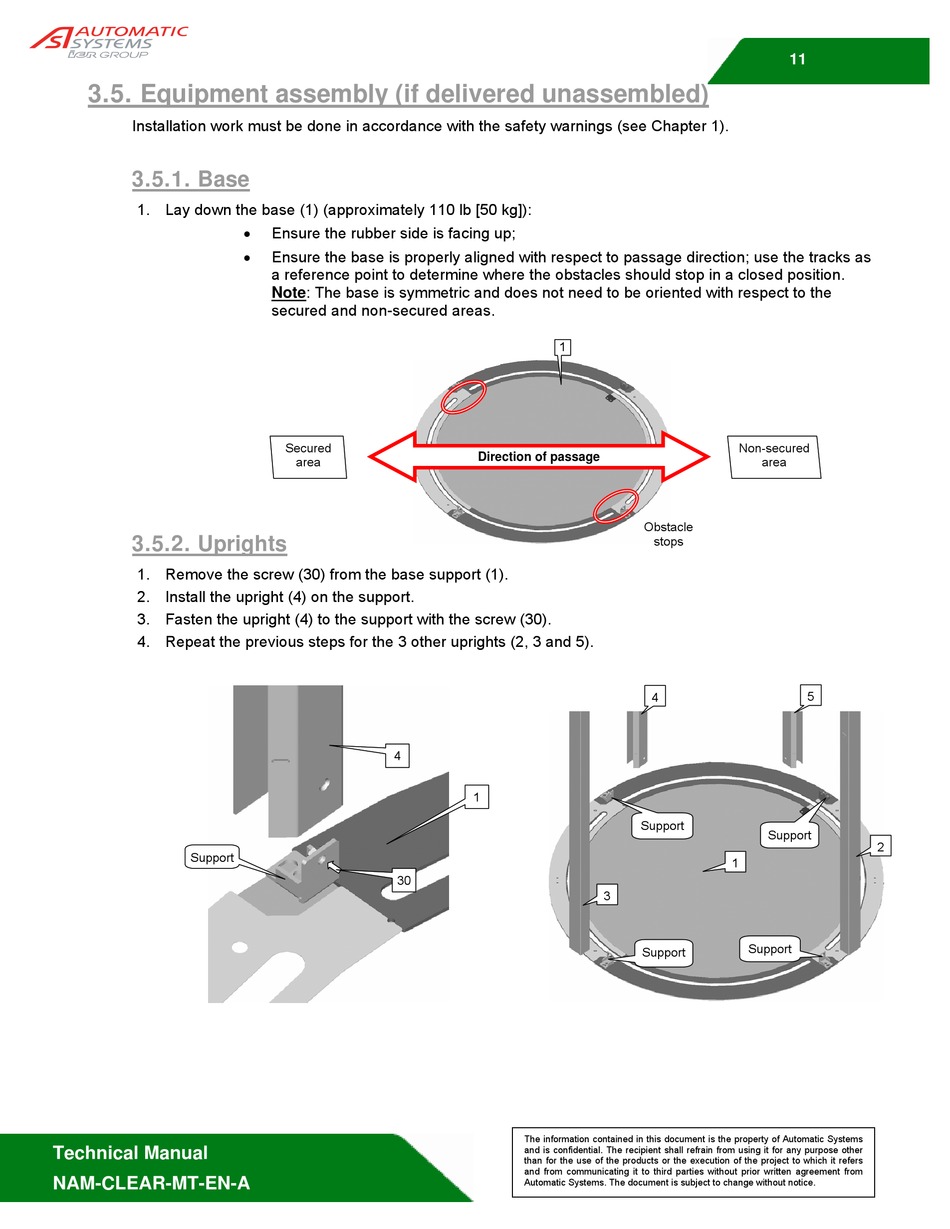

3.5. Equipment assembly (if delivered unassembled)

Installation work must be done in accordance with the safety warnings (see Chapter 1).

3.5.1. Base

1. Lay down the base (1) (approximately 110 lb [50 kg]):

3.5.2. Uprights

1. Remove the screw (30) from the base support (1).
2. Install the upright (4) on the support.
3. Fasten the upright (4) to the support with the screw (30).
4. Repeat the previous steps for the 3 other uprights (2, 3 and 5).
Support
Technical Manual
NAM-CLEAR-MT-EN-A
Ensure the rubber side is facing up;
Ensure the base is properly aligned with respect to passage direction; use the tracks as
a reference point to determine where the obstacles should stop in a closed position.
Note: The base is symmetric and does not need to be oriented with respect to the
secured and non-secured areas.
Secured
area
4
30
1
Direction of passage
Obstacle
4
1
Support
3
Support
The information contained in this document is the property of Automatic Systems
and is confidential. The recipient shall refrain from using it for any purpose other
than for the use of the products or the execution of the project to which it refers
and from communicating it to third parties without prior written agreement from
Automatic Systems. The document is subject to change without notice.
11
Non-secured
area
stops
5
Support
1
Support
2
