CKM-MR52-S3
24-10707-198 Rev. –
M
I
OUNTING
NFORMATION
W
I
IRING
NFORMATION
This sections covers the following:
•
Cable Routing
•
Power Wiring
•
Communications Wiring (SIO Communication Port)
•
Reader Wiring
•
Alarm Contact Wiring
•
Control Output Wiring

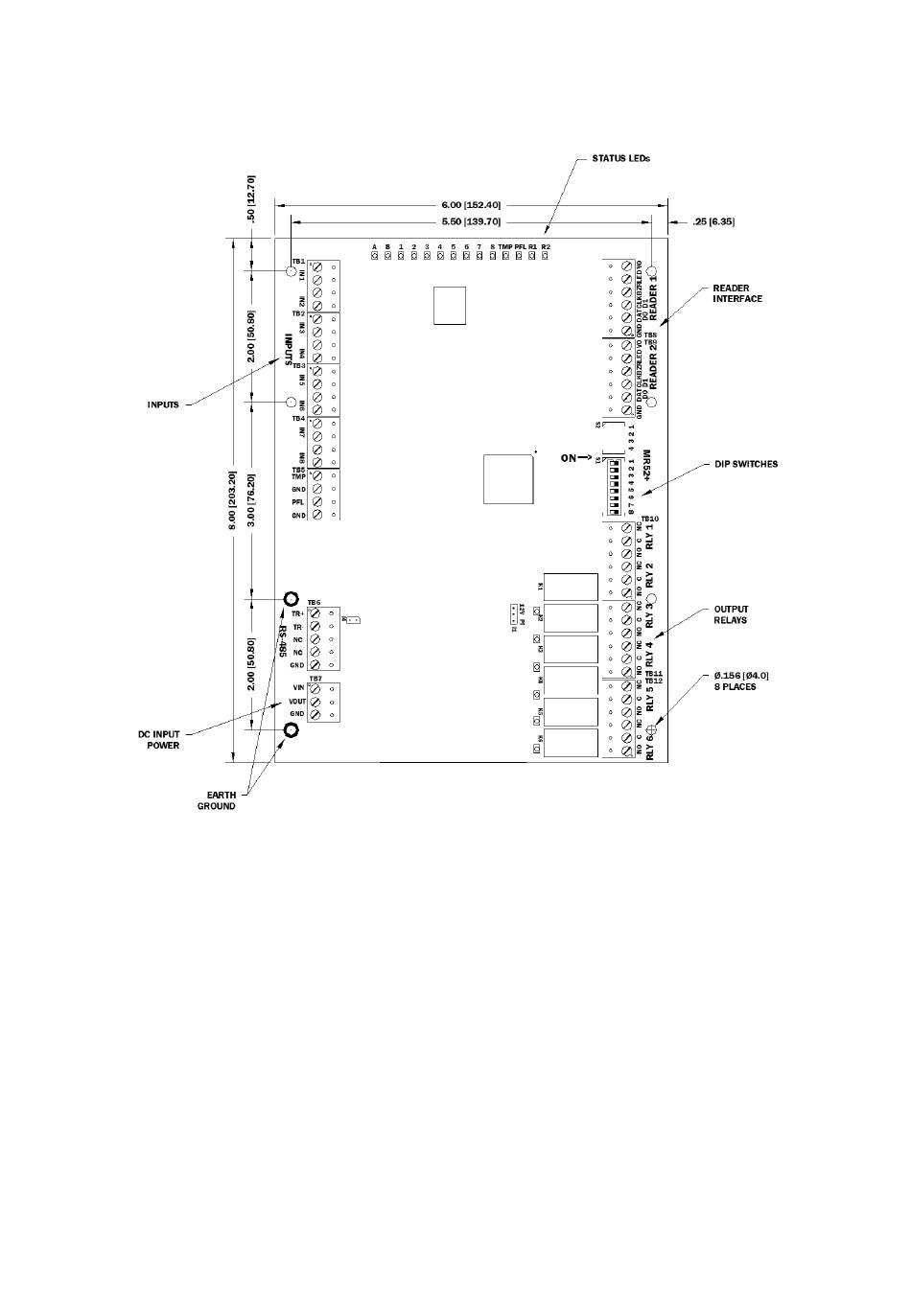

Figure 1: CKM-MR52 Hardware
2
Hardware Installation Manual
