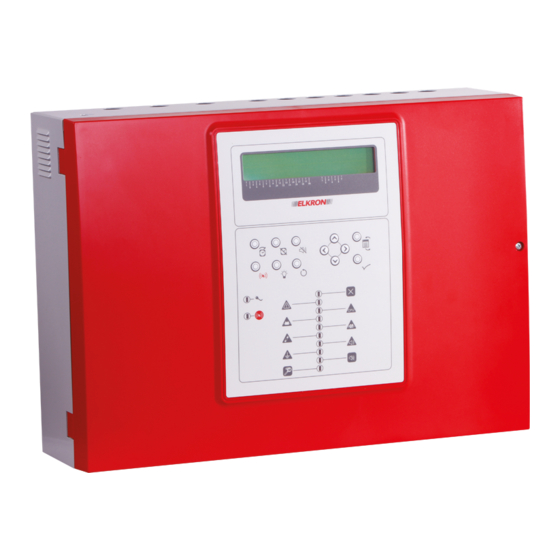

- Page 1 C420 4 – 20 zones Conventional control panel 0051 DS80SC86-006A LBT80744 1/24 Installazione MP508...
- Page 2 Elkron is a trademark of URMET S.p.A. All trademarks mentioned in this document belong to the corresponding owners. All rights reserved. The total or partial reproduction of this document is authorised only for installation purposes of the C420 System. Tel. +39 011.3986711 – Fax +39 011. 3986703 www.elkron.com –...
-
Page 3: Table Of Contents
3.3.5 Batteries test ................................20 3.3.6 FW revision ................................20 EXCLUSIONS ..................................21 3.4.1 Zones ..................................21 3.4.2 Supplementary siren outputs ............................. 21 3.4.3 Siren output ................................21 3.4.4 Printer ..................................22 3.4.5 LCD annunciator ................................ 22 C420 Programming Manual... -
Page 4: General Description
1 GENERAL DESCRIPTION 1.1 INTRODUCTION C420 is a modular conventional control panel which can handle from 4 (basic configuration) up to max 20 detection circuits (via optional circuit modules) where it is possible to connect up to 512 points. Each circuit covers a zone which can house up to 32 conventional points (the control panel, though, has to be compliant with the constraint of max 512 total points in the field). - Page 5 (*) In the modes with delay, it is possible: to increment, by pressing the INCREASE DELAY key, the siren output activation timer; to clear immediately, by pressing the SKIP DELAY key, the siren output activation timer. C420 Programming Manual...
-
Page 6: Led Indicators - Keys - Relays
GROUND DISPERSION YELLOW Steady ON: an electric ground dispersion is present. Steady ON: at least one siren output is excluded. SIREN EXCLUDED YELLOW TEST YELLOW Steady ON: a zone test is active. C420 Programming Manual... -
Page 7: Keys
(ESC). By pressing this key (this operation is named “event acknowledgement”) the buzzer stops sounding. This key is also used to confirm the user input in the menus where numbers and strings are entered. C420 Programming Manual... -
Page 8: External Keyboard
The supplementary siren outputs, available on an external expansion card, are supervised SUPPLEMENTARY SIREN outputs and can be used to activate fire alarm signalling equipments (sirens, bells, etc.). OUTPUTS Each of these outputs can be associated independently of each other to one or more zones. C420 Programming Manual... -
Page 9: Main Menu
When the user is required to enter a string (e.g., the system name or a name of a zone), the following message is displayed: XXXXXX: _ XXXXXX is an auxiliary string indicating the string/name to be inserted. C420 Programming Manual... -
Page 10: Language
This menu allows the user to enable or disable the password request when the user enters password protected menus and functionalities. When the control panel is in monitoring phase and the passwords are disabled a fault message is notified. C420 Programming Manual... -
Page 11: System Name
After entering and confirming the number, if it is valid (i.e., it is relevant to a configured zone) the following menu is shown: > NAME MODE RELAY INCLUDE/EXCLUDE VERIFY C420 Programming Manual... - Page 12 MASTER ALARM > YES Use the UP/DOWN keys to select the activation/deactivation of this option, then confirm the choice by pressing the RIGHT key. C420 Programming Manual...
- Page 13 Through this item, it is possible to show the current configuration options of a zone. The information to be shown depends on the mode programmed for the zone. Accessing to this menu leads to the visualization of the following information: ZONE: XX (zone number) YYYYYYYYYYYYYYYYYYYYYYYYY (zone name) INCLUDED (inclusion/exclusion state) SINGLE KNOCK WITH DELAY (mode) C420 Programming Manual...
-
Page 14: Outputs And Relays
(range 0 – 10 minutes): PROGRAMMBLE RELAY NO AC POWER DELAY: __ If the AC mains is missing, the relay will be activated when the delay programmed through this menu expires. C420 Programming Manual... - Page 15 If the control panel is equipped with more than 12 zones and the selector selects the 12 zone, by pressing the RIGHT key the associations with the next zones are shown: SUPPLEMENTARY SIREN OUTPUT: x > Z13:- Z14:- Z15:- Z16:- Z17:- Z18:- Z19:- Z20:- C420 Programming Manual...
-
Page 16: Timers
When the procedure ends, the following summary screen is shown (the optional modules which can be recognized are 4 circuit expansion cards and 1 supplementary siren outputs expansion card): ML1:* ML2:* ML3:* ML4:* MCC:* MSIR:* Key: MLn: circuit expansion card MCC: command and control module MSIR: supplementary siren output expansion card module present module absent C420 Programming Manual... -
Page 17: Printer
EQUIPMENT TO BE RECOGNIZED if the LCD annunciator has not been recognized yet, EQUIPMENT ENABLED if the LCD annunciator has been recognized already and is working correctly, EQUIPMENT NOT PRESENT if the LCD annunciator is not present. C420 Programming Manual... -
Page 18: Service
STOP EVENT LOG PRINT [<] BACK [>] CONFIRM By pressing LEFT, the previous menu is shown and no interruption occurs. By pressing RIGHT, the print is stopped and the following message is displayed: EVENT LOG PRINT STOPPED C420 Programming Manual... -
Page 19: Clock
ZONE TEST IN PROGRESS The reset time (i.e., the time necessary for the zone to restore the idle condition after having detected and signalled an alarm) is NOT PROGRAMMABLE and has a fixed value of 10 seconds. C420 Programming Manual... -
Page 20: Batteries Test
SUPPLEMENTARY SIREN OUTPUTS MODULE LCD ANNUNCIATOR PRINTER MODULE Press the UP/DOWN keys to change the card type. Press the LEFT/RIGHT keys to scroll the cards of the same type (circuit cards). Press MENU/ESC to return to the previous menu. C420 Programming Manual... -
Page 21: Exclusions
SUPPLEMENTARY SIREN OUTPUT: X > INCLUDED EXCLUDED 3.4.3 Siren output The menu displayed upon selection of the item ‹‹SIREN OUTPUT›› allows the user to exclude/include the siren output available on- board : SIREN OUTPUT > INCLUDED EXCLUDED C420 Programming Manual... -
Page 22: Printer
By entering this menu, the user can exclude/include the printer: PRINTER > INCLUDED EXCLUDED 3.4.5 LCD annunciator This menu allows the user to exclude/include the LCD annunciator connected to the control panel: LCD ANNUNCIATOR > INCLUDED EXCLUDED C420 Programming Manual... - Page 23 C420 Programming Manual...
- Page 24 ELKRON ELKRON is a trademark of URMET S.p.A. Tel. +39 011.3986711 - Fax +39 011.3986703 Via Bologna, 188/C - 10154 Torino (TO) – Italy Milano: Tel. +39 02.334491- Fax +39 02.33449213 www.urmet.com – mail to: info@elkron.it www.elkron.com Made in ITALY...
