Summary of Contents for Soundstream VRCPAA-106M

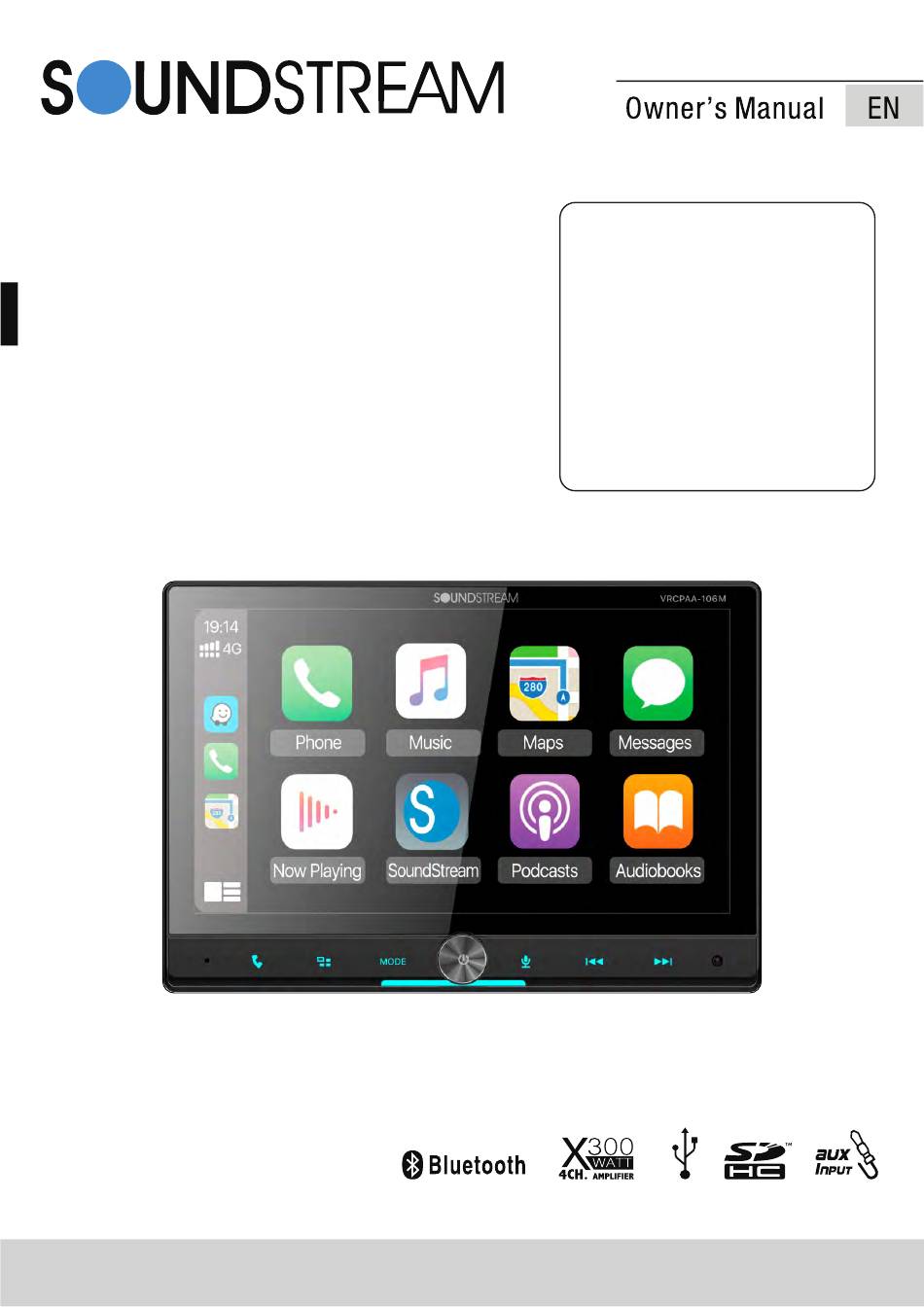

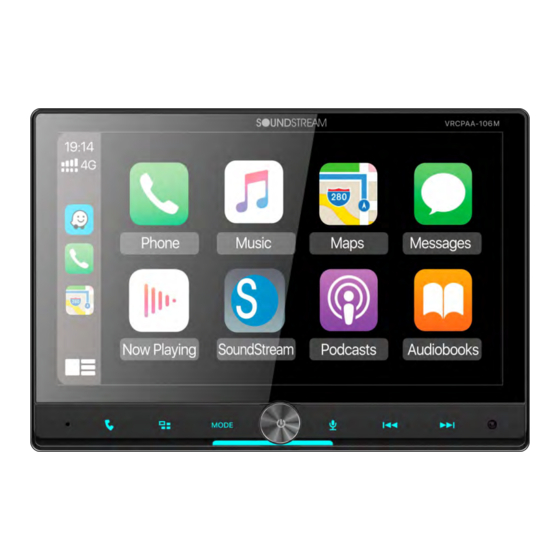

  • Page 1 AV Center 2 DIN 10.6" Monitor Touch screen MP3/MP4 2-DIN Head Unit USB/SD AM/FM Radio Support Apple CarPlay Support Android Auto Support Bluetooth VRCPAA-106M...
  • Page 2: Table Of Contents

    Content 1. Appearance --------------------------------------------- 3 2. Accessories and Installation --------------------------------- 3. Wiring Connection --------------------------------- 4. Front panel Description --------------------------------- 5. Remote Control --------------------------------- 6. Main Menu --------------------------------- 7. Settings --------------------------------- 8. Apple CarPlay & Android auto --------------------------------- 9. Radio --------------------------------- 10.
  • Page 3: Appearance

    1. Appearance Accessories & Installation Appearance Accessories & Installation Package contains the following accessories for Main Menu installation and operation of the unit. Mounting bracket Screw Apple Carplay Menu CP/AA Radio DISC Remote EJECT Trim Ring Android Auto Menu AV Center 2 DIN 10.6"...
  • Page 4 Accessories & Installation Installation 4. Consult with your nearest dealer if installation requires the drilling of holes or other modification of the vehicle. 5. Install the car receiver in the dashboard. Dashboard 6. Connect the wire harness & antenna to the car receiver being carefully not to pinch any wires or cables.
  • Page 5: Wiring Connection

    Wiring Parking wire 3. Swivel Note: The parking wire is connected with brake signal; for safety, the programs can be seen on the monitor after braking the car.. Note: To watch video the parking wire should be connected to brake signal. Parking brake lead Brown wire battery...
  • Page 6 Wiring Extraposition MIC jack Line Out (FR) Line Out (RR) Yellow Video Output1 Audio In (R) Radio antenna Yellow Video Input White ISO A ISO B Audio In (L) Yellow Video Output2 Yellow Back camera input white Line Out (RL) Green Subwoofer Out White...
  • Page 7: Front Panel Description

    4.Front panel Description Front panel Front panel Press and hold to seek downward or upward. VRCPAA-106F [Disc/USB/SD Music] Press repeatedly to shift track previous or next for playback. Press and hold to active various fast rewind or fast forward speeds for playback. [Bluetooth Music] Press repeatedly to shift track previous or next for playback.
  • Page 8: Remote Control

    Note: 1. SXM just for include SiriusXM Press it to switch to DVD mode. function models. DISC 2. * # these functions for Bluetooth. Press it to switch to Bluetooth mode. Remark: VRCPAA-106M have not Disc function. Press it to switch to USB mode.
  • Page 9: Main Menu

    7.Settings 6.MAIN MENU VRCPAA-106M is a 2-DIN car audio with Touch the icon to enter the Setup menu. following functions: The Setup menu is included System Settings, Apple CarPlay, Google Android Auto, Display Settings, Audio & EQ Settings, Bluetooth Radio, Bluetooth, USB, SD.
  • Page 10 7.Settings SWC: About To display the Unit Hardware and Firmware version. To set the Steering Wheel Control MCU: SOC: Hardware: Update Display Settings : Below is the Display setting menu, user can select Lighting Detect, Daylight Dimming Level, Night Dimming Level, Illumination and Wallpaper.
  • Page 11 7.Settings Wallpaper 10-Band Equalizer : User can select the preset wallpaper or select 10 band of EQ tuning, slide the EQ bar to tune the picture in USB driver as the wallpaper. each band frequency level according to user preference. Touch Reset to set all Band to 0.
  • Page 12: Apple Carplay & Android Auto

    7.Settings 8.CarPlay & Android Auto Device Name: shown the connected phone 8.1 Apple Carplay or device Plug the iPhone (iPhone 5 or latter models, Clear Records: (To clear the device list records) and IOS 7.1 or above) through the lightening cable to the USB port of the source unit.
  • Page 13: Radio

    9.Radio mode 8.CarPlay & Android Auto 8.2 Android auto Operations Android Auto enables you to use functions of your Androd device convenient for driving. You can easily access route guidance, make calls, listen to music, etc. For details about Android Auto, visit https://www.android.com/auto Radio mode https://support.google.com/androidauto.,...
  • Page 14: Usb

    10.USB Store a Station Press to go to the next folder. 1 . Tune radio to desired station. Press to search Audio, Video or 2. Touch and hold the one of the preset Picture files. station for more than 3 seconds, then the preset button will be highlighted on Press to go to the previous folder.
  • Page 15: Bt Audio

    Bluetooth Pairing Press Pairing the Pairing Mode screen will be shown as below: Bluetooth Music Playback Turn On the Bluetooth of the Mobile phone/ Bluetooth device, you can see the VRCPAA-106M. Select the VRCPAA-106M for pairing and connection.
  • Page 16: Bt Phone

    12.Bluetooth Phone Bluetooth Phone Touch the Phone icon in main menu to go to 4. To end the call, touch the icon Phone mode. After the mobile phone is on the screen. connected with the source unit via Bluetooth (HFP), user can through the source unit to 106M make a phone call.
  • Page 17 12.Bluetooth Phone Contacts 106M Touch the icon to access the phone book of the connected mobile phone. To make a call from the phonebook, simply touch the contact name. 106M VRCPAA-7DR Contacts 106M Interchange between phone and BT Setup source unit ON/OFF the Microphone function Display the Keypad.
  • Page 18: Specification

    13. Specification General Power Supply ………………………….………………………………….……..…………. DC10~16Volts Grounding System …………………………………..……..……….………..…….. Negative Ground Current Drain ………………………………….…………………………...……..….……..……. 15A(Max.) Max Power Output …………………………………………….………………..……. ..4×75W/channel RMS Power Output ……………………………………………………………………..4x25w/channel Speaker Impedance ……………………………………..…..…………….. 4~8ohms per channel Frequency Response……………………………………..……….………………………. 20Hz~20KHz Operating Temperature …………………………………..………………....-20~+60℃ Dimensions ……………………………………..… 255mm(W)x250mm(D)x175.1mm(H) TFT Display TFT Screen size…………………………………………..……………………….…………………...
  • Page 19: Av In

    14.AV IN 15.Camera AV IN Touch the to pop up the function bars The Audio/Video source with RCA cable can and touch to view the playing Rear camera. through the source unit to play the Audio/ Video. Plug the RCA to the corresponding A/Vsocket.
  • Page 20: Fcc Notes

    FCC Notes WARNING! Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the userʼs authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
