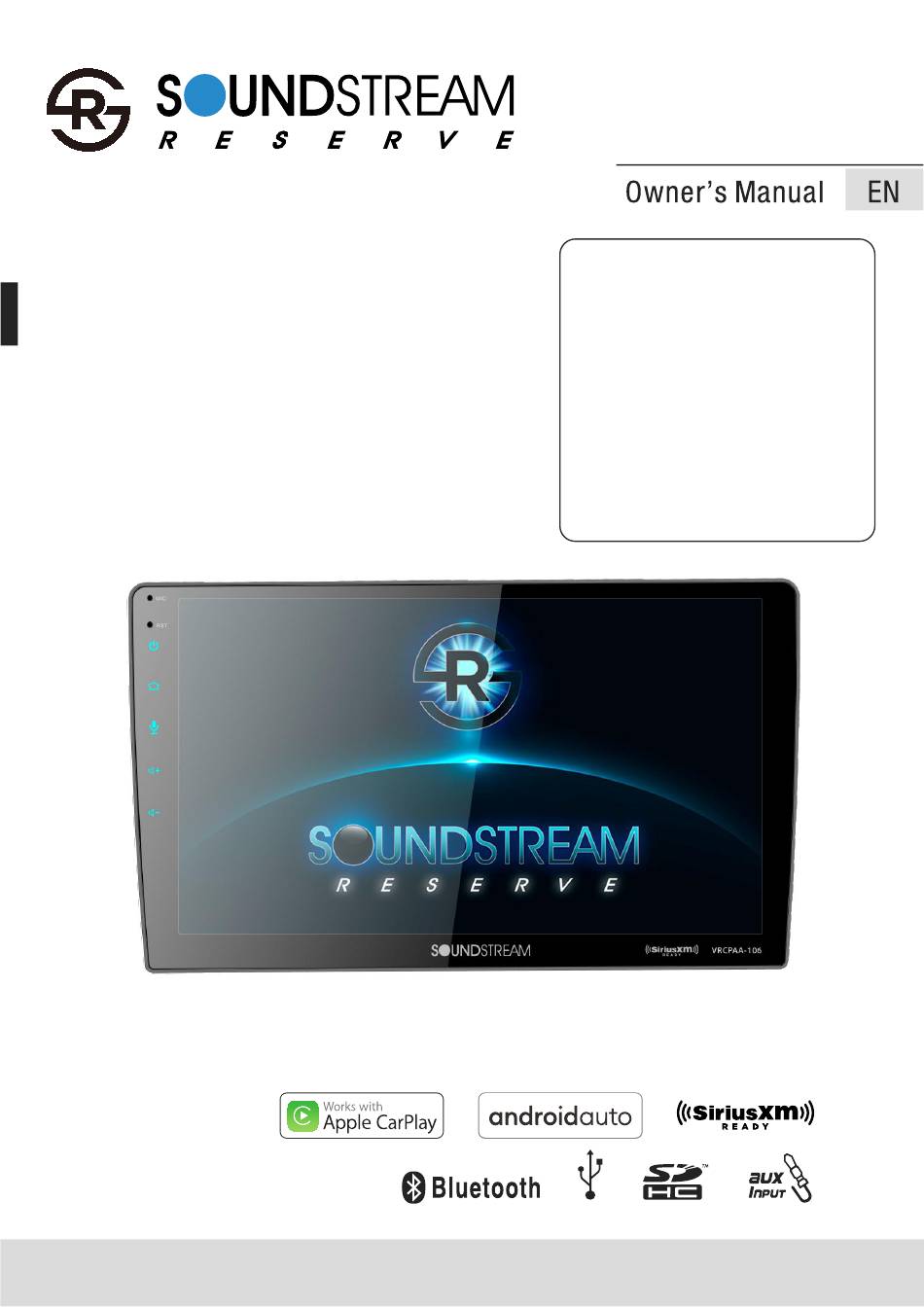

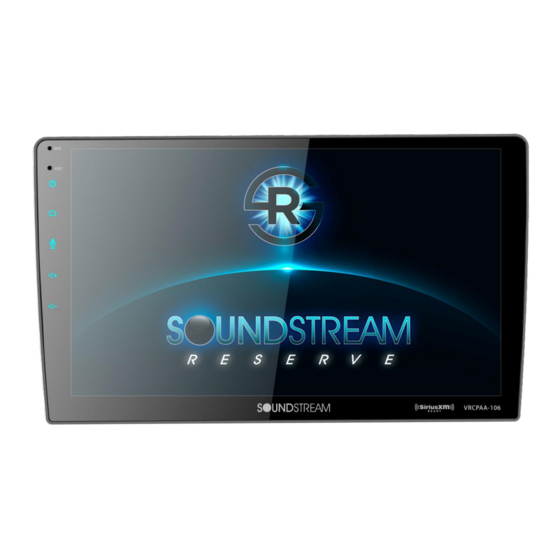

- Page 1 AV Center 2 DIN 10.6" Monitor Full touch screen 2-DIN DVD Head Unit DVD/CD/MP3/MP4/ USB/SD AM/FM Radio Support Apple CarPlay Support Android Auto Support Bluetooth Sirius READY VRCPAA-106...
-
Page 2: Table Of Contents
Content 1. Appearance --------------------------------------------- 3 2. Accessories and Installation --------------------------------- 3. Wiring Connection --------------------------------- 4. Front panel Description --------------------------------- 5. Remote Control --------------------------------- 6. Main Menu --------------------------------- 7. Settings --------------------------------- 8. Apple CarPlay & Android auto --------------------------------- 9. Radio --------------------------------- 10. -
Page 3: Appearance
2-DIN DVD Head Unit DVD/CD/MP3/MP4/ USB/SD AM/FM Radio Support Apple CarPlay Support Android Auto Support Bluetooth Sirius XM ready User Manual VRCPAA-106 Slide right to display 1st page Warranty Card Carplay Menu ISO Cable Harness cable Android Auto Menu USB Cable... - Page 4 Accessories & Installation Installation 4. Consult with your nearest dealer if installation requires the drilling of holes or other modification of the vehicle. 5. Install the car receiver in the dashboard. Dashboard 6. Connect the wire harness & antenna to the car receiver being carefully not Bracket to pinch any wires or cables.
-
Page 5: Wiring Connection
Wiring Parking wire 2. Tilt Note: The parking wire is connected with brake signal; for safety, the programs can be seen on the monitor after braking the car.. Note: To watch video the parking wire should be connected to brake signal. Parking brake lead Brown wire battery... - Page 6 Wiring Extraposition MIC jack Line Out (FR) Line Out (RR) Yellow Video Output1 Audio In (R) SXM Tuner (Not supplied) To Steering remote To use the steering wheel remote control feature, you need an universal remote adapter ( not supplied) ISO A ISO B matched to your car.
-
Page 7: Front Panel Description
4.Front panel Description Front panel 10 11 VRCPAA-106 USB port Build in Microphone. Connect USB for digital playback. Connect your iPhone for Apple CarPlay. Reset button Connect your Android Phone for Press to default factory settings. Android Auto. Power On/Off button... -
Page 8: Remote Control
5.REMOTE CONTROL Press it to increase or decrease the volume level. CP/AA Radio DISC It is UP /Down/Left/Right Arrow, use this button to select the menu item, ENTER the title track or to show next frame. [Radio] Press to seek upward/ downward. -
Page 9: Main Menu
7.Settings 6.MAIN MENU VRCPAA-106 is a 2-DIN car audio with Touch the icon to enter the Setup menu. following functions: The Setup menu is included System Settings, Apple CarPlay, Google Android Auto, Display Settings, Audio & EQ Settings, Disc &... - Page 10 7.Settings Factory Reset To reset the default factory setting. Led Auto Led Color Reset Factory Data Cancel Led Auto: On/Off . ON: The Led color will change automatically. About OFF: You press the button To display the Unit Hardware and Firmware to select desired color.
- Page 11 7.Settings Audio & EQ Settings: LOUD: On/Off Below shown is the Audio Setting Menu. Disc & DVD Settings : Touch the Disc/DVD Settings from the menu to enter the Disc/DVD setting interface. Balance/Fader: Touch the + or – of Balance/Fade to tune for the driver and passenger preference.
-
Page 12: Apple Carplay & Android Auto
7.Settings 8.CarPlay & Android Auto Rear Camera Setting: 8.1 Apple Carplay Touch Rear View Camera in the Setting Plug the iPhone (iPhone 5 or latter models, Menu to enter rear camera setting interface and IOS 7.1 or above) through the lightening as follow: cable to the USB port of the source unit. -
Page 13: Radio
9.Radio mode 8.CarPlay & Android Auto 8.2 Android auto Operations Android Auto enables you to use functions of your Androd device convenient for driving. You can easily access route guidance, make calls, listen to music, etc. For details about Android Auto, visit https://www.android.com/auto Radio mode https://support.google.com/androidauto.,... -
Page 14: Usb
10.USB Store a Station Press to go to the next folder. 1 . Tune radio to desired station. Press to search Audio, Video or 2. Touch and hold the one of the preset Picture files. station for more than 3 seconds, then the preset button will be highlighted on Press to go to the previous folder. -
Page 15: Disc
11.DISC Touch to rotate the picture anti- DVD Playback clockwise for 90 degree (for picture The Video display can be watched only playback) during the Car is Parked. Touch to rotate the picture clockwise Parking wiring: High level (+12v or NC) is for 90 degree (for picture playback) driving;... -
Page 16: Bt Music
Bluetooth Pairing Press Pairing the Pairing Mode screen will be shown as below: Bluetooth Music Playback Turn On the Bluetooth of the Mobile phone/ Bluetooth device, you can see the VRCPAA-106. Select the VRCPAA-106 for pairing and connection. -
Page 17: Bt Phone
Phone mode. After the mobile phone is connected with the source unit via Bluetooth VRCPAA-106 (HFP), user can through the source unit to make a phone call. Please note it needs to connect the microphone for phone call. -
Page 18: Sirius Xm
14. Sirius XM operation you can tune to channels in your subscription SiriusXM Ready plan. Note, the activation process usually takes Your Favorite Stations Wherever You Go, 10 to 15 minutes, but may take up to an hour. Wherever you are, this Receiver is SiriusXM- Your radio will need to be powered on and Ready®... - Page 19 13.Bluetooth Phone Contacts VRCPAA-106 Touch the icon to access the phone book of the connected mobile phone. To make a call from the phonebook, simply touch the contact name. VRCPAA-7D VRCPAA-106 Contacts VRCPAA-106 Interchange between phone and BT Setup source unit ON/OFF the Microphone function Display the Keypad.
- Page 20 14. Sirius XM operation In SiriusXM mode, SiriusXM icon is highlighted. 1 [Artist Alert] 10,000 Maniacs Ch 22: Ch0022Sid362Cat01 2 [Artist Alert] Pearl Jam Ch 21: Ch0021Sid363Cat01 Channel Browse Touch SXM can change between SXM1=>SXM2=>SXM3 . Touch to browse the channel listing. User can browse by select the Channel List and Artist &...
- Page 21 14. Sirius XM operation Change Pass Code Favorite Touch "> of the Change Passcode" to show the below screen. Input the passcode by using the keypad. Press to clear the pervious digit if input wrong. Touch to confirm input. Direct Tune Press to shown the direct tune interface, user can direct enter the channel number and...
- Page 22 You can use channel up/down or direct tune. be shown that you would like to lock. Version Radio ID Press Version in the menu, the below screen will be shown the VRCPAA-106 Software ID Number XXX version information: Note: Reset SiriusXM passcode The default SiriusXM...
- Page 23 14. Sirius XM trouble shooting On-Screen Display Advisory Message Cause Explanation/Solution • Verify that the antenna cable is connected to the The radio has detected a fault with the SiriusXM Connect Vehicle Tuner. SiriusXM antenna. The antenna cable may Check Antenna Check Antenna •...
-
Page 24: Specification
15. Specification General Power Supply ………………………….………………………………….……..…………. DC10~16Volts Grounding System …………………………………..……..……….………..…….. Negative Ground Current Drain ………………………………….…………………………...……..….……..……. 15A(Max.) High Output Power Capability..……….…………………………...……..….…...4x45W/4Ω Max 4x28W/4Ω RMS 4x75W/2Ω Max 4x48W/2Ω RMS MOSFET Quad Bridge Power Amplifier Excellent 2Ω capability Frequency Response……………………………………..……….………………………. 20Hz~20KHz Operating Temperature …………………………………..………………....-20~+60℃ Dimensions ……………………………………..…... -
Page 25: Av In
16.AV IN 17.Camera AV IN Touch the to pop up the function bars The Audio/Video source with RCA cable can and touch to view the playing Front camera. through the source unit to play the Audio/ Video. Plug the RCA to the corresponding A/Vsocket. -
Page 26: Trouble Shooting
18. Trouble Shooting Cause Symptom Remedy Replace with fuse of the same amperage. If the fuse Fuse is blown General power does not turn blows again, consult your store of purchase on.(No sound is produced.) In correct wiring Consult your local retailer. 1. -
Page 27: Fcc Notes
FCC Notes WARNING! Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the userʼs authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
