Version 09/2018

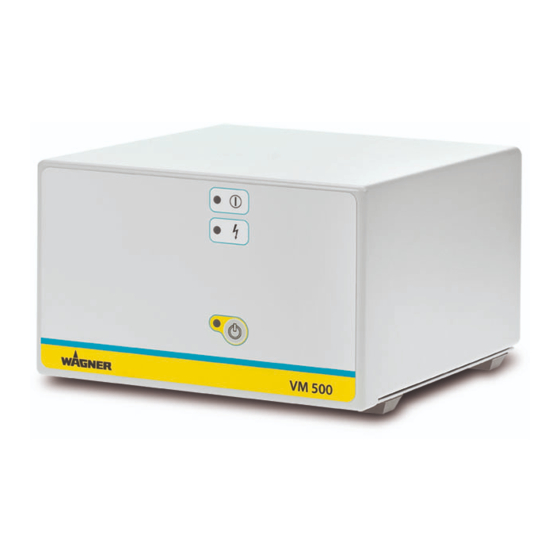

VM 500 Control Unit
for Electrostatic Manual Spray Guns
B_03416

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM 500 and is the answer not in the manual?

Questions and answers

Summary of Contents for WAGNER VM 500

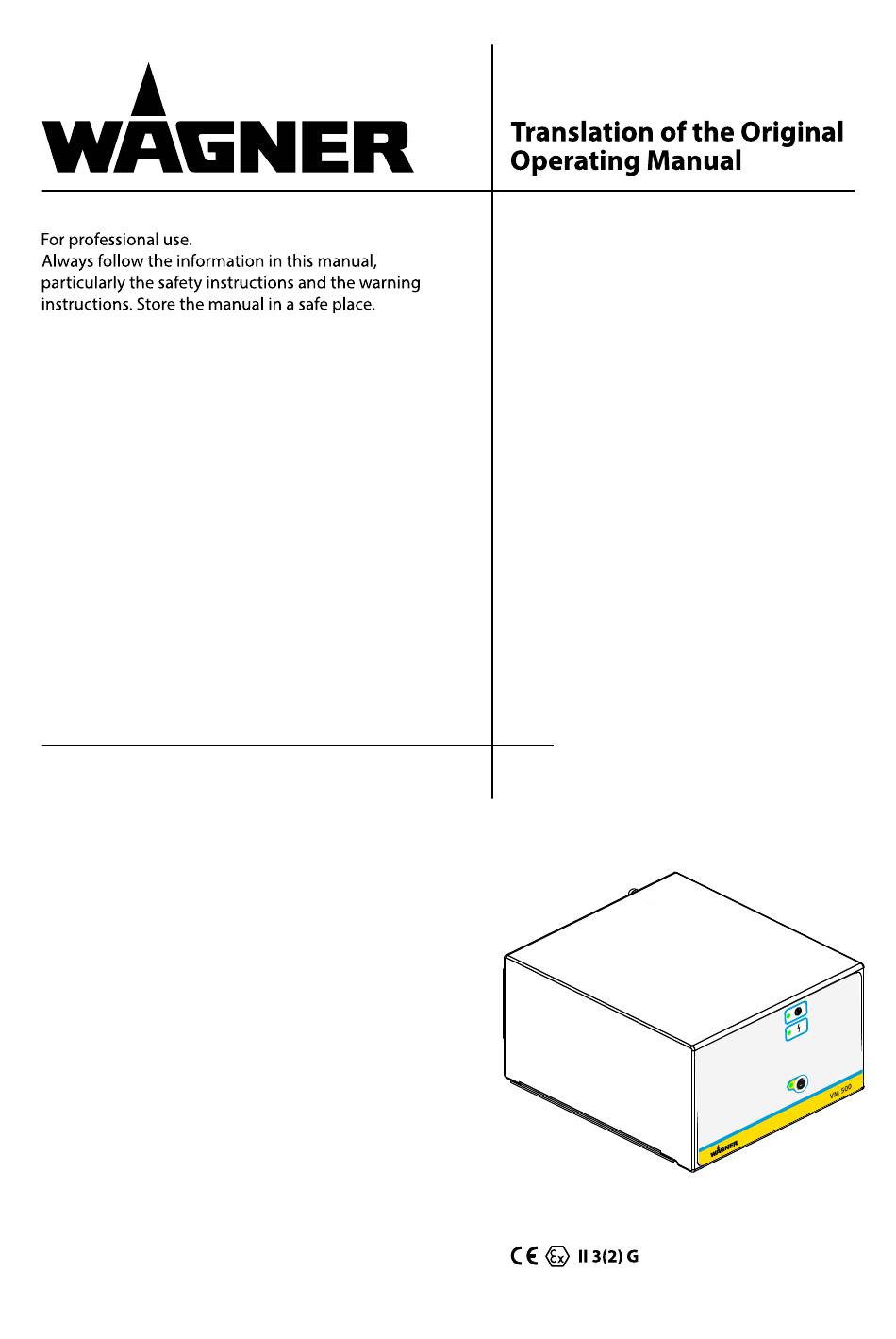

  • Page 1 Version 09/2018 VM 500 Control Unit for Electrostatic Manual Spray Guns B_03416...
  • Page 3: Table Of Contents

    Electrical Devices and Equipment 4.1.2 A Safe Work Environment 4.1.3 Personnel Qualifications Safety Instructions for the Personnel 4.2.1 Personal Safety Equipment 4.2.2 Safe Handling of WAGNER Spray Devices 4.2.3 Grounding the Unit 4.2.4 Product Hoses 4.2.5 Cleaning and Flushing 4.2.6 Touching Hot Surfaces 4.2.7...
  • Page 4 Safety Checks and Maintenance Intervals TROUBLESHOOTING AND RECTIFICATION REPAIR WORK 10.1 Repair Personnel 10.2 Repair Notes DISPOSAL ACCESSORIES SPARE PARTS 13.1 How Can Spare Parts Be Ordered? 13.2 Spare Parts List for VM 500 Control Unit EU DECLARATION OF CONFORMITY...
  • Page 5: About These Instructions

    VM 500 VERSION 09/2018 ORDER NUMBER DOC 2318724 ABOUT THESE INSTRUCTIONS PREFACE The operating manual contains information about safely operating, maintaining, cleaning and repairing the device. The operating manual is part of the device and must be available to the operating and service personnel.
  • Page 6: Languages

    VM 500 VERSION 09/2018 ORDER NUMBER DOC 2318724 LANGUAGES The operating manual is available in the following languages: Original operating manual Language Order no. German 2310485 Translation of the original operating manual Language Order no. English 2318724 French 2318725 Italian...
  • Page 7: Correct Use

    ORDER NUMBER DOC 2318724 CORRECT USE DEVICE TYPE VM 500 control unit for controlling GM 5000EA or GM 5000EAC electrostatic spray guns. TYPE OF USE WAGNER's VM 500 electrostatic control unit controls and regulates the high-voltage supply to the GM 5000EA or GM 5000 EAC spray guns used to apply liquid coating media.
  • Page 8: Identification

    Only the corresponding cables for the device may be used (see Chapter 12 and the spray gun's operating manual). Permissible device combinations The following spray guns may be connected to the VM 500 control unit: - GM 5000EA spray gun...
  • Page 9: Type Plate

    VM 500 VERSION 09/2018 ORDER NUMBER DOC 2318724 TYPE PLATE Main Switch Zulässige Gerätekombinationen siehe Benutzerinformation. Admissible combinations of devices, see information for use. II 3(2) G 0102 SIRA 11 ATEX 5374X Prim. Spannung: max. 20Vpp Wagner International AG Voltage: 1.0 AT...
  • Page 10: Basic Safety Instructions

    VM 500 VERSION 09/2018 ORDER NUMBER DOC 2318724 BASIC SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS FOR THE OPERATOR Keep this operating manual at hand near the device at all times. Always follow local regulations concerning occupational safety and accident prevention. 4.1.1 ELECTRICAL DEVICES AND EQUIPMENT...
  • Page 11: Personnel Qualifications

    VM 500 VERSION 09/2018 ORDER NUMBER DOC 2318724 Ensure that there are no ignition sources such as naked flames, sparks, glowing wires, or hot surfaces in the vicinity. No smoking. Ensure that the pipe joints, hoses, equipment parts and connections are permanently, technically leak-proof: –...
  • Page 12: Safe Handling Of Wagner Spray Devices

    – In the event of functional faults: remedy the fault as described in the "Troubleshooting" chapter. If needed, the liquid ejection devices must be checked by experts (e.g., WAGNER service technician) at least every 12 months for their safe operating condition in accordance with DGUV regulation 100-500 Chapter 2.29 and Chapter 2.36.
  • Page 13: Product Hoses

    VM 500 VERSION 09/2018 ORDER NUMBER DOC 2318724 4.2.4 PRODUCT HOSES Hazard due to bursting of product hose! The product hose is under pressure and may cause dangerous injuries. Ensure that the hose material is chemically resistant to the sprayed products and the flushing agents used.
  • Page 14: Cleaning And Flushing

    VM 500 VERSION 09/2018 ORDER NUMBER DOC 2318724 4.2.5 CLEANING AND FLUSHING Hazard due to cleaning and flushing! Explosion hazard and damage to the device. Preference should be given to non-ignitable cleaning and flushing agents. When carrying out cleaning work with flammable cleaning agents, make sure that all equipment and resources (e.g., collection tank, funnel, transport cart) are conductive...
  • Page 15: Maintenance And Repair

    4.2.7 MAINTENANCE AND REPAIR Hazard due to improper maintenance and repair! Danger to life and equipment damage. Only a WAGNER service center or a suitably trained person may carry out repairs and replace parts. Use only WAGNER original spare parts and accessories.
  • Page 16: Description

    MODE OF OPERATION The VM 500 control unit supplies the control voltage for the spray gun, in which high voltage is subsequently produced. The high-voltage supply is switched on and off via the trigger of the spray gun.
  • Page 17: Included Items

    130215 Grounding cable 10 m; 32.8 ft 9951117 Slow-acting fuse, 1.0 AT 2310487 Declaration of Conformity 2310485 VM 500 operating manual, German see Chapter Operating manual in local language For special versions the delivery note applies. DATA TECHNICAL DATA Description...
  • Page 18: Operating Elements And Connections

    8 Spray gun connection: for connecting a GM 5000EA or GM 5000EAC spray gun. Warning - Do not disconnect under voltage. 9 Service connection cover: only for WAGNER service personnel. 10 Knurled nut grounding: grounding cable connection to the signal ground.
  • Page 19: Commissioning

    This control unit can be used to complete an electrostatic manual spray system. To do so, a suitable spray gun and the relevant components for the selected spray process are required (see WAGNER accessories). Spray guns that are compatible with the VM 500: Air-Spray GM 5000EAR or GM 5000EAF AirCoat-Spray GM 5000EACR or GM 5000EACF Main Switch Zulässige Gerätekombinationen siehe Benutzerinformation.
  • Page 20: Location Of The Control Unit

    VM 500 VERSION 09/2018 ORDER NUMBER DOC 2318724 LOCATION OF THE CONTROL UNIT DANGER Incorrect installation of the device! Explosion hazard and damage to the device. Set up the device outside the spray booth/spray zone. If possible, set up the device outside the Ex zone (Ex zone 2 is permissible).
  • Page 21 VM 500 VERSION 09/2018 ORDER NUMBER DOC 2318724 Grounding scheme (example) Conveyor Control unit Grounding Work piece cable Product supply R max < 1 MΩ Paint tank Spraying stand Floor, static dissipative B_03234 Minimum cable cross-section Control unit Product supply...
  • Page 22: Example Aircoat Spraying System

    11 Stop valve 18 Tank for return flow Sliding tables 12 Air pressure regulator 19 Paint tank Air pressure regulator + air 13 VM 500 control unit 20 Tank for flushing agent filter Product suction system 14 Protective hose 21 Mains cable...
  • Page 23: Ventilation Of The Spray Booth

    Lay grounding cable from the grounding screw on the device to the signal ground and ensure that all other conductive parts within the working area are grounded. Connect the VM 500 electrostatic control unit via the mains cable to the socket interlocked with the extraction system.
  • Page 24: Operation

    VM 500 VERSION 09/2018 ORDER NUMBER DOC 2318724 OPERATION TRAINING THE OPERATING PERSONNEL The operating personnel must be qualified to operate the entire system. The operating staff must be familiar with the potential risks associated with improper behavior as well as the necessary protective devices and measures.
  • Page 25: Starting Up And Spraying

    VM 500 VERSION 09/2018 ORDER NUMBER DOC 2318724 STARTING UP AND SPRAYING 1. Set main switch to position I. For approx. 1 second, all LEDs light up Display test 2. If the operating signal light (2) is green after the display test, the control unit is ready to be operated.
  • Page 26: Cleaning And Maintenance

    VM 500 VERSION 09/2018 ORDER NUMBER DOC 2318724 CLEANING AND MAINTENANCE CLEANING 8.1.1 CLEANING PERSONNEL Cleaning work should be undertaken regularly and carefully by qualified and trained personnel. They should be informed of specific hazards during their training. The following hazards may arise during cleaning work: –...
  • Page 27: Maintenance Instructions

    DANGER Incorrect maintenance/repair! Danger to life and equipment damage. Only a WAGNER service center or a suitably trained person may carry out repairs and replace parts. Use only WAGNER original spare parts and accessories. Only repair and replace parts that are listed in the "Spare parts" chapter and that are assigned to the unit.
  • Page 28: Troubleshooting And Rectification

    VM 500 VERSION 09/2018 ORDER NUMBER DOC 2318724 TROUBLESHOOTING AND RECTIFICATION VM 500 B_03423 Functional fault Cause Remedy Green illuminated display (2) does Mains supply not switched on. Check and switch on mains not light up. supply. Fuses defective. Replace fuses.
  • Page 29: Repair Work

    DANGER Incorrect maintenance/repair! Danger to life and equipment damage. Only a WAGNER service center or a suitably trained person may carry out repairs and replace parts. Use only WAGNER original spare parts and accessories. Only repair and replace parts that are listed in the "Spare parts" chapter and that are assigned to the unit.
  • Page 30: Disposal

    WAGNER or one of our dealers will take back your used WAGNER electric or electronic equipment and will dispose of it for you in an environmentally-friendly way. To arrange...
  • Page 31: Accessories

    VM 500 VERSION 09/2018 ORDER NUMBER DOC 2318724 12 ACCESSORIES Order no. Designation 241270 Mains cable for Europe 3 m; 9.8 ft 2330628 Mains cable for Europe 10 m; 32.8 ft 241271 Mains cable for Switzerland 3 m; 9.8 ft 264626 Mains cable for USA 2 m;...
  • Page 33: Spare Parts

    DANGER Incorrect maintenance/repair! Danger to life and equipment damage. Only a WAGNER service center or a suitably trained person may carry out repairs and replace parts. Use only WAGNER original spare parts and accessories. Only repair and replace parts that are listed in the "Spare parts" chapter and that are assigned to the unit.
  • Page 34: Spare Parts List For Vm 500 Control Unit

    VM 500 VERSION 09/2018 ORDER NUMBER DOC 2318724 13.2 SPARE PARTS LIST FOR VM 500 CONTROL UNIT 17 18 B_03424...
  • Page 35 Washer 9922017 Serrated lock washer, externally toothed 9903311 Recessed head raised fillister head screw, H form 241323 Cover, white 2317597 Print, complete for VM 500 ET 263400 Distance bush 9922011 Serrated lock washer, externally toothed 9910103 Hexagon nut 2312348 Hexagon lock nut...
  • Page 36: Eu Declaration Of Conformity

          Spray gun: EU Declaration of Conformity The EU Declaration of Conformity is enclosed with this product. If needed, further copies can be ordered through your WAGNER dealer by specifying the product name and serial number. Order number: 2310487...
  • Page 40 Order no. 2318724 Edition 09/2018 ts-liquid@wagner-group.com www.wagner-group.com...
