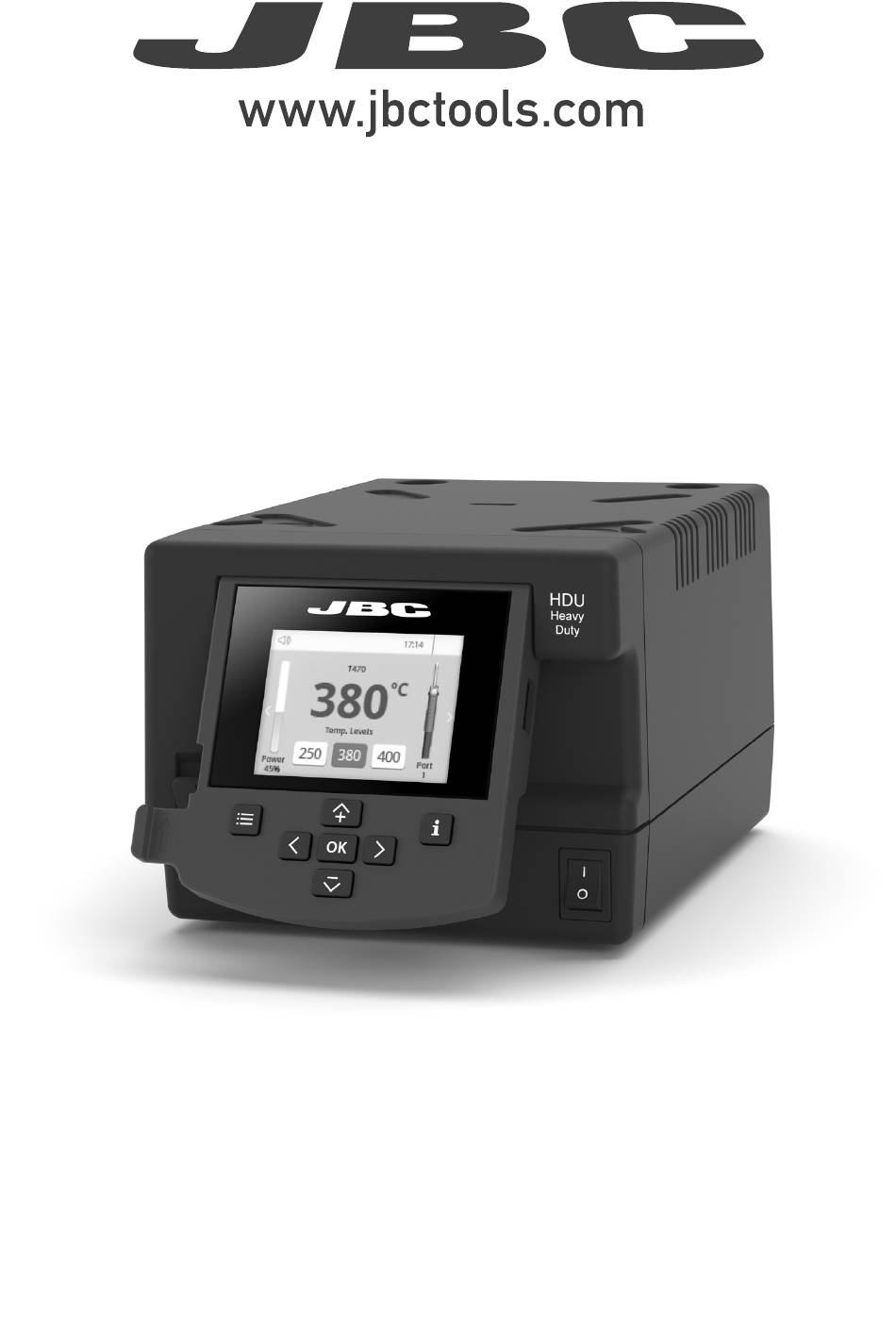

- Page 1 INSTRUCTION MANUAL Heavy Duty Control Unit...
-
Page 2: Packing List
This manual corresponds to the following references: HDE-9UD (100V) HDE-1UD (120V) HDE-2UD (230V) Packing List To Tools The following items are included: HDU Control Unit ..1 unit Power Cord ....1 unit Manual ......1 unit Ref. 0024077 (100V) Ref. 0028871 0023717 (120V) 0024080 (230V) Features 2,8”... - Page 3 Control Cartridge Tool Stand MNE-A FSE-A P-005 Unit Range T470 T470S T470Z C470 T470F HT470* HDTS T470-N** * It works with two HDU Control Units in order to manage the cartridges individually ** The MNE Nitrogen Flow Regulator is required.
- Page 4 DDE Work Screen Work Screen The DDE offers an intuitive user interface which provides quick access to station parameters. The HDE offers an intuitive user interface which provides quick access to station parameters. Default PIN: 0105 Default PIN: 0105 Status Bar Status Bar 17:14 17:14...
-
Page 5: Advanced Functionalities
Insert a USB flash drive into the USB-A connector to save your soldering process in csv format. Files Station update Download the JBC Update File from www.jbctools.com/software.html Insert the USB flash drive with the file downloaded to the station. Update System notifications The following icons will be displayed on the screen’s status bar. - Page 6 Soldering Net Remotely manage and monitor as many stations as your Windows PC can handle. 1. Download the JBC Software Manager and the user manual from jbcnet.solutions 2. Connect the stations via USB-B connector and the PC will automatically detect them.
-
Page 7: Operation
130 mm 130 mm The JBC Most Efficient Soldering System Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user can work at a lower temperature and improve the quality of soldering. The tip temperature is further 100 mm reduced thanks to the Sleep and Hibernation modes which increase up to 5 times the life of the tip. -
Page 8: Maintenance
If necessary use a tool to lever it off. and replace it in the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 9 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases.
- Page 10 Notes...
-
Page 11: Specifications
para manuales - color gris 200 mm Specifications 130 mm 130 mm Heavy Duty Control Unit Ref. HDE-9UD 100V 50/60Hz. Input fuse: 4A. Output: 42V. 100 mm Ref. HDE-1UD 120V 50/60Hz. Input fuse: 4A. Output: 42V. Ref. HDE-2UD 230V 50/60Hz. Input fuse: 2A. Output: 42V. - Output Peak Power: 250W - Temperature Range:... - Page 12 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
