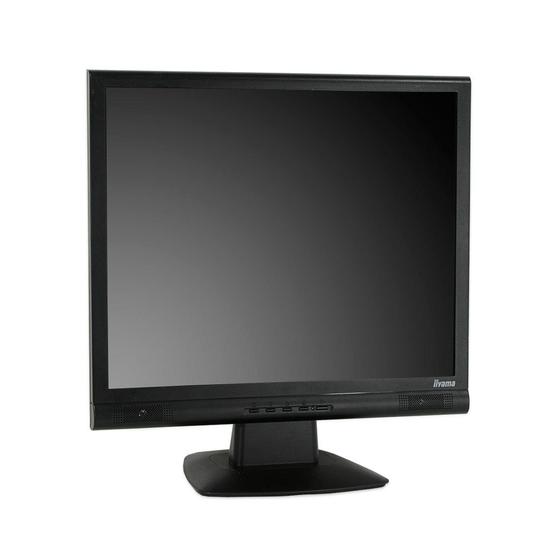

Iiyama ProLite E1900S User Manual

Iiyama ProLite E1900S User Manual

Iiyama lcd monitor prolite e1900s e1900s user manual

Advertisement

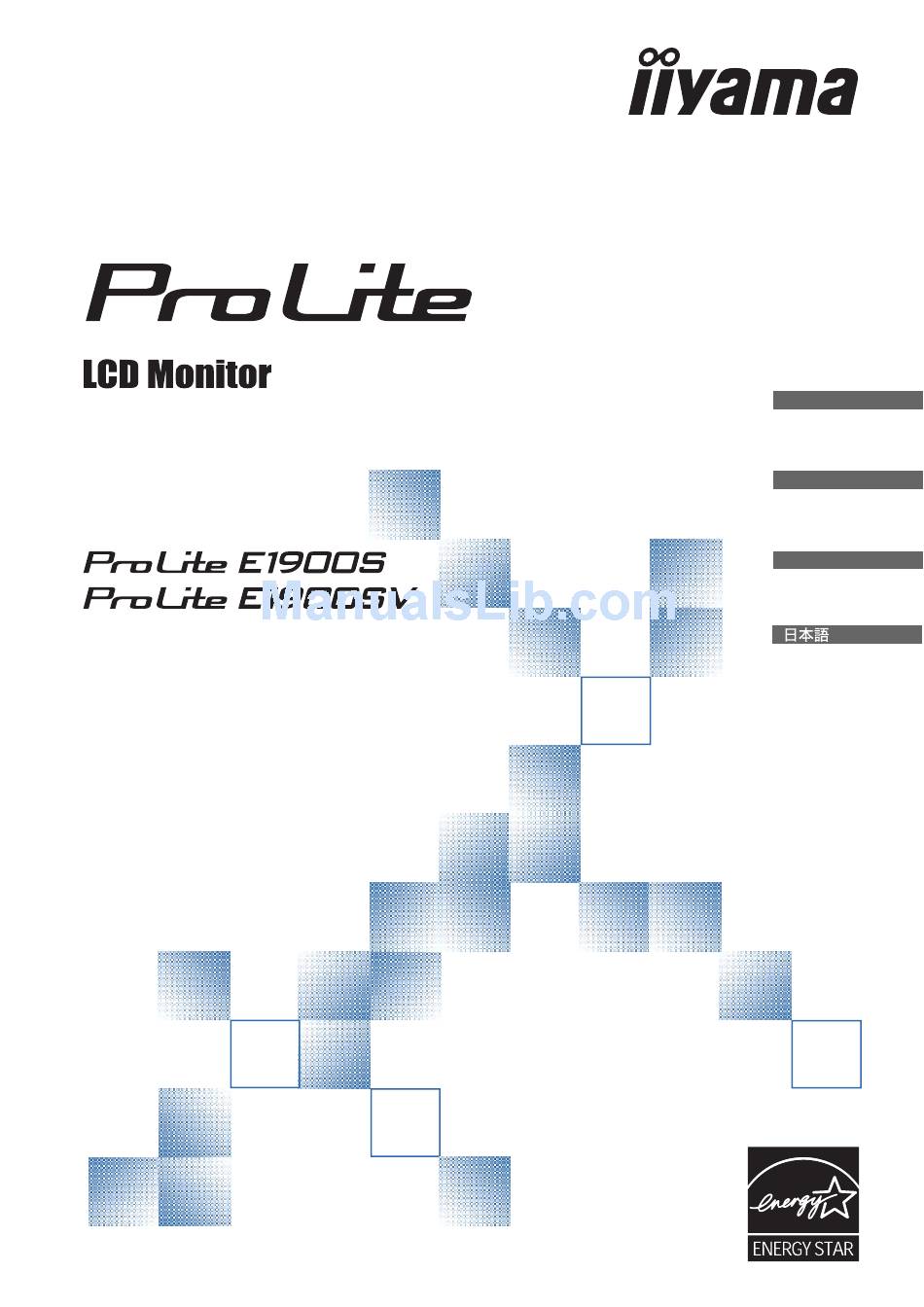

USER MANUAL

Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes to
read carefully through this brief but
comprehensive manual before installing and
switching on the monitor. Please keep this
manual in a safe place for your future
reference.
ENGLISH
DEUTSCH
FRANCAIS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLite E1900S and is the answer not in the manual?

Questions and answers

Summary of Contents for Iiyama ProLite E1900S

  • Page 1: User Manual

    USER MANUAL Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe place for your future reference.
  • Page 2 Some of the features of the TCO’03 Display requirements: Ergonomics • Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability. Energy •...
  • Page 3: Canadian Department Of Communications Compliance Statement

    To meet the FCC requirements, you should use a signal cable with ferrite core at both ends. CAUTION Changes or modifications not expressly approved by IIYAMA could void the users authority to operate the device under FCC compliance regulations. CANADIAN DEPARTMENT OF COMMUNICATIONS COMPLIANCE...
  • Page 4: Table Of Contents

    TABLE OF CONTENTS FOR YOUR SAFETY ... 1 SAFETY PRECAUTIONS ... 1 SPECIAL NOTES ON LCD MONITORS ... 3 CUSTOMER SERVICE ... 3 CLEANING ... 3 BEFORE YOU OPERATE THE MONITOR ... 4 CHECKING THE CONTENTS OF THE PACKAGE ... 4 HOW TO USE THE STAND ...
  • Page 5: For Your Safety

    STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock.
  • Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
  • Page 7: Special Notes On Lcd Monitors

    Power Switch for hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself.
  • Page 8: Before You Operate The Monitor

    CHEKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office.
  • Page 9: How To Use The Stand

    HOW TO USE THE STAND HOW TO USE THE STAND The monitor is the design that a stand rotate.Be sure to rotate the stand before opearating the monitor, and rotate the stand upward before you re-box the monitor. Install the Stand on a stable surface. The monitor may cause injury or damage if CAUTION it falls or is dropped.
  • Page 10: Controls And Connectors

    CONTROLS AND CONNECTORS FRONT PANEL CONTROL 1 2 3 4 <Front> A Menu Button ( B Scroll Down / Brightness Button ( C Scroll Up / Contrast Button ( D Select / Auto Button ( E Power Indicator NOTE Green: Normal operation Orange: Power Management The monitor enters into power management mode which reduces the power...
  • Page 11: Connecting Your Monitor

    The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor.
  • Page 12: Computer Setting

    Change to the desired signal timing listed on page 21: COMPLIANT TIMING. Windows 95/98/2000/Me/XP Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied.
  • Page 13: Operating The Monitor

    OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 21. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 13 for SCREEN ADJUSTMENTS.
  • Page 14: Adjustment Menu Contents

    ADJUSTMENT MENU CONTENTS Auto Adjust AUTO Adjustment Item Auto Adjust * Direct Only Analog Input NOTE The screen becomes dark for approximately five seconds during the adjustment. * For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 13 for SCREEN ADJUSTMENTS.
  • Page 15 Color Adjust Adjustment Item Cool Normal Warm User Color Information Information H.Frequency: 79.99 kHz V. Frequency: 75.03 Hz P i x e l C l o c k : 135.04 MHz Resolution: 1280 x 1024 Model Number: PLE1900S Serial No: 0566360001001 1 : Exit Image Adjust...
  • Page 16 Setup Menu Adjustment Item Language Select Resolution Notice OSD Position OSD Time Out Input Select Analog and Digital are switched as follows by pressing the Select Button successively. NOTE Analog When only one of the two signal inputs is connected to the signal source, the one connected is automatically selected.
  • Page 17: Screen Adjustments

    If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http:// www.iiyama.com).
  • Page 18 C C C C C Press the Auto Button. (Auto Adjust) D D D D D Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust.
  • Page 19 G G G G G Adjust the Fine Tune to correct horizontal wavy noise, flicker or blur in the zebra pattern. In case the strong flicker or blurs remain on a part of the screen, repeat steps F and NOTE NOTE G because the H.Size may not be adjusted correctly.
  • Page 20: Power Management Feature

    POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of E ® and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below.
  • Page 21: Trouble Shooting

    2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem The picture does not appear.
  • Page 22 Problem No sound. The audio equipment (computer etc.) is ON. The Audio Cable is properly connected. The Volume is turned up. The Mute is OFF. The audio output level of the audio equipment is within the specification of the monitor. The sound is too The audio output level of the audio equipment is within the specification of the monitor.
  • Page 23: Appendix

    Dimensions / Net Weight Tilt Angle Environmental Considerations Approvals NOTE * Condition: Audio equipment is not connected. ProLite E1900S a-Si TFT Active Matrix Diagonal: 48.3cm / 19.0" 0.294mm H × 0.294mm V 300cd/m (Typical) 700 : 1 (Typical) Right / Left : 75 degrees each, Up:75 degrees, Down: 60 degrees (Typical) 5ms (Black, white, black) Approx.16.2M (6bit+2bit ditherring)
  • Page 24 Model LCD Panel Driving system Size Pixel pitch Brightness Contrast ratio Viewable angle Response time Display Colors Sync Frequency Dot Clock Maximum Resolution Input Connector Plug & Play Input Sync Signal Input Video Signal Input Audio Connector Input Audio Signal Speakers Maximum Screen Size Power Source...
  • Page 25: Dimensions

    DIMENSIONS DIMENSIONS 411mm/16.4" COMPLIANT TIMING Video Mode 640 × 480 SVGA 800 × 600 VESA 1024 × 768 SXGA 1280 × 1024 VGA TEXT 720 × 400 640 × 480 Macintosh 832 × 624 NOTE * DVI input is not compliant. 71mm/2.8"...
  • Page 26: Connector Pin Assignment

    CONNECTOR PIN ASSIGNMENT D-Sub mini 15pin Connector DVI-D 24pin Connector DVI-D 22 APPENDIX Input Signal Red video Green video Blue video Ground Red video ground Green video ground Blue video ground * Compliant to VESA DDC. Input Signal T.M.D.S Data 2– T.M.D.S Data 2+ T.M.D.S Data 2 Ground Clock line (SCL) *...

This manual is also suitable for:

Prolite e1900sv
