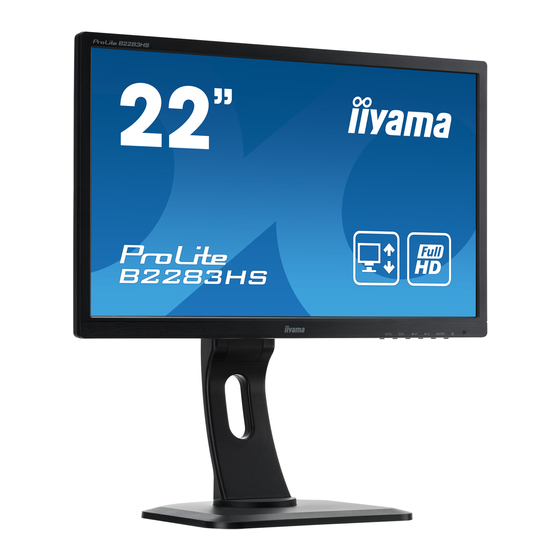

Iiyama ProLite B2283HS User Manual
Hide thumbs
Also See for ProLite B2283HS:
- User manual (35 pages) ,
- User manual (36 pages) ,
- User manual (41 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Iiyama ProLite B2283HS
Summary of Contents for Iiyama ProLite B2283HS
-
Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for... - Page 3 Congratulations! This product is TCO Certified for Sustainable IT TCO Certified is an international third party sustainability certification for IT products. TCO Certified ensures that the manufacture, use and recycling of IT products reflect environmental, social and economic responsibility. Every TCO Certified product model is verified by an accredited independent test laboratory.
-
Page 4: Ce Marking Declaration Of Conformity
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2283H We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff... -
Page 5: Table Of Contents
FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 INSTALLATION ................5 FITTING AND REMOVAL OF BASE : ProLite B2283HS ....7 FITTING AND REMOVAL OF BASE : ProLite E2283HS ....8 CONTROLS AND CONNECTORS : ProLite B2283HS ....9 CONTROLS AND CONNECTORS : ProLite E2283HS ....10 CONNECTING YOUR MONITOR : ProLite B2283HS .... -
Page 6: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 8: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 9: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 10: Installation
INSTALLATION WARNING Before installation, make sure the wall, ceiling or desktop arm is strong enough to hold the necessary weight of the display and the mount. < WALL MOUNTING > WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L”... - Page 11 < ROTATING THE DISPLAY > ● ProLite B2283HS The monitor is designed to be compatible with both landscape and portrait modes. Video card for portrait display will be required for rotating the image on the screen. Available Not Available Power Indicator...
-
Page 12: Fitting And Removal Of Base : Prolite B2283Hs
FITTING AND REMOVAL OF BASE : ProLite B2283HS Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. -
Page 13: Fitting And Removal Of Base : Prolite E2283Hs
FITTING AND REMOVAL OF BASE : ProLite E2283HS Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 14: Controls And Connectors : Prolite B2283Hs
CONTROLS AND CONNECTORS : ProLite B2283HS <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Power Switch ( Menu / Select Button (ENTER) Scroll Up / Volume Button ( Scroll Down / ECO Mode Button ( Exit Button (EXIT) -
Page 15: Controls And Connectors : Prolite E2283Hs
CONTROLS AND CONNECTORS : ProLite E2283HS <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Power Switch ( Menu / Select Button (ENTER) Scroll Up / Volume Button ( Scroll Down / ECO Mode Button ( Exit Button (EXIT) Input Select Button (INPUT) Speakers VGA Connector (D-SUB) -
Page 16: Connecting Your Monitor : Prolite B2283Hs
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 17: Connecting Your Monitor : Prolite E2283Hs
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 18: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 32: COMPLIANT TIMING. ADJUSTING THE VIEWING ANGLE : ProLite E2283HS For optimal viewing it is recommended to look at the full face of the monitor. ... -
Page 19: Adjusting The Height And The Viewing Angle : Prolite B2283Hs
ADJUSTING THE HEIGHT AND THE VIEWING ANGLE : ProLite B2283HS For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference. -
Page 20: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 32. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 23 for SCREEN ADJUSTMENTS. -
Page 21: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Adjust * Adjustment Item Problem / Option Button to Press Too dull Contrast * Too intense Too dark 1,2,4 Brightness * Too bright Off / +1 / +2 Overdrive It will improve the gray level response time of the LCD panel. A higher level results in a faster response time. -
Page 22: Audio Adjust
Input Select Adjustment Item Problem / Option Button to Press Select the Analog input. HDMI Select the Digital (HDMI) input. Input Select Direct Select the Digital (DisplayPort) input. DisplayPort Search for an available input source and select Auto automatically. Input source is fi xed, not selected automatically when VGA, HDMI and DisplayPort which NOTE are selected. -
Page 23: Color Adjust
Color Adjust Adjustment Item Problem / Option Button to Press Cool * Bluish white Normal * Greenish white Warm * Reddish white Too weak User Color * Green Too strong Blue Return to a state set by color adjustment except Off... -
Page 24: Image Adjust
Image Adjust Adjustment Item Problem / Option Button to Press Adjust H. / V. Position, Clock and Phase automatically. Auto Adjust * Direct Too left H. Position * Too right Too low V. Position * Too high Too narrow Clock * Too wide Phase * To correct fl... - Page 25 OSD is too high You can set the OSD display duration time between OSD Time Out 5 and 30 seconds. iiyama Logo does not display when the monitor is Off turned on. Opening Logo iiyama Logo displayed when the monitor is turned on.
-
Page 26: Display Information
Display Information Displays information regarding the current input signal coming from the graphic card in your computer. Display Information 1 9 2 0 x 1 0 8 0 @ 6 0 H z See your graphic card user guide for more information about changing the NOTE resolution and refresh. - Page 27 ● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the front button ENTER for about 10 seconds. If you try to access the OSD by pressing any of the buttons, message "OSD Locked" will appear on the screen.
-
Page 28: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). - Page 29 Press the AUTO Button. (Auto Adjust) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fi t to the display area.
- Page 30 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. NOTE In case the strong fl icker or blurs remain on a part of the screen, repeat steps because the Pixel Clock may not be adjusted correctly. ...
-
Page 31: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. -
Page 32: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 33: Recycling Information
A strange noise is The Audio Cable is properly connected. heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. 28 TROUBLE SHOOTING / RECYCLING INFORMATION... -
Page 34: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite B2283HS Size Category 22" Panel technology Size Diagonal: 21.5" (54.7cm) Pixel pitch 0.248mm H × 0.248mm V Brightness 250cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available... -
Page 35: Specifications : Prolite E2283Hs
SPECIFICATIONS : ProLite E2283HS Size Category 22" Panel technology Size Diagonal: 21.5" (54.7cm) Pixel pitch 0.248mm H × 0.248mm V Brightness 250cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical) Response time 1ms (Gray to Gray) Display Colors... -
Page 36: Dimensions : Prolite B2283Hs
DIMENSIONS : ProLite B2283HS 505.0mm/19.9” 478.0mm/18.8” 56.5mm/2.2” 240.0mm/9.4” ) : Maximum adjustment range DIMENSIONS : ProLite E2283HS 505.0mm/19.9” 478.0mm/18.8” 56.5mm/2.2” 212.0mm/8.4” APPENDIX 31... -
Page 37: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 640 × 480 31.469kHz 59.940Hz 25.175MHz 800 × 600 37.879kHz 60.317Hz 40.000MHz 1024 × 768 48.363kHz 60.004Hz 65.000MHz 1280 × 1024 63.981kHz 60.020Hz 108.000MHz 1440 × 900 55.935kHz 59.887Hz 106.500MHz 1680 ×...
