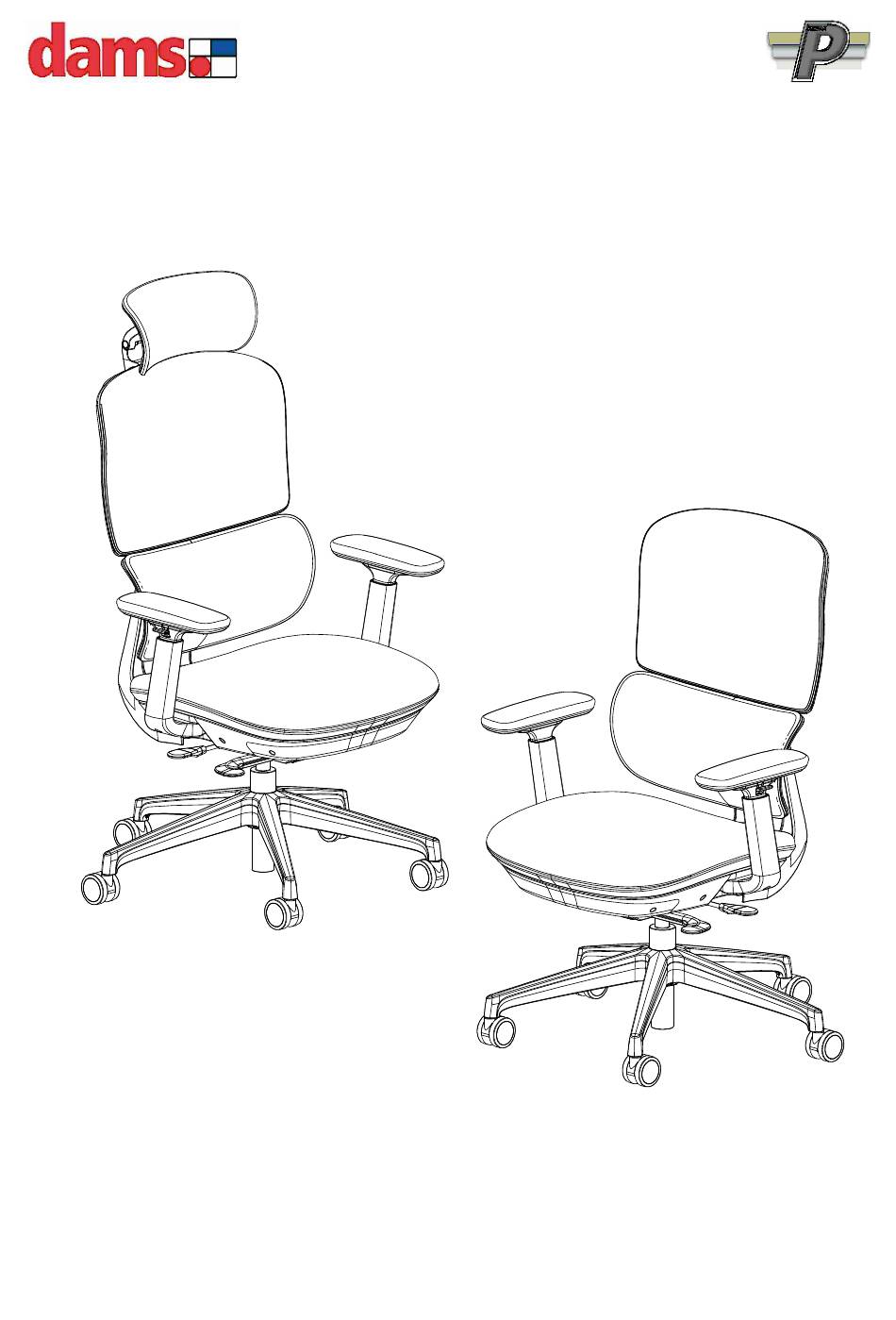

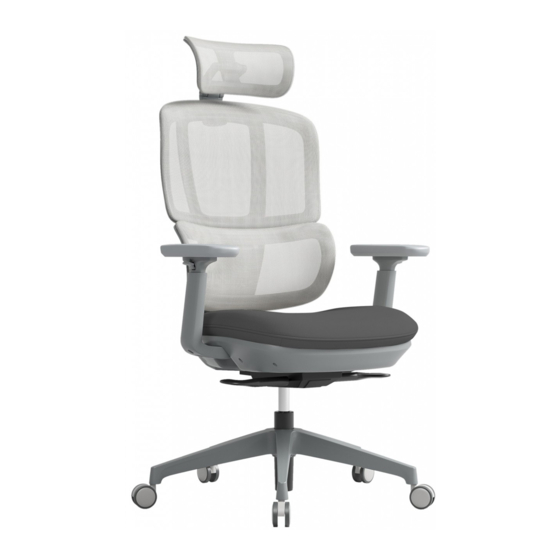

- Page 1 Assembly Instructions SHL301K2-G/K SHL300K2-G/K Please read this manual carefully before use and store in a safe place.
-
Page 2: Assembly Note
Assembly note: Use a protective mat and handle the product with care. Note: At least two people are required. Contact Dams if you require any further assistance. - Page 3 Exploded diagram: Name headrest backrest back frame seat armrest gas lift five-star base caster mechanism...
-
Page 4: Accessory List
Accessory list: NOTE: Two of these screws pre-installed on the headrest when ordered (supplied in a separate box) spring φ6 half-round gasket head screws gasket φ6 three-in-one internal/external 1/4*3/2 M8*20 internal/external hex screw hex screw Allen key Allen key with round ball with round ball... - Page 5 1. Use half-round head hex screw, spring gaskets and gaskets to assemble the backrest and back frame. snap the backrest into the slot of back frame fix the back frame and backrest's adjuster with the back frame M6*20 (X2) (X2) (X2) (X2)
- Page 6 1. Use internal/external hex screws to fix the seat and armrest. 1/4*3/2(X6)
- Page 7 1. Use three-in-one internal/external hex screws to fix the fully-assembled back with the seat. M8*20(X3)
- Page 8 1. Align the castors with the holes of five-star base. Put the gas lift into the round holes of five-star base.
- Page 9 1. First loosen two screws pre installed on the headrest,and then use hex half-round-head screws to fix the headrest. NOTE:Headrest is supplied in a separate box. M6*20 (X2)
- Page 10 Done ！...
-
Page 11: Function Introduction
Function introduction: 2. 4D adjustable arms 1. Lumbar and headrest adjustment The adjustable lumbar support can be moved backward 4D adjustable arms can be moved up and down, to and forward for increased comfort to better support the left and right, forward and backward, and your back.
