User's Manual
EXHD-RG6
HDMI-over-Coax Extender
Extends HDMI video on a single RG-6U Coaxial Cable

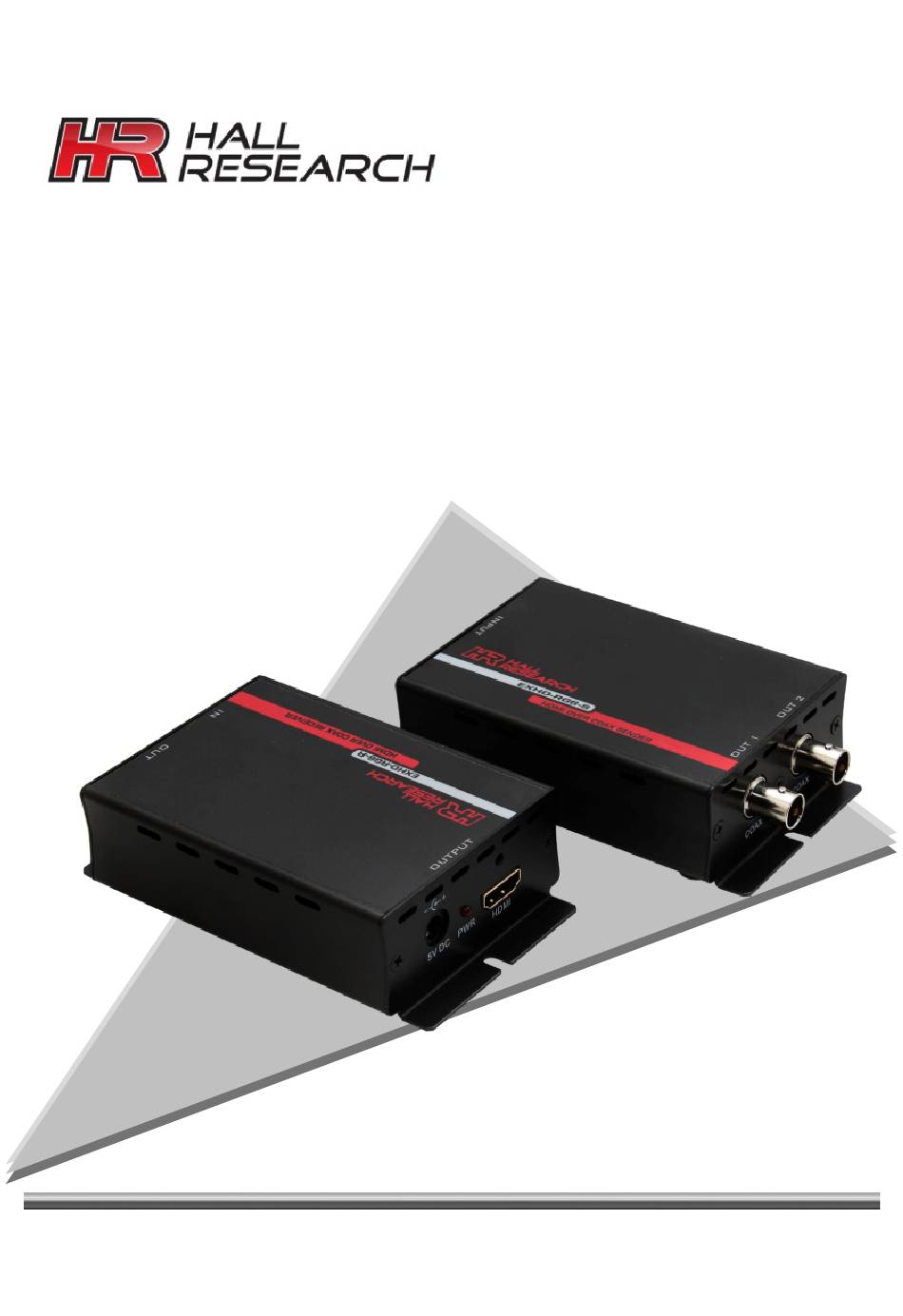

Includes Sender with two Coax outputs and cascadable Receiver
UMA1241, Rev. n/c
For technical support, Call 714-641-6607
SUPPORT &
ORDERING
www.hallresearch.com
INFORMATION
Hall Research, 1163 Warner Ave. Tustin, CA 92780
Advertisement
Table of Contents
Related Manuals for Hall Research Technologies EXHD-RG6
Summary of Contents for Hall Research Technologies EXHD-RG6
- Page 1 User's Manual EXHD-RG6 HDMI-over-Coax Extender Extends HDMI video on a single RG-6U Coaxial Cable Includes Sender with two Coax outputs and cascadable Receiver UMA1241, Rev. n/c For technical support, Call 714-641-6607 SUPPORT & ORDERING www.hallresearch.com INFORMATION Hall Research, 1163 Warner Ave. Tustin, CA 92780...
-
Page 2: Table Of Contents
EXHD-RG6 TRADEMARKS USED IN THIS MANUAL Hall Research and its logo are trademarks of Hall Research. Any other trademarks mentioned in this manual are acknowledged as the property of the trademark owners. FCC RADIO FREQUENCY INTERFERENCE STATEMENT This device complies with part 15 Class A of the FCC Rules. -
Page 3: Specifications
HDMI-over-Coax Extender 1. Specifications HDMI Bandwidth 225MHz/link Resolutions Supported 480i, 576i, 720p@50/60 1080i@50/60 1080p@24/25/30/50/60 TMDS Signal Level 3.3 volts DDC Signal Level 5.0 volts ESD Protection ±8kV (air-gap discharge) ±4kV (contact discharge) Max Coaxial Cable Length Full HD up to 70 m (230 ft) (with quality RG-6U) HD up to 122 m (400 ft) SD up to 153 m (500 ft) -
Page 4: Overview
EXHD-RG6 2. Overview 2.1 Introduction The EXHD-RG6 is an HDMI-over-Coax extender that can extend HDMI signal to 230 ft or longer. Maximum cable length depends on signal resolution and quality of RG-6U cable used. It extends video with no compression for a perfect reproduction at the receiver. -
Page 5: What's Included
HDMI-over-Coax Extender 2.3 What’s Included Sender (EXHD-RG6-S) with its power supply • Receiver (EXHD-RG6-S) with its power supply • This user’s manual • 2.4 Hardware Description The following figures show all connectors and indicators on the unit. Sender (EXHD-RG6-S) Receiver (EXHD-RG6-R) The sender provides one HDMI input and two coaxial BNC output connectors for connection to up to two receivers. -
Page 6: Installation
EXHD-RG6 3. Installation You can setup simple or complex a HDMI extension topologies as you desire. The kit includes one sender and one receiver for a simple one- to-one extension. If you desire more complex topologies, more receivers will be required and should be purchased separately. -
Page 7: Troubleshooting
HDMI-over-Coax Extender 4. Troubleshooting There is no adjustments or settings. If there is no output, check the length and quality of the RG-6U cables (use short cables for test). Make sure the resolution of signal is set to one supported by the converter. - Page 8 © Copyright 2016 Hall Research All rights reserved. 1163 Warner Ave., Tustin, CA 92780 (714)641-6607...
