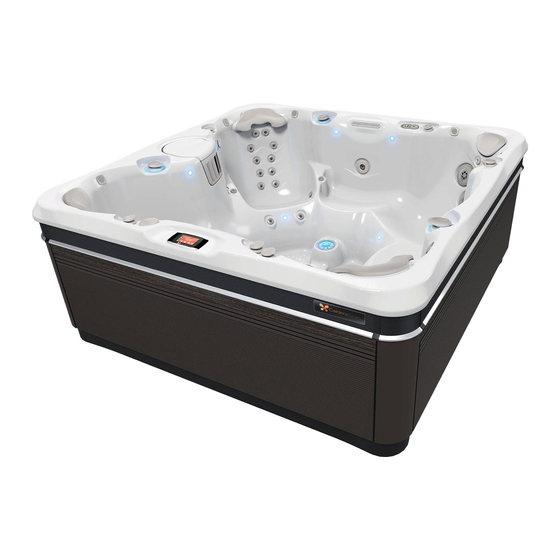

- Page 1 Utopia Series. ® 2 0 2 2 O W N E R ’ S M A N U A L...
- Page 2 WELCOME ® Watkins Wellness congratulates you on your decision to enjoy the finest spa available. Welcome to the growing family of Caldera ® spa owners. OWNER’S MANUAL This Owner’s Manual will acquaint you with the operation and general maintenance of your new spa. We suggest that you take some time to carefully review all sections.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION JET MENU IMPORTANT SAFETY INSTRUCTIONS ......1 CANTABRIA JET SYSTEM MENU ........20 ® IMPORTANT SPA INSTRUCTIONS ........3 GENEVA JET SYSTEM MENU ........21 ® NIAGARA JET SYSTEM MENU ........22 GETTING STARTED ® TAHITIAN ................23 MAIN SPA FEATURES ............4 ®... -
Page 4: Safety Information
• Do not operate the audio main controls while inside the spa (if spa is afety nformatIon equipped with an audio component). • Do not connect any auxiliary components (for example, cable IMPORTANT SAFETY additional speakers, headphones, additional audio components) to the audio system unless approved by WATKINS WELLNESS. - Page 5 • Do not permit any electrical appliances, such as a light, telephone, UNCLEAN WATER radio, or television within 5 feet (1.5 m) of a spa. Failure to maintain a safe distance may result in death, or serious personal injury due to electrocution, if the appliance should fall into the spa.
-
Page 6: Important Spa Instructions
SPA SHELL SAFETY SIGN Your CALDERA spa has an acrylic shell. Stains and dirt generally will not adhere to your spa’s surface. A soft cloth should easily remove most Each CALDERA spa is shipped with a SAFETY SIGN in the owner’s dirt. -
Page 7: Getting Started
ettInG tarted MAIN SPA FEATURES (Your spa may look different) 1 ) The Main control panel provides a quick visual check of the spa’s status and allows the user to set different functions of the spa. 2) The Auxiliary control panel allows the user to activate the jets, air jets and lights across from the main control panel. -
Page 8: Hydro Jets
HYDRO JETS VERSASSAGE Jets - These jets may be adjusted to provide either a ADAPTAFLO Jets - These jets allow you to redirect the jet stream by stationary, direct stream or, by positioning the nozzle to one side or the changing the position of the nozzle. -
Page 9: Acquarella Waterfall Valve
ACQUARELLA WATERFALL VALVE of a Pre-Delivery Instruction booklet can be obtained from either your CALDERA dealer or online. Your spa is equipped with the ACQUARELLA waterfall feature. It is activated by turning on Jet Pump 2 (either low or high speed). The flow is •... - Page 10 1. CLOSE DRAIN, remove the filter compartment cover, skimmer 5. USING A TEST STRIP AND APPLICABLE CHEMICALS basket, weir, and filter. Fill your spa through the filter compartment adjust Total Alkalinity (TA) to 40-120ppm, calcium hardness (CH) using the CleanScreen pre-filter that attaches to your garden hose.
-
Page 11: Water Quality And Maintenance
CHEMICAL SAFETY ater ualIty and When using chemicals, read the labels carefully and follow directions aIntenance precisely. Though chemicals protect you and your spa when used correctly, they can be hazardous in concentrated form. Always observe BASIC INFORMATION the following guidelines: •... -
Page 12: Fundamentals Of Water Maintenance
FUNDAMENTALS OF 7.2 - 7.8. To lower the pH level, use pH/Alkalinity Down (sodium bisulfate). To raise the pH level, use pH/Alkalinity Up (sodium WATER MAINTENANCE carbonate). • Testing: Test the water weekly or each time the spa is used with •... -
Page 13: The Caldera Spa Water Maintenance Program
THE CALDERA SPA WATER FRESHWATER SALT SYSTEM (OPTIONAL) MAINTENANCE PROGRAM The FRESHWATER Salt System converts water and sodium chloride salt into chlorine sanitizer. The FRESHWATER Salt System is compatible with chlorine based systems and chemicals. Although the FILLING THE SPA WITH WATER system is reduced manintenance, it is not automatic. -
Page 14: Vanishing Act Instructions
VANISHING ACT INSTRUCTIONS NIAGARA GENEVA CANTABRIA TAHITIAN FLORENCE RAVELLO Instructions for Use: IMPORTANT: • Always make sure water is balanced and properly sanitized, After Filling your hot tub, use a test strip to measure the calcium using the EPA approved sanitizer, before entering your hot hardness level of the water. -
Page 15: Vacation Water Care Instructions
VACATION WATER CARE OZONE MAINTENANCE (IF EQUIPPED) INSTRUCTIONS If Reduced or no ozone bubbles are coming from the heater return (clogged ozone injector) or no ozone, clean the injector: If you plan to be away from home, follow these instructions to ensure DANGER: Nitric acid accumulates in the air lines of the ozonator that the water quality of your spa is maintained: and injector, and will cause severe chemical burns if direct skin contact... -
Page 16: Glossary
SUPPLEMENTAL WATER MAINTENANCE Chlorine: An efficient sanitizing chemical for spas. WATKINS WELLNESS recommends the use of sodium dichlor-type granulated Proper water sanitation and mineral balance (pH control) are absolutely chlorine. This type is preferred because it is totally soluble and nearly pH essential for a complete spa water maintenance program. -
Page 17: Operating Instructions
peratInG nStructIonS Home Screen Functions: Press this icon to turn jets on high and all lights on blue if both MAIN CONTROL PANEL Power are currently off, or will turn all The main control panel features a full color LCD touchscreen that jets, lights, and music off if those provides a quick visual check of the spa’s status and allows the user to features are currently on. -
Page 18: Temperature Control
38.5 CLEAN CYCLE: TEMPERATURE CONTROL VANISHING ACT CYCLE START AUTO on Home screen to display the VANISHING ACT screen. Press Press the actual temperature on Home screen to display Set Temperature screen. Press to start the VANISHING ACT cycle activating VANISHING ACT®: the low speed jet pump for 6 hours, ONLY to be used START... -
Page 19: Jets Control Screen
• Both heater and circulation pump will remain off for eight hours. Press to start the conversion process. The conversion is The circulation pump and heater will automatically shut down finished once the Home screen reappears. for the same eight hours every day until the Summer Timer is Press to return to second Settings screen if check mark icon deactivated. -
Page 20: Lights Control Screen
• Enter the pairing code number 0000 to complete the pairing of your Select the color and brightness for LIGHTS mobile device with the spa. each desired light zone. UNDERWATER IMPORTANT: You will be able to control all of the music functionality NOTE: Different colors and WATERFALL from your mobile device. -
Page 21: Auxiliary Panel
AUXILIARY PANEL LIGHT BUTTON The “LIGHT” button activates the SPAGLO multi-zone lighting system AUXILIARY CONTROL PANEL BUTTONS and controls the intensity of the light. Pressing the “LIGHT” button operates the light as follows: The auxiliary control panel, conveniently located opposite the main control panel allows the user to activate the jets and lights. - Page 22 SEQUENCES BUTTON The Sequences button controls the jet massage pattern. To scroll through the jet sequences, keep pressing the Sequences button within 5 seconds. To select a jet sequence, scroll through until you have The ULTRAMASSEUSE system is pre-programmed with six found the one you want, and then release the Sequences button.
-
Page 23: Jet Menu
CANTABRIA JET SYSTEM MENU JET PUMP 1 - JET SYSTEM 1 JET PUMP 1 - JET SYSTEM 2 2 Euro-Directional jets 10 Euro-Directional jets 2 Directional Neck jets 4 Euro-Directional jets 3 VERSASSAGE jets 1 ACQUARELLA Waterfall 16 Euro-Directional jets 1 ACQUARELLA Waterfall 2 EURO-PULSE jets JET PUMP 2 - JET SYSTEM 2... -
Page 24: Geneva Jet System Menu
GENEVA JET SYSTEM MENU JET PUMP 1 – JET JET PUMP 1 – JET SYSTEM 2 SYSTEM 2 2 ADAPTASSAGE jets Located in ECSTASEAT ® Located in LumbarSsage seat 2 ADAPTASSAGE jets JET PUMP 1 – JET SYSTEM 1 8 Euro Directional jets 1 ADAPTAFLO jet 2 ORBISSAGE jets ®... -
Page 25: Niagara ® Jet System Menu
NIAGARA JET SYSTEM MENU JET PUMP 1 – JET SYSTEM 1 JET PUMP 1 – JET SYSTEM 2 2 VERSASSAGE jets Located in ECSTASEAT 4 Euro Directional jets 2 Directional Neck jets 1 EUPHORIA jet 14 Euro Directional jets 2 EURO-PULSE jets JET PUMP 2 –... -
Page 26: Tahitian
TAHITIAN JET SYSTEM MENU JET PUMP 1 – JET JET PUMP 1 – JET SYSTEM 2 SYSTEM 2 2 Euro Directional jets 2 Euro Directional jets 1 ADAPTAFLO jet 1 ADAPTAFLO jet Located in LUMBARSSAGE seat 1 ADAPTAFLO jet 2 VERSASSAGE jets 1 EUPHORIA jet JET PUMP 1 –... -
Page 27: Florence
FLORENCE JET SYSTEM MENU JET PUMP 1 – JET SYSTEM 2 JET PUMP 1 – JET SYSTEM 1 1 EUPHORIA jet Located in LUMBARSSAGE seat 2 ADAPTASSAGE jets 2 Euro Directional jets Located in ECSTASEAT 2 ORBISSAGE jets 2 VERSASSAGE jets 2 VERSASSAGE jets 4 Euro Directional jets 2 Euro Directional jets... -
Page 28: Ravello
RAVELLO JET SYSTEM MENU JET PUMP 1 – JET SYSTEM Located in ECSTASEAT: 8 Euro Directional jets 2 Euro Directional jets 2 Euro-Pulse jets Located in LUMBARSSAGE seat: 2 VERSASSAGE jets 6 Euro Directional jets JET PUMP 2 – JET SYSTEM 1 JET PUMP 2 –... -
Page 29: Spa Care And Maintenance
To return basket and floating weir, insert and rotate clockwise to lock into are and aIntenance position. Then turn spa’s power back on. Your CALDERA spa is manufactured from the highest quality, most NOTE: Replacement filter cartridges are available from your CALDERA durable materials available. -
Page 30: Draining Your Spa
DRAINING YOUR SPA Use only Propylene Glycol as your anti-freeze (available at most RV or marine supply stores). This is non-toxic. Turn off all GFCI breakers in sub-panel, or main electrical panel. DANGER: Never use an automobile anti-freeze (Ethylene Glycol) since it is toxic! Locate the main drain valve (bottom front) for the spa. -
Page 31: Care Of The Spa Pillows
As part of this process, superchlorinate the spa water by adding chemicals is not covered under the warranty. Always rinse off any three teaspoons of chlorine (sodium dichlor) per 250 gallons (950 spa shell cleaning agent with fresh water. liters) of spa water into the filter compartment. This is twice the Iron and copper in the water can stain the spa shell if allowed to go normal amount of chlorine needed for superclorination. -
Page 32: Electrical Requirements
The grounding conductor must not be less than #10 AWG. Refer to lectrIcal eQuIrementS local codes and to NEC 250-122 (table). NOTE: The CANTABRIA will require an additional 20 amp breaker IMPORTANT: Fill the spa with water before turning on the power. in order to operate the heater and the Lounge seat (jet pump 3) at Your CALDERA spa has been carefully designed to give you the same time. - Page 33 IMPORTANT: If you ever need to move or relocate your CALDERA spa, it is essential that you understand and apply these installation requirements. Your CALDERA spa has been carefully engineered to provide maximum safety against electric shock. Remember, connecting the spa to an improperly wired circuit will negate many of its safety features.
- Page 34 CANTABRIA - CONVERTED TO 70 AMP Remove power jumpers A from TB WARNING: FILL THE SPA WITH WATER BEFORE TURNING ON THE POWER! (SEE STARTUP PROCEDURES.) CAUTIONS USE COPPER CONDUCTORS ONLY THESE SPAS ARE INTENDED FOR USE WITH GFCI SUBPANEL PROVIDED.
-
Page 35: Service Information
open. Opening of the pressure switch is normally a result of one or a ervIce nformatIon combination of these problems: A clogged filter cartridge GENERAL INFORMATION Blockage within the system plumbing Your CALDERA spa has been designed to provide years of trouble- Power was not disconnected to the spa before it was drained free use. -
Page 36: Acts Invalidating Warranty
ACTS INVALIDATING WARRANTY DISCLAIMERS The limited warranty is void if the CALDERA spa has been improperly WATKINS WELLNESS shall not be liable for loss of use of the installed, subjected to alteration, misuse, or abuse, or if any repairs CALDERA spa, or other incidental, consequential, special, indirect, or on the spa are attempted by anyone other than an authorized punitive costs, expenses or damages, which may include but are not representative of W atkins Manufacturing Corporation. - Page 37 GENERAL OPERATION TROUBLESHOOTING GUIDE Problem Probable causes Solutions Entire spa is inoperative • Power failure • Check power source. • GFCI tripped • Reset GFCI; call for service if it will not reset. • Heater high-limit thermostat tripped • Disconnect power for at least thirty seconds to reset heater high limit. If it will not reset, check for clogged filters.
-
Page 38: Door Panel Removal
Main Control Panel DOOR PANEL REMOVAL The illustrations are to be used as a reference only (your spa may look different). Locate the two buttons below the front panel. Push up and hold one of the buttons using an Allen wrench less than ¼" 2b Pull 2a Pull (6 mm) in width or small screwdriver... - Page 40 UTOPIA SPECIFICATIONS This manual contains installation, operating, maintenance, and service information for the following CALDERA spa 230 volt, 20A & 30A or 7'7" x 9'0" 7,840 1,310 38" 100 ft² gallons lbs/ft² 230 volt 20A, 20A & 30A 231 cm CANTABRIA 4,000 Single phase GFCI...
