- Page 1 UTOPIA SERIES ® 2 0 1 7 O W N E R ’ S M A N U A L...
- Page 2 WELCOME Watkins Manufacturing Corporation congratulates you on your decision to enjoy the finest spa available. Welcome to the growing family of Caldera ® spa owners. OWNER’S MANUAL This Owner’s Manual will acquaint you with the operation and general maintenance of your new spa. We suggest that you take some time to carefully review all sections.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION JET MENU IMPORTANT SAFETY INSTRUCTIONS ......1 CANTABRIA JET SYSTEM MENU ........21 ® IMPORTANT GENEVA JET SYSTEM MENU ........22 SPA INSTRUCTIONS ............. 3 ® NIAGARA JET SYSTEM MENU ........23 GETTING STARTED ® TAHITIAN JET SYSTEM MENU ........24 MAIN SPA FEATURES ............ -
Page 4: Safety Information
• Do not operate the audio main controls while inside the spa (if spa is afety nformatIon equipped with an audio component). • Do not connect any auxiliary components (for example, cable IMPORTANT SAFETY additional speakers, headphones, additional audio components) to the audio system unless approved by Watkins Manufacturing Corporation . - Page 5 • Do not permit any electrical appliances, such as a light, telephone, UNCLEAN WATER radio, or television within 5 feet (1.5 m) of a spa. Failure to maintain a safe distance may result in death, or serious personal injury due to electrocution, if the appliance should fall into the spa.
-
Page 6: Important Spa Instructions
SPA SHELL SAFETY SIGN Your CALDERA spa has an acrylic shell. Stains and dirt generally will not adhere to your spa’s surface. A soft rag should easily remove most Each CALDERA spa is shipped with a SAFETY SIGN in the owner’s dirt. -
Page 7: Getting Started

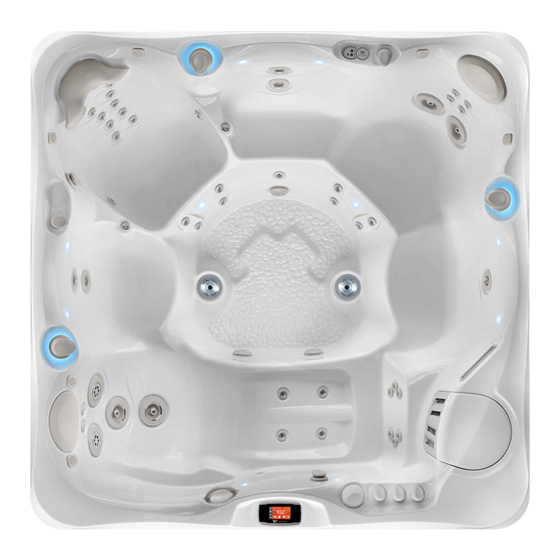

ettInG tarted MAIN SPA FEATURES 1 ) The Main control panel provides a quick visual check of the spa’s status and allows the user to set different functions of the spa. 2) The Auxiliary control panel allows the user to activate the jets, air jets and lights across from the main control panel. -
Page 8: Hydro Jets
HYDRO JETS VERSASSAGE Jets - These jets may be adjusted to provide either a ADAPTAFLO Jets - These jets allow you to redirect the jet stream by stationary, direct stream or, by positioning the nozzle to one side or the changing the position of the nozzle. -
Page 9: Acquarella Waterfall Valve
ACQUARELLA WATERFALL VALVE of a Pre-Delivery Instruction booklet can be obtained from either your CALDERA dealer or online. Your spa is equipped with the ACQUARELLA waterfall feature. It is activated by turning on Jet Pump 2 (either low or high speed). The flow is •... - Page 10 1. CLOSE DRAIN, remove the filter compartment cover, skimmer OPERATION NOTE: Adjusting the Total Alkalinity as the first step is basket, weir, and filter. Fill your spa through the filter compartment important, as out-of balance TA will affect your ability to adjust the pH using the CleanScreen pre-filter that attaches to your garden hose.
-
Page 11: Water Quality And Maintenance
CHEMICAL SAFETY ater ualIty and When using chemicals, read the labels carefully and follow directions aIntenance precisely. Though chemicals protect you and your spa when used correctly, they can be hazardous in concentrated form. Always observe BASIC INFORMATION the following guidelines: •... -
Page 12: Fundamentals Of Water Maintenance
FUNDAMENTALS OF 7.2 - 7.8. To lower the pH level, use MONARCH pH/Alkalinity Down (sodium bisulfate). To raise the pH level, use pH/Alkalinity WATER MAINTENANCE Up (sodium carbonate). • Testing: Test the water weekly or each time the spa is used with •... -
Page 13: Frog Water Care System
75% less For @ease chlorine cartridge setting, see table below: chlorine than ordinary dichlor systems. @ease UTOPIA Series Models THE FROG BROMINE CARTRIDGE (BCDMH). The recommended SmartChlor sanitizer for those users who prefer bromine as an alternative to chlorine. - Page 14 PERFORMING SUPER CHLORINATION/ IMPORTANT: There are several forms of stabilized chlorine available for use in spas and swimming pools. It is extremely important to choose NON-CHLORINE SHOCK TREATMENT one specifically designed for spas. Use of an incorrect product such as tri-chlor which has a very low pH (2.6) and dissolves too quickly in A weekly or monthly super chlorination (1.5 tsp dichlor/250 gal) or shock hot water, results in extremely high levels of chlorine that WILL cause (4tbs mps/250 gal) may be required of your chosen sanitation program.
-
Page 15: Vacation Water Care Instructions
VACATION WATER CARE Foam Inhibitors INSTRUCTIONS Spa water requires changing due to the buildup of soap in the water. Typically, soap will cause the spa water to foam when the jets are used. If you plan to be away from home, follow these instructions to ensure Soap is introduced into the spa water from two sources: users’... -
Page 16: Glossary
GLOSSARY Scale: Rough calcium-bearing deposits that can coat spa surfaces, heaters, plumbing lines, and clog filters. Generally, scaling is caused by The following chemical terms are used in this Water Quality and mineral content combined with high pH. Additionally, scale forms more Maintenance section. -
Page 17: Operating Instructions
peratInG nStructIonS READY Indicator: The READY indicator will display when the spa water temperature is within 2°F (1°C) of the set MAIN CONTROL PANEL temperature, and will turn off when the temperature is outside of that range. If you increase or decrease the temperature setting The main control panel provides a quick visual check of the spa’s status of the spa, the ready indicator will turn off until the water and allows the user to set the temperature, activate the jets &... -
Page 18: Temperature Control
AUDIO TEMPERATURE LOCK If you purchased music or wireless HD Monitor with your spa, this feature When activated, the Temperature Lock feature prevents a change in your will take you to the Audio menu. desired water temperature setting. All other functions on the main and auxiliary control panels will operate normally while the temperature lock is IMPORTANT: Some soft key functions will only be visible if available "ON". -
Page 19: Light Control
Press any of the soft keys next to the description to change the jet 4th press: Underwater lights reduce to Brightness = 2; Exterior Lights functions between high, low speed (when available), or off. remain On The Jet pump icon will remain displayed until the button is pressed to 5th press: Underwater lights reduced to Brightness = 1;... -
Page 20: Audio Control (Optional Wireless System Only)
BRIGHTNESS AUDIO CONTROL (OPTIONAL WIRELESS SYSTEM ONLY) If you would like to change the screen brightness of the Main Control panel: The following applies to spas that have CALDERA wireless sound Press the OPTIONS Hard button on the Main Control panel. system installed: When the sound system has been installed on the spa, the control panel Press the soft button next to Set-up. - Page 21 TO CHANGE TRACK (SONG) TO ADJUST BALANCE From the SETUP Source menu: From the AUDIO menu: • Press SETUP Source soft button to • Press the Function:SET soft advance to the SETUP Tone, Treble button to advance to the Play/ screen.
-
Page 22: Auxiliary Panel
AUXILIARY PANEL LIGHT BUTTON The “LIGHT” button activates the SPAGLO multi-zone lighting system AUXILIARY CONTROL PANEL BUTTONS and controls the intensity of the light. Pressing the “LIGHT” button operates the light as follows: The auxiliary control panel, conveniently located opposite the main control panel allows the user to activate the jets and lights. - Page 23 SEQUENCES BUTTON The Sequences button controls the jet massage pattern. To scroll through the jet sequences, keep pressing the Sequences button within 5 seconds. To select a jet sequence, scroll through until you have The ULTRAMASSEUSE system is pre-programmed with six found the one you want, and then release the Sequences button.
-
Page 24: Jet Menu
CANTABRIA JET SYSTEM MENU JET PUMP 1 - JET SYSTEM 1 JET PUMP 1 - JET SYSTEM 2 2 Euro-Directional jets 10 Euro-Directional jets 2 Directional Neck jets 4 Euro-Directional jets 3 VERSASSAGE jets 1 ACQUARELLA Waterfall 16 Euro-Directional jets 1 ACQUARELLA Waterfall 2 EURO-PULSE jets JET PUMP 2 - JET SYSTEM 2... -
Page 25: Geneva Jet System Menu
GENEVA JET SYSTEM MENU JET PUMP 1 – JET JET PUMP 1 – JET SYSTEM 2 SYSTEM 2 2 ADAPTASSAGE jets Located in ECSTASEAT ® Located in LumbarSsage seat 2 ADAPTASSAGE jets JET PUMP 1 – JET SYSTEM 1 8 Euro Directional jets 1 ADAPTAFLO jet 2 ORBISSAGE jets ®... -
Page 26: Niagara Jet System Menu
NIAGARA JET SYSTEM MENU JET PUMP 1 – JET SYSTEM 1 JET PUMP 1 – JET SYSTEM 2 2 VERSASSAGE jets Located in ECSTASEAT 4 Euro Directional jets 2 Directional Neck jets 1 EUPHORIA jet 14 Euro Directional jets 2 EURO-PULSE jets JET PUMP 2 –... -
Page 27: Tahitian Jet System Menu
TAHITIAN JET SYSTEM MENU JET PUMP 1 – JET JET PUMP 1 – JET SYSTEM 2 SYSTEM 2 2 Euro Directional jets 2 Euro Directional jets 1 ADAPTAFLO jet 1 ADAPTAFLO jet Located in LUMBARSSAGE seat 1 ADAPTAFLO jet 2 VERSASSAGE jets 1 EUPHORIA jet JET PUMP 1 –... -
Page 28: Spa Care And Maintenance
to remove any debris lodged between the filter pleats. Re-insert filter are and aIntenance cartridge. Your CALDERA spa is manufactured from the highest quality, most To return basket and floating weir, insert and rotate clockwise to lock into durable materials available. Even so, the spa care and maintenance position. -
Page 29: Draining Your Spa
DRAINING YOUR SPA DANGER: Use only Propylene Glycol as your anti-freeze (available at most RV or marine supply stores). This is non-toxic. Never use an Turn off all GFCI breakers in sub-panel, or main electrical panel. automobile anti-freeze (Ethylene Glycol) since it is toxic! WARNING: Failure to follow these instructions correctly can lead to Locate the main drain valve (bottom front) for the spa. -
Page 30: Care Of The Spa Pillows
As part of this process, superchlorinate the spa water by adding USE HARSH CHEMICALS! Damage to the shell by use of harsh three teaspoons of chlorine (sodium dichlor) per 250 gallons of spa chemicals is not covered under the warranty. Always rinse off any water into the filter compartment. -
Page 31: Electrical Requirements
The grounding conductor must not be less than #10 AWG. Refer to lectrIcal eQuIrementS local codes and to NEC 250-122 (table). NOTE: The CANTABRIA will require an additional 20 amp breaker IMPORTANT: Fill the spa with water before turning on the power. in order to operate the heater and the Lounge seat (jet pump 3) at Your CALDERA spa has been carefully designed to give you the same time. - Page 32 IMPORTANT: If you ever need to move or relocate your CALDERA spa, it is essential that you understand and apply these installation requirements. Your CALDERA spa has been carefully engineered to provide maximum safety against electric shock. Remember, connecting the spa to an improperly wired circuit will negate many of its safety features.
- Page 33 CANTABRIA - CONVERTED TO 70 AMP Remove power jumpers A from TB WARNING: FILL THE SPA WITH WATER BEFORE TURNING ON THE POWER! (SEE STARTUP PROCEDURES.) CAUTIONS USE COPPER CONDUCTORS ONLY THESE SPAS ARE INTENDED FOR USE WITH GFCI SUBPANEL PROVIDED.
-
Page 34: Service Information
open. Opening of the pressure switch is normally a result of one or a ervIce nformatIon combination of these problems: A clogged filter cartridge GENERAL INFORMATION Blockage within the system plumbing Your CALDERA spa has been designed to provide years of trouble- Power was not disconnected to the spa before it was drained free use. -
Page 35: Acts Invalidating Warranty
ACTS INVALIDATING WARRANTY DISCLAIMERS The limited warranty is void if the CALDERA spa has been improperly Watkins Manufacturing Corporation shall not be liable for loss of use of installed, subjected to alteration, misuse, or abuse, or if any repairs the CALDERA spa, or other incidental, consequential, special, indirect, on the spa are attempted by anyone other than an authorized or punitive costs, expenses or damages, which may include but are not representative of W atkins Manufacturing Corporation. - Page 36 GENERAL OPERATION TROUBLESHOOTING GUIDE Problem Probable causes Solutions Entire spa is inoperative • Power failure • Check power source • GFCI tripped • Reset GFCI; call for service if it will not reset • Heater high-limit thermostat tripped • Disconnect power for at least thirty seconds to reset heater high limit. If it will not reset, check for clogged filters.
-
Page 37: Door Panel Removal
DOOR PANEL REMOVAL Main Control Panel The illustrations are to be used as a reference only (your spa may look different). Locate the two buttons below the front panel on the same side as the Main Control Panel Push up and hold one of Safety Lock the buttons using an Allen Safety Lock... - Page 40 UTOPIA SPECIFICATIONS This manual contains installation, operating, maintenance, and service information for the following CALDERA spa 230 volt, 50 or 70 amp 7'7" 1,310 7,840 lbs. per CANTABRIA 38" square 4,000 Single phase GFCI gallons square 9'0" feet protected circuit foot 230 volt, 30 or 50 amp 7'5"...
