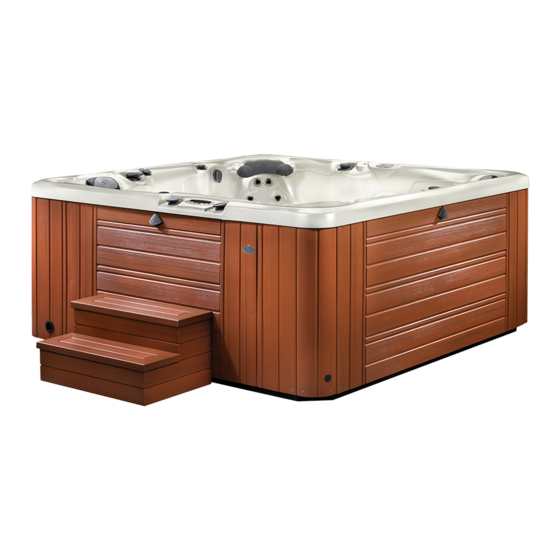

CalderaSpas Utopia Series Pre-Delivery Instructions
Hide thumbs
Also See for Utopia Series:
- Owner's manual (52 pages) ,
- Pre-delivery instructions (16 pages) ,
- Quick start manual (13 pages)
Table of Contents
Advertisement
Quick Links
Pre-Delivery Instructions
Please take the time to read this booklet carefully, as it will provide you with the information you will need to ensure
the safe, secure, and timely installation of your new spa. The following sections are guidelines on how to prepare for
delivery and set-up of your new spa. Specifically covered are site selection, delivery access, ground preparation, and
electrical requirements.
Remember to carefully read the Owner's Manual that accompanies your spa and to complete the warranty card
within ten days of delivery. These items, along with other valuable information, are included in the Owner's Packet
which can be located in the equipment compartment of your spa. You will also find your serial number in the
equipment compartment.
Watkins Wellness™ reserves the right to change features, specifications, and design without notification and without
incurring any obligation.
DATE PURCHASED: _________________________________________________________________
DATE INSTALLED: ___________________________________________________________________
DEALER: ___________________________________________________________________________
ADDRESS: __________________________________________________________________________
TELEPHONE: _______________________________________________________________________
In most cities and counties, permits will be required for the installation of electrical circuits or the construction of
exterior surfaces (decks and spa enclosures). In addition, some communities have adopted residential barrier codes
which may require fencing and/or self-closing gates on the property to prevent unsupervised access to a pool (or
spa) by children under 5 years of age. Your Caldera
F1346-91 Standard for Safety Covers, and as a result, is usually exempt from most barrier requirements. As a
general practice, your local Building Department will inform you of any applicable barrier requirements at the time a
permit is obtained for the installation of an electrical circuit. Your CALDERA dealer can provide information on which
permits may be required.
Utopia Series
spa is equipped with a locking cover that meets the ASTM
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CalderaSpas Utopia Series
Summary of Contents for CalderaSpas Utopia Series
- Page 1 Utopia Series Pre-Delivery Instructions Please take the time to read this booklet carefully, as it will provide you with the information you will need to ensure the safe, secure, and timely installation of your new spa. The following sections are guidelines on how to prepare for delivery and set-up of your new spa.
-
Page 2: Site Selection And Preparation
Pre-Delivery Instructions SITE SELECTION AND PREPARATION IMPORTANT: Site selection and preparation are your responsibility. Carefully read these instructions and consult your authorized CALDERA dealer if you have any questions. You probably have a spot picked out for your new spa, whether it’s indoors or outdoors, on a patio or on a deck. Just make sure you check the following: •... -
Page 3: Delivery Access
*NOTE: A reinforced concrete pad at least four inches thick or structurally sound deck able to support the “dead weight” found in the FOUNDATIONS FOR SPAS WITH GAZEBOS spa specification chart for each model (see back page).The reinforcing rod or mesh in the pad should be attached to a bond wire. •... - Page 4 Pre-Delivery Instructions The crane has a truck-mounted boom which can fit right in your driveway. It is run by a licensed and insured operator. For a charge, the crane operator will lift your spa over walls, buildings, or any other obstruction and place it as close to the installation site as possible.
- Page 5 Cantabria CANTABRIA NOTE: All dimensions are approximate; measure your spa before making critical design or pathway decisions. Cabinet 108.0” (274 cm) 32.5” 38” (Front View) 61.5” (156 cm) (83 cm) (97 cm) Door Opening Electrical Cut-Out (both sides) 4" (10 cm) up from 93.375”...
-
Page 6: Geneva And Niagara
Pre-Delivery Instructions Pre-Delivery Instructions GENEVA and NIAGARA NOTE: All dimensions are approximate; measure your spa before making Niagara & Geneva critical design or pathway decisions. 89” (226 cm) Cabinet 32.5” 38” 44.25” (112 cm) (83 cm) (97 cm) (Front View) Door Opening 75”... - Page 7 TAHITIAN and FLORENCE TAHITIAN NOTE: All dimensions are approximate; measure your spa before making critical design or pathway decisions. 84.0” (213 cm) Cabinet 31” 36” 37.875” (96 cm) (79 cm) (91 cm) (Front View) Door Opening Electrical Cut-Out (both sides) 69.5”...
- Page 8 Pre-Delivery Instructions PROVENCE PROVENCE NOTE: All dimensions are approximate; measure your spa before making critical design or pathway decisions. 84.0” (213 cm) Cabinet 31” (Front View) 35” 37.875” (96 cm) (79 cm) (89 cm) Door Opening Electrical Cut-Out (both sides) 4"...
-
Page 9: Door Panel Removal
DOOR PANEL REMOVAL Main Control Panel The illustrations are to be used as a reference only (your spa may look different). Locate the two buttons below the front panel on the same side as the Main Control Panel Safety Lock Safety Lock Push up and hold one of the buttons using an Allen wrench less... -
Page 10: Electrical Requirements
Pre-Delivery Instructions ELECTRICAL REQUIREMENTS To ensure you will have an opportunity to use your spa soon after delivery, it is very important that the required electrical service has been installed. Unless otherwise stipulated by your dealer, THIS IS YOUR RESPONSIBILITY. IMPORTANT: All electrical circuits must be installed by a qualified, licensed electrician. -
Page 11: Wiring Diagrams
POWER CONNECTION To connect power to the spa, refer to “230 VOLT WIRING SCHEMATIC DIAGRAM” and “POWER CONNECTION ACCESS” illustrations. When supplying power, remove the equipment door. NOTE: The 230V wiring diagram is located on the inside of the Control Box Cover. POWER CONNECTION ACCESS MAIN CONTROL PANEL DOOR... - Page 12 Pre-Delivery Instructions WIRING DIAGRAMS CANTABRIA Power jumpers ** Refer to NEC 250-122 (table) NOTE: The wire connections to GFCI breakers are for reference only. Always ensure the white neutral wire is connected to the load neutral of the 30 amp breaker. *PROVIDED WITH SPA.
- Page 13 WIRE INSTALLATION FOR CONTROL BOX TERMINAL BLOCK (Layout of Spa’s Terminal Blocks may vary) Insert Push top of screwdriver to screwdriver away engage cage from wire clamp Terminal Block Wire Installation Steps 1/2” Install Stripped end of wire into Strip wire Terminal insulation back Block...
- Page 14 Pre-Delivery Instructions SERVICES AVAILABLE FROM YOUR CALDERA SPA DEALER SERVICE COST Pre-Delivery site inspection _____________ Deliver spa to installation site _____________ Unwrap spa and haul away packaging material _____________ Set up spa _____________ ® Fill the spa with water and add @ease SmartChlor and mineral cartridges _____________...
- Page 15 ADDITIONAL PRODUCTS AVAILABLE FROM YOUR CALDERA SPA DEALER - CONTINUED • Avante™ Step to match the spa cabinet • Retractable cover system with clearance requirements: ProLift II - 30” Clearance Required ® ProLift III - 30” Clearance Required (Required for CANTABRIA) ProLift IV - 18”...
- Page 16 UTOPIA SPA SPECIFICATIONS 230 volt, 50 or 70 amp 7'7" 1310 7,840 lbs. per CANTABRIA 38" square 4,000 Single phase GFCI gallons lbs. lbs. square 9'0" feet protected circuit foot 230 volt, 30 or 50 amp 7'5" 1,000 5,470 lbs. per GENEVA 38"...
