TECHNICAL DATA LEAFLET

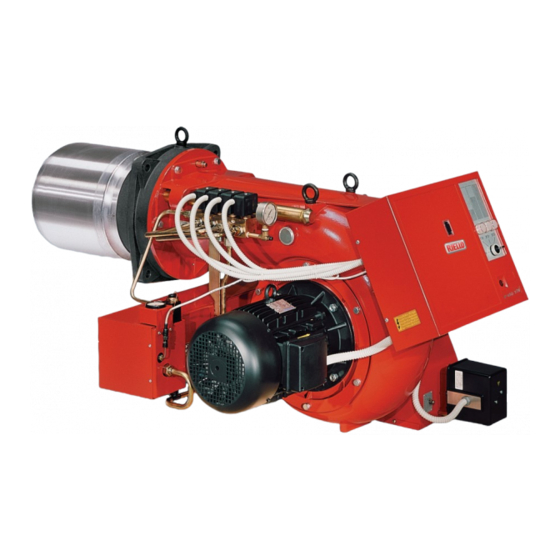

PRESS T/N - TN ECO Series
Three Stage Heavy Oil Burners
P 140 T/N
320/800 ÷
P 200 T/N
515/1140 ÷
P 300 T/N
626/1710 ÷
P 450 T/N
855/2560 ÷
P 140 T/N ECO
320/800 ÷
P 200 T/N ECO
515/1140 ÷
P 300 T/N ECO
626/1710 ÷
P 450 T/N ECO
855/2560 ÷
www.riello.com
1600 kW
2280 kW
3420 kW
5130 kW
1600 kW
2280 kW
3420 kW
5130 kW
HEAVY OIL
Advertisement
Table of Contents
Related Manuals for Riello TN ECO Series
Summary of Contents for Riello TN ECO Series
- Page 1 TECHNICAL DATA LEAFLET HEAVY OIL PRESS T/N - TN ECO Series Three Stage Heavy Oil Burners P 140 T/N 320/800 ÷ 1600 kW P 200 T/N 515/1140 ÷ 2280 kW P 300 T/N 626/1710 ÷ 3420 kW P 450 T/N 855/2560 ÷...
- Page 2 Simplified maintenance is achieved by the Riello designed slide bar system, which allows easy access to all of the essential components of the combustion head.
-
Page 3: Technical Data
Technical Data MODEL P 140 T/N (ECO) P 200 T/N (ECO) P 300 T/N (ECO) P 450 T/N (ECO) Burner operation mode Three stage Modulation ratio at max. output 2 ÷ 1 type LKS 210 LKS 300 Servomotor run time s 320/800 ÷... -
Page 4: Firing Rates
Three Stage Heavy Oil Burners PRESS T/N - T/N ECO Series MODEL P 140 T/N (ECO) P 200 T/N (ECO) P 300 T/N (ECO) P 450 T/N (ECO) APPROVAL Directive 2006/42/EC - 2014/30/UE - 2014/35/UE Conforming to EN 267 Certification Reference conditions: Temperature: 20°C - Pressure: 1013.5 mbar - Altitude: 0 m a.s.l. -
Page 5: Fuel Supply
The 3 stage burner series can burn different heavy oil type from 50 up to 450 cSt @ 50°C ( up to 60°E @ 50°C). For different viscosity levels Riello recommends 3 different configurations: 1) Press T/N version for viscosity up to 50 cST ( °E) @ (50°C:... -
Page 6: Important Notes
Three Stage Heavy Oil Burners PRESS T/N - T/N ECO Series SELECTING THE FUEL SUPPLY LINES The fuel feed must be completed with the safety devices required by the local regulations in force. IMPORTANT NOTES - The oil could easily flow through the pipes if those are properly sized, protected and heated (by electricity, steam or hot water). -
Page 7: Combustion Head
Ventilation The ventilation circuit is provided with a forward blades centrifugal fan, which guarantees high pressure levels at the required air deliveries and permits installation flexibility. Inspite of the remarkable output power and of the very high pressure performances, structures of PRESS T/N models are extremely compact. -
Page 8: Operation
Three Stage Heavy Oil Burners PRESS T/N - T/N ECO Series Operation BURNER OPERATION MODE With three stage operation, the PRESS T/N burners can follow the temperature load requested by the system. A ratio between maximum and minimum working output of 3:1 is reached, thank to the servomotor: the air delivery is proportional to required output. - Page 9 INTERFACE DIAGNOSIS By the interface adapter and a PC with dedicated TABLET/PC software or by a predisposed flue gas analyzer INTERFACE ADAPTER (see paragraph accessories). FLUE GAS ANALYSER INDICATION OF OPERATION COLOR CODE TABLE Operation status Color code table In normal operation, the various status are indicated in the form of colour codes according Stand-by to the table below.
-
Page 10: Noise Emissions
Three Stage Heavy Oil Burners PRESS T/N - T/N ECO Series Emissions The emission data has been measured in the various models at maximum output, according to EN 267 standard. EMISSIONS CO EMISSIONS NOISE EMISSIONS... -
Page 11: Overall Dimensions (Mm)
Overall Dimensions (mm) These models are distinguished by their reduced size, in relation to their outputs, which means they can be fitted to any boiler on the market. PRESS T/N G - G(1) O - O(1) PRESS T/N ECO G - G(1) O - O(1) MODEL F - F (1) - Page 12 Three Stage Heavy Oil Burners PRESS T/N - T/N ECO Series BURNER - BOILER MOUNTING FLANGE MODEL P 140 T/N (ECO) M 14 P 200 T/N (ECO) M 16 P 300 T/N (ECO) M 18 P 450 T/N (ECO) M 20 PACKAGING MODEL P 140 T/N (ECO)
-
Page 13: Installation Description
Installation Description Skilled and qualified personnel must perform installation, start up and maintenance. All operations must be carried in accordance with the technical handbook supplied with the burner. BURNER SETTING All the burners have slide bars, for easier installation and maintenance. After drilling the boilerplate, using the supplied gasket as a template, dismantle the blast tube from the burner and fix it to the boiler. -
Page 14: Burner Accessories
Three Stage Heavy Oil Burners PRESS T/N - T/N ECO Series Burner accessories EXTENDED HEAD KIT “Standard head” burners can be transformed into “extended head” versions, by us- ing the special kit. The KITS available for the various burners, giving the original and the extended lengths, are listed below. -
Page 15: Heavy Oil Precirculation Kit
GAS SEPARATOR BOTTLE Gas separator bottle connects the burner oil circuit to the main ring circuit. It allows to recover heat in excess and discharge return circuit gas. BURNER CODE P 140 - 200 T/N 3000748 P 300 - 450 T/N 3010012 HEAVY OIL KIT Equipped with electrical heaters, it permits the employment of PRESS T/N burners... -
Page 16: Pc Interface Kit
Three Stage Heavy Oil Burners PRESS T/N - T/N ECO Series PC INTERFACE KIT To connect the control box to a personal computer for the transmission of operation, fault signals and detailed service information, an interface adapter with PC software are available. - Page 17 Available for T/N and T/N ECO versions NOZZLE The nozzles must be ordered separately. The following table shows the features and codes on the basis of the maximum required output. NOTE: each burner needs N° 3 nozzle. RATED DELIVERY BURNER NOZZLES CODE (kg/h) at 25 bar P 140 T/N...
-
Page 18: Specification
Three Stage Heavy Oil Burners PRESS T/N - T/N ECO Series Specification DESIGNATION OF SERIES A specific index guides your choice of burner from the various models available in the PRESS T/N series. Below is a clear and detailed specification description of the product. Series: PRESS Size: Operation:... -
Page 19: Burner Models
Max Viscosity at 50°C for PRESS T/N ECO: 20°E (150 mm /s, cSt), Type BUNKER B / USA n° 5. For higher viscosity please contact Riello Burners Technical Department. The burners of PRESS series are in according to 2014/30/UE - 2014/35/UE - 2006/42 EC Directive and EN 267 Norm. - Page 20 Three Stage Heavy Oil Burners PRESS T/N - T/N ECO Series STATE OF SUPPLY Monoblock forced draught heavy oil burner, three stage operation, made up of: - Air suction circuit - Fan with forward curved blades - Air dampers for air setting controlled by a servomotor - Fan motor at 2850 rpm - Combustion head, fitted with: - stainless steel end cone, resistant to corrosion and high temperatures...
- Page 24 Riello Burners a world of experience in every burner we sell. Across the world, Riello sets the standard in reliable and high efficiency burner technology. With burner capacity from 5 kW to 48 MW, Riello gas, oil, dual fuel and Low Nox burners deliver unbeatable...
