- Page 1 Horizon Yealink W73P User Guide artemis.marketing Horizon Yealink W73P User Guide...
-
Page 2: Table Of Contents
Rejecting a Call Manually ........................13 Rejecting Calls with Do Not Disturb (DND) ..................13 In Call Actions ............................14 Muting / Unmuting Audio ........................14 Call Hold and Resuming a Call ......................14 Call Forwarding ............................. 14 Horizon Yealink W73P User Guide... - Page 3 Cascade Setup ............................ 21 Start Setup ............................22 Registering the Repeater ........................22 Cascade Registration .......................... 23 Auto Cascade Registration ......................23 Manual Cascade Registration ......................23 ID Modification ............................ 23 De-registration ............................. 24 Placement ............................24 Horizon Yealink W73P User Guide...
-
Page 4: Getting Started

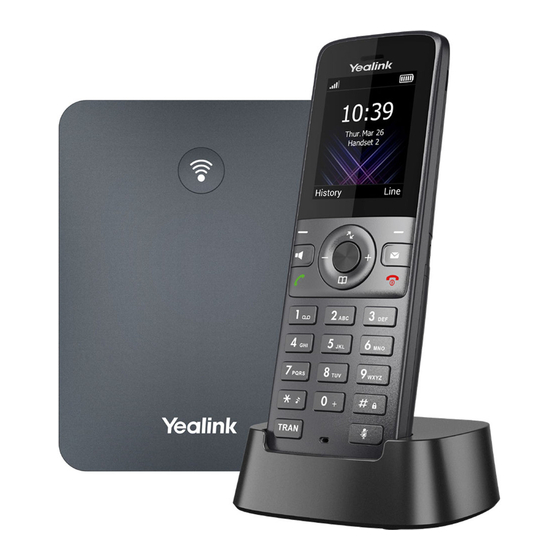

Getting Started The W73P is a single cell DECT device from Yealink. The W73P has two components, the W70B base station and the W73H handset. You can purchase additional W73H handsets separately, though one comes in the W73P package. The W73P will allow you to register up to 10 users using the W73H handset per W70B base station. -
Page 5: W70B Base Station
Network Status LED Indicates the network status. Power LED Indicator Indicates the power status of the base station. Paging Key Locates a misplaced handset. Toggles the registration mode. Resets the base station to factory settings Horizon Yealink W73P User Guide... -
Page 6: W73H Handset
Long press to return to the idle screen. Press to turn the handset on. Long press on the idle screen to turn the handset off. Cancels actions or ends a call. Rejects an incoming call. Horizon Yealink W73P User Guide... -
Page 7: Power Led Indicator
To access the main menu, simply press the OK button on the handset when the handset is idle. To return to the main screen you can long press the On-hook key to quickly exit the menu. Horizon Yealink W73P User Guide... -
Page 8: Icons
The ringer volume is muted, and the phone is on silent. The phone has new voicemails. Do Not Disturb is enabled. Keypad is locked. Headset mode is on. Handsfree mode is on. Call is on hold Call is on mute Call Forward Horizon Yealink W73P User Guide... -
Page 9: Entering Data On The W73H
Delete text Press to position the cursor to the right of the text you want to delete, and then press Delete to delete one character at a time or long press to delete all characters Horizon Yealink W73P User Guide... -
Page 10: Register The Handset(S) To Base Station
After the handset is registered successfully, the phone prompts “Handset Subscribed” and “Base number [The last 4 characters of the connected Base’s MAC address]”. After the handset initialised successfully, an icon with the internal handset number and handset name appears on the phone screen. Horizon Yealink W73P User Guide... -
Page 11: Troubleshooting
To place the call, go to OK > Intercom and select the desired handset or All Handsets and select OK or the Off-hook key. Selecting All Handsets will ring all other registered handsets to that base station simultaneously. Horizon Yealink W73P User Guide... -
Page 12: Placing An Internal Call During An External Call
You can redial a call from the Redial list. The W73H stores the last 20 dialled phone numbers. When the redial list gets full, the handset will automatically erase the oldest entry when a new number is dialled. Horizon Yealink W73P User Guide... -
Page 13: Answering Calls
You can enable DND to reject all incoming calls automatically when you do not want to be interrupted. Go to OK > Call Features > Do Not Disturb Select the directed line and press OK Enable DND and confirm the action. The status bar will not display the DND icon. Horizon Yealink W73P User Guide... -
Page 14: In Call Actions
During a call, you can transfer the call to another contact. You can use one of three ways: • Blind Transfer: Transfer a call directly to the third party without consulting. • Attended Transfer (Consultative Transfer): Transfer a call with prior consulting. Horizon Yealink W73P User Guide... -
Page 15: Blind Transfer
Go to OK > Voice Mail > Play Message or press the Message key. Select the desired line, and then press Select. The handset dials out the voice mail code using the selected line automatically. Horizon Yealink W73P User Guide... -
Page 16: Handset Settings
# again until the handset prompts you that it is unlocked. Locating a Handset You can locate a misplaced registered using the base station by pressing the button on the base station. Horizon Yealink W73P User Guide... -
Page 17: Renaming The Handset
Simply long press the * button until the phone displays "All Ring Tones Off". To turn silent mode off, simply long press the * button again until the phone display "All Ring Tones On". Horizon Yealink W73P User Guide... -
Page 18: Dect Repeater (Rt30)
DECT Repeater (RT30) The Yealink DECT Repeater, RT30, can be deployed to extend the range of the W73P IP DECT phone to cover areas where reception was previously not available in accordance with Digital Enhanced Cordless Telecommunication (DECT) standards. All the usual handset functions are supported by the base station in the extended radio range. The repeater, base station and cordless handset employ wireless connection. -
Page 19: Led Status
Flashing Red [1] De-register the repeater [1] The number of flashes indicates the current ID repeater. When it flashes once, the ID is 1. Radio Link Status DECT LED Excellent to good Green Poor Orange Horizon Yealink W73P User Guide... -
Page 20: Installation
Installation Connect the Power for the Repeater Connect the RT30 to a power outlet using the provided cable and USB power adapter. Mount to a Wall Horizon Yealink W73P User Guide... -
Page 21: Attach The Base Stand
Cascade Setup RT30 supports a sequential or "daisy chain" layout to extend the range in a single direction. Up to 2 repeaters can be installed in this layout. Horizon Yealink W73P User Guide... -
Page 22: Start Setup
Set the base station in registration mode by long pressing the paging key on the base station until the first LED flashes green. If the base station is found, the DECT LED will flash orange. When the DECT LED turns green/orange, the registration to the base station has been successful. Horizon Yealink W73P User Guide... -
Page 23: Cascade Registration
The number of times that the Relay LED flashes indicates the entered ID. Long press the program key for around 3 seconds to confirm the ID. The repeater will then re- register. Horizon Yealink W73P User Guide... -
Page 24: De-Registration
Hold the handset and stand near the base station. Make a call and then call the handset away from the base station. Make a note where you start to hear noise on the line, which indicates that the signal strength is getting weaker. Horizon Yealink W73P User Guide... - Page 25 • Place the repeater away from other electrical appliances, such as microwaves, wi-fi equipment and computers. • Keep a minimum of 10 meters between multiple repeaters to avoid coverage overlapping. Horizon Yealink W73P User Guide...
