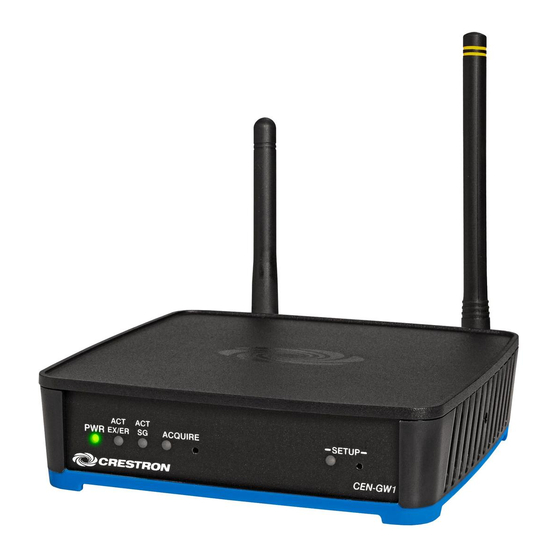

CEN-GW1 and CENI-GW1
Universal Wireless Gateway, ER Wireless,
SG Wireless, and infiNET EX®
Wireless Gateway

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CEN-GW1 and is the answer not in the manual?

Questions and answers

Related Manuals for Crestron CEN-GW1

Summary of Contents for Crestron CEN-GW1

  • Page 1 CEN-GW1 and CENI-GW1 Universal Wireless Gateway, ER Wireless, SG Wireless, and infiNET EX® Wireless Gateway...
  • Page 2 Product Manual Crestron Electronics, Inc.
  • Page 3 Crestron, the Crestron logo, Crestron Toolbox, and infiNET EX are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. Active Directory is either a trademark or registered trademark of Microsoft Corporation in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.

  • Page 4: Table Of Contents

    Contents Web Configuration Status Device Network Control System Acquired Devices Settings System Setup Radio Setup Security 802.1x Configuration Turn On IEEE 802.1x Authentication Select an Authentication Method Server Validation Action Reboot Restore Update Firmware Download Logs Manage Certificates Save Changes Revert Log Out Product Manual —...
  • Page 5 ii • Contents Product Manual — Doc. 8661A...

  • Page 6: Web Configuration

    To access the web configuration: 1. Use the Device Discovery tool in Crestron Toolbox™ software to discover the device and its IP address on the network. 2. In a web browser, go to the IP address of the device.

  • Page 7: Status

    Use the device menu to view general device information such as the Model, Serial Number, and Firmware Version. Select More Details to view detailed device information such as the Build, Bootloader, Build Time, and more. 2 • CEN-GW1 and CENI-GW1 Product Manual — Doc. 8661A...

  • Page 8: Network

    Use the Control System menu to view the connection status to a control system. Acquired Devices Use the Acquired Devices menu to view the SG, ER, and infiNET EX wireless devices that are acquired by the gateway. Product Manual — Doc. 8661A CEN-GW1 and CENI-GW1 • 3...

  • Page 9: Settings

    Use the Network menu to configure the connection to the Ethernet network. DHCP is turned on by default and the fields are automatically populated. To set custom ethernet settings: 1. Deselect DHCP. 2. Enter the Domain, Primary Static DNS, and Secondary Static DNS information. 4 • CEN-GW1 and CENI-GW1 Product Manual — Doc. 8661A...
  • Page 10 2. In the Actions menu, select Save Changes. To use a custom auto update URL: NOTE: Do not change the default URL unless advised by a Crestron Tech Support Specialist. 1. Select Custom URL. 2. Enter a URL to a firmware server in the Custom URL Path box.

  • Page 11: Radio Setup

    NOTE: Scan the wireless network to determine the best RF channel for the EX/ER and SG radios. For details, refer to Settings (on page 4). Select an EX and ER channel from the EX Channel drop-down menu. Select an SG channel from the SG Channel drop-down menu. 6 • CEN-GW1 and CENI-GW1 Product Manual — Doc. 8661A...
  • Page 12 The devices that are acquired to the EX and ER radio are displayed along with the energy scan chart. To scan the wireless network: 1. In the EX/ER Devices, select Start Scan. 2. The wireless network is scanned and displays the Energy (dBm) for the Channels. Product Manual — Doc. 8661A CEN-GW1 and CENI-GW1 • 7...
  • Page 13 The devices that are acquired to the SG radio are displayed along with the energy scan chart. To scan the wireless network: 1. In the SG Devices menu, select Start Scan. 2. The wireless network is scanned and displays the Energy (dBm) for the Channels. 8 • CEN-GW1 and CENI-GW1 Product Manual — Doc. 8661A...

  • Page 14: Security

    Encrypt: The gateway will use an encrypted SSL connection OFF: The gateway will not use an SSL connection. Is SSL Authentication only available for Encrypt and Validation?? To set the SSL Authentication, enter the Username, Password, and Confirm Password. Product Manual — Doc. 8661A CEN-GW1 and CENI-GW1 • 9...
  • Page 15 4. Select a group from the Group drop-down menu. 5. Click Yes. Delete a User NOTE: The Admin user cannot be deleted. 1. Click Delete. 2. In the confirmation dialog, click Yes. 10 • CEN-GW1 and CENI-GW1 Product Manual — Doc. 8661A...
  • Page 16 Select the Groups tab to configure user groups. A list of user groups is displayed. Click Information to view details about a group. Delete a Group 1. Click Delete. 2. In the confirmation dialog, click Yes. Product Manual — Doc. 8661A CEN-GW1 and CENI-GW1 • 11...
  • Page 17 3. Select an access level from the Access Level drop-down menu. 4. If the user is a member of the Active Directory® credential management group, select Active Directory User. 5. Click Yes. 12 • CEN-GW1 and CENI-GW1 Product Manual — Doc. 8661A...

  • Page 18: 802.1X Configuration

    1. Select Enable Authentication Server Validation. 2. Select certificates from the Selected Trusted Certificate Authorities list. NOTE: To load a custom certificate, go to Actions > Manage Certificates. For details, refer to Manage Certificates (on page 15). Product Manual — Doc. 8661A CEN-GW1 and CENI-GW1 • 13...

  • Page 19: Action

    If a reboot is required after changes have been saved, a dialog box is displayed asking whether the reboot should be performed. Select OK to reboot the device or Cancel to cancel the reboot. The Action menu provides the following selections. 14 • CEN-GW1 and CENI-GW1 Product Manual — Doc. 8661A...

  • Page 20: Reboot

    To download logs, select Download Logs. Manage Certificates Click Manage Certificates in the Action drop-down menu to add, remove and manage certificates used in 802.1x and other protected networks. The following certificate tabs are displayed: Product Manual — Doc. 8661A CEN-GW1 and CENI-GW1 • 15...
  • Page 21 The machine certificate will be provided by the network administrator, along with the certificate password. For 802.1x, only one machine certificate can reside on the device. 16 • CEN-GW1 and CENI-GW1 Product Manual — Doc. 8661A...

  • Page 22: Save Changes

    The Action drop-down menu changes into a Save Changes drop-down menu when there are changes that can be saved. To save configuration setting changes, select Save Changes. Revert To discard configuration settings changes, select Revert. Product Manual — Doc. 8661A CEN-GW1 and CENI-GW1 • 17...

  • Page 23: Log Out

    Log Out To log out from the web configuration and return to the welcome screen, click > Sign Out. 18 • CEN-GW1 and CENI-GW1 Product Manual — Doc. 8661A...
  • Page 24 This page is intentionally left blank. Product Manual — Doc. 8661A CEN-GW1 and CENI-GW1 • 19...
  • Page 25 Product Manual — Doc. 8661A Crestron Electronics, Inc. (2056508) 15 Volvo Drive, Rockleigh, NJ 07647 06/23/21 Tel: 888.CRESTRON Specifications subject to Fax: 201.767.7656 change without notice. www.crestron.com...
