  • Page 1 Crestron C2N-IRGW-1G IR Gateway/Receiver Operations & Installation Guide...
  • Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2006 Crestron Electronics, Inc.

  • Page 3: Table Of Contents

    Hardware Hookup ... 8 Universal Remotes... 8 Programming Software ... 12 Earliest Version Software Requirements for the PC ... 12 Programming with Crestron D3 Pro or SystemBuilder ... 12 Programming with SIMPL Windows ... 12 Example Program ... 14 Uploading and Upgrading... 15 Establishing Communication...

  • Page 5: Ir Gateway/Receiver: C2N-Irgw-1G

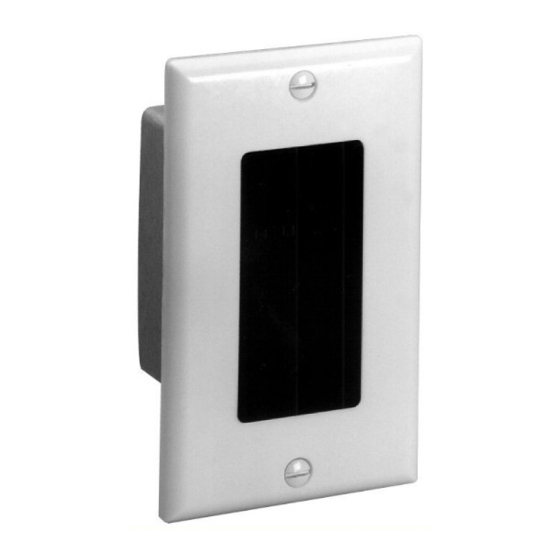

    Crestron C2N-IRGW-1G IR Gateway/Receiver: C2N-IRGW-1G Introduction Features and Functions Specifications Specifications for the C2N-IRGW-1G are listed in the following table. C2N-IRGW-1G Specifications (Continued on following page) Operations & Installation Guide – DOC. 6468 • 1-way infrared receiver for Crestron touchpanels •...

  • Page 6: Specification

    IR Gateway/Receiver C2N-IRGW-1G Specifications (Continued) Physical Description This section provides information on the connections, controls, and indicators available on your C2N-IRGW-1G. C2N-IRGW-1G Physical View (Faceplate not included) 2 • IR Gateway/Receiver: C2N-IRGW-1G SPECIFICATION Default NET ID Minimum 2-Series Control System Update File...
  • Page 7 Connects to Cresnet control network. An interface connector provided. IR Gateway/Receiver 3.28 in 3.81 in (8.33 cm) (9.68 cm) DESCRIPTION Pin 1 (24) Power Pin 2 (Y) Data Pin 3 (Z) Data Pin 4 (G) Ground IR Gateway/Receiver: C2N-IRGW-1G • 3...

  • Page 8: Industry Compliance

    IR Gateway/Receiver Industry Compliance As of the date of manufacture, the C2N-IRGW-1G has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling. NOTE: This device complies with part 15 of the FCC rules. Operation is subject to...

  • Page 9: Setup

    For more details, refer to “Check Network Wiring” on page 16. Identity Code The Net ID of the C2N-IRGW-1G has been factory set to 2D. The Net IDs of multiple C2N-IRGW-1G devices in the same system must be unique. Net IDs are changed from a personal computer (PC) via the Crestron Toolbox™.
  • Page 10 IR Gateway/Receiver C2N-IRGW-1G Horizontal Reception Angle (Distance will depend on the remote/transmitter) C2N-IRGW-1G Vertical Reception Angle (Distance will depend on the remote/transmitter) Wall 6 • IR Gateway/Receiver: C2N-IRGW-1G Floor Operations & Installation Guide – DOC. 6468 Crestron C2N-IRGW-1G Wall...
  • Page 11 The following tools/hardware are required for installation. After the Cresnet network wiring has been installed and verified, use the following procedure to install the C2N-IRGW-1G in a standard, single-gang electrical box (refer to illustration that follows this paragraph): Installation view CAUTION: Excess wire that is pinched between the C2N-IRGW-1G and the electrical box could short out.

  • Page 12: Hardware Hookup

    SIMPL Windows. There is no need to perform the two multi-step procedures in the subsequent sections. 8 • IR Gateway/Receiver: C2N-IRGW-1G 3. Attach the C2N-IRGW-1G to the electrical box using the supplied two ¾ in. combo head screws. 4. Attach faceplate.
  • Page 13 Crestron control system. All that is required to complete this procedure is the C2N-IRGW-1G, a PC running the Crestron Toolbox, a Crestron control system connected to the PC and any universal remote (complete with batteries and manufacturer's manual).
  • Page 14 (refer to “Code Verification” on page 9). If an acceptable code is transmitted during that procedure, Crestron assigns the code with an identifier in the “Identify Transmitter” window. For example, in the window shown on the next page, the Transmitter ID (Hex): field shows the number 13.
  • Page 15 6. Repeat steps 4 and 5 for each button that is to be mapped. Refer to the sample after this step. 7. Repeat this entire procedure (steps 2 through 6) for each source selection button on the universal remote that requires programming. IR Gateway/Receiver: C2N-IRGW-1G • 11 IR Gateway/Receiver...

  • Page 16: Programming Software

    Have a question or comment about Crestron software? Answers to frequently asked questions (FAQs) can be viewed in the Online Help section of the Crestron website. To post a question or view questions you have submitted to Crestron’s True Blue Support, log in at http://support.crestron.com.
  • Page 17 SIMPL Windows is Crestron’s premier software for programming Crestron control systems. It is organized into two separate, but equally important “Managers”. Configuration Manager Configuration Manager is the view where programmers “build” a Crestron control system by selecting hardware from the Device Library. Locating the C2N-IRGW-1G in the Device Library C2Net Device, Slot 9 Operations &...

  • Page 18: Example Program

    Detail View. A description for each signal in the symbol is described in the SIMPL Windows help file (F1). Example Program An example program for the C2N-IRGW-1G is available from the Crestron website (http://www.crestron.com/exampleprograms). 14 • IR Gateway/Receiver: C2N-IRGW-1G •...

  • Page 19: Uploading And Upgrading

    However, before attempting to upload or upgrade, it is necessary to establish communication. Establishing Communication Use Crestron Toolbox for communicating with the C2N-IRGW-1G; refer to the Crestron Toolbox help file for details. There is a single method of communication: indirect serial communication. Indirect Serial Communication Programs and Firmware For details on uploading and upgrading, refer to the SIMPL Windows help file or the Crestron Toolbox help file.

  • Page 20: Problem Solving

    Cresnet power usage of each network unit to be connected must be taken into consideration. Use Crestron Certified Wire only. If Cresnet units are to be daisy- chained on the run, the Cresnet power usage of each network unit to be daisy- 16 •...

  • Page 21: Reference Documents

    Cresnet power usage of the entire chain. If the unit is a home-run from a Crestron system power supply network port, the Cresnet power usage of that unit is the Cresnet power usage of the entire run.

  • Page 22: Future Updates

    IR Gateway/Receiver Future Updates As Crestron improves functions, adds new features and extends the capabilities of the C2N-IRGW-1G, additional information may be made available as manual updates. These updates are solely electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision.

  • Page 23: Appendix: Mapping Table

    SIMPL Windows program. Operations & Installation Guide – DOC. 6468 PHYSICAL DEVICE BEING CONTROLLED: TRANSMITTER ID (HEX): BUTTON TITLE ON UNIVERSAL REMOTE IR Gateway/Receiver BUTTON ID (DECIMAL) Sheet IR Gateway/Receiver: C2N-IRGW-1G • 19...

  • Page 24: Return And Warranty Policies

    Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any. CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended, or if it has been subjected to misuse, accidental damage, modification, or improper installation procedures.
  • Page 25 Crestron C2N-IRGW-1G IR Gateway/Receiver This page is intentionally left blank. IR Gateway/Receiver: C2N-IRGW-1G • 21 Operations & Installation Guide – DOC. 6468...
  • Page 26 IR Gateway/Receiver Crestron C2N-IRGW-1G This page is intentionally left blank. 22 • IR Gateway/Receiver: C2N-IRGW-1G Operations & Installation Guide – DOC. 6468...
  • Page 27 Crestron C2N-IRGW-1G IR Gateway/Receiver This page is intentionally left blank. IR Gateway/Receiver: C2N-IRGW-1G • 23 Operations & Installation Guide – DOC. 6468...
  • Page 28 Crestron Electronics, Inc. Operations & Installation Guide – DOC. 6468 15 Volvo Drive Rockleigh, NJ 07647 (2014708) Tel: 888.CRESTRON 06.06 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
