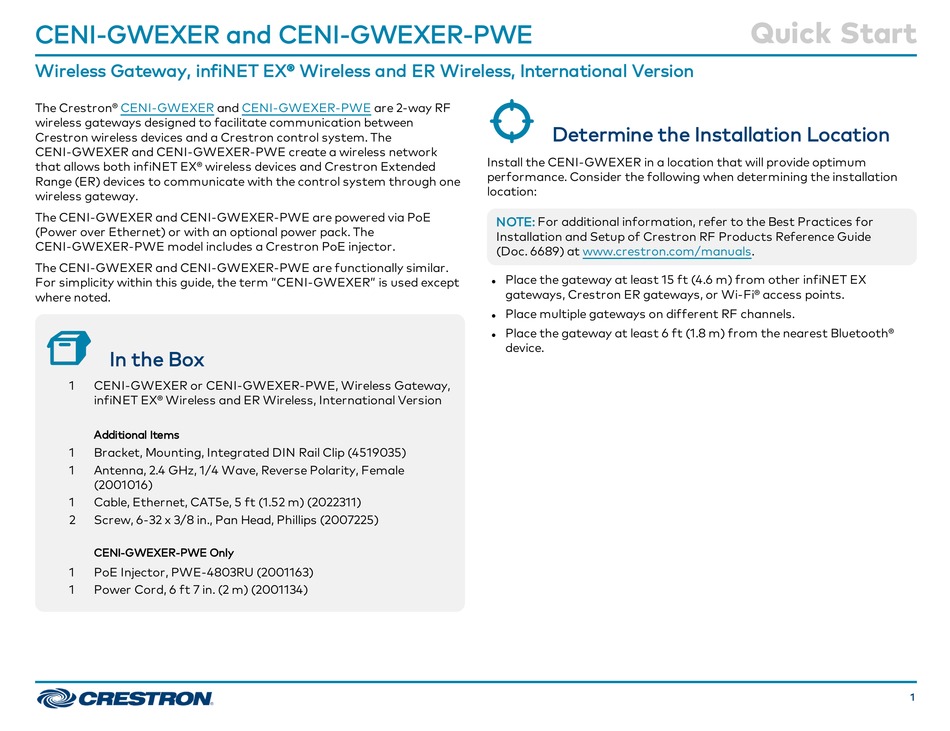

CENI-GWEXER and CENI-GWEXER-PWE
Wireless Gateway, infiNET EX® Wireless and ER Wireless, International Version
The Crestron®

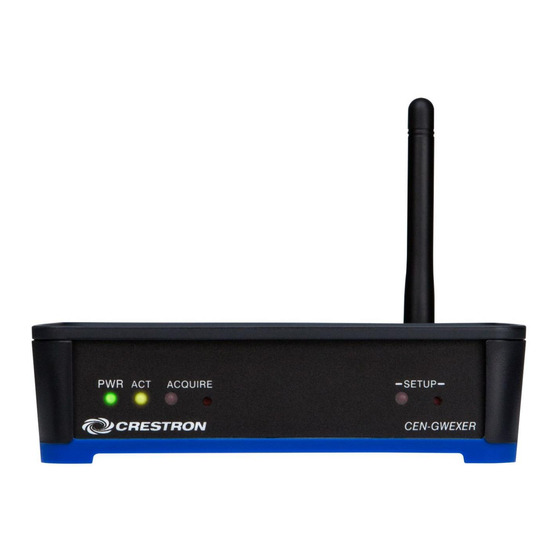

CENI-GWEXER
wireless gateways designed to facilitate communication between
Crestron wireless devices and a Crestron control system. The
CENI-GWEXER and CENI-GWEXER-PWE create a wireless network
that allows both infiNET EX® wireless devices and Crestron Extended
Range (ER) devices to communicate with the control system through one
wireless gateway.
The CENI-GWEXER and CENI-GWEXER-PWE are powered via PoE
(Power over Ethernet) or with an optional power pack. The
CENI-GWEXER-PWE model includes a Crestron PoE injector.
The CENI-GWEXER and CENI-GWEXER-PWE are functionally similar.
For simplicity within this guide, the term "CENI-GWEXER" is used except
where noted.
In the Box
1
CENI-GWEXER or CENI-GWEXER-PWE, Wireless Gateway,
infiNET EX® Wireless and ER Wireless, International Version
Additional Items
1
Bracket, Mounting, Integrated DIN Rail Clip (4519035)
1
Antenna, 2.4 GHz, 1/4 Wave, Reverse Polarity, Female
(2001016)
1
Cable, Ethernet, CAT5e, 5 ft (1.52 m) (2022311)
2
Screw, 6-32 x 3/8 in., Pan Head, Phillips (2007225)
CENI-GWEXER-PWE Only
1
PoE Injector, PWE-4803RU (2001163)
1
Power Cord, 6 ft 7 in. (2 m) (2001134)
and
CENI-GWEXER-PWE
are 2-way RF
Determine the Installation Location
Install the CENI-GWEXER in a location that will provide optimum
performance. Consider the following when determining the installation
location:
NOTE: For additional information, refer to the Best Practices for
Installation and Setup of Crestron RF Products Reference Guide
(Doc. 6689) at www.crestron.com/manuals.
Place the gateway at least 15 ft (4.6 m) from other infiNET EX
l
gateways, Crestron ER gateways, or Wi-Fi® access points.
Place multiple gateways on different RF channels.
l
Place the gateway at least 6 ft (1.8 m) from the nearest Bluetooth®
l
device.
Quick Start
1
