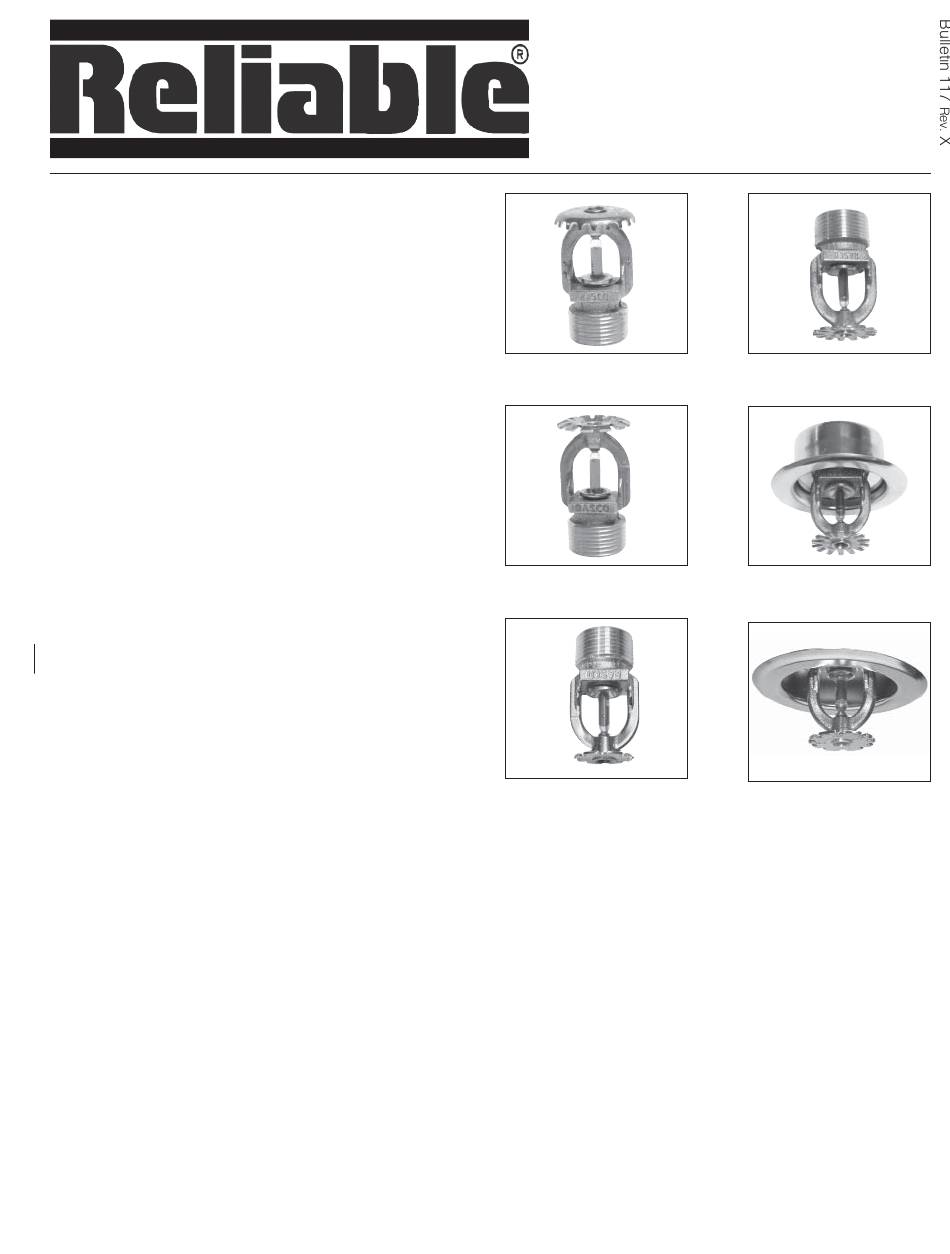

The Designer
®
Model F1 LO Sprinkler

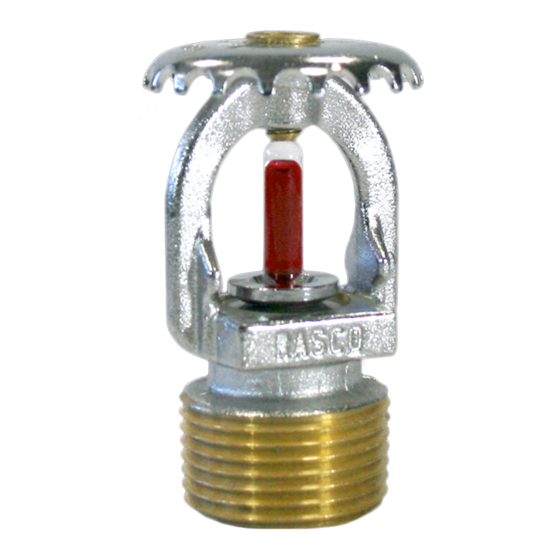

Standard Upright
Standard Pendent
Extended Coverage Pendent
Conventional
The Designer
®
II Model F1 LO Recessed Sprinkler
Recessed Pendent
Recessed Extended Coverage Pendent
For Model F1 ½" K 5.6 (80), 4.2 (60) & 2.8 (40) Sprinkler
Types refer to Bulletin 013, 024 or 027 for technical speci-
fications and approvals.
Approval Organizations
1. Underwriters Laboratories Inc. (UL)
2. Underwriters' Laboratories of Canada (ULC)
3. Factory Mutual Approvals (FM)
4. Loss Prevention Council (LPCB, UK)
5. Verband der Schadenversicherer Gmbh
6. EC Certificate: 1438-CPD-0041 (R1712)
1438-CPD-0040 (R1722)
UL Listing Category
Sprinklers, Automatic & Open (VNIV)
Product Description
The F1 LO Glass Bulb Sprinkler combines the durability
of a standard sprinkler with the attractive low profile of a
decorative sprinkler. Whether installed on exposed pip-
ing or in an office ceiling, it is functional and attractive.
Beautifully versatile is the description for the Reliable
Model F1 LO Recessed Designer glass bulb sprinkler.
Recessing The Designer
file decorative appearance, and facilitates a rapid and
perfect installation.
Model F1 LO Recessed Designer's escutcheon is high-
ly adjustable. The two piece construction makes field
Installation a very easy and rapid task. This also allows
ceiling panels to later be removed without shutting down
the fire protection system, thus facilitating maintenance
of above ceiling services.
The Designer
Automatic Sprinkler utilizes a frangible
®
glass bulb. The glass bulb consists of an accurately con-
trolled amount of special fluid hermetically sealed inside
of a precisely manufactured glass capsule. This glass
bulb is specially constructed to provide fast thermal re-
sponse.
Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
enhances its already low pro-
®
Model F1 LO
Model F1 LO Recessed
Standard Response
Sprinklers
Upright
Conventional
Extended Coverage
Pendent
At normal temperatures, the glass bulb contains the
fluid in both the liquid phase and in the vapor phase. The
vapor phase can be seen as a small bubble. As heat is
applied, the liquid expands forcing the bubble smaller
and smaller as the liquid pressure increases. Continued
heating forces the liquid to push out against the bulb,
causing the glass to shatter, opening the waterway and
allowing the deflector to distribute the discharging wa-
ter.
The F1 LO Sprinkler temperature rating is identified by
the color of the glass bulb capsule as well as frame color
where applicable.
Bulletin 117
X
Rev.
Pendent
Recessed Pendent
Recessed Extended
Coverage Pendent
