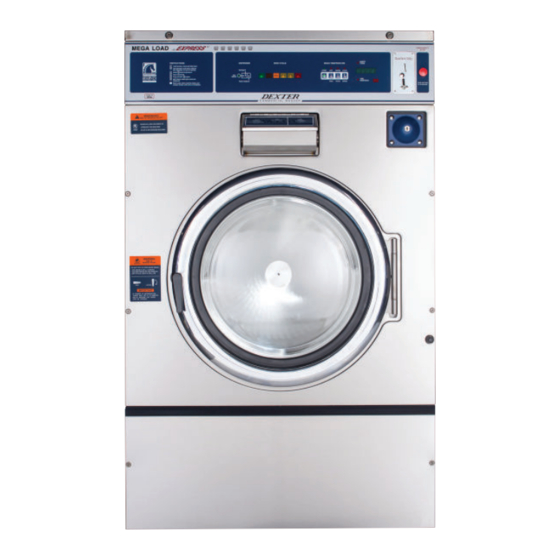

Dexter Laundry WCAD Series Parts And Service Manual
  1. Manuals
  2. Brands
  3. Dexter Laundry Manuals
  4. Washer
  5. WCAD Series
  6. Parts and service manual

Dexter Laundry WCAD Series Parts And Service Manual

Vended washers
Hide thumbs Also See for WCAD Series:
Table of Contents

Advertisement

Quick Links

Download this manual
PLEASE USE THE TABS LOCATED ON THE
RIGHT AND LEFT SIDES OF THE DOCUMENT
TO ADVANCE TO EACH SECTION.
8533-073-001 3/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WCAD Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dexter Laundry WCAD Series

Summary of Contents for Dexter Laundry WCAD Series

  • Page 1 PLEASE USE THE TABS LOCATED ON THE RIGHT AND LEFT SIDES OF THE DOCUMENT TO ADVANCE TO EACH SECTION. 8533-073-001 3/22...
  • Page 2 Equipment Safety Warnings Symbols and Terminology Used in this Equipment Indicates an imminently hazardous situation, which if not avoided, will result in death or serious injury. Indicates a potentially hazardous situation, which if not avoided could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
  • Page 3 Equipment Safety Warnings Indicates an imminently hazardous situation, Symbols and Terminology Used in this Equipment which if not avoided, will result in death or seri- ous injury. Indicates a potentially hazardous situation, Warning! Do not operate equipment if door glass is which if not avoided could result in death or damaged in any way.
  • Page 4 WARNING WARNING • All washers must be installed in accordance to all applicable electrical, plumbing and all other local codes. Children should be supervised to ensure they do not operate or play • These installation and operation instructions are in or around equipment. for use by qualified personnel only.
  • Page 5 Warning! Do not operate equipment if door glass is Prohibited! Do not attempt to open, touch, or pro- damaged in any way. ceed before referring to the manual or unless quali- fied. Mandatory! Read all supporting documentation be- Warning! Keep clear of rotating parts. fore operating or maintaining equipment.

  • Page 6: Table Of Contents

    Dexter Safety Table of Contents Notes Guidelines Section 1: Machine Mounting & Installation WARNING T-750 .............14 T-900 & T-950..........15 T-1200 & T-1450 ..........16 T-750 Installation ...........17 These washers are equipped with devices and T-900 Installation ...........18 features relating to their safe operation. To avoid injury or electrical shock, do not perform T-950 Installation ...........19 and service, unless qualified to do so.
  • Page 7 Section 5: Control Panel Part # by Model ... 106 & 107 Controls Transformer........58 Machine Service Procedures Integrated Easy Card Control Panel Part # Main Relay Printed Circuit Board .....58 Lower Service Panel Removal ......46 by Model ........118 & 119 Pressure Switch ..........59 Top Panel Removal .........46 Electrical Components -...
  • Page 8 Specifications for below models are outlined in this book: T-750 WCAD50-KCS-12SZ 208-240 V 60 Hz Phase 1 & 3 T-750 WCAD50-KCS-12SZ EC 208-240 V 60 Hz Phase 1 & 3 Easy Card T-900 WCAD60-KCS-12 208-240 V 60 Hz Phase 1 & 3 T-900 WCAD60-KCS-12 EC 208-240 V...
  • Page 9 Dexter Laundry, Inc. T-950 Machine Dimensions 2211 W. Grimes, Fairfield, Iowa 52556 www.dexterlaundry.com T-1450 Machine Dimensions 1-800-524-2954 © Rev. 3. 3/2009, Dexter Laundry, Inc. 12 13/16” 7 &200(5&,$/ :$6+(5 Dexter reserves the right to change specifications without notice. 27 1/8” 2 3/4”...
  • Page 10 T-900 Mounting Pad Dimensions T-750 Mounting Dimensions CONCRETE PEDESTAL MOUNTING FLOOR OUTLINE CONCRETE PEDESTAL MOUNTING FLOOR OUTLINE Figure 1-1 Figure 1-2 Figure 1-1 Figure 1-2 Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 11 T-950 Mounting Dimensions T-1200 Mounting Pad Dimensions CONCRETE PEDESTAL MOUNTING FLOOR OUTLINE CONCRETE PEDESTAL MOUNTING FLOOR OUTLINE Figure 1-1 Figure 1-2 Figure 1-1 Figure 1-2 Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 12 T-1450 Mounting Pad Dimensions Notes Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...

  • Page 13: Installation

    Installation & Operation All washers must be installed in accordance with all local, state and national building, electrical, and plumbing codes in effect in the area. Foundation Requirements The washer must be securely bolted to a substantial concrete floor, or mounted upon a suitable base which is in turn securely bolted to a substantial concrete floor.
  • Page 14 Emergency Stop / Safety Door Lock Disconnect all power to the washer. Remove screw and lift out the cover located in the upper left corner of the machine (as viewed from the back). This machine is equipped with a Safety Door Lock that locks the door closed from when the cycle is started •...

  • Page 15: Detergent Measurements By Model

    may change temperature selections of equal to or lower priced temperature selections already inserted into Detergent Measurements By TRANSIENT VOLTAGE SURGE SUPPRESSORS machine. Washer Model D. Insert coins, tokens or activate card reader to meet Like most electrical equipment your new machine can be damaged or have its life shortened by voltage displayed vending price.
  • Page 16 Notes Notes Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...

  • Page 17: Machine Programming Instructions

    Programming Instructions Programming can be accomplished manually using the machine controls or by connecting to the machine control using a PDA (personal digital assistant). For instructions on using a PDA with this washer control, please contact your local Dexter distributor. Please read below for manual programming instructions.
  • Page 18 To change the washer cycle, push the Hot temperature button once. The display will change to “C 1”, #4 Warm Water Price: The next step in the pricing program is to set the additional price for Warm indicating cycle one is selected. The temperature buttons are used to make changes to the program. In water usage.

  • Page 19: Coin Washer Cycle Parameter Ranges

    Coin Washer Default Cycle (Preset at Factory) Coin Washer Cycle Parameter Ranges The range of each cycle parameter is shown below: The following table shows the complete details for the coin washer default cycle. Bath Bath Cycle Time (min.) Water Temp. Water Level* Delay Fill Spin Time (min.)

  • Page 20: Trouble Shooting

    Common Troubleshooting Solutions Symptom Probable Cause Suggested Remedy Machine Power Supply Check these areas: Circuit breakers, Voltage, Power leads, does not Power connections. Is front display LED showing a dollar start amount. Door Switch Check for continuity through door switch when door is closed.
  • Page 21 Common Troubleshooting Solutions Symptom Probable Cause Suggested Remedy Symptom Probable Cause Suggested Remedy Door will Door Rod Check to see that door rod from solenoid to lock ass’y is not open long enough to allow lock ass’y to disengage. If not, adjust Water does Pressure Switch Check pressure switch continuity between terminals.

  • Page 22: Troubleshooting Machine Fault Errors

    Troubleshooting Machine Fault Errors Fault# Description Customer Action Wrong size drive installed Check VFD fault code before turning off power.Check to ensure all the harnesses are properly connected to the The following are descriptions of fault codes that will appear on the front of the washer. There is a chart format that shows what fault code that will be displayed at washer front.
  • Page 23 Fault# Description Customer Action Fault# Description Customer Action The temperature sensor Step 1: Make sure the cooling fins on the VFD heatsink inside of the variable and the ventilation louvers on the VFD cooling fan cover The variable frequency Check the data communication cable between the frequency drive detects that are clean.

  • Page 24: Variable Frequency Drive Control Digital Readout Faults

    Variable Frequency Drive Control Optional water valve PCB Soft reset control. Digital Readout Faults removed or water valve has been replaced . Fault# Description Customer Action VFD unit has been added or Soft reset control. loose connection. VFD received an illegal Reset drive.

  • Page 25: Machine Service Procedures

    Top Panel Removal Step 1: Remove 4 screws that hold detergent dispenser to top panel. (for T750) Step 2: Unlock top panel lock. Step 3: Raise top panel, slide to the rear to release from back clips and lift off. Front Panel Removal Step 1: Remove the loading door lower leaf hinge and lift the door from the top post of the hinge.

  • Page 26: Water Valves

    Water Valves Door cam Flat blade screw on check position door switch latching Remove top panel to access water valves. (see Removing Top Panel) The two dual outlet water and/or single coil valves are mounted to the rear channel with two screws each. Always check inlet screens to be sure that they are clean.

  • Page 27: Adjusting The Loading Door

    Loading Door Disassembly Adjusting the Loading Door The door can be adjusted by changing the number of shims behind the door hinge and the door lock Step 1: Remove the loading Step 2: While holding down on Step 3: Work all the way around door as outlined above.

  • Page 28: Door Locking Solenoid

    Cylinder Door Locking Solenoid (Original Models) Step 1: Remove the top panel as described previously. The door locking solenoid is powered shut with Step 2: Remove lower service panel as described previously. control voltage to lock the door and releases when Step 3: Remove front panel as described previously.
  • Page 29 Water Seals Reassembly of the Cylinder Replacement Step 1: Use the hub of the drive pulley, a stack of 5/8” flat washers and a 3” long 5/8” bolt to pull the cylinder shaft through the bearings. After the 3” bolt a 2” long bolt will be required to finish pulling Step 1: the cylinder shaft through.

  • Page 30: Bolt Torque Chart

    Notes T-750 Bolt Torque Chart Bolt Size Where Used Torque 1/2”x 1 1/4” bolt Tub End of Bearing Hsing. 9545-017-009 70-110 ft/lbs 5/8”x 1 1/2” bolt Tub End of Bearing Hsing. 9545-060-001 120-150 ft/lbs 1/2”x 1 1/4” bolt Mtg. of Tub to Cradle Asy. 9545-017-009 70-110 ft/lbs 5/8”x 2 1/2”bolt Mtg.

  • Page 31: Control Mounting Trough

    Control Mounting Trough Remove top panel to access control trough. (see Removing Top Panel) It sets on the right side of the machine and holds the control PCB’s, transformers,and pressure switch. Main Data Communication Cable Goes between front PCB board and Variable Frequency Drive unit mounted center rear of machine. It has telephone type connectors at each end and is inserted at Controller PCB and the Variable Frequency Drive.

  • Page 32: Pressure Switch

    Add-Bleach LED This LED light indicates to the user the correct time to add bleach. This LED is polarity sensitive and must Delta Variable Frequency Drive: be connected correctly. Main power is connected to terminals L1, L2, and L3 on the Delta drive. If the washer is connected to a Pressure Switch Caution (Not recommended by Factory!) three phase source, there should be voltage present on all three terminals.

  • Page 33: Start Circuit

    Electrical Path Circuit Schematics Start Circuit Power travels into the machine on L1 & L2 & (L3, if 3 phase used). L1 and L2 provide 208- 240VAC to the controls transformer which steps the voltage down to 120VAC for the controls. (The L1 connec- tion at the controls transformer must be checked at start-up to coincide with machine operating voltage) The 120VAC travels out from the transformer on either [X-1 red wire directly to the 1.5 amp fuse] or [X-1...

  • Page 34: Wash Circuit

    nection of the main control PCB to the LED printed circuit board. Using the factory preset cycle as an Unlock Thermoactuator and Shake Out Circuit example: The washer fills the tub through the back of the machine with either one or both the C1 cold and H1 hot water valves.
  • Page 35 CN (No coin Mech) 50lb Express Notes WCAD50KCB-CNSZ Schematic Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 36 CN (No coin Mech) 60lb CN (No coin Mech) 50lb Express WCAD60KCB-CN Schematic WCAD50KCB-CNSZ Diagram Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 37 CN (No coin Mech) 60lb CN (No coin Mech) 60lb Express WCAD60KCB-CN Diagram WCAD60KCB-CNSZ Schematic Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 38 CN (No coin Mech) 60lb Express CN (No coin Mech) 80lb WCAD60KCB-CNSZ Diagram WCAD80KCB-CN Schematic Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 39 CN (No coin Mech) 80lb CN (No coin Mech) 90lb Express WCAD80KCB-CN Diagram WCAD90KCB-CNSZ Schematic Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 40 CN (No coin Mech) 90lb Express Notes WCAD90KCB-CNSZ Diagram Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...

  • Page 41: A-Series Accessories

    Kits, Assemblies, & Common Parts A-Series Accessories Coin Acceptor Components Part Number *WCAD45KC-12SZ 208-240 volts 60hz. Single Phase or Three Phase Optical Coin Acceptor 9021-092-002 (Parts differences for the regular door T-650 will be found on pages 104-105) Optical Coin Switch Replacement 9801-099-001 Electronic Coin Acceptor (T-1450 only) 9021-077-001...

  • Page 42: Wiring Harness Part # By Model

    Wiring Harness Part # by Model Description T750 T-900 T950 T-1200 T1450 Wiring Harness (Add Bleach Lite 9794-001-001 9794-001-001 9794-001-001 9794-001-001 9794-001-001 assy included) Wiring Harness, Door Lock 9627-791-005 9627-791-004 9627-791-004 9627-791-005 9627-791-005 Wiring Harness,CoinDrop Mech 9627-792-001 9627-792-001 9627-895-001 9627-792-001 9627-792-001 Wiring Harness, 9627-796-002...
  • Page 43 Cabinet and Front Panel Group Part # by Model Large Door Before Serial # 535659 Description T-750 T-900 T-950 T-1200 T-1450 Panel, Side (Left or Right) - 9454-812-001 stainless Panel, Side (Left or Right) - 9454-813-001 9732-359-003 stainless Strap Assembly (side panel) 9966-013-001 9966-012-001 9966-012-002...
  • Page 44 Cabinet and Front Panel Group Part # by Model Large Door After Serial # 535659 Description T-750 T-900 T950 T-1200 T1450 Panel, Side (Left or Right) - 9454-812-001 stainless Panel, Side (Left or Right) - 9732-359-002 9732-359-002 9732-359-003 9732-359-004 stainless Strap Assembly (side panel) 9966-013-001 9966-012-001...

  • Page 45: Cabinet And Front Panel Group Part

    Cabinet and Front Panel Group Part # by Model Top Mount Detergent Dispenser Front Soap Dish Description T-750 T-900 T-950 T-1200 T-1450 Dispenser Soap 9122-005-004 9122-005-004 Nut, Spring ss 8640-399-007 8640-399-007 3&4 Flow restictors 9475-002-002 9475-002-002 Flow restictors Optional (Smaller) 9475-002-003 9475-002-003 Door, Dispenser 9108-095-005...

  • Page 46: Rear View Access Part # By Model

    Rear View Access Part # by Model Description T-750 T-900 T-950 T-1200 T-1450 Drive Motor, 3 Phase 9376-298-001 9376-308-001 9376-298-001 9376-298-001 9376-326-001 Drive Motor After serial #553489 9376-329-001 9376-329-001 9376-329-001 Rod, Motor Mtg 9497-222-004 9497-222-004 9497-222-004 9497-222-004 9497-222-004 Collar, Shaft (w/set screws) (old) 9076-052-002 9076-052-002 9076-052-002...

  • Page 47: Cylinder, Seals & Bearings Part

    Cylinder, Seals & Bearings Part # by Model Description T-750 T-900 T-950 T-1200 T-1450 Bearings and Seal Kit 9732-219-007 9732-219-007 9732-219-007 9732-219-007 9732-219-009 11 G Housing, Bearing- Assembly (items #2-#6) 9803-187-001 9803-187-001 9803-187-001 9803-187-001 9803-209-001 Housing, Bearing 9241-181-004 9241-181-004 9241-181-004 9241-181-004 9241-195-003 Bearing, Front (LARGE)
  • Page 48 Door Latching Assembly (All Models) Gear Motor Door Lock Assembly Description T-750 T-900 T-950 T-1200 T-1450 Actuator Assembly (Includes 1-10, 9892-015-001 9892-015-001 9892-015-001 9892-015-001 9892-015-001 Rod NOT included) Screw-hxwshdsl, 10-24-1.25f, ctd 9545-046-007 9545-046-007 9545-046-007 9545-046-007 9545-046-007 Key Description All Models Key Description All Models Cross Recessed PAn Hd Tapping...
  • Page 49 Original Door Lock Solenoid Assembly Original Door Lock Solenoid Assembly Key Description T-750 T-900 T-950 T-1200 T-1450 Solenoid Ass’y, Door Locking 9922-011-001 9922-011-001 9922-011-001 (includes 23 thru 32) Bracket, (Door Locking Sole- 9029-073-001 9029-073-001 9029-073-001 noid) Bracket Ass’y, Solenoid Slide 9985-169-001 9985-169-001 9985-169-001...
  • Page 50 Large Door & Hinge Group (After #514975) Description T750 T-900 T950 T-1200 T1450 Description T-750 T-900 T-950 T-1200 T-1450 Shaft, Door Locking 9537-195-002 9537-195-002 9537-195-002 9537-195-002 9537-195-002 Door Hinge Assembly (mounts 9955-031-001 9955-031-001 9955-031-001 9955-031-001 9955-031-001 Cam, Locking 9095-040-002 9095-040-002 9095-040-002 9095-040-002 9095-040-002...

  • Page 51: Water Inlet Part # By Model

    Water Inlet Part # by Model Clamp Description T 750 T-900 T-950 T-1200 T-1450 Valve, Water Inlet (dual outlet) 9379-183-012 9379-183-012 9379-183-012 9379-183-012 9379-183-012 (see Water Inlet Valve Break- down for individual parts) Valve Water Inlet (single outlet) 9379-194-001 9379-194-001 9379-194-001 Screw, Valve Mtg 9545-008-026...
  • Page 52 Water Inlet Valve Breakdown Part # by Model Key Description T-750 T-900 T-950 T-1200 T-1450 Valve, Water Inlet (includes 1 thru 9379-183-012 9379-183-012 9379-183-012 9379-183-012 9379-183-012 6) - Invensys Screen, Inlet end of valve 9555-056-001 9555-056-001 9555-056-001 9555-056-001 9555-056-001 Coil Assy, 120 V Invensys 9089-017-001 9089-017-001 9089-017-001...

  • Page 53: Drain Valve Group Part # By Model

    Drain Valve Group Part # by Model Notes Key Description T-750 T-900 T-950 T-1200 T-1450 Valve, Drain (includes #2 thru 9379-202-001 9379-202-001 9379-202-001 9379-202-001 9379-202-001 #11) Body, Valve (w/ball) 9064-070-001 9064-070-001 9064-070-001 9064-070-001 9064-070-001 Motor & Gear Train (complete) 9914-137-011 9914-137-011 9914-137-011 9914-137-011...

  • Page 54: Chassis And Drain Part # By Model

    Chassis and Drain Part # by Model Description T750 T-900 T950 T-1200 T1450 Base Assy,Frame 9945-112-002 9945-128-002 9945-128-002 9945-125-002 9945-133-002 Outer Tub Assy Before Serial 9930-148-001 9930-147-001 9930-149-001 #535659 Outer Tub Assy After Serial 9930-156-001 9930-156-001 9930-155-001 #535659 Tub & Cylinder Assy Before 9869-025-002 9869-023-001 9869-022-002...
  • Page 55 Electrical Components - Top Compartment Electrical Components - Top Compartment Description T-750 T-900 T-950 T-1200 T-1450 Trough Assy,Controls 208-240 9857-159-002 9857-154-001 9857-160-001 9857-191-001 volt (all parts below #2-#43) Trough only 9839-015-001 9839-015-001 9839-015-001 9839-017-001 10,11,12 Screw, Trough Sides 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026...

  • Page 56: Control Panel Part # By Model

    Control Panel Part # by Model Description T-750 T-900 T-950 T-1200 T-1450 Panel Control Assembly(panel 9989-500-001 9989-500-001 9989-500-001 only) Before Serial #530673 Panel Control Assembly(panel 9989-525-001 9989-525-001 9989-525-001 9989-525-001 9989-529-001 only) After Serial #530673 Retainer, Coin Accecptor 9486-149-001 9486-149-001 9486-149-001 9486-149-001 9486-149-001 Screw, Torx T-10 4Bx5/8ss...
  • Page 57 Loading Door and Panel Differences For T650 Express - 45lb Express Machine Notes Description T-650 Loading Door, Complete #1-10 9960-274-002 Loading Door, Ring 9487-265-001 Gasket, Loading Door 9206-419-001 Window, Loading Door 9635-016-001 Shaft Assy, Locking (includes 4 9913-134-003 thru 7) Shaft, Door Locking 9537-195-002 Cam, Locking...

  • Page 58: Labels And Diagrams All Wcad Models

    Labels and Diagrams All WCAD Models Description T750 T-900 T950 T-1200 T1450 Booklet Owners 8514-157-001 8514-099-001 8514-183-001 8514-159-001 Wiring Diagram, Coin 9506-358-001 9506-127-001 9506-129-001 9506-488-001 Wiring Diagram Easy Card (120 Wiring Diagram (Easy Card) 9506-113-001 9506-486-001 9506-115-001 Transient Voltage Surge Sup- 8507-330-001 8507-330-001 8507-330-001...
  • Page 59 Coin Handling Group Part # Micro Switch Mechanical Acceptor Description T-750 T-900 T-950 T-1200 T-1450 Vault, Assy Grey 9942-037-001 9942-037-001 9942-037-001 9942-037-001 Vault, Assy. Black 9942-037-005 9942-037-005 9942-037-005 9942-037-005 Standard Coin Drop Acceptor Screw, 10Bx 1/2” Vault Mtg 9545-008-026 9545-008-026 9545-008-026 9545-008-026 The drop style coin acceptor contains a coin switch...
  • Page 60 Imonex Optical Coin Acceptor Optical Coin Acceptor Starting after serial# 515483 Starting after serial# 515483 Key- Description T-750 T-900 T-950 T-1200 T-1450 Key- Description T-750 T-900 T-950 T-1200 T-1450 Optical Coin Acceptor 9021-034-001 Optical Coin Acceptor 9021-092-002 9021-092-002 9021-092-002 9021-092-002 9021-092-002 Replacement Optical Sensor 9801-099-001...
  • Page 61 Kit - Electronic Acceptor Conversion for WCAD Notes (USA and Canada) Description T-750 T-900 T-950 T-1200 T-1450 KIT - Electronic Acceptor 9732-285-007 9732-285-007 9732-285-007 9732-285-007 9732-285-007 Conversion for WCAD (USA and Canada) Contact the Dexter Factory for Other Countries Electronic Coin Acceptor (USA 9021-028-001 9021-028-001 9021-028-001...
  • Page 62 Maintenance Instructions Electronic Acceptor Coin Drop Electronic Acceptor Setting the electronic coin acceptor switches 1. Instructions to open the flap of the coin selector Some washer models come equipped with an electronic coin acceptor. Follow the instructions below for setting the switches for the desired country and currencies. 1.
  • Page 63 Electronic Acceptor Electronic Acceptor 4. Close the coin selector To shut the coin selector follow pictures 1 to 3 in reverse order. CENTER OF ROTATION Rotate the spring clockwise for about 40 to 60 de- Lift off the spring with the attached plastic part. grees until it becomes free of the protrusion.
  • Page 64 Electronic Acceptor Notes 6. Adding the bolt #4036 A bolt can be added to the EMP 500 v4 to reduce attempts of vandalism or to protect the unit from im- proper use. Please note that some front plates/cashboxes might not allow mounting this additional device. The bolt (part number 4036) should be mounted Screw the bolt onto the existing stud weld on top of with the help of a screw driver.
  • Page 65 50Lb. Express Coin Micro Switch Schematic 208-240V 50Lb. Express Coin Micro Switch Diagram 208-240V Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 66 US coin 50lb Express US coin 50lb Express WCAD50KCB-USSZ Schematic (Optical) WCAD50KCB-USSZ Diagram (Optical) Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 67 50Lb. Express Electronic Acceptor Schematic 208-240V 50Lb. Express Electronic Acceptor Diagram 208-240V Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 68 60Lb. Non-Express Coin Micro Switch Schematic 60Lb. Non-Express Coin Micro Switch Diagram Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 69 US coin 60lb Optical Acceptor US coin 60lb Optical Acceptor WCAD60KCB-US Schematic WCAD60KCB-US Diagram Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 70 60Lb. Non- Express Electronic Acceptor Schematic 208-240V 60Lb. Non- Express Electronic Acceptor Diagram 208-240V Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 71 US coin 60lb Express Coin Micro Switch US coin 60lb Express Coin Micro Switch WCAD60KCB-USSZ Schematic WCAD60KCB-USSZ Diagram Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 72 60Lb. Express U.S. Optical Acceptor Schematic 208-240V 60Lb. Express U.S. Optical Acceptor Diagram 208-240V Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 73 60Lb. Express Electronic Acceptor Schematic 208-240V 60Lb. Express Electronic Acceptor Diagram 208-240V Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 74 Coin Micro Switch 80Lb. Non- Express Schematic Coin Micro Switch 80Lb. Non- Express Diagram Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 75 US coin 80lb US coin 80lb WCAD80KCB-US Schematic WCAD80KCB-US Diagram Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 76 80Lb. Non- Express Electronic Acceptor Schematic 208-240V 80Lb. Non- Express Electronic Acceptor Diagram 208-240V Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 77 90Lb. Express Immonex Acceptor Schematic 208-240V 90Lb. Express Immonex Acceptor Diagram 208-240V Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 78 Notes Section :10 EasyCard Interface Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 79 Integrated Easy Card Control Panel Part # by Model Description T-750 T-900 T-950 T-1200 T-1450 Panel Assembly (panel only) 9989-504-001 9989-504-001 9989-504-001 Screw, Hxwshrhdundct #10Bx 9545-008-026 9545-008-026 9545-008-026 1/2” Front Panel 9454-810-002 9454-810-002 9454-810-002 Post Locator Top 9467-024-001 Nut Hexkeps #6-32 8640-411-003 8640-411-003 8640-411-003...
  • Page 80 Converted Easy Card 50Lb. Express Converted Easy Card 50Lb. Express 208-240 Volt Wiring Schematic 208-240 Volt Wiring Diagram Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 81 Converted Easy Card 60Lb. Non-Express Converted Easy Card 60Lb. Non-Express 208-240 Volt Wiring Schematic 208-240 Volt Wiring Diagram Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 82 Converted Easy Card 60Lb. Express Converted Easy Card 60Lb. Express 208-240 Volt Schematic 208-240 Volt Diagram Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 83 Converted Easy Card 80Lb. non-Express Converted Easy Card 80Lb. non-Express 208-240 Volt Schematic 208-240 Volt Diagram Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...

  • Page 84: Parts

    Notes Section :11 Parts 50Hz Models: Parts in this section used only in these models. All other parts are same as standard 60 Hz pages. Wiring Diagrams & Schematics Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 85 Transformer, Electrical Filter and Water Valve, Drain Valve and Coin Handling -59 models Door Locking -59 models Key Component T-750 T-900 T-950 T-1200 T-1450 Key Component T-750 T-900 T-950 T-1200 T-1450 Circuit Breaker 5198-211-002 5198-211-002 5198-211-002 Water Valve 9379-183-013 9379-183-013 9379-183-013 Wire Assembly Black 8220-001-232...
  • Page 86 Transformers and Coin Handling -21 Models Notes Part Description T-750 T-900 T-950 T-1200 T-1450 Wire Assembly -Orange/ 8220-001-235 8220-001-235 8220-001-235 White Wire Assembly -Blue 8220-001-338 8220-001-338 8220-001-338 Label-Warning, Electronic 8502-730-001 8502-730-001 8502-730-001 Coinacceptor Lockwasher-Exttooth,#6 8641-582-005 8641-582-005 8641-582-005 Transformer-120/18vac 8711-015-001 8711-015-001 8711-015-001 Transformer, Control 8711-004-002...
  • Page 87 WCAD50KCB -21CNSZ 230/50/1 Voltage Schematic WCAD50KCB -21CNSZ 230/50/1 Voltage Diagram Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...
  • Page 88 WCAD50KCB -59CNSZ 230/50/1 Voltage Schematic WCAD50KCB -59CNSZ 230/50/1 Voltage Diagram Part # 8533-073-001 3/22 Part # 8533-066-001 5/11 Part # 8533-066-001 5/11 Part # 8533-073-001 3/22...
  • Page 89 WCAD60KCB -21CN 230/50/1 Voltage Schematic WCAD60KCB -21CN 230/50/1 Voltage Diagram Part # 8533-073-001 3/22 Part # 8533-066-001 5/11 Part # 8533-066-001 5/11 Part # 8533-073-001 3/22...
  • Page 90 WCAD60KCB -59CN 230/50/1 Voltage Schematic WCAD60KCB -59CN 230/50/1 Voltage Diagram Part # 8533-073-001 3/22 Part # 8533-066-001 5/11 Part # 8533-066-001 5/11 Part # 8533-073-001 3/22...
  • Page 91 WCAD60KCB -21CNSX 230/50/1 Voltage Schematic WCAD60KCB -21CNSX 230/50/1 Voltage Diagram Part # 8533-073-001 3/22 Part # 8533-066-001 5/11 Part # 8533-066-001 5/11 Part # 8533-073-001 3/22...
  • Page 92 WCAD60KCB -59CNSX 230/50/1 Voltage Schematic WCAD60KCB -59CNSX 230/50/1 Voltage Diagram Part # 8533-073-001 3/22 Part # 8533-066-001 5/11 Part # 8533-066-001 5/11 Part # 8533-073-001 3/22...
  • Page 93 WCAD80KCB -21CN 230/50/1 Voltage Schematic WCAD80KCB -21CN 230/50/1 Voltage Diagram Part # 8533-073-001 3/22 Part # 8533-066-001 5/11 Part # 8533-073-001 9/14 Part # 8533-073-001 3/22...
  • Page 94 WCAD80KCB -59CN 230/50/1 Voltage Schematic WCAD80KCB -59CN 230/50/1 Voltage Diagram Part # 8533-073-001 3/22 Part # 8533-073-001 9/14 Part # 8533-073-001 9/14 Part # 8533-073-001 3/22...

  • Page 95: Maintenance

    Notes Section :12 Maintenance Part # 8533-073-001 3/22 Part # 8533-073-001 3/22...

  • Page 96: Preventative Maintenance

    Preventative Maintenance Notes Daily Step 1: Check that the loading door remains securely locked and cannot be opened during an entire cycle. Step 2: Clean the top, front, and sides of the cabinet to remove residue. Step 3: Clean the soap dispenser and lid and check that all dispenser mounting screws are in-place and tight.
