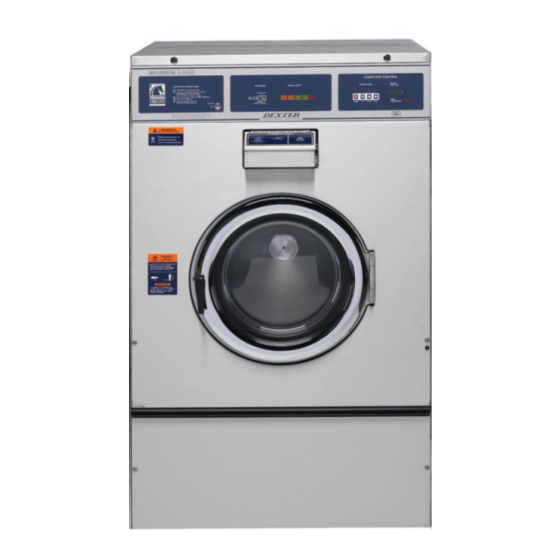

Dexter Commercial A-Series
Parts & Service Manual
Starting serial number 481983
8533-053-001 Rev. (2/09)
2
Dexter Safety
Guidelines
WARNING
These washers are equipped with devices and
features relating to their safe operation. To avoid
injury or electrical shock, do not perform and
service, unless qualified to do so.
FOR SAFETY
1.
Always shut off power and water supply
and also discharge capacitors before
servicing.
2.
Do not overload the washer.
3.
Do not attempt to open door if cylinder
is in motion or contains water.
4.
Do not mechanically force or override
door lock in any way.
5.
Do not bypass any safety devices of
this washer.
6.
Do not use volatile or flammable
substances in or near this washer.
7.
Keep all panels in place. They protect
against shock and injury and add
rigidity to the washer.
A machine should not be allowed to
operated if any of the following occur:
• Excessively high water level.
• Machine is not connected to a properly grounded
circuit.
• Loading door does not remain securely locked
during the entire cycle.
• Vibration or shaking from an inadequate mounting or
foundation.
To activate your warranty, be sure to return
your red warranty form to the factory.
Please have serial number and model
ready when calling for assistance.
Part # 8533-053-001 REV 4/09

Table of Contents

Section 1:
Machine Mounting & Installation
T-300 .....................................................................6
T-400 & T-600 .......................................................7
T-900 & T-1200......................................................8
T-300 Installation ...................................................9
T-400 Installation .................................................10
T-600 Installation ................................................. 11
T-900 Installation .................................................12
T-1200 Installation ...............................................13
Section 2:
Basic Installation.................................................. 17
Electrical Connections & Fusing Requirements ..18
Emergency Stop Button ......................................19
Detergent Measurements by Model ....................20
Machine Operating Instructions ................. 20 & 21
Section 3:
Programming Instructions & Price Programming
............................................................. 24 & 25
Water Temperature Pricing ........................ 25 & 26
Wash Cycle
Programming .............................................. 26 & 27
Rapid Advance Mode ...................................29
Section 4:
Errors Pages ...........................................37-41
Digital Readout Faults ..................................42
Section 5:
Coin Drop Acceptor .............................................44
Lower Service Panel Removal ............................45
