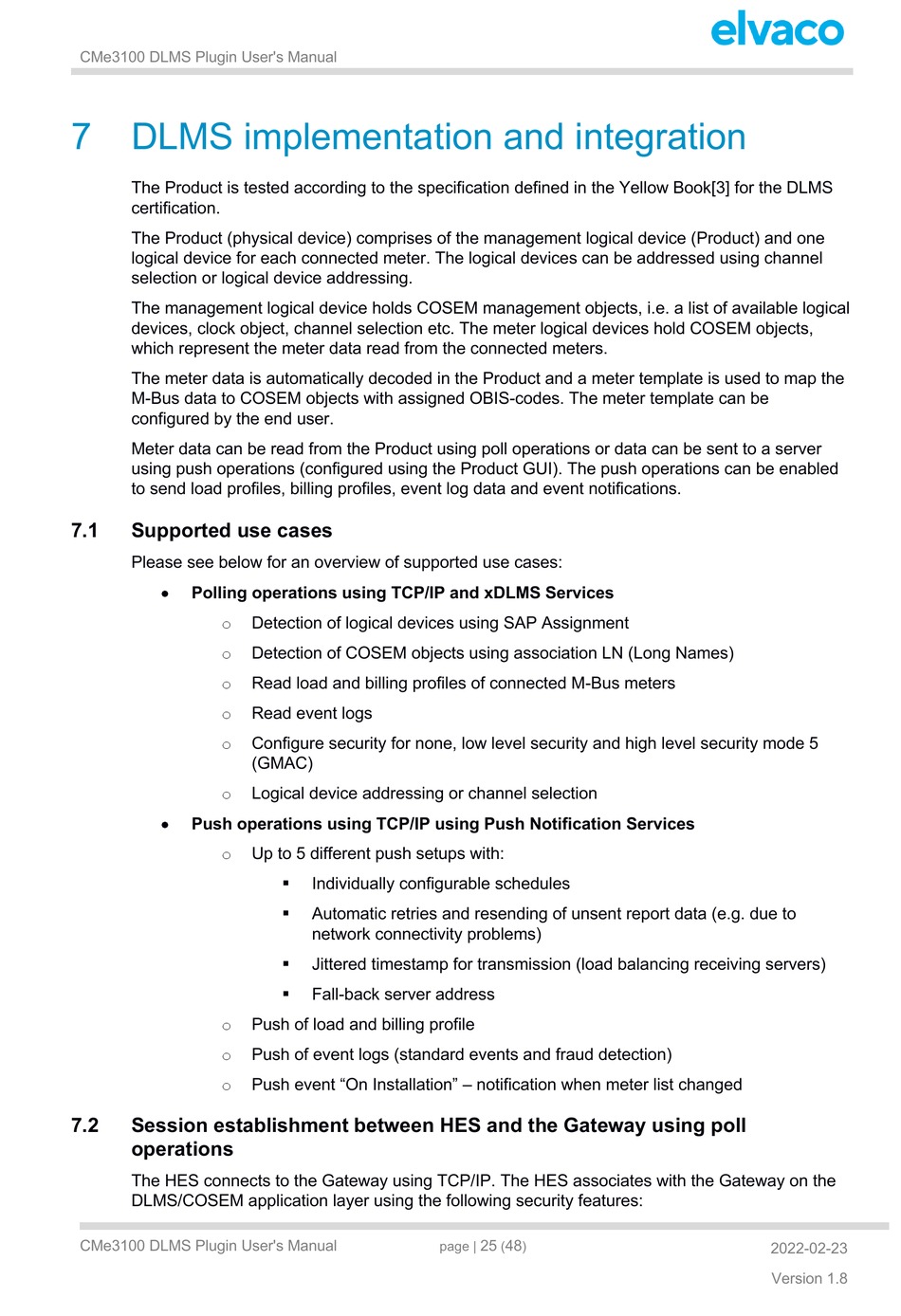

CMe3100 DLMS Plugin User's Manual
7

DLMS implementation and integration

The Product is tested according to the specification defined in the Yellow Book[3] for the DLMS
certification.
The Product (physical device) comprises of the management logical device (Product) and one
logical device for each connected meter. The logical devices can be addressed using channel
selection or logical device addressing.
The management logical device holds COSEM management objects, i.e. a list of available logical
devices, clock object, channel selection etc. The meter logical devices hold COSEM objects,
which represent the meter data read from the connected meters.
The meter data is automatically decoded in the Product and a meter template is used to map the
M-Bus data to COSEM objects with assigned OBIS-codes. The meter template can be
configured by the end user.
Meter data can be read from the Product using poll operations or data can be sent to a server
using push operations (configured using the Product GUI). The push operations can be enabled
to send load profiles, billing profiles, event log data and event notifications.
7.1

Supported use cases

Please see below for an overview of supported use cases:
•
Polling operations using TCP/IP and xDLMS Services
o
o
o
o
o
o
•
Push operations using TCP/IP using Push Notification Services
o
o
o
o
7.2 Session establishment between HES and the Gateway using poll
operations
The HES connects to the Gateway using TCP/IP. The HES associates with the Gateway on the
DLMS/COSEM application layer using the following security features:
CMe3100 DLMS Plugin User's Manual
Detection of logical devices using SAP Assignment
Detection of COSEM objects using association LN (Long Names)
Read load and billing profiles of connected M-Bus meters
Read event logs
Configure security for none, low level security and high level security mode 5
(GMAC)
Logical device addressing or channel selection
Up to 5 different push setups with:
Individually configurable schedules
§
Automatic retries and resending of unsent report data (e.g. due to
§
network connectivity problems)
§ Jittered timestamp for transmission (load balancing receiving servers)
§ Fall-back server address
Push of load and billing profile
Push of event logs (standard events and fraud detection)
Push event "On Installation" – notification when meter list changed
