Summary of Contents for Elvaco CMe2100

  • Page 1 CM e2 1 0 0 Qu i c k M an u al CM e2100 En g l i sh Version 4.0 Get the com plete m anual online at w w w .elvaco.com CM e2100 Quick M anual English v4.0 Page | 1...

  • Page 2: Table Of Contents

    LED INDICATIONS................33 TROUBLESHOOTING ................ 36 REPORT TEM PLATES ................ 43 COMM AND LISTING ................. 46 TECHNICAL SPECIFICATIONS ............49 SAFETY AND ENVIRONM ENT ............56 ACCESSORIES AND SIMILAR PRODUCTS ........59 Page | 2 Support: +46 300 434300 ? support@elvaco.com...

  • Page 3: Docum Ent Notes

    © 2014, Elvaco AB. All rights reserved. No part of the contents of this m anual m ay be transm itted or reproduced in any form by any m eans w ithout the w ritten perm ission of Elvaco AB.
  • Page 4 CMe2100 version appliance: >= 1.2.0 For a complete description of the CMe2100 product, dow nload the full manual from Elvaco AB w eb site, w w w .el v ac o.c om . Page | 4 Support: +46 300 434300 ? support@elvaco.com...
  • Page 5 El v ac o A B Tec hni c al Suppor t Teknikgatan 18 Phone: +46 300 434300 434 37 Kungsbacka E-Mail: support@elvaco.com SWEDEN Online: w w w .elvaco.com Phone: +46 300 30250 Fax: +46 300 18440 E-Mail: info@elvaco.com CM e2100 Quick M anual English v4.0 Page | 5...

  • Page 6: Introduction

    In t r o d u c t i o n The CMe2100 is a stand-alone, DIN-mounted GSM/GPRS equipm ent w ith M -Bus master, intended to read and store values from any m eter supporting the M -Bus protocol.
  • Page 7  Remotely upgradable application and firmw are  Manufacturer specific report templates The CMe2100 fits into almost any kind of meter collecting system, i.e. remote reading for M -Bus compatible electricity meters, w ater meters, gas meters, temperature meters, heat meters etc.

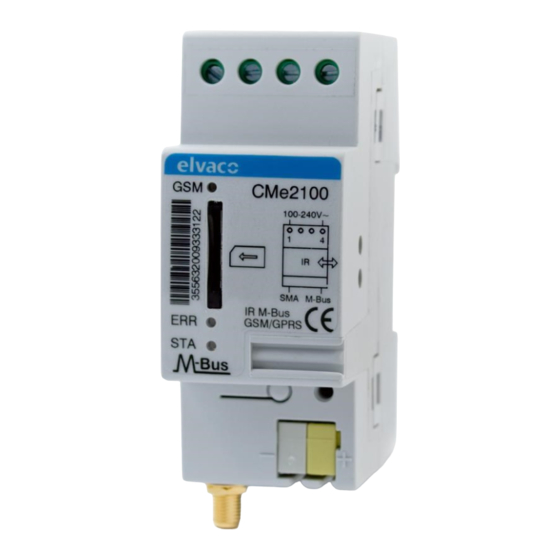

  • Page 8 2 .2 Ov er vi ew Serial number Button M-Bus connector Antenna SM A connector M-Bus IR interface Page | 8 Support: +46 300 434300 ? support@elvaco.com...
  • Page 9 GSM LED (Yellow) Error LED (Red) Status LED (Green) SIM card holder 10. Service interface 11. Power supply N 12. Power supply L CM e2100 Quick M anual English v4.0 Page | 9...

  • Page 10: Mounting

    M o u n t i ng The CMe2100 should be mounted on a DIN-rail. The metallic clip on the bottom is used to mount and demount the unit from the DIN-rail. For safety reasons, a DIN-rail enclosure must cover the terminals.
  • Page 11 3 .2 A n t en n a The antenna should be connected to the SMA connector (4). Depending on signal strength and environment, a different antenna w ith extension cable can be used. Torque should be finger tight. IMPORTANT ...
  • Page 12 ABB electricity m eter or CMeX module. There shall be no space betw een the CMe2100 and the ABB electricity meter or CM eX module. (Do not remove the shield if not used beside an ABB electricity meter or CM eX module.)
  • Page 13 An emergency circuit breaker should be used in order to ensure safe separation of the CMe2100 product from the main pow er supply. The next chapters cover the configuration of the CMe2100 product. If any problem occurs during configuration, please refer to the Troubleshooting section on page 33.

  • Page 14: Configure For E-Mail Reports

    Co n f i g u r e f o r E-M ai l r ep o r t s This section describes how to enable the CMe2100 product to send E-Mail reports of connected slaves to one or more E-Mail recipients. The...
  • Page 15 Sear c h an d i n st all M -Bu s sl av es The CMe2100 product w ill search and install M -Bus slaves using primary and secondary addressing on 2400 baud and synchronize time w ith an internet time server.
  • Page 16 2 keep Install and search for unknow n num ber of m eters: install The CMe2100 product is now configured and w ill by default send E-Mail value reports of connected slaves every day at 00:00. Page | 16...

  • Page 17: Configure For Ftp Reports

    Co n f i g u r e f o r FTP r ep o r t s This section describes how to enable the CMe2100 product to send FTP reports of connected slaves to an FTP server. The CMe2100 product w ill store hourly values of connected slaves, send value reports every day at 00:00 and send an E-Mail installation report on completion (if E-Mail is configured, see page 14).
  • Page 18 1day 2104 Activate to send FTP reports every hour using report template 2104: sch report2 1hour 2104 Activate to send FTP reports every month using report template 2105: sch report2 1month 2105 Page | 18 Support: +46 300 434300 ? support@elvaco.com...

  • Page 19: Configure For Http Reports

    Co n f i g u r e f o r HTTP r ep o r t s This section describes how to enable the CMe2100 product to send HTTP POST reports of connected slaves to a w eb server. The CMe2100 product w ill store hourly values of connected slaves, send value reports every day at 00:00 and send an E-Mail installation report on completion (if E-Mail is configured, see page 14).
  • Page 20 Activate to send HTTP reports every hour using report tem plate 3104: sch report3 1hour 3104 Activate to send HTTP reports every month using report template 3105: sch report3 1month 3105 Page | 20 Support: +46 300 434300 ? support@elvaco.com...

  • Page 21: Configure For Transparent M-Bus

    <baud> Example: qset csd on tmbus 300 The CMe2100 product w ill acknowledge with an SMS receipt. Available baud rates are 300 and 2400. The calling party should use 8 data bits, even parity and 1 stop bit (8E1).
  • Page 22 Or to turn off transparent server: SMS to CMe2100 product: qset tmbus1 off The CMe2100 product w ill acknowledge with an SMS receipt. The product w ill listen for incoming connections on TCP port 300. 7 .3 Co n f i g u r e f o r t r an sp ar ent M -Bu s o v er TCP...

  • Page 23: Reset To Factory Default

    In order to reset the CM e2100 product configuration to factory default, press and hold the button on pow er-up until the green and red LED lights flashes fast. Then release the button and the CMe2100 product w ill reset to factory default configuration and restart.

  • Page 24: Changing Configuration

    SMS to CMe2100 product: qset net <apn> <user> <password> Example: qset net online.telia.se guest guest The CMe2100 product w ill acknowledge with an SMS receipt. SMS to revert to Auto APN: qset net Reverting to Auto APN also reverts to Auto SMTP.
  • Page 25 <smtp port> <user> <password> Example: qset email name@domain.com smtpserver.domain.com 25 user password The CMe2100 product w ill acknowledge with an SMS receipt. SMS to revert to Auto SMTP: qset email Reverting to Auto SMTP also reverts to Auto APN.
  • Page 26 9 .3 Ch an g e sl av e l o g i nt er v al How to change the interval for the CMe2100 product to read and store values of installed slaves: SMS to CMe2100 product: sch storevalue <interval>...
  • Page 27 <searchmode> <searchbaud> Example: qset mbus primary,secondary 300,2400 The CMe2100 product w ill acknowledge with an SMS receipt. Available searchmode: prim ary,secondary Available searchbaud: 300, 600, 1200, 2400, 4800, 9600 CM e2100 Quick M anual English v4.0 Page | 27...
  • Page 28 Example: sch report1 10min 1104 The CMe2100 product w ill acknowledge with an SMS receipt. Available intervals: 1m in, 5min, 10min, 15m in, 20min, 30min, 1hour, 12hour, 1day, 1w eek, 1month Available templates: See page 43. Leaving out the template parameter, w ill keep current template setting.
  • Page 29 SMS to CMe2100 product: status <request> Example: status net The CMe2100 product w ill respond w ith an SM S of common status information. Available requests: common, prepaid, net, module, ver CM e2100 Quick M anual English v4.0 Page | 29...
  • Page 30 SMS to CMe2100 product: set common.time.utcoffset=<offset> Example: set common.time.utcoffset=2 The CMe2100 product w ill acknowledge with an SMS receipt. Offset range: -11 to 11 CMe2100 currently does not support daylight savings. Page | 30 Support: +46 300 434300 ? support@elvaco.com...
  • Page 31 SMS to CMe2100 product: report <template> Example: report 1004 The CMe2100 product will send report 1004 (System log) to configured E-Mail recipients. Available intervals: 1m in, 5min, 10min, 15m in, 20min, 30min, 1hour, 12hour, 1day, 1w eek, 1month Available templates: See page 43.
  • Page 32 Example: set common.security.password1=1234 The CMe2100 product w ill acknowledge with an SMS receipt. Default passw ord is blank. Default passw ord for security level 2 is 22 22 and for security level 3 is 3 333 . When passw ord for security level 1 is set, all SM S m essages must start w ith <passw ord>...

  • Page 33: Led Indications

    1 0 LED i n d i c at i o n s The CMe2100 product is equipped w ith three LEDs. The red LED indicates error, the green LED show currents operation and the yellow LED indicates GSM/GPRS modem activity. See follow ing pages for LED indication explanations.
  • Page 34 Green LED (Short dip) M-Bus short-circuit Red LED (On) Green LED (Short dip) No SIM installed Red LED (50/50) Green LED (Short dip) No GSM netw ork Red LED (Short flash) Page | 34 Support: +46 300 434300 ? support@elvaco.com...
  • Page 35 Yellow LED: Off/Restart Limited netw ork 50/50 service Idle mode Short flash GPRS active Short flashes Data transfer in 500 ms on/50 ms off progress GSM data active CM e2100 Quick M anual English v4.0 Page | 35...

  • Page 36: Troubleshooting

    This indicates an error on the M -Bus 2-w ire bus. Please verify no short-circuit of the M -Bus bus. The voltage of the bus should be betw een 24 VDC and 30 VDC. Page | 36 Support: +46 300 434300 ? support@elvaco.com...
  • Page 37 1 1 .3 Red LED is f l ashi n g 5 0/5 0 This indicates a SIM card error. Please verify:  SIM card has no PIN code activated  SIM card is activated  SIM card contact areas are clean LED Indication Green LED(Short dip) No SIM installed...
  • Page 38 Do not mount antenna inside metallic cabinets  SIM card activated  SIM card contact areas are clean LED Indication Green LED(Short dip) No GSM netw ork Red LED(short flash) Page | 38 Support: +46 300 434300 ? support@elvaco.com...
  • Page 39 11.5 The product does not respond t o SM S request s This error may depend on many things. Please verify:  Product is pow ered up  LEDs are show ing normal operation and netw ork coverage  Security access codes may be used; verify correct access code ...
  • Page 40  All M-Bus slaves must have unique secondary addresses  M-Bus slave baud rates Default search baud is 2400, please see command qset m bu s, page 27, how to change the searched baud rates Page | 40 Support: +46 300 434300 ? support@elvaco.com...
  • Page 41 1 1 .7 St at u s r ep o rt i n d i c at es n o A PN This may be due to Auto APN detection has no information about your netw ork provider. Please contact your netw ork provider for the follow ing internet access information: ...
  • Page 42 25.  Report is not correctly activated, please configure E-Mail reports w ith command sc h , see page 28. If you still have problems getting your CMe2100 running, please contact Elvaco support, see page 5. Page | 42...

  • Page 43: Report Tem Plates

    Rep o r t t em p l at es Get the complete report template documentation on Elvaco w eb site. Report Id Description SMS Reports Installation report E-Mail Reports 1001 Installation report (HTM L) 1002 Installation report (PLAIN) 1003...
  • Page 44 (machine friendly CSV files) 2103 Value report (machine friendly CSV files) 2104 Value report (hum an readable CSV files) 2105 Value report (hum an readable CSV files + extra colum n header indicator) Page | 44 Support: +46 300 434300 ? support@elvaco.com...
  • Page 45 2108 Value report (machine friendly in CSV file + extra column header indicator) HTTP Reports 3101 Value report (hum an readable in a single CSV POST) 3102 Value report (machine friendly CSV POSTs) 3103 Value report (machine friendly CSV POSTs) 3104 Value report (hum an readable CSV POSTs)

  • Page 46: Comm And Listing

    Co m m an d l i st i n g Get the complete command description documentation from Elvaco w eb site. Command name Description command1 User definable command 1. command2 User definable command 2. command3 User definable command 3.
  • Page 47 maintenance Maintenance task monitor1 User definable monitor 1. monitor2 User definable monitor 2. monitor3 User definable monitor 3. monitor4 User definable monitor 4. monitor5 User definable monitor 5. qset Quick set configuration reboot Reboot product report User definable report. report1 User definable report 1 report2 User definable report 2...
  • Page 48 Get status information from the product storevalue Read and store value of installed slaves sysreport Sends system report logreport Sends system log report sync Synchronize configuration with synchronize server timesync Synchronize time with internet timeserver Page | 48 Support: +46 300 434300 ? support@elvaco.com...

  • Page 49: Technical Specifications

    Tec h n i c al sp ec i f i c at i o n s 1 4 .1 Ch ar act eri st i c s Value Unit Com ments Mechanics Casing material Polyamide Protection class IP20 Dimensions 100x65x36 Weight Connection M-...
  • Page 50 Power <1 consum ption (Nom) Installation CAT IV category GSM/GPRS GPRS Class Up to 12 Band 850/900/ 1800/1900 Environmental Operating -20 to +55 °C temperature range Storage -40 to +85 °C Page | 50 Support: +46 300 434300 ? support@elvaco.com...
  • Page 51 temperature range Operating Tem peratures up to 31°C, humidity max. decreasing linearly to 50%RH at 40°C Pollution Degree 2 Operating 0-2000 Meters altitude Usage Indoor use can be extended with IP67 only enclosure for outdoor use User interface Green LED Power Red LED Error...
  • Page 52 GSM data Maximum Can be extended using connected M- CMeX10 Series Bus slaves Maximum cable 1000 length IR Interface Pass Through Com patibility All standard M-Bus meters, all ABB meters with IR Page | 52 Support: +46 300 434300 ? support@elvaco.com...
  • Page 53 interface, CMeX Series products General Data storage ~1.4 MByte Data storage for meter data and custom report configuration Real time clock Num ber of hours real Backup time clock resumes running without power Real time clock <2 s/day Accuracy Script Engine Intelligent script engine for active content generation...
  • Page 54 HTTP Software update Using GSM/GPRS/ HTTP Integration Transparent M- Bus static IP Transparent M- CSD/raw M- Bus data E-mail SMTP Standard FTP client HTTP Standard HTTP and HTTPS client, POST Page | 54 Support: +46 300 434300 ? support@elvaco.com...
  • Page 55 & GET Configuration SMS, HTTP, FTP, GSM CSD, Telnet Approvals EN 61000-6- 2, EN 61000- Safety EN 61010-1, CAT IV CM e2100 Quick M anual English v4.0 Page | 55...

  • Page 56: Safety And Environm Ent

    Saf et y an d en v i r o n m en t The follow ing safety precautions must be observed during all phases of the operation, usage, service or repair of any CMe2100 product. Users of the product are advised to convey the follow ing safety information to users and operating personnel and to incorporate these guidelines into all manuals supplied w ith the product.
  • Page 57 The operation of cardiac pacemakers, other implanted medical equipment and hearing aids can be affected by interference from cellular terminals or mobiles placed close to the product. If in doubt about potential danger, contact the physician or the m anufacturer of the product to verify that the equipment is properly shielded.
  • Page 58 IMPORTANT! CMe2100 operates using radio signals and cellular netw orks. Because of this, connection cannot be guaranteed at all times under all conditions. Therefore, you should never rely solely upon any w ireless product for essential communications, for example emergency information.

  • Page 59: Accessories And Similar Products

    A c c esso r i es and si m i l ar p r o d u c t s Elvaco provides a complete product range to meet various demands. A c c essor i es: Product Description External...
  • Page 60 GPRS M-Bus com munication module integrated in Itron ECHO II / CF meters and 8 M-Bus slaves CMe3000 TCP/IP M-Bus com munication module for ABB electricity meters with IR interface and 8 M -Bus slaves Page | 60 Support: +46 300 434300 ? support@elvaco.com...
