Elvaco CMi6140 Quick Start Manual

CMi6140
Integrated MCM for Kamstrup MULTICAL 403/603/803, NB-IoT
INTRODUCTION

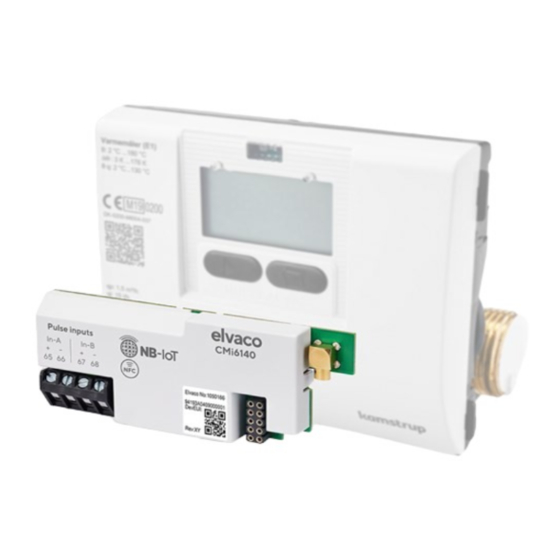

CMi6140 is an integrated meter connectivity module mounted inside
a Kamstrup MULTICAL 403/603/803 that deliver meter data to a
receiving system via a NB-IoT network. For a complete description of the
product, or for information in other languages, please visit the Elvaco AB
website, https:/ /www.elvaco.com.

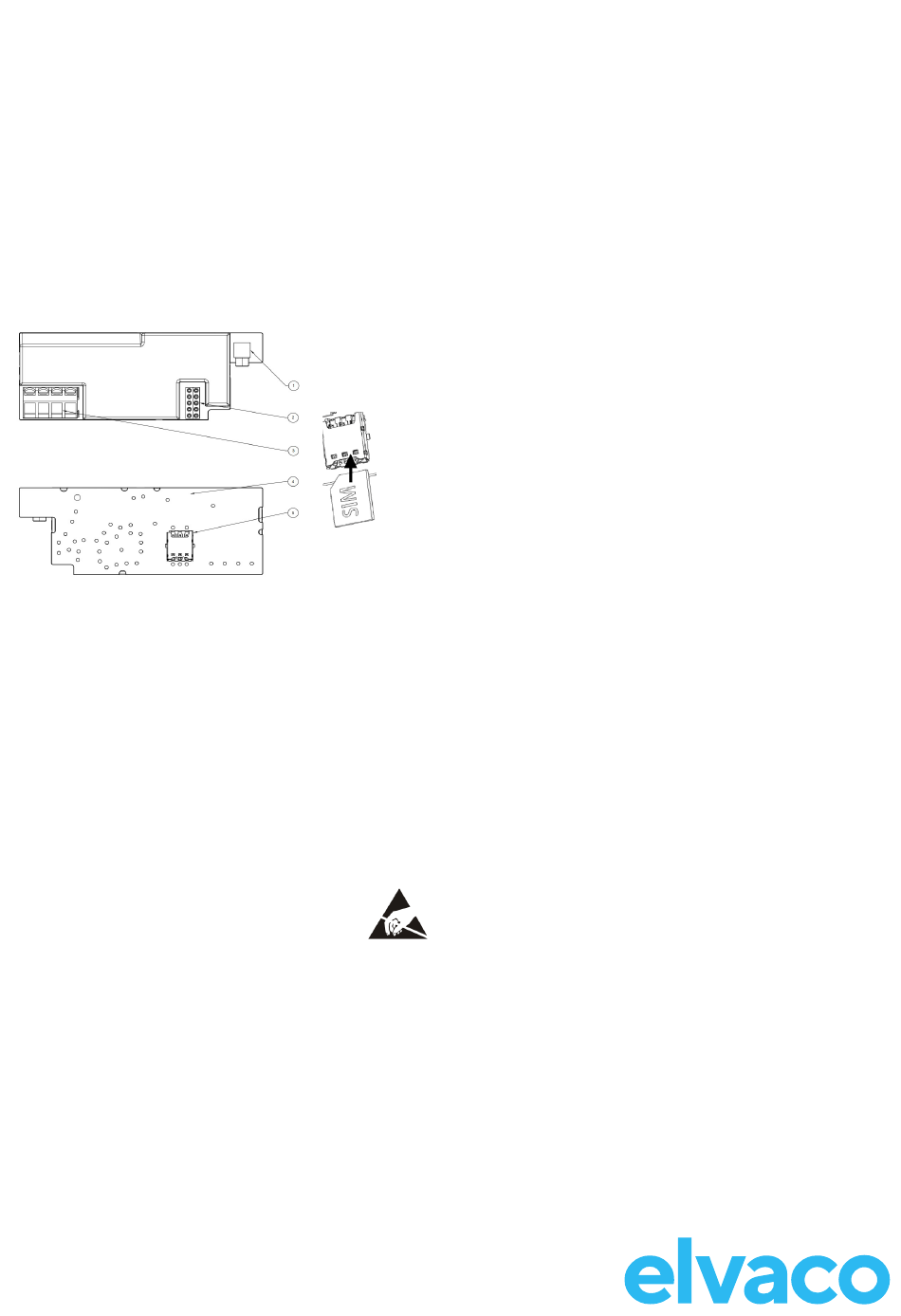

MODULE SPECIFICATION
1. Antenna Connector (MCX female)
2. Meter Interface
3. Pulse Inputs
4. NFC Antenna
5. SIM (nano)
MOUNTING
Before mounting the module in the meter, make sure that a SIM card is
installed in the SIM card slot.
NOTE! Please note that the SIM card must be inserted correctly. If it
is inserted upside down it can easily damage the SIM slot.
CMi6140 is mounted in the module slot of a Kamstrup Multical meter.
Hold the device by the outer edges and gently press it into position
NOTE
• Electrostatic-sensitive devices. Please observe the
necessary ESD protective measures when installing
the device.
ANTENNA
CMi6140 is available with external antenna. The antenna is connected
using an MCX connector.
NOTE
• The antenna should be mounted at least 0.5 meter away from the
meter to avoid interference.
POWER SUPPLY
The meter where CMi6140 is installed in must use any of
Kamstrup 230V High Power
Kamstrup 24V High Power
Kamstrup IoT battery, D-cell
Kamstrup IoT battery, C-cell
If battery operated, make sure the meter is in battery mode or adaptive
mode. This ensures the battery lifetime of the complete product.
ACTIVATION
Upon delivery, CMi6140 has a standard configuration. If you would like
to change configuration, please download the Elvaco OTC Application
(One-Touch commissioning) for Android available in Google Play or for
iOS available in App Store.
The Elvaco OTC connects to the module via NFC.
By default, the product is set to passive mode, which means no
messages will be transmitted from the device. There are two ways to
activate the product:
1. By using the front buttons of the Kamstrup Multical meter.
-On Kamstrup Multical 403: press down both front buttons
simultaneously until "CALL" is displayed on the meter display.
-On Kamstrup Multical 603 and 803: press down both arrow
buttons simultaneously until "CALL" is displayed on the meter
display.
2. Via the Elvaco mobile application.
Go to the Apply tab, set the Power mode to "Active", push "Apply"
and place the phone on the right side of the meter, next to the
module. Make sure to hold the phone still until the phone vibrates.
You can make sure that the module has joined the NB-IoT network
correctly by checking the "connection" field in the Inspect tab of the
OTC App. The mobile phone should vibrate three times. This indicates
that settings have successfully been applied.
For more detailed infromation about activation and operation see Users
Manual available on www.elvaco.se
NOTE
• Make sure to locate the NFC antenna on your phone. When you
scan or write new configurations to the module, you should place
the phone's NFC antenna as close as possible to the NFC antenna
of the module.
SIMPLIFIED DECLARATION OF CONFORMITY
Hereby, Elvaco declares that the product is in compliance with the
following directives:
EU:
- 2014/53/EU (RED)
- 2014/30/EU (EMC)
- 2014/35/EU (LVD)
- 2011/65/EU + 2015/863 (RoHS)
UK:
- 2017 No. 1206
- 2016 No. 1091
- 2016 No. 1101
- 2012 No. 3032
The complete Declaration of Conformity can be found at www.elvaco.
se/en > Search on product.
