- Page 1 CMe2100 (gen.3/LTE) User’s Manual English v 1.1 CMe2100 (gen.3/LTE) User’s Manual English– Version 1.1...
-
Page 2: Table Of Contents
CMe2100 (gen.3/LTE) User’s Manual English Contents DOCUMENT NOTES ..................... 4 ..................4 OPYRIGHT AND TRADEMARK ........................4 ONTACTS IMPORTANT USAGE AND SAFETY INFORMATION ........... 5 USING THIS MANUAL ....................6 ....................6 URPOSE AND AUDIENCE ........................ 6 PPLICABILITY ...................... 6 NLINE RESOURCES ........................ - Page 3 CMe2100 (gen.3/LTE) User’s Manual English REFERENCES ......................19 10.1 ..................19 ERMS AND ABBREVIATIONS 10.2 ..................19 UMBER REPRESENTATION CMe2100 (gen.3/LTE) User’s Manual English page | 3 (19) [2021-02] Version 1.1...
-
Page 4: Document Notes
Copyright and trademark ©2021, Elvaco AB. All rights reserved. No part of the contents of this manual may be transmitted or reproduced in any form by any means without the written permission of Elvaco AB. Printed in Sweden. CMe Series is a trademark of Elvaco AB, Sweden. -
Page 5: Important Usage And Safety Information
Failure to comply with these precautions violates safety standards of design, manufacture and intended use of the product. Elvaco AB assumes no liability for customer’s failure to comply with these precautions. -
Page 6: Using This Manual
This manual provides all information needed to mount and connect the CMe2100 and is intended for field engineers and developers. Applicability This manual only applies to CMe2100 gen.3 and CMe2100 LTE. For older versions of the product manual, please visit http://www.elvaco.com. Online resources To download the latest version of this user’s manual, or to find information in other languages, please... -
Page 7: Introduction
CMe2100 (gen.3/LTE) User’s Manual English Introduction Purpose This chapter provides an initial description of the CMe2100 M-Bus Metering Gateway for Mobile Networks. In the next-coming sections you will get to know the product applications and how the CMe2100 can be combined with other products to build versatile solutions. Application description 4.2.1 Applications The CMe2100 is, directly out of the box, a very powerful and versatile M-Bus Metering Gateway. -
Page 8: Product Features
The CMe2100 can be used with any M-Bus Master from Elvaco to increase the number of meters it is able to drive. CMe2100 gen.3 can by default drive up to 8 unit loads (where one load equals 1.5 mA) and has a software limit of 128 meters CMe2100 LTE can by default drive up to 16 unit loads (where one load equals 1.5 mA) and has a... -
Page 9: Wired And Wireless M-Bus
To read Wireless M-Bus meters, the Metering Gateway will have to be combined with a Wireless M- Bus receiver, for example Elvaco’s CMeX50. All extension devices (Wireless M-Bus Receivers and M-Bus Masters) from Elvaco are equipped with IR interface to enable communication without any cabling. -

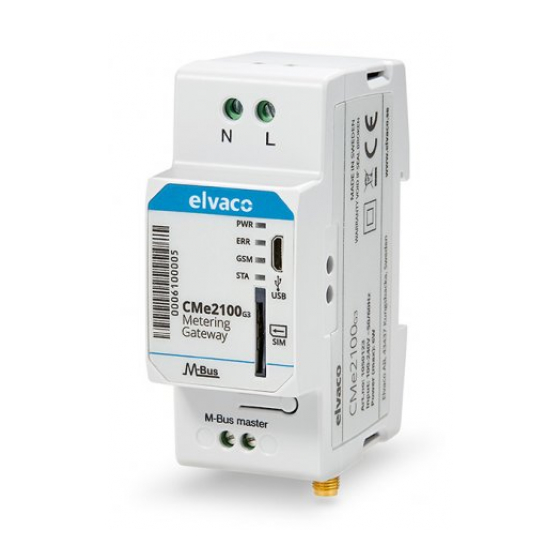

Page 10: Getting Started
3. M-Bus terminal 4. Antenna SMA connector 5. IR interface 6. PWR LED, green) 7. ERR LED, red 8. GSM LED, yellow (CMe2100 gen.3) NET LED, yellow (CMe2100 LTE) 9. STA LED, blue 10. SIM card holder 11. USB slave connector 12. -
Page 11: Mount The Device
M-Bus is a multi-drop 2-wire M-Bus with no polarity. The M-Bus terminal (3) can be used to connect up to 8 (CMe2100 gen. 3)/16 (CMe2100 LTE) M-Bus meters to the CMe2100. The number can be extended to up to 128 (CMe2100 gen.3)/256 (CMe2100 LTE) by using an Elvaco M-Bus Extender. Use a cable of cross-sectional area 0.25-1.5 mm , for example a standard telephone cable (EKKX 2x2x0.5), to connect... -
Page 12: Ir Interface
CMe2100 (gen.3/LTE) User’s Manual English 5.5.4 IR interface By using the IR interface, CMe2100 can communicate with Elvaco M-Bus Masters and Wireless M-Bus Receivers (CMeX Series) as well as ABB electricity meters without using any cables. Mount the CMe2100 next to the other device with the IR interfaces of the two products facing each other. Before attempting to use the IR interface, make sure to remove the IR shield (5). -
Page 13: Reset To Factory Default
CMe2100 (gen.3/LTE) User’s Manual English 5.6.2 Reset to factory default In order to reset the product configurations to factory default, press and hold the push button (2). The CMe2100 will restart and the settings will be reset to factory default. The reset can also be performed remotely by sending the command Factoryreset to the phone number of the SIM card installed in the Metering Gateway. -
Page 14: Operations Guide
CMe2100 (gen.3/LTE) User’s Manual English Operations guide CMe2100 uses an operations guide, available in a separate document, which can be downloaded from the Elvaco website, http://www.elvaco.com. CMe2100 (gen.3/LTE) User’s Manual English page | 14 (19) [2021-02] Version 1.1... -
Page 15: Technical Specifications
CMe2100 (gen.3/LTE) User’s Manual English Technical specifications Type Value Unit Comments Mechanics Casing material Polyamide Protection class IP20 Dimensions (w x h x d) 36 x 100 x 65 2 DIN modules Weight Mounting DIN-rail DIN 50022, 35 mm Antenna SMA female SIM card Push-push type... - Page 16 CMe2100 (gen.3/LTE) User’s Manual English Push button Factory reset SMS, HTTP, GSM Configuration CSD, Telnet M-Bus Interfaces IR, integrated M- Bus Master Maximum number of M-Bus 128 (CMe2100 devices (software limit) gen.3)/256 (CMe2100 LTE) Software limit does not apply to Transparent M-Bus GSM and TCP/IP Transparent M-Bus mode...
-
Page 17: Type Approvals
CMe2100 (gen.3/LTE) User’s Manual English Type approvals Approval Description EN 61000-6-2, EN 61000-6-3, EN 301 489-1, EN 301 489-7 Safety EN 61010-1, CAT 3 CMe2100 (gen.3/LTE) User’s Manual English page | 17 (19) [2021-02] Version 1.1... -
Page 18: Document History
CMe2100 (gen.3/LTE) User’s Manual English Document history Versions Version Date Description Author 2020-04 First version (merged) David Svensson 2021-02 Updated version for software 3.2.5 David Svensson Document software and hardware appliance Type Version Date Comments Hardware Rev 1B Software 3.2.5 CMe2100 (gen.3/LTE) User’s Manual English page | 18 (19) [2021-02]... - Page 19 CMe2100 (gen.3/LTE) User’s Manual English 10 References 10.1 Terms and abbreviations • List all abbreviations used in the manual and what they represent. Abbreviation Description Packet Data Protocol 10.2 Number representation • Decimal numbers are represented as normal number, i.e. 10 (ten). •...
