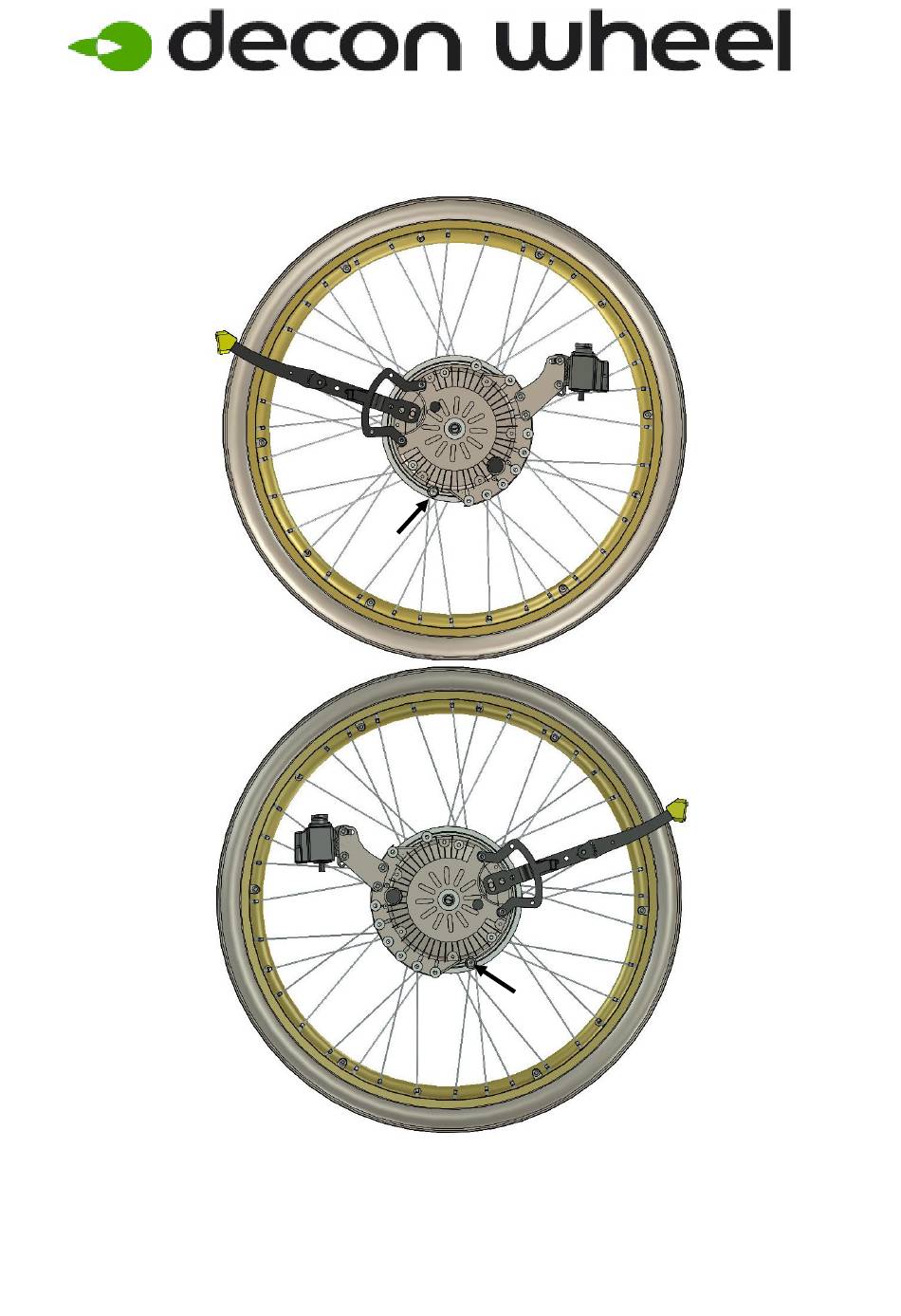

- Page 1 Assembly instructions for Rehatec Galileo MED3300 1. Remove wheels and sleeves on both sides. 2. Check the correct placement for the stop pin. 2022-02-10...
- Page 2 3. Assembly the plate (right side) according to picture. Parts for right side: Item No. Part Number Description MED2000 Bracket HW069 Sleeve 405242 Lock Washer M16 XSM16M Nut M16 low XSM6X50 Screw Rounded M6x50 XSM6ML Lock Nut M6 100 400 002 Spacer 100 400 007 Spacer...
-
Page 3: Anti-Tip Devices
Anti-tip devices 4. You must place the left anti-tip device on the right side and vice and versa. Parts for one side. Item No. Part Number Description 340009 Spacer XFM8x40 Screw Countersunk M8x40 XSM8ML Lock Nut M8 5. Assemble the back rested battery bag on the wheelchair. 2022-02-10... - Page 4 Attendant control for joystick (left and right side) MED1409 Move this too the other side, if you assemble the joystick on the left side. Item No. Part Number Description MED1316 Plate with pin XSM6X16 Screw M6 x 16 MC6SM6X35 Screw M6 x 35 XSM6BR Plain Washer 6,4 XSM6ML...
- Page 5 Alternative attendant control (only right side) MED1226 Item No. Part Number Description XSM6TG Thorn Washer 6,4 Xklamma2 XClamp2 MC6SM6X20 Screw M6 x 20 XSM6BR Plain Washer 6,4 MED1200 Attendant control 2022-02-10...
- Page 6 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Åtdragningsmoment / Tightening Gänga / Thread torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Åtdragningsmoment / Tightening Gänga / Thread torque M16x1 30 Nm...
