installation & operating Manual

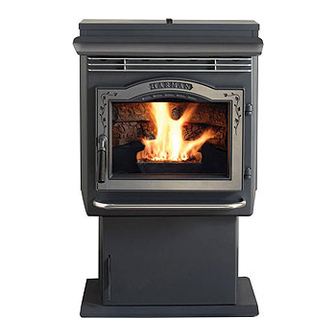

the harman PP38+ Pellet stove
"Ce manuel est disponible en Français sur demande"
r24

saFetY notice

Please read this entire Manual beFore You install and use Your new rooM heater. Failure
to Follow instructions MaY result in ProPertY daMage, bodilY injurY, or even death.
For use in the u.s. and canada. suitable For installation in Mobile hoMes.
iF this harMan stove is not ProPerlY installed, a house Fire MaY result. For Your saFetY, Follow
installation directions.
contact local building or Fire oFFicials about restrictions and installation insPection
reQuireMents in Your area.
contact Your local authoritY (such as MuniciPal building dePartMent, Fire dePartMent, Fire
Prevention bureau, etc.) to deterMine the need For a PerMit.
cette guide d'utilisation est disPonible en Francais. chez votre concessionnaire de harMan
hoMe heating.
save these instructions.
Part # 3-90-08422

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PP38+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Harman PP38+

Summary of Contents for Harman PP38+

  • Page 1: Safety Notice

    Follow instructions MaY result in ProPertY daMage, bodilY injurY, or even death. For use in the u.s. and canada. suitable For installation in Mobile hoMes. iF this harMan stove is not ProPerlY installed, a house Fire MaY result. For Your saFetY, Follow installation directions.
  • Page 3 8cm min 3"min PP38+ Pellet Stove...
  • Page 4 Serial #: This label is located on the back of the unit. Please copy the Serial Number for future reference. Harman P38 Pellet Stove Label measures: 4-3/8" high X 10-3/4"wide Black Background with bare metal for print-adhesive backed, metal plate.

  • Page 5: Important Notes

    FlY ash builduP, it is stronglY recoMMended that You have Your stove ProFessionallY cleaned and serviced annuallY. this includes all Parts oF the stove, and the entire venting sYsteM. caution alwaYs be sure there is no unburned Fuel in the ash Pan Prior to lighting a Fire.

  • Page 6: Assembly And Installation

    The P38 is bolted (1/4 x 1" hex head bolts) to the skid to prevent movement during shipping. To free the stove from the skid you must remove the hold-down bolts in the rear of the pedestal base. removing rear cover panels The rear cover panels are secured to the stove with three bolts each.

  • Page 7: Installation

    0 to -0.5 Inches Water Column.) Record the first reading. Connect flue pipe to stove and be sure all doors and windows in the home are closed. Record the second draft reading_______. If the second reading is more than .05"...
  • Page 8 I. The clearance to service regulator vent outlet must = Venting Terminal PP38+ Pellet Stove venting be a minimum of 6 feet. J. The clearance to a non-mechanical air supply inlet to the building or the combustion air inlet to any other appliance must be a minimum of 48”.

  • Page 9: Outside Air

    The first piece of pipe must be fastened securely with at least 2 fasteners to the flue collar of the stove. The two screws provided are a self-drilling style, however, due to material thickness, drilling a 3/32" pilot hole is recommended.

  • Page 10: Vent Configurations

    House demand may consume some air needed for the stove, especially during a power failure. It may be necessary to add additional ventilation to the space in which the pellet appliance is located.
  • Page 11 This vertical section will provide natural draft in the event of a power failure. If the stove is installed below grade be sure the vent termination is at least 18" above grade. The outlet 3 ft.
  • Page 12 *The chimney should be inspected and cleaned before installing your stove. If you discover that the chimney does not have a clay tile liner or has cracks or flaking of the tile liner you will need to install a stainless steel liner within the chimney.
  • Page 13 The pipe or liner inside the chimney should be 4" diameter. In this method a cap should also be installed on the chimney to keep out rain. PP38+ Pellet Stove...
  • Page 14 #8 installing through the ceiling Through the ceiling vent, follow PL vent manufacturers recommendations when using wall and ceiling pass through. note: do not place joints within wall pass- throughs. PP38+ Pellet Stove venting Storm collar Flashing 3" min. Minimum flue vent...

  • Page 15: Esp Control

    Power Light Indicates power to the control. Status Light Will be lit in either stove or room temp mode when pointer is not within off position band except after normal shut down. Blinks to indicate errors listed below. Indicates power to the distribution blower.

  • Page 16: Operation

    In the Room Temperature Mode, with the optional room sensor attached, the stove constantly monitors the temperature in the room and adjusts the size of the fire and the heat output of the stove so that the room is kept at a constant temperature. room temperature Mode...
  • Page 17 If the stove is left to run out of fuel, you may get a 6 blink status light. If this happens, simply reset the control board by turning the mode selector to OFF and back ON.
  • Page 18 First, scrape the ashes off the front of the burn pot into the ash pan. Then, scrape the top surface of the burn pot downward into the base of the burn pot. When the stove is ignited these scrapings will be pushed out by the feeder and burned.

  • Page 19: Draft Test Procedure

    Be sure the intake flapper is opening and check for resistance in the outside air conduit if installed. draft test Procedure Draft Meter bolt hole location On a PP38 the draft test hole is under the left rear corner of the firebox. Fig. 23 PP38+ Pellet Stove...

  • Page 20: Maintenance

    "OFF" to allow the unit to shut down. Call the fire department, and be sure everyone is out of the residence. Before re-using the appliance, have the venting system thoroughly inspected and replace any damaged components.
  • Page 21 1. Lift the latch handle to open the ash door and remove the ash pan. Use ash pan handle to carry and dispose of ashes. 2. Slide the ash pan back into the stove and latch the door by pushing down on the latch handle when closed.
  • Page 22 10. Reinstall the blower cover and close the latch. 11. Slide the ash pan into stove and latch the door. Blower cover removed. soot and Fly ash...

  • Page 23: Burn Pot Cleaning And Maintenance

    This will help knock pieces of ash, loosened by the scraping process, down through the holes. 5. Be sure the cover is in place on the screws and hand-tighten the wing screws. Fig. 35 PP38+ Pellet Stove...

  • Page 24: Safety Features

    If the switch opens when the cycle is at rest, the power light for the feed motor will not illuminate. Be sure all doors, including the hopper lid, are securely closed when operating the appliance. PP38+ Pellet Stove 5/16" Hex Head...

  • Page 25: Troubleshooting

    Whenever your stove is not burning, take the opportunity to scrape the burn pot to remove carbon buildup. A vacuum cleaner is handy to remove the residue. be sure the stove is cold if you use a vacuum. Carbon buildup can be scraped loose with the fire burning using the special tool provided with your stove.

  • Page 26: Specifications

    5.25" weight blower Feed rate hopper capacity Fuel Flue size outside air size Fuse rating PP38+ Pellet Stove specifications 212 lbs. 135 cfm approximate .75lb. to 5.5 lbs per hr 50 lbs wood Pellets 3 inch 2 3/8" i.d. inch 6 amp 22"...
  • Page 27 On the rear of the stove hopper there is a hole to fasten the hopper extension into place. On some units, this hole will need to be opened.
  • Page 28 Maximum feed has been reached when the fire bed is about ½ to 1 inch from the end of the burn pot. It is recommended that after burning at the desired settings, turn the stove off and allow it to cool, then turn it back on in “Room Temp”...

  • Page 29: Fuel Specifications

    ONLY. Burning of any other fuel will void your warranty. Hearth & Home Technologies is not responsible for stove performance or extra maintenance required as a result of using fuel with higher ash or mineral content.

  • Page 30: Wiring Diagram

    PP38+ Pellet Stove PP38+ Pellet Stove wiring diagram PLUG BLACK WHITE WHITE GREEN CORD RUBBER 18/3 WHITE...

  • Page 31: Limited Lifetime Warranty

    Factory-installed blowers Molded refractory panels Firepots and burnpots Castings and baffles Manifold tubes, HHT chimney and termination Burners, logs and refractory Firebox and heat exchanger All replacement parts beyond warranty period PP38+ Pellet Stove Page 1 of 2...

  • Page 32: Warranty Conditions

    WARRANTY CONDITIONS: • This warranty only covers HHT appliances that are purchased through an HHT authorized dealer or distributor. A list of HHT authorized dealers is available on the HHT branded websites. • This warranty is only valid while the HHT appliance remains at the site of original installation. •...

  • Page 33: Service Parts

    1-90-08500-4 (Metallic blue) (ending Manufacturing date: jan 2010) 2 & 3 Part number list on following page. service Parts steel Pellet stove 1-90-08500-1 (black), retired units 1-90-08500-5 (honey glo) (ending Manufacturing date: june 2009) 1-90-08500-10 (Mojave red) (ending Manufacturing date: jan 2010)
  • Page 34 IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. iteM description Hopper Assembly Hopper Switch 48" #2 Pre serial number 00808066 Feeder assembly Feeder Assembly Air Intake Damper Assembly...
  • Page 35 #3 Post serial number 008280066 Feeder assembly 3.16 IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. iteM description Feeder Assembly...
  • Page 36 IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. iteM description Flue Tail Pipe Auger Motor Cover Auger Motor Shield Differential Switch Distribution Blower...
  • Page 37 IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer. iteM description Arrow Burn Pot Scraper Diagnostic Display Module Door Hinge w/pin, Cast Draft Meter Assembly...

  • Page 38: Service & Maintenance Log

    Date Of Service Performed By PP38+ Pellet Stove PP38+ Pellet Stove service & Maintenance log Description Of Service...
  • Page 40 Proudly Printed On 100% Recycled Paper...
