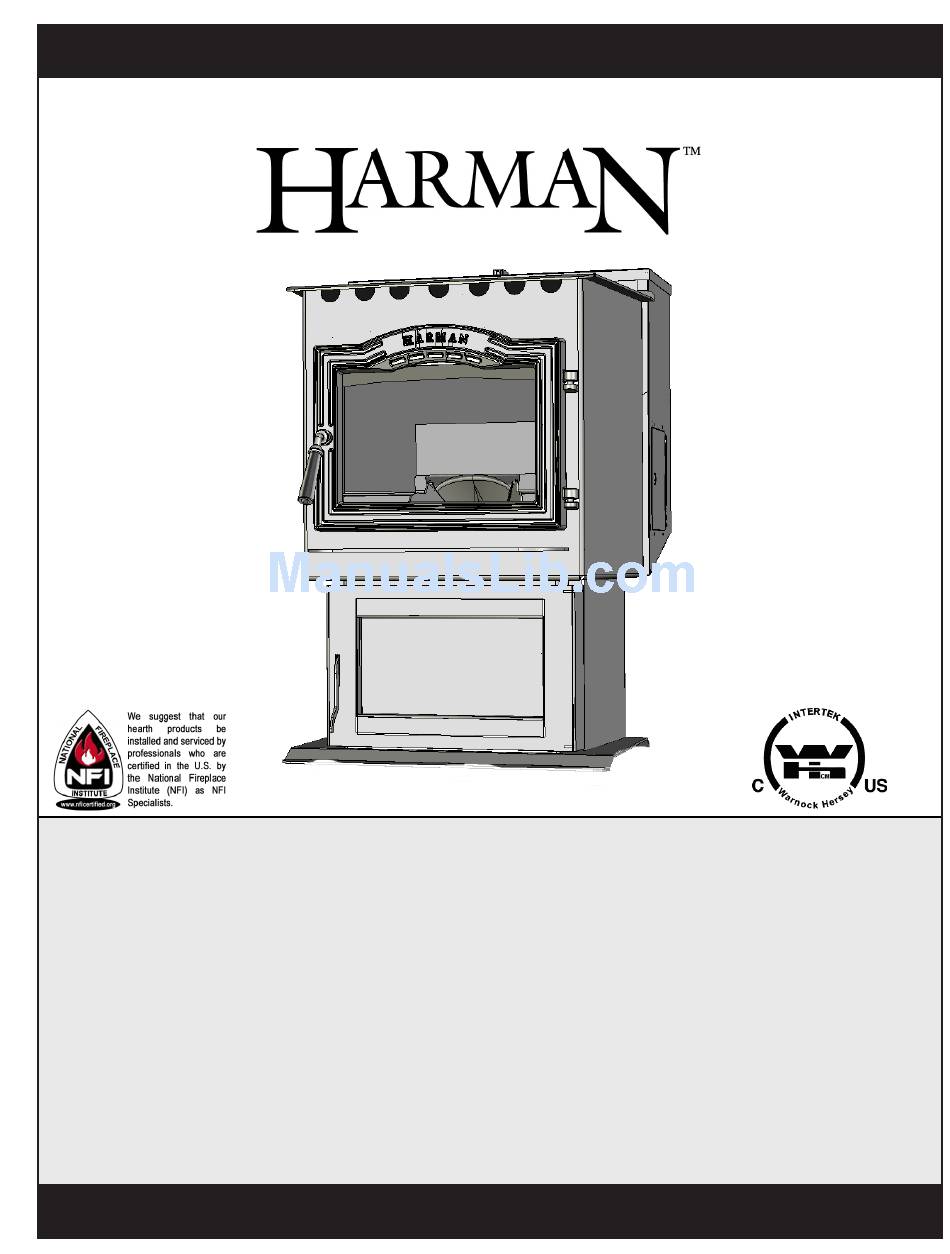

installation & Operating Manual
P43 Pellet Stove Owners Manual
r1
"Ce manuel est disponible en Français sur demande"

SaFetY nOtice

PleaSe read thiS entire Manual beFOre YOu inStall and uSe YOur new rOOM heater. Failure
tO FOllOw inStructiOnS MaY reSult in PrOPertY daMage, bOdilY injurY, Or even death.
FOr uSe in the u.S. and canada. Suitable FOr inStallatiOn in MObile hOMeS.
iF thiS harMan StOve iS nOt PrOPerlY inStalled, a hOuSe Fire MaY reSult. FOr YOur SaFetY, FOl-
lOw inStallatiOn directiOnS.
cOntact lOcal building Or Fire OFFicialS abOut reStrictiOnS and inStallatiOn inSPectiOn
reQuireMentS in YOur area.
cOntact YOur lOcal authOritY (Such aS MuniciPal building dePartMent, Fire dePartMent, Fire
PreventiOn bureau, etc.) tO deterMine the need FOr a PerMit.
cette guide d'utiliSatiOn eSt diSPOnible en FrancaiS. chez vOtre cOnceSSiOnnaire de harMan
StOve cOMPanY.
R1
Save theSe inStructiOnS.
Manual item# 3-90-04301

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P43 and is the answer not in the manual?

Questions and answers

Related Manuals for Harman P43

Summary of Contents for Harman P43

  • Page 1: Safety Notice

    FOllOw inStructiOnS MaY reSult in PrOPertY daMage, bOdilY injurY, Or even death. FOr uSe in the u.S. and canada. Suitable FOr inStallatiOn in MObile hOMeS. iF thiS harMan StOve iS nOt PrOPerlY inStalled, a hOuSe Fire MaY reSult. FOr YOur SaFetY, FOl- lOw inStallatiOn directiOnS.
  • Page 2 9" / 229mm P43 Pellet Stove...

  • Page 3: Table Of Contents

    The P43 Pellet Stove has huge features in a small package, giving you 0 to 43,000 BTU when you need it, automatically. You basically need to set your desired room temperature and fill the hopper. With the P43 you will notice even heat throughout your zone and a level of convenience you never thought possible. The P43 epitomizes the capability of Harman Pellet Stoves, taking advantage of Harman’s 0+ years of pellet stove design, technology and manufacturing.

  • Page 4: Special Note

    FOr the StOve tO wOrK eFFicientlY. See cleaning inStruc- tiOnS On Page 22. P43 Pellet Stove iMPOrtant nOteS M O b i l e / M a n u Fa c t u r e d h O M e...

  • Page 5: Assembly And Installation

    Rear Cover Panels unpacking The P43 is bolted (1/4 x 1" hex head bolts) to the skid to prevent movement during shipping. To free the stove from the skid you must remove the hold-down bolts in the rear of the pedestal base.
  • Page 6 (A surge protector is recom- mended to protect the circuit board.) If the voltage entering your home is below 116 volts your stove may not work properly. Also be sure that the polarity of the outlet that the stove is plugged into is correct.

  • Page 7: Venting

    Only permitted if veranda, porch, deck, or balcony is fully open on a minimum of  sides beneath the floor. nOte: where passage through a wall, or partition of combustible construction is desired, the installation shall conform to can/cSa-b365. (if in canada) P43 Pellet Stove...
  • Page 8 However, in some cases a perfect seal is not achieved. For this reason and the fact that the P43 operates with a positive vent pressure we specify that the joints also be sealed with silicone. Aluminum tape can also be used for any joint that is 1ft.
  • Page 9 To install outside air use  3/8" I.D. non-combus- tible flex pipe. There is a break-away hole on the rear panel of the P43 stove which must be removed before connecting the flex pipe. The pipe should be run outside and terminate to the side or below the vent pipe outlet so the flue outlet is more than 12"...
  • Page 10 This vertical section will provide natural draft in the event of a power failure. If the stove is installed below grade be sure the vent termination is at least 18" above grade. The 3 ft.
  • Page 11 *The chimney should be inspected and cleaned before installing your stove. If you discover that the chimney does not have a clay tile liner or has cracks or flaking of the tile liner you will need to install a stainless steel liner within the chimney.
  • Page 12 Fig. 12 Fig. 13 P43 Pellet Stove venting #6 Installing into an existing fireplace chimney This method provides excellent venting for normal operation. This method also provides natural draft in the event of a power failure. In some places in the US and Canada it is re- quired that the vent pipe extend all the way to the top of the chimney.
  • Page 13 (See Page 6 for corner installation clearances) 3" min. Fig. 14 Fig. 16 Fig. 15 12" min. wall to outlet P43 Pellet Stove...

  • Page 14: Esp Control

    50 minutes. A six blink status may be set if the stove is allowed to run out of pellets. To reset, turn mode selector to "OFF" then back on to the desired mode. If the unit was not out of pellets, see Troubleshooting section, Page 6, for more details.
  • Page 15 P43 AUTOMATIC IGNITION/OPERATION The P43 is a fully automatic stove that features two operating modes; Stove temperature Mode and room temperature Mode. In Stove Temperature Mode, you select a burn rate and the stove will remain at the same burn rate regardless of the room temperature.
  • Page 16 The fire will not go out immediately and may take more than an hour to fully shut down. If the stove is left to run out of fuel, you may get a 6 blink status light. If this happens simply reset the control board by turning the mode selector to OFF and back...
  • Page 17 First, scrape the ashes off the front of the burn pot into the ash pan. Then, scrape the top surface of the burn pot downward into the base of the burn pot. When the stove is ignited these scrapings will be pushed out by the feeder and burned.

  • Page 18: Manual Operation

    P43 Manual ignitiOn/OPeratiOn The P43 Pellet Stove is capable of manual operation. This also allows the operator to manually control operation during an emergency (i.e. igniter failure, when using a 50H battery backup, as opposed to the 51H, or when using certain generators.) The unit can be switched between "AUTO"...
  • Page 19 First, scrape the ashes off the front of the burn pot into the ash pan. Then, scrape the top surface of the burn pot downward into the base of the burn pot. When the stove is ignited these scrapings will be pushed out by the feeder and burned.

  • Page 20: Low Draft Voltage Adjustment

    10 Volts A.C., 60 Hz. They are checked and adjusted for firebox tightness, gasket leakage, motor operation and igniter operation. The P43 is then factory set at a mid-point adjustment and in most cases will not need any adjustments. nOte: the factory low draft setting may not be correct for the unit's permanent installation conditions.

  • Page 21: Room Sensor And Rear Shield Installation

    NOTE: Distances of more than 5 feet from the unit or in another room are not recommended. The room sensor is essential for the P43's excellent ef- ficiency. NOTE: it is recommended that the room sen- sor be installed, even if only installed on the rear of the unit as a return air sensor.

  • Page 22: Maintenance

    1. Pull on latch handle and remove ash pan. Use ash pan handle to carry and dispose of ashes. . Slide the ash pan back into the stove and latch the Blower Cover door by pushing down on the latch handle.
  • Page 23 Fig. 31 Maintenance 8. Clean the combustion blower wheel with a brush and a vacuum cleaner. Note: Do not use a household vacuum to clean the stove. We recommend that you use a shop vacuum that is equipped with a fine dust filter called a HEPA filter or a vacuum specially made for fly ash and soot. USING A VACUUM WHICH...

  • Page 24: Burn Pot Cleaning And Maintenance

    P43 Maintenance - burn Pot Loosen wing screws Fig. 34 Viewed from below through the ash pan opening. Fig. 36 P43 Pellet Stove burn Pot cleaning and Maintenance 1. Scrape the top holed surface and sides of the burn pot.(Fig 33) It is not necessary to completely remove all material from the burn pot.
  • Page 25 P43 Maintenance - cleaning the Feeder body Pellet fines will accumulate in the feeder body over a period of time; therefore, a yearly inspection and cleaning of this area must be performed. To clean out fines: 1. Remove the rear cover panels. . Remove wing nut and feeder cover on the side of the feeder.

  • Page 26: Helpful Hints

    Pellet fuels are put into 3 categories in terms of ash content. Premium at 1% or less, Standard at 3% or less and all others at 3% or more. The P43 is capable of burning all 3 categories of pellets due to a patented feeder and burn pot system.
  • Page 27 P43 Feeder P43 Pellet Stove...

  • Page 28: Specifications

    Feed rate hopper capacity Fuel Flue Size Outside Air Size Fuse rating P43 Pellet Stove P43 Specifications 212 lbs. 135 cfm approximate .75lb. to 5.5 lbs per hr 50 lbs wood Pellets 3 inch 2 3/8" I.D. inch 6 amp "...
  • Page 29 The decorative tile and slate measure 11.938" x 5.938". The tile/slate frame is necessary to hold the tile or slate in place on the stove. There are 10 decorative tile choices, and 4 decorative slate choices. See dealer for samples.

  • Page 30: Wiring Diagram

    P43 wiring diagram P43 Pellet Stove...

  • Page 31: Parts List

    2-3/8" X 25' Flex Pipe log Set Side heat Shields air grill door Frame w/ash lip & tile/slate trim tile Pack(1 piece) decorative Slate (1 piece) direct vent wall Passthrough P43 Parts list Part number 0-88-00248 1-10-7738108 1-10-00675 2-00-773828-1P 2-00-773828-2P 2-00-773850...
  • Page 32 Maintenance needed to keep the stove in “good operating condition”...
