Harman PP38+ Installation & Operating Manual

Freestanding pellet stove
Hide thumbs Also See for PP38+:
Table of Contents

Advertisement

Quick Links

See also: Operation & Installation Manual , Installation & Operating Manual
NOTICE: SAVE THESE INSTRUCTIONS
Model(s):

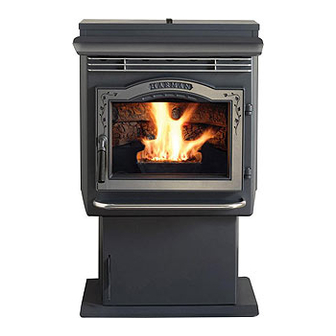

PP38+ Freestanding Pellet Stove
Please read this entire Manual beFore You install and use Your new rooM heater. Failure to
Follow instructions MaY result in ProPertY daMage, bodilY injurY, or even death.
For use in the u.s. and canada. suitable For installation in Mobile hoMes.
iF this harMan stove is not ProPerlY installed, a house Fire MaY result. For Your saFetY, Follow
installation directions.
contact local building or Fire oFFicials about restrictions and installation insPection
reQuireMents in Your area.
contact Your local authoritY (such as MuniciPal building dePartMent, Fire dePartMent, Fire
Prevention bureau, etc.) to deterMine the need For a PerMit.
cette guide d'utilisation est disPonible en Francais. chez votre concessionnaire de harMan
hoMe heating.
installation & operating Manual
saFetY notice
save these instructions.
!
hot surFaces!
Glass and other surfaces are hot during
operation and cool down.
hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
stove.
• Alert children and adults to hazards of high temperatures.
high temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
note
To obtain a French translation of this manual, please
contact your dealer or visit www.harmanstoves.com
Pour obtenir une traduction française de ce manuel, s'il
vous plaît contacter votre revendeur ou visitez www.
harmanstoves.com
WARNING
3-90-08422R33_06/13
