Select the Desired Field Protocol
– for ProtoNode RER (FPC-N34)
Using S0 – S3 bank of DIP Switches
• The S bank of DIP switches, S0 – S3 are used to
select the BACnet MS/TP, BACnet/IP, Modbus
TCP, or Metasys N2 on the ProtoNode RER
(FPC-N34-0636).
• The S bank of DIP switches on ProtoNode LER
(FPC-N35-0637 - LonWorks) is disabled.

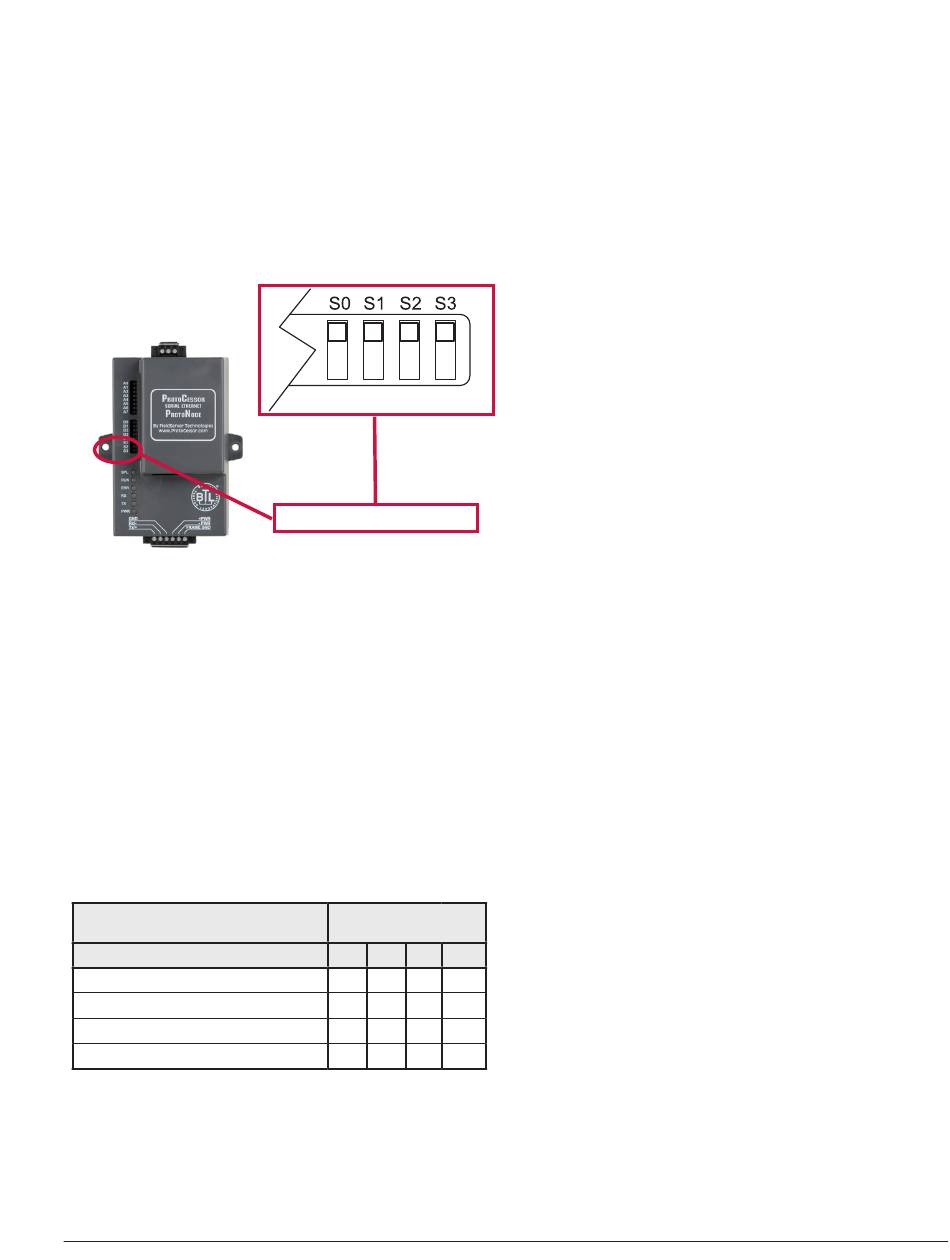

Figure 2. S0 through S3 DIP Switches
BACnet MS/TP, BACnet/IP, Modbus
TCP, and Metasys N2 Settings
for ProtoNode RER (FPC-N34)
Installation Steps for the Customer
The following chart describes S0 - S3 DIP switch
configuration settings for the Raypak products to support
BACnet MS/TP or BACnet/IP on a ProtoNode RER (Part
# FPC-N34-0636).
• When the S bank of switches are all off (default
setting) BACnet IP is enabled.
ProtoNode RER
FPC-N34-0636
Profile
BACnet IP
BACnet MS/TP
Modbus TCP
Metasys
Table C. "S" Bank DIP Switch Settings
APPROVED
S Bank DIP Switches
ProtoNode S
Bank DIP Switches
SO S1 S2 S3
Off Off Off Off
On Off Off Off
Off On Off Off
On On Off Off
UNCONTROLLED DOCUMENT IF PRINTED
Setting the Device Instance (Node-
ID) for BACnet MS/TP and BACnet/
IP on ProtoNode RER (FPC-N34)
• BACnet IP/BACnet MSTP addressing: The BACnet
device instances will be set by taking the BN_
Node_Offset found in the Web Configurator (See
page 13) and added to each Modbus RTU device
address set on the Raypak VERSA IC Master units,
attached to the ProtoNode.
• 50000 is the default.
• If one of the Raypak VERSA IC Master units
Modbus RTU node addresses were set for 10,
then the device instance would be 50010.
• If the 2nd Device is Modbus address set 2, then
the device instance will be set to 50002.
• To change the BN_Node_Offset (See page
15). The node offset can be changed from
50000 to some other number via the Web
Configurator.
Setting the Node-ID for Metasys
N2 and Modbus TCP on
ProtoNode RER (FPC-N34)
• Metasys N2 and Modbus TCP Node-ID Addressing:
Metasys N2 and Modbus TCP Node-ID's range from
1-127. The Metasys N2 and Modbus TCP Node-ID
will automatically set to the same value as the Node-
ID (Address) of the Raypak VERSA IC Master units.
Do not use ID values over 127.
