Changing BN_Node_Offset via the ProtoNode's Web Configurator

The BACnet Device Instance is equal to the Modbus Node ID plus the BN_Node_Offset.
To change the BN_Node_offset, enter the new values for the offset in web configurator.
And click

Set IP Address for BACnet/IP via GUI

Open a PC web browser, enter the default IP address of the ProtoNode 192.168.1.24 and connect to the Protonote.
The Default GUI landing page is the Web Configuration.
Press the Diagnostics and Debugging button at the bottom right corner of the page to go to FSGUI utility.
Figure 17. Web Configurator showing multiple completed profiles added
Click on setup and then Network Settings to enter the Edit IP Address Settings menu.
Type in a new Subnet Mask
If necessary, change the IP Gateway (Default Gateway field)
Type in a new IP Gateway
Note: If the ProtoNode is connected to a router, the IP Gateway of the ProtoNode should be set to the IP address
of the router that it is connected to
Reset ProtoNode
Unplug Ethernet cable from PC and connect it to the network hub or router
APPROVED
to update new values.

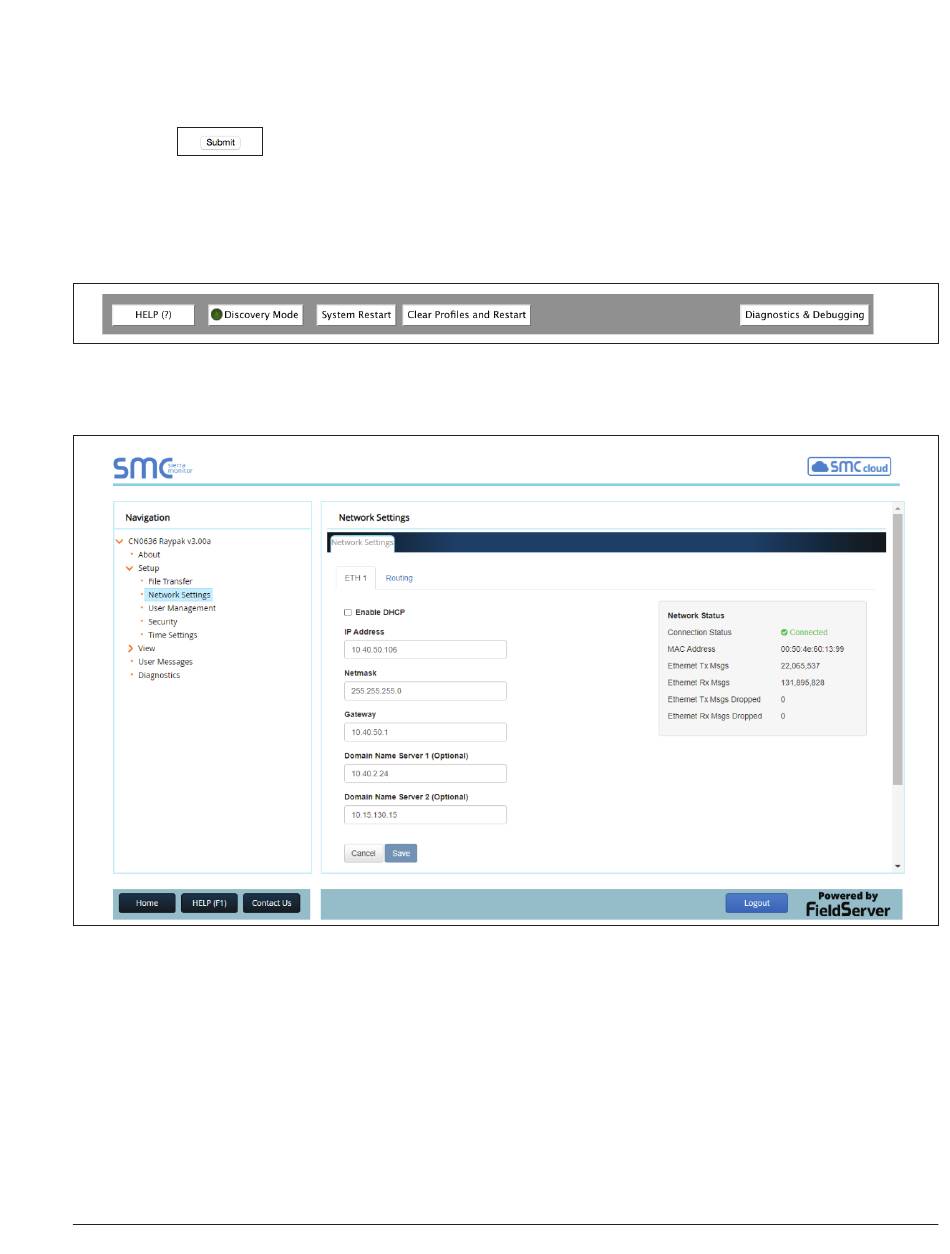

Figure 18. ProtoNode Network Settings Tab
