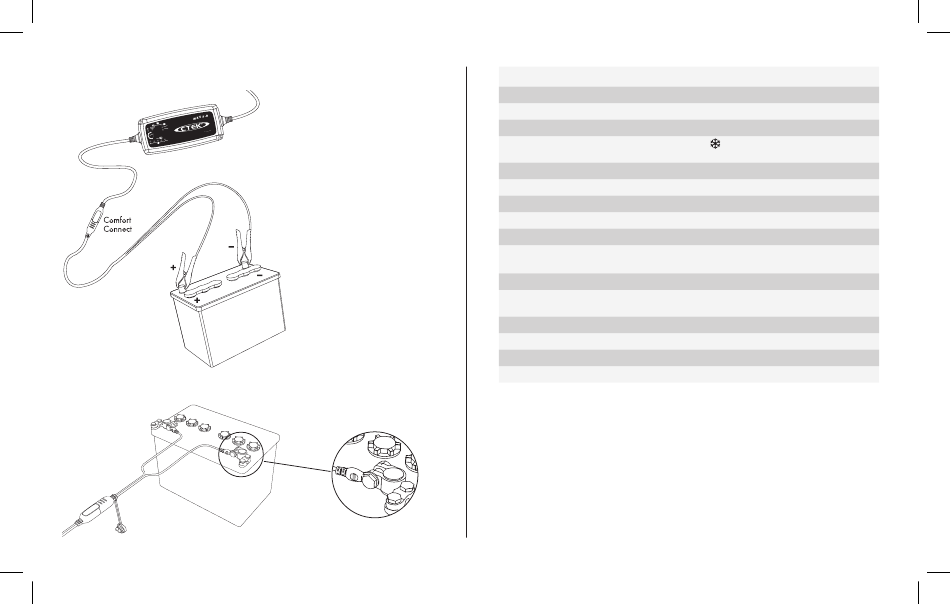

CONNECT AND DISCONNECT THE CHARGER TO A BATTERY
Comfort
Connect
EN
ort
ect
20016109A MXS 7.0, Manual EAST 8, print file 002.indd 6
INFO
If the battery clamps are incorrectly
connected, the reverse polarity
protection will ensure that the battery
and charger are not damaged.
For batteries mounted inside
a vehicle
1. Connect the red clamp to the battery's
positive pole.
2. Connect the black clamp to the vehicle
chassis remote from the fuel pipe and
the battery.
3. Connect the charger to the wall socket.
4. Disconnect the charger from the
wall socket before disconnecting the
battery.
5. Disconnect the black clamp before the
red clamp.
Some vehicles may have posi-
tively earthed batteries
1. Connect the black clamp to the bat-
tery's negative pole.
2. Connect the red clamp to the vehicle
chassis remote from the fuel pipe and
the battery.
3. Connect the charger to the wall socket.
4. Disconnect the charger from the
wall socket before disconnecting the
battery.
5. Disconnect the red clamp before the
black clamp.

TECHNICAL SPECIFICATIONS

Charger model MXS 7.0
Model number 1053
Rated Voltage AC 220–240VAC, 50–60Hz
14.4V,
NORMAL
Charging voltage
SUPPLY 13.6V
Start voltage 2.0V
Charging current 7A max
Current, mains 1.2A rms (at full charging current)
Back current drain* <1Ah/month
Ripple** <4%
Ambient -20°C to +50°C, output power is reduced
automatically at high temperatures
temperature
8-step, fully automatic charging cycle
Charger type
Battery types All types of 12V lead-acid batteries
(WET, MF, Ca/Ca, AGM and GEL)
Battery capacity 14―150Ah up to 225Ah for maintenance
Dimensions 191 x 89 x 48mm (L x W x H)
Insulation class IP65
Weight 0.8kg
*) Back current drain is the current that drains the battery if the charger is not connected to the mains. CTEK
chargers has a very low back current.
**) The quality of the charging voltage and charging current is very important. A high current
ripple heats up the battery which has an aging effect on the positive electrode. High voltage
ripple could harm other equipment that is connected to the battery. CTEK battery chargers
produce very clean voltage and current with low ripple.
14.7V, 15.8V,
AGM RECOND
