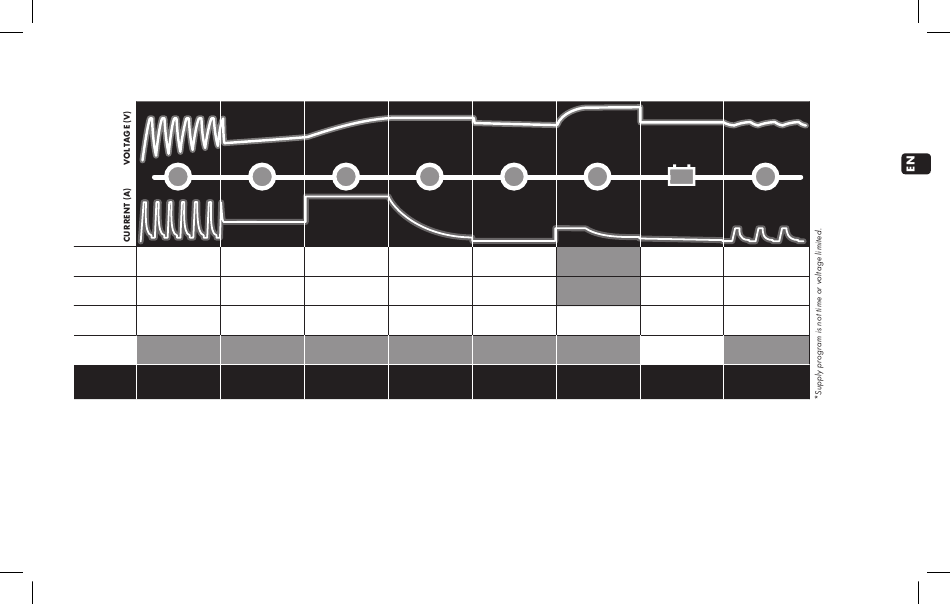

CHARGING PROGRAM

DESULPHATION
1
1
14.4V
NORMAL
14.7V
AGM
14.4V
RECOND
SUPPLY
Limit: Max 8h
STEP 1 DESULPHATION
Detects sulphated batteries. Pulsing current and voltage, removes sulphate from the lead plates
of the battery restoring the battery capacity.
STEP 2 SOFT START
Tests if the battery can accept charge. This step prevents that charging proceeds with a defect
battery.
STEP 3 BULK
Charging with maximum current until approximately 80% battery capacity.
STEP 4 ABSORPTION
Charging with declining current to maximize up to 100% battery capacity.
20016109A MXS 7.0, Manual EAST 8, print file 002.indd 5
SOFT START BULK ABSORPTION
2 3
7A until 12.6V Increasing voltage 14.4V @ 25°C
to 14.4V @ 25°C Declining current
7A
7A until 12.6V Increasing voltage 14.7V @ 25°C
to 14.7V @ 25°C Declining current
7A
7A until 12.6V Increasing voltage 14.4V @ 25°C
to 14.4V @ 25°C Declining current
7A
Max 8h Max 20h
ANALYSE RECOND
4 5
Checks if voltage
drops to 12V
Checks if voltage
drops to 12V
Checks if voltage Max 15.8V
drops to 12V
1.5A
30 min or 4h
Max 10h 3 minutes
depending on
battery voltage
STEP 5 ANALYSE
Tests if the battery can hold charge. Batteries that can not hold charge may need to be replaced.
STEP 6 RECOND
Choose the Recond program to add the Recond step to the charging process. During the
Recond step voltage increases to create controlled gassing in the battery. Gasing mixes the
battery acid and gives back energy to the battery.
STEP 7 FLOAT
Maintaining the battery voltage at maximum level by providing a constant voltage charge.
STEP 8 PULSE
Maintaining the battery at 95–100% capacity. The charger monitors the battery voltage and
gives a pulse when necessary to keep the battery fully charged.
FLOAT PULSE
7
6 8
13.6V 12.9V‒14.4V
7A 7‒2A
13.6V 12.9V‒14.7V
7A 7‒2A
13.6V 12.9V‒14.4V
7A 7‒2A
Max 13.6V
7A
10 days Charge cycle restarts
Charge cycle restarts if voltage drops
if voltage drops*
