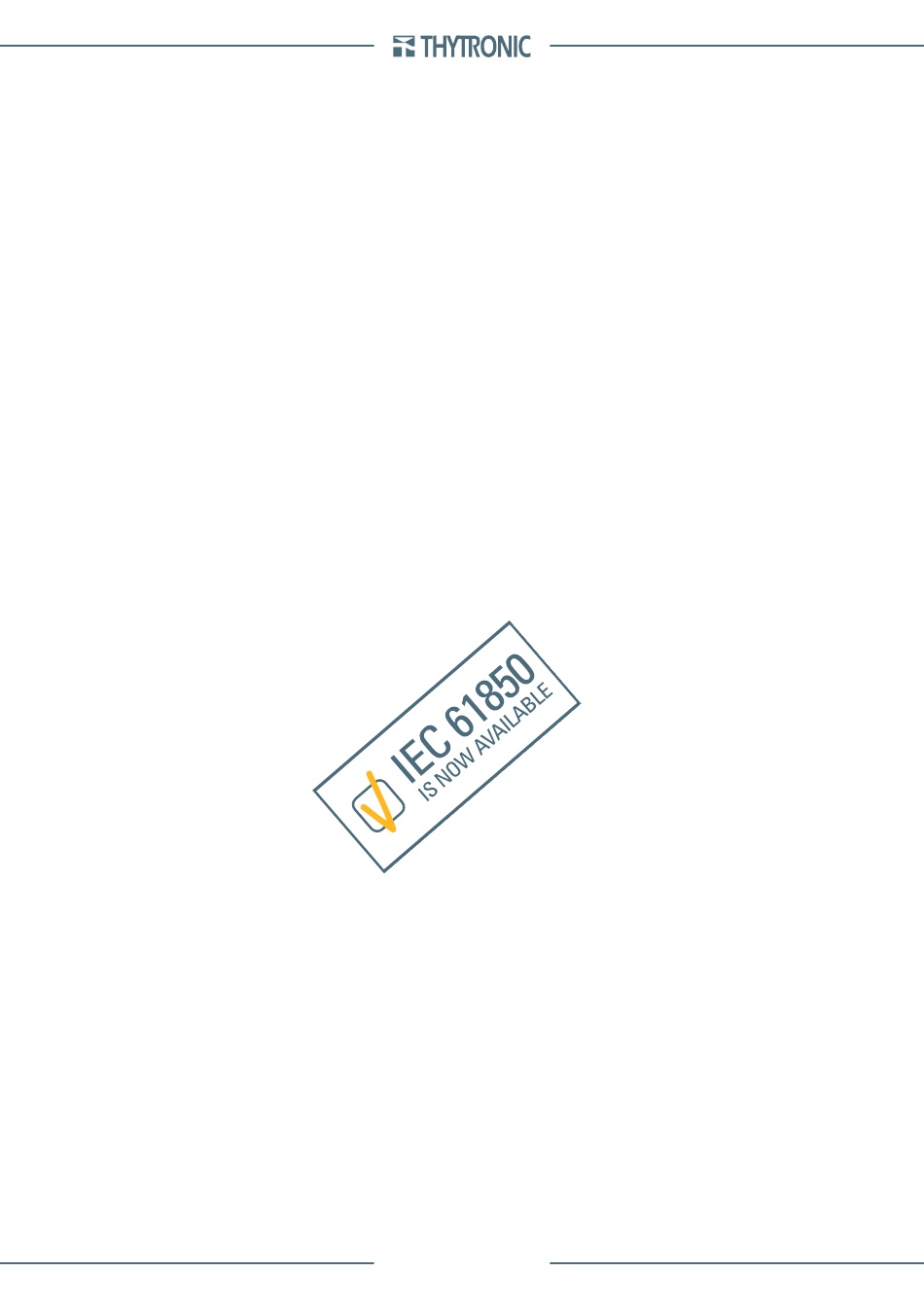

NV021
LOM PROTECTION RELAY
VOLTAGE AND FREQUENCY PROTECTION FOR LOW
VOLTAGE APPLICATIONS
MANUAL
NV021 - Manual - 08 - 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NV021 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thytronic NV021

Summary of Contents for Thytronic NV021

  • Page 1 NV021 LOM PROTECTION RELAY VOLTAGE AND FREQUENCY PROTECTION FOR LOW VOLTAGE APPLICATIONS MANUAL NV021 - Manual - 08 - 2012...

  • Page 2: Table Of Contents

    Circuit Breaker supervision ..................................19 Oscillography (DFR) ..................................... 19 PLC (Programmable Logic Controller) ..............................19 3.9 METERING......................................... 20 — 4 FUNCTION CHARACTERISTICS 4.1 HARDWARE ........................................21 Power supply board ......................................22 CPU board ........................................22 Input board ........................................22 NV021 - Manual - 08 - 2012...
  • Page 3 7.6 PACKAGING ........................................102 — 8 APPENDIX 8.1 APPENDIX A1 - I/O DIAGRAM ..................................103 8.2 APPENDIX A2 - INTERFACES ..................................104 8.3 APPENDIX A3 - PROTECTIVE FUNCTIONS ..............................105 8.4 APPENDIX A4 - CONNECTION DIAGRAMS ...............................106 NV021 - Manual - 08 - 2012...
  • Page 4 8.5 APPENDIX B - DIMENSIONS ..................................107 8.6 APPENDIX C - SETTING TABLE ................................... 108 8.7 APPENDIX D - REVISION HISTORY ................................145 8.8 APPENDIX E - EC DECLARATION OF CONFORMITY ..........................146 NV021 - Manual - 08 - 2012...

  • Page 5: Introduction

    I N T R O D U C T I O N — Scope and liability This document describes the functions, the technical data of NV021 devices; instructions for mount- ing, setting and commissioning are included. This manual has been checked out, however, deviations from the description cannot be completely ruled out, so that no liability in a legal sense for correctness and completeness of the information or from any damage that might result from its use is formally disclaimed.

  • Page 6: Product Identification

    Auxiliary contact in the breaker that is in the opposite position as the breaker (52b open = CB closed) K1...K6...K10 Output relays Note 1 The graphic interface and the operation of the ThySetter software are described in the relative chapters NV021 - Manual - 08 - 2012 INTRODUCTION...
  • Page 7 A text fi le that lists actions that have occurred (ThySetter). J2SE Java Platform Standard Edition Subnet Mask (Ethernet nomenclature) Software Firmware Upgrade Firmware upgrade eXtensible Markup Language IEC 61850 Substation IEC protocol NV021 - Manual - 08 - 2012 INTRODUCTION...
  • Page 8 EXOR logic gate INPUT ON delay timer with reset ( delay) OUTPUT RESET RESET INPUT ON delay timer without reset ( delay) OUTPUT INPUT OFF delay timer (dropout) without reset ( delay) OUTPUT Symbols-en.ai NV021 - Manual - 08 - 2012 INTRODUCTION...
  • Page 9 RESET RESET INPUT Minimum pulse width operation for output relays ( OUTPUT INPUT Latched operating mode for output relays and LEDs Latched OUTPUT INPUT Pulse operating mode for output relays OUTPUT Symbols1-en.ai NV021 - Manual - 08 - 2012 INTRODUCTION...

  • Page 10: General

    G E N E R A L — Preface The relay type NV021 can be typically used in HV, MV and LV distribution systems, on transformers or for electrical machines. It can be used for system decoupling, load shedding and loss of main (islanding) protection.

  • Page 11: Main Features

    • The event recorder (SER) runs continuously capturing in circular mode the last three hundred events upon trigger of binary input/output. • Digital fault recorder (DFR) in COMTRADE format (oscillography) — Photo NV021 - Manual - 08 - 2012 GENERAL...

  • Page 12: Technical Data

    Air discharge 8 kV Reference standards EN 60255-22-3 IEC 60255-22-3 EN 61000-4-3 IEC 61000-4-3 Radiated radio-frequency fi elds • 80...1000 MHz AM 80% 10 V/m • 900 MHz Pulse modulated 10 V/m NV021 - Manual - 08 - 2012 TECHNICAL DATA...

  • Page 13: Emission

    Reference voltage 250 V Overvoltage category — Certifications Reference standards Product standard for measuring relays EN 50263 CE Conformity • EMC Directive 2004/108/EC • Low Voltage Directive 2006/95/EC Type tests IEC 60255-6 NV021 - Manual - 08 - 2012 TECHNICAL DATA...

  • Page 14: Input Circuits

    • Connection screw terminals • Baud rate 1200...57600 bps • Protocol ModBus®RTU, IEC 60870-5-103 Ethernet 100BaseT • Connection 100 Base TX, RJ45 • Baud rate 100 Mbps • Protocol IEC 61850 NV021 - Manual - 08 - 2012 TECHNICAL DATA...

  • Page 15: General Settings

    Note 2 The mathematical formula for INVERSE curve is: t= (0.75 ∙ t = operating time (in seconds) < = operating time setting (in seconds) U = input voltage U< = threshold setting NV021 - Manual - 08 - 2012 TECHNICAL DATA...

  • Page 16: Overvoltage - 59

    - with initial value 0.9 Uavg>def (0.9x1.1 = 0.99 Un) and fi nal value 1.1 Uavg>def (1.1x1.1 = 1.21 Un) the pickup time is 285 s Note 4 Since the aggregate value is updated every 3 s, times are only meaningful in multiples of 3 s NV021 - Manual - 08 - 2012 TECHNICAL DATA...

  • Page 17: Overfrequency (81O)

    1.5% ± 10 ms Operate time accuracy Note 1: 1.5% ± 15 ms with operate time setting = 0.05 s Note 2: 1.5% ± 15 ms with operate time setting = 0.05 s NV021 - Manual - 08 - 2012 TECHNICAL DATA...

  • Page 18: Frequency Rate Of Change (81R)

    3% ± 20 ms — Breaker failure - BF BF Time delay (t 0.06...10.00 s (step 0.01 s) Dropout ratio 0.95...0.98 Dropout time ≤ 0.05 s Operate time accuracy 5% or ± 10 ms NV021 - Manual - 08 - 2012 TECHNICAL DATA...

  • Page 19: Control And Monitoring

    Note 1 If the measured frequency is out of the locking range, the system lock on to the rated frequency (50 or 60 Hz) Note 2 For the DFR function a licence is required; call Thytronic for purchasing. Note 3 The measures of temperature are available only when the MPT module on Thybus is enabled (eigth Pt100 inputs) Note 4 Output relay K7...K10 and binary input IN3...IN42 states are available only when the concerning I/O circuits are implemented (MRI and MID16...

  • Page 20: Metering

    Temperature PT3 Temperature PT4 Temperature PT5 Temperature PT6 Temperature PT7 Temperature PT8 Note 1 The measures of temperature are available only when the MPT module on Thybus is enabled (eight Pt100 inputs) NV021 - Manual - 08 - 2012 TECHNICAL DATA...

  • Page 21: Function Characteristics

    POWER SUPPLY Input Input BLOCK I/O BLOCK I/O BLKIN BLKIN Input Input BLKOUT BLKOUT Uaux Uaux RELAYS RELAYS Output contacts Output contacts K1...K6 K1...K6 POWER SUPPLY BOARD POWER SUPPLY BOARD hw.ai hw.ai NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 22: Power Supply Board

    An eight keys 8 keyboard, • a backlight LCD display, • Eight signalling LEDs, The removable plug allows separation of the MMI module for free access to the CPU board when DIP-switch setting is required. NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 23: Software

    Example are: • Keyboard management • RTC (Real Time Clock) updating • RAM/EEPROM updating • Diagnostic • Input acquisition • Output relay management • • I/O updating • DSP data processing DSP Firmware NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 24: Drivers

    Xml fi les used for communication. The automatic code generation criteria ensures the quality of the result in terms of the reusability, verifi ability and maintainability of the software life cycle. NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 25: I/O Description

    Samples are processed by means DFT (Discrete Fourier Transform) algorithm and the phase and amplitude of fundamental are computed: • Input voltages U ACQUISITION ACQUISITION ≈ ≈ UL 1 -e n . a i UL 1 -e n . a i NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 26 U has a transitional trend with square-law as shown in the following fi gure. Ten minutes RMS voltage (59Uavg) Ten minutes RMS voltage (59Uavg) Nota 1 Calcolate sulle tre tensioni concatenate NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 27: Conventions

    Direc t se quence cy cli c order Direc t se quence cy cli c order Inverse sequence cycl ic or de r Inverse sequence cycl ic or de r fasori1.ai fasori1.ai NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 28 Fault 19 OSCILLOGRAPHY g g g g g g g g Record 1 g g g g g g g g Record 2 g g g g g g g g Record ... NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 29: Binary Inputs

    Reset counters Reset CB Monitor (clear CB monitoring data) 52a (CB auxiliary contact) 52b (CB auxiliary contact) Open CB Close CB Remote trip 74VT ext. (74VT from external protection relays f<-f> Control NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 30 Note 1 To enable the profi le switching the “Input-selected” parameter must be set inside the “Profi le selection” submenu. If multiple setting groups are not required, Group A is the default selection NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 31 Note 2 The activation of one binary input produces indiscriminately a block of all protective elements programmed for being blocked from Block1 Note 3 The reset of the total counters is practicable by means ThySetter command with Session Level 1 (available with password) NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 32 INx t INx t INx t INx t n.o. n.o. Binary input INx Binary input INx Restrictive threshold enabling from binary input Restrictive threshold enabling from binary input Consenso 81O-81U.ai Consenso 81O-81U.ai NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 33: Output Relays

    - Energized operating mode, - No-latched , in order that it stays ON for normal conditions and the other way round it goes OFF if any fault is detected and/or the auxiliary supply turns OFF. NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 34 BF Trip relays (BF-TR-K) Number of CB trips diagnostic relays (N.Open-K) Circuit breaker opening time diagnostic relays (tbreak-K) Open CB command relays (CBopen-K) Close CB command relays (CBclose-K) Remote tripping relays (RemTrip-K) NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 35: Led Indicators

    Note 1 The START and the TRIP LED are user assignable to any function; other than starting and tripping information can be assigned to them too, just the same for L1...L5 Note 2 All LEDs are unassigned in the default setting. NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 36 74TCS Trip (74TCS-TR-L) BF Start (BF-ST-L) BF Trip (BF-TR-L) Number of CB trips diagnostic (N.Open-L) Circuit breaker opening time diagnostic (tbreak-L) Open CB command (CBopen-L) Close CB command (CBclose-L) Remote tripping (RemTrip-L) NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 37: Communication Interfaces

    — Communication interfaces Several communication ports are provided: • RS232 port on the front side of the NV021 device for local communication (ThySetter). • RS485 port on the rear side of the NV021 device for bus communication. • Ethernet port on the rear side of the NV021 device for bus communication.

  • Page 38: Protective Elements

    The relay nominal voltage may be set to: U = 400 V Example 2 = 230 V = 230 V NV021 NV021 The relay nominal voltage may be set to: U = 230 V NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 39 Measures may be displayed according the following operating modes: - With RELATIVE setting all measures are related to the nominal value, - With PRIMARY setting all measures are related to the primary value. NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 40 0 . 2 5 s 0 . 2 5 s 0 . 2 5 s Pt1...8 update Pt1...8 update t-refresh-F26.ai t-refresh-F26.ai Note 1 The 26 menu is available when the MPT module is enabled NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 41 BF Enable (ON≡Enable) Th>xBF Logic diagram for thermal protection with RTD thermometric probes (26) Fun-F26.ai Note 1 The common settings concerning the Breaker failure protection are adjustable inside the Breaker Failure - BF menu. NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 42: Undervoltage - 27

    U <and / or U << element (with manual or automatic reset, normally energized or de-ener- gized) are forced to rest state, the display shows the message “Disabled 27” and all LEDs blink until the end of the command. NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 43 Logic diagram concerning the first threshold (U<) of the undervoltage element - 27 Fun-F27_S1.ai Fun-F27_S1.ai Note 1 The common settings concerning the Breaker failure protection are adjustable inside the Breaker Failure - BF menu. NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 44 Set \ Inputs \ Binary input IN1(x) menus (IN1 or INx matching). Note 1 The exhaustive treatment of the logical block (Block 1) function may be found in the “Logic Block” paragraph inside CONTROL AND MONITOR- ING section. NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 45 U /U<inv 0.01 0.25 Note: match of operating and setting time takes place when U/U< = 0.25 Inverse time operating characteristic concerning the first threshold (U<) of the undervoltage element - 27 F_27-Char.ai NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 46: Positive Sequence Undervoltage - 27V1

    Note 2 The common settings concerning the Breaker failure protection are adjustable inside the Breaker Failure - BF menu. Note 3 The exhaustive treatment of the logical block (Block 1) function may be found in the “Logic Block” paragraph inside CONTROL AND MONITOR- ING section. NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 47 INx t INx t Block1 n.o. Binary input INx Trip U1< towards BF logic & U1< BF BF Enable (ON≡Enable) U1<BF Logic diagram concerning the positive sequence undervoltage element - 27V1 Fun-F27V1_S1.ai NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 48: Overvoltage - 59

    All the parameters can be set separately for Profi le A and Profi le B (Set \ Profi le A(or B) \ Overvolt- age - 59 \ U> Element (U>> Element) \ Setpoints menus). Note 1 The common settings concerning the Breaker failure protection are adjustable inside the Breaker Failure - BF menu. NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 49 Logic diagram concerning the first threshold (U>) of the overvoltage element - 59 Fun-F59_S1.ai Note 1 The exhaustive treatment of the logical block (Block 1) function may be found in the “Logic Block” paragraph inside CONTROL AND MONITOR- ING section. NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 50 INx t Block1 n.o. Binary input INx Trip U>> towards BF logic U>> BF & BF Enable (ON≡Enable) U>>BF Logic diagram concerning the second threshold (U>>) of the overvoltage element - 59 Fun-F59_S2.ai NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 51 U /U >inv Note: match of operating and setting time takes place when U/U> = 1.5 Inverse time operating characteristic concerning the first threshold (U>) of the overvoltage element - 59 F_59-Char.ai NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 52: Ten Minuts Overvoltage - 59Uavg

    - with initial value 0 and fi nal value 1.1 Uavg> def (1.1x1.1 = 1.21 Un) the pickup time is 498 s - with initial value 0.9 Uavg>def (0.9x1.1 = 0.99 Un) and fi nal value 1.1 Uavg>def (1.1x1.1 = 1.21 Un) the pickup time is 285 s NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 53 Set \ Inputs \ Binary input IN1(x) menus (IN1 or INx matching). All the parameters can be set separately for Profi le A and Profi le B. NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 54: Negative Sequence Overvoltage - 59V2

    Note 2 The common settings concerning the Breaker failure protection are adjustable inside the Breaker Failure - BF menu. NV021 - Manual - 08 - 2012 Note 3 The exhaustive treatment of the logical block (Block 1) function may be found in the “Logic Block” paragraph inside CONTROL AND MONITOR- CHARACTERISTICS ING section.
  • Page 55 Block1 n.o. Binary input INx Trip U2> towards BF logic & U2> BF BF Enable (ON≡Enable) U1<BF Logic diagram concerning the threshold (U2>) of the negative sequence overvoltage element - 59V2 Fun-F59V2_S1.ai NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 56: Overfrequency - 81O

    The parameters are available inside the Set \ Profi le A(or B) \ Overfrequency - 81O \ f> Element (f>> Element) \ Setpoints menus. Note 1 The common settings concerning the Breaker failure protection are adjustable inside the Breaker Failure - BF menu. NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 57 Logic diagram concerning the second threshold (f>>) of the overfrequency element - 81O Note 1 The exhaustive treatment of the logical block (Block 1) function may be found in the “Logic Block” paragraph inside CONTROL AND MONITOR- ING section. NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 58: Underfrequency - 81U

    Note 1 For sensors inputs versions the frequency is measured on the phase voltages ( ), while for versions with inductive VTs inputs the frequency is measured on-phase-to-phase voltages ( On the diagrams are the input phase voltages or phase-to-phase according to the corresponding versions NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 59 Logic diagram concerning the first threshold (f<) of the underfrequency element - 81U Fun-F81U_S1.ai Note 1 The exhaustive treatment of the logical block (Block 1) function may be found in the “Logic Block” paragraph inside CONTROL AND MONITOR- ING section. NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 60 INx t Block1 n.o. Binary input INx f<<< Trip towards BF logic & f<<< BF BF Enable (ON≡Enable) f<<<BF Logic diagram concerning the third threshold (f<<<) of the underfrequency element - 81U Fun-F81U_S3.ai NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 61 INx t Block1 n.o. Binary input INx f<<<< Trip towards BF logic & f<<<< BF BF Enable (ON≡Enable) f<<<<BF Logic diagram concerning the fourth threshold (f<<<<) of the underfrequency element - 81U Fun-F81U_S4.ai NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 62: Application Notes About Over-Under Frequency Elements - 81U And 81O

    ON = Fault (Start 59N and/or 27V1 and/or 59V2 element) ON = Fault (Start 59N and/or 27V1 and/or 59V2 element) Operating logic for thresholds activation with voltmetric control Operating logic for thresholds activation with voltmetric control NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 63 (see following page) Binary input connected to remote trip external contact Remo t e t r ip Remote trip (Goose IEC61850) Remo t e t r ip Logic diagram concerning the NV021 voltage control NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 64: Frequency Rate Of Change - 81R

    \ df>>> Element, (df>>>> Element) \ Setpoints menus. Note 1 For one-phase grids the frequency is measured on the phase voltage , while for three-phase grids the frequency is measured on-phase-to- phase voltage NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 65 Logic diagram concerning the frequency rate of change elements - 81R all-F81R.ai all-F81R.ai Note 1 The exhaustive treatment of the logical block (Block 1) function may be found in the “Logic Block” paragraph inside CONTROL AND MONITOR- ING section. NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 66 Binary input INx f<< Trip df>> BF towards BF logic & BF Enable (ON≡Enable) df>> BF Logic diagram concerning the second threshold (df>>) of the frequency rate of change element - 81R Fun-F81R_S2.ai NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 67 Binary input INx df>>>> Trip towards BF logic & f<<<< BF BF Enable (ON≡Enable) df>>>>BF Logic diagram concerning the fourth threshold (df>>>>) of the frequency rate of change element - 81R Fun-F81R_S4.ai NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 68: Breaker Failure - Bf

    (52nd or 52b ) may suffi ce Note 2 The exhaustive treatment of the logic block (Block 1) function may be found in the “Logic Block” paragraph inside CONTROL AND MONITORING section NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 69 BLK1 BF & Block1 Logic INx t INx t n.c. INx t Block1 input (ON≡Block) INx t Block1 n.o. Binary input INx (x=1...8-16) Logic diagram concerning the breaker failure element -BF Fun-BF_Pro-n.ai NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 70: Control And Monitoring

    Note 1 In the following treatment, the logical block is defi ned as “Logical block” or “Block1” Note 2 The Block 1 signal forces a timer reset NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 71 81R element df>>BLK1 81R element df>>>BLK1 81R element df>>>>BLK1 81R element 74TCS-BLK1 74TCS element BF-BLK1 BF element Block1 info Block1 (internal state) Logic diagram concerning the logic block element -Block1 Block1_L.ai NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 72: Remote Tripping

    RemTrip-K RemTrip-K n.c. n.c. INx t INx t INx t INx t n.o. n.o. RemTrip-L RemTrip-L Binary input INx Binary input INx Remote tripping logic diagram Remote tripping logic diagram Fun-Remote-trip.ai Fun-Remote-trip.ai NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 73: Frequency Tracking

    , while for versions with inputs from inductive VTs the frequency is measured on line-to-line voltages Inside the diagrams are the input phase-to neutral or phase-to-phase voltages according to the corresponding versions NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 74: Trip Circuit Supervision - 74Tcs

    (Block 1) function may be found in the “Logic Block” paragraph inside CONTROL AND MONITORING section Note 2 Following assumption are considered for the framework: Logic: ON, Timers t and t reset to zero OFF: TRIP contact of the protection: DE-energized, No latched NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 75 Outputs are reset to zero after 6 s from the TRIP contact open. Note 1 The trip contact (TRIP) of the protection relays must be set with automatic reset (No-latched operating mode). NV021 - Manual - 08 - 2012 CHARACTERISTICS...
  • Page 76 ) / 2 = (103.7 + 30425) / 2 = 15264 Ω ~ 15 k Ω (Power dissipated by the R resistor) = U /R = 110 / 15000 = 0.8 W NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 77: Circuit Breaker Supervision

    (tbreak>) is exceeded, an output relay and/or LED can be activated. The four criteria can be contemporaneously or separately set. All the named parameters are available inside the Set\Circuit Breaker supervision\CB Diagnostic menu. NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 78: Oscillography

    Note 1 The 26 menu is available when the MPT module is enabled Nota 2 The output relay K7...K10 and binary input IN3...IN42 states is meaningful when the I/O circuits are present (MRI and MID16 modules) NV021 - Manual - 08 - 2012 CHARACTERISTICS...

  • Page 79: Measures, Logic States And Counters Measures

    • 59Uavg - Counters • 81O - Counters • 81U - Counters • 81R - Counters • 74TCS - Counters • CB - Counters • BF - Counters NV021 - Manual - 08 - 2012 MEASURES, LOGIC STATES AND COUNTERS...

  • Page 80: Self Test

    Note 2 Data are stored in non volatile memory; they are held in spite of power down Note 3 Counter is updated at any new record; it may be cleared by means ThySetter NV021 - Manual - 08 - 2012 MEASURES, LOGIC STATES AND COUNTERS...

  • Page 81: Event Recording - Ser

    Note 2 Counter is updated at any new record; it may be cleared by means ThySetter Note 3 Data are stored into non volatile memory FLASH, they are preserved also when power goes down NV021 - Manual - 08 - 2012 MEASURES, LOGIC STATES AND COUNTERS...
  • Page 82 24 + 24 · 3 + 4 · 3 + 8 24 + 24 · 3 + 4 · 3 + 8 (0.5 + 0.5 )(s) (0.5 + 0.5 )(s) 60 (Hz) 60 (Hz) NV021 - Manual - 08 - 2012 MEASURES, LOGIC STATES AND COUNTERS...

  • Page 83: Installation

    N.4 holes ø 3,5 N.4 holes ø 3,5 Flush-mount.ai Flush-mount.ai Flush mounting Flush mounting Separation of fixed and removable parts is NOT required Separation of fixed and removable parts is NOT required NOTE NOTE NV021 - Manual - 08 - 2012 INSTALLATION...
  • Page 84 START START TRIP TRIP Project mounting Project mounting Projecting.ai Projecting.ai NV021 - Manual - 08 - 2012 INSTALLATION...
  • Page 85 128.5 212.5 212.5 START START TRIP TRIP Separate operator panel Separate operator panel Separate-mount.ai Separate-mount.ai A standard direct shielded cable with RJ45 connectors must be used for connections. Separate operator panel Separate-mount1.ai NV021 - Manual - 08 - 2012 INSTALLATION...
  • Page 86 Rack mounting Rack mounting Rack-mount.ai Rack-mount.ai To allow opening of the keyboard door a one unit space must be provided when several rack are overlapping mounted. Rack-mount1.ai Rack-mount1.ai Rack mounting Rack mounting NV021 - Manual - 08 - 2012 INSTALLATION...

  • Page 87: Electrical Connections

    Devices must be installed by qualified personnel only. CAUTION CAUTION No liability is accepted from Thytronic due to improper use. No liability is accepted from Thytronic due to improper use. A protective ground connection is required, which must be connected to the suitable screw with a separate lead of at least 2.5 mm...
  • Page 88 (about current, nominal voltage, make and break current , etc..). load (about current, nominal voltage, make and break current , etc..). For all diagrams the output contacts are shown in de-energized state for standard reference. NV021 - Manual - 08 - 2012 INSTALLATION...
  • Page 89 Set to OFF the Autonegotiation parameter of NV10 device (Autonegotiation parameter inside • Communication \ Ethernet submenu). For security reasons, a change of the Ethernet communication parameters become active only after an hw reset. NV021 - Manual - 08 - 2012 INSTALLATION...
  • Page 90 Termination resistors allow adjusting the impedance of the line, reducing the infl uence of the induc- tive components of the same, which might compromise good communication. PRO-N PRO-N ≅ SUPERVISION UNIT RS485 BLOUT- BLOUT+ 120 Ω FRONT PANEL RS485-wiring.ai NV021 - Manual - 08 - 2012 INSTALLATION...
  • Page 91 1 2 3 4 5 6 7 8 9 IN11 54 53 42 41 38 37 36 35 IN12 IN13 IN14 OUTPUT INPUT IN15 MODULO INGRESSI REMOTI MID-16 IN16 1 2 3 4 5 6 7 8 9 NV021 - Manual - 08 - 2012 INSTALLATION...
  • Page 92 One MRI module, two MID16 modules, one MPT module, one MCI module and one MMI module (separate operator panel) can be connect at the same time to the Thybus port (maximum expansion). NV021 - Manual - 08 - 2012 INSTALLATION...

  • Page 93: Led Allocation

    The auxiliary voltage in the panel falls within the operative range of Pro_N relays. • The relay rated voltage (100 V or 400 V) corresponds to the Pro_N input voltages. • All wirings are correct. • All screws are tightly screwed. NV021 - Manual - 08 - 2012 INSTALLATION...

  • Page 94: Programming And Settings

    The ThySetter sw is a “browser” of data (setting, measure, etc..); it implements an engine that is afford to rebuild the menu set up and the relationships to data concerning all Thytronic protective relays by means of XML fi les.

  • Page 95: Mmi (Man Machine Interface)

    “FAULT RECORDING >>” “EVENTS RECORDING >>” The complete menu is shown in the following pages. Note 1 Setting changes are enabled when the La mEnabling setting by MMI parameter is set NV021 - Manual - 08 - 2012 SETTING AND COMMISSIONING...
  • Page 96 Press the (Enter) button for a few seconds; new message appears: “Confi rm settings?” • Answer to the message ENTER: YES to confi rm changes or RESET: NO to abort. NV021 - Manual - 08 - 2012 SETTING AND COMMISSIONING...
  • Page 97 The committed output relays must be enabled inside the Circuit Breaker supervision \ LEDs-relays allocation menu. Note 1 Instantly all the relays are switched in rest state, including relays programmed as “normally energized” NV021 - Manual - 08 - 2012 SETTING AND COMMISSIONING...

  • Page 98: Menu Tree

    K1 relay K1 coil K2 relay K2 coil K3 relay K3 coil RELAYS K4 relay K4 coil K5 relay K5 coil PROCEED READ MENU’ K6 relay K6 coil NV10P_menu1.ai NV021 - Manual - 08 - 2012 SETTING AND COMMISSIONING...
  • Page 99 Operating phase: Binary IN: Fault 299 Date: Relay OUT: Time: Event0 (last): ..: Eventxx: IN1 on ..: Settings Date Date EVENTS RECORDING Relay OUT: Time Time PROCEED SET MENU’ NV10P_menu2.ai NV021 - Manual - 08 - 2012 SETTING AND COMMISSIONING...
  • Page 100 Uavg>TR-K U2>def 0.1 Un LEDs Uavg> tU2>def Uavg>ST-L U2>BLK1 Uavg>TR-L U2>BF Relays U2> 59V2 U2> Element U2>ST-K U2>TR-K LEDs U2> U2>ST-L U2>TR-L PROCEED SET MENU’ PROCEED PROFILE A MENU’ NV10P_menuset1.ai NV021 - Manual - 08 - 2012 SETTING AND COMMISSIONING...
  • Page 101 Test state: NTP Synch. Stop test? >> Start test? >> Test K1 >> TEST Test K2 >> Test K3 >> Test K4 >> Test K5 >> Test K6 >> NV10P_menuset2.ai NV021 - Manual - 08 - 2012 SETTING AND COMMISSIONING...

  • Page 102: Maintenance

    NV021 - Manual - 08 - 2012 SETTING AND COMMISSIONING...

  • Page 103: Appendix A1 - I/O Diagram

    A P P E N D I X APPENDIX A1 - I/O DIAGRAM NV021 ≅ NV10P-I-O.ai NV021 - Manual - 08 - 2012 APPENDIX...

  • Page 104: Appendix A2 - Interfaces

    INPUT INPUT MODULO 4 RELE’ + 8 INGRESSI DIGITALI MID8 MODULO INGRESSI REMOTI 4 RELAYS + 8 BINARY INPUTS MODULE 1 2 3 4 5 6 7 8 9 FRONT PANEL Interfaces.ai NV021 - Manual - 08 - 2012 APPENDIX...

  • Page 105: Appendix A3 - Protective Functions

    APPENDIX A3 - PROTECTIVE FUNCTIONS NV021 74TCS 59Uavg Voltage inputs 27V1 59V2 NV021 - Manual - 08 - 2012 APPENDIX...

  • Page 106: Appendix A4 - Connection Diagrams

    For all diagrams the output contacts are shown in de-energized state for standard reference. L1 L2 L3 NV021 One-phase grids TRIP - NV021 SELF (diagnostic) Trip NV021 (K1) Breaker failure (BF) FRONT PANEL BF (K2) ≅ NV021-sch.ai NV021 - Manual - 08 - 2012 APPENDIX...

  • Page 107: Appendix B - Dimensions

    SEPARATE PROJECTING MOUNTING PROJECTING MOUNTING (Separate operator panel) (Stand alone) OPERATOR PANEL RACK MOUNTING FLUSH MOUNTING CUTOUT 102.5 ±0.3 482.6 START START START START TRIP TRIP TRIP TRIP N.4 holes ø 3.5 NV021 - Manual - 08 - 2012 APPENDIX...

  • Page 108: Appendix C - Setting Table

    No-latched | Pulse | Latched Minimum pulse width 0 ... 500 step = 5 Logic De-energized | Energized Operation MODE No-latched | Pulse | Latched Minimum pulse width 0 ... 500 step = 5 NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 109 0 ... 500 step = 5 LEDs START Type No-latched | Latched TRIP Type No-latched | Latched Type No-latched | Latched Type No-latched | Latched Type No-latched | Latched Type No-latched | Latched NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 110 Self-test relay K1 | K2 | K3 | K4 | K5 | K6 Modules data visualization Assigned modules | All modules Profi le selection Active profi le A | B | By INPUT NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 111 START | TRIP | L1 | L2 | L3 | L4 | L5 Th>3 Trip Th>3 Enable Th>3 Enable OFF | ON 26 PT3 Trip threshold Th>3 °C 0 ... 200 step = 1 Th>3 Operating time NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 112 ThAL6 Alarm relays ThAL6-K K1 | K2 | K3 | K4 | K5 | K6 ThAL6 Alarm LEDs ThAL6-L START | TRIP | L1 | L2 | L3 | L4 | L5 Th>6 Trip NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 113 PT100 probe diagnostic LEDs PT100Diag-L START | TRIP | L1 | L2 | L3 | L4 | L5 Undervoltage - 27 Common confi guration 27 Operating logic Logic27 OR | AND U< Element NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 114 U1< Trip relays U1<TR-K K1 | K2 | K3 | K4 | K5 | K6 U1< Start LEDs U1<ST-L START | TRIP | L1 | L2 | L3 | L4 | L5 NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 115 START | TRIP | L1 | L2 | L3 | L4 | L5 U>> Trip LEDs U>>TR-L START | TRIP | L1 | L2 | L3 | L4 | L5 Defi nite time 59 Second threshold defi nite time State OFF | ON NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 116 Trip relays f>TR-K K1 | K2 | K3 | K4 | K5 | K6 f> Start LEDs f>ST-L START | TRIP | L1 | L2 | L3 | L4 | L5 NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 117 Start LEDs f<ST-L START | TRIP | L1 | L2 | L3 | L4 | L5 f< Trip LEDs f<TR-L START | TRIP | L1 | L2 | L3 | L4 | L5 NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 118 Start LEDs f<<<ST-L START | TRIP | L1 | L2 | L3 | L4 | L5 f<<< Trip LEDs f<<<TR-L START | TRIP | L1 | L2 | L3 | L4 | L5 NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 119 Value 0.00 ... 9.99 step = 0.01 10.0 ... 100.0 step = 0.1 df>> Element Setpoints df>> Operating mode Mode-df>> Module | Positive | Negative df>> Logical block df>>BLK1 OFF | ON NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 120 START | TRIP | L1 | L2 | L3 | L4 | L5 df>>>> Trip LEDs df>>>>TR-L START | TRIP | L1 | L2 | L3 | L4 | L5 Defi nite time 81R Fourth threshold defi nite time NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 121 °C 0 ... 200 step = 1 ThAL2 Operating time Value 0 ... 100 step = 1 ThAL2 Alarm relays ThAL2-K K1 | K2 | K3 | K4 | K5 | K6 NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 122 START | TRIP | L1 | L2 | L3 | L4 | L5 PT5 Probe ThAL5 Alarm ThAL5 Enable ThAL5 Enable OFF | ON 26 PT5 Alarm threshold ThAL5 °C 0 ... 200 step = 1 ThAL5 Operating time NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 123 K1 | K2 | K3 | K4 | K5 | K6 Th>7 Trip LEDs Th>7-L START | TRIP | L1 | L2 | L3 | L4 | L5 PT8 Probe ThAL8 Alarm NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 124 0.05 ... 1.10 step = 0.01 U<inv Operating time tU<inv 0.10 ... 9.99 step = 0.01 10.0 ... 100.0 step = 0.1 U<< Element Setpoints U<< Logical block U<<BLK1 OFF | ON NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 125 START | TRIP | L1 | L2 | L3 | L4 | L5 Defi nite time 59 First threshold defi nite time State OFF | ON Pickup value 0.50 ... 1.50 step = 0.01 NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 126 Pickup value 0.50 ... 1.50 step = 0.01 Uavg>def Delay time Value 0 ... 1000 step = 1 Negative sequence overvoltage - 59V2 U2> Element Setpoints U2> Logical block U2>BLK1 OFF | ON NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 127 START | TRIP | L1 | L2 | L3 | L4 | L5 f>> Element Setpoints f>> Logical block f>>BLK1 OFF | ON f>> Breaker failure f>>BF OFF | ON f> Disabling by f>> start f>disbyf>> OFF | ON NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 128 OFF | ON f<< Breaker failure f<<BF OFF | ON f< Disabling by f<< start f<disbyf<< OFF | ON f<< Start relays f<<ST-K K1 | K2 | K3 | K4 | K5 | K6 NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 129 OFF | ON Pickup value 0.800 ... 1.000 step = 0.001 f<<<<def Operating time Value 0.05 ... 9.99 step = 0.01 10.0 ... 100.0 step = 0.1 Frequency rate of change - 81R NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 130 START | TRIP | L1 | L2 | L3 | L4 | L5 df>>> Trip LEDs df>>>TR-L START | TRIP | L1 | L2 | L3 | L4 | L5 Defi nite time 81R Third threshold defi nite time NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 131 PLC Enable OFF | ON Relays PLC-K K1 | K2 | K3 | K4 | K5 | K6 LEDs PLC-L START | TRIP | L1 | L2 | L3 | L4 | L5 NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 132 | 84 | 85 | 86 | 87 | 88 | 89 | 90 | 91 | 92 | 93 | 94 | 95 | 96 | 97 | 98 | 99 NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 133 60 ... 299 step = 1 300 ... 3600 step = 10 Timer 16 0.0 ... 59.9 step = 0.1 60 ... 299 step = 1 300 ... 3600 step = 10 NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 134 START | TRIP | L1 | L2 | L3 | L4 | L5 CB State diagnostic relays CBdiag-K K1 | K2 | K3 | K4 | K5 | K6 CB Diagnostic Number of CB trips mode ModeN.Open OFF | ON NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 135 | Uavg>TR | U2>TR | f>TR | f>>TR | f<TR | f<<TR | f<<<TR | f<<<<TR | df>TR | df>>TR | df>>>TR | df>>>>TR VOUT3 Type Start | Trip Start 27V1 | 59V2 | U< | TEST_START NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 136 | f<<<TR | f<<<<TR | df>TR | df>>TR | df>>>TR | df>>>>TR Virtual Inputs - VIN Settings Enable Switch settings profi le OFF | ON Settings Profi le Profi le A | Profi le B NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 137 Buffer storage 0 ... 0 step = 0 Trigger Setup Pre-trigger time 0.05 ... 1.00 step = 0.01 Post-trigger time 0.05 ... 60.00 step = 0.05 Element pickup trigger ON | OFF NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 138 IN27 | IN28 | IN29 | IN30 | IN31 | IN32 | IN33 | IN34 | IN35 | IN36 | IN37 | IN38 | IN39 | IN40 | IN41 | IN42 | Off NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 139 IN27 | IN28 | IN29 | IN30 | IN31 | IN32 | IN33 | IN34 | IN35 | IN36 | IN37 | IN38 | IN39 | IN40 | IN41 | IN42 | Off NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 140 None | START | TRIP | L1 | L2 | L3 | L4 | L5 OUT1 Enable OFF | ON Address Local Vout VOUT1 | VOUT2 | VOUT3 | VOUT4 | VOUT5 | VOUT6 | VOUT7 | VOUT8 NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 141 VOUT1 | VOUT2 | VOUT3 | VOUT4 | VOUT5 | VOUT6 | VOUT7 | VOUT8 Remote Vin VIN1 | VIN2 | VIN3 | VIN4 | VIN5 | VIN6 | VIN7 | VIN8 | VIN9 | VIN10 NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 142 VIN1 | VIN2 | VIN3 | VIN4 | VIN5 | VIN6 | VIN7 | VIN8 | VIN9 | VIN10 LEDs None | START | TRIP | L1 | L2 | L3 | L4 | L5 OUT2 Enable OFF | ON NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 143 VIN1 | VIN2 | VIN3 | VIN4 | VIN5 | VIN6 | VIN7 | VIN8 | VIN9 | VIN10 LEDs None | START | TRIP | L1 | L2 | L3 | L4 | L5 OUT8 Enable OFF | ON Address NV021 - Manual - 08 - 2012 APPENDIX...
  • Page 144 VIN1 | VIN2 | VIN3 | VIN4 | VIN5 | VIN6 | VIN7 | VIN8 | VIN9 | VIN10 LEDs None | START | TRIP | L1 | L2 | L3 | L4 | L5 NV021 - Manual - 08 - 2012 APPENDIX...

  • Page 145: Appendix D - Revision History

    APPENDIX D - REVISION HISTORY Firmware Documentation Setting SW Description release release 2.01 2.70 NV021-Manuale-08-2012 ThySetter 3.6.6 First edition NV021 - Manual - 08 - 2012 APPENDIX...

  • Page 146: Appendix E - Ec Declaration Of Conformity

    Piazza Mistral 7 - 20139 MILANO The undersigned manufacturer herewith declares that the product Protection relay - type NV021 is in conformity with the previsions of the following EC directives (including all applicable amendments) when installed in accordance with the installation instructions: Reference n°...

Table of Contents
