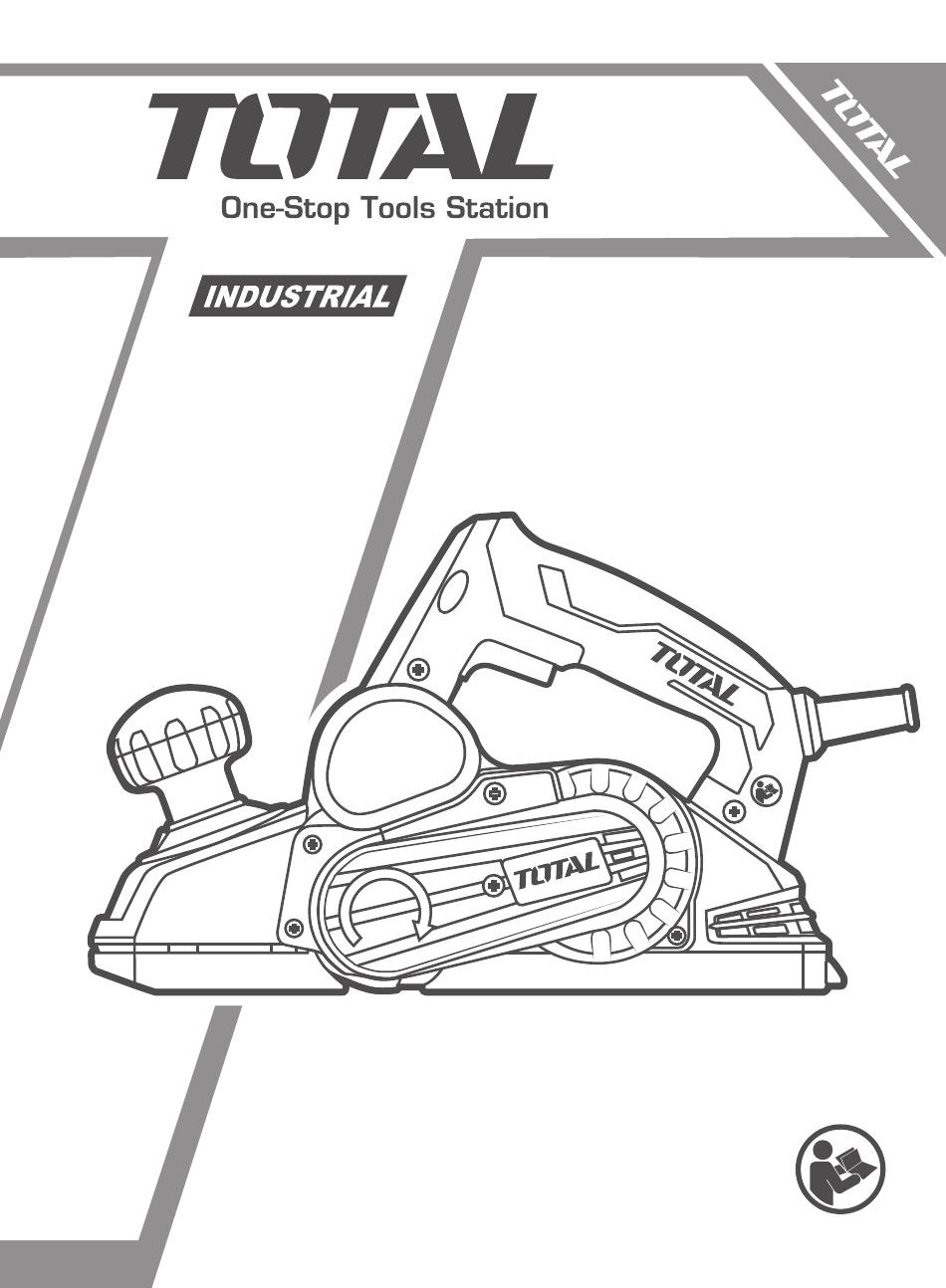

- Page 1 PRODUCT MANUAL ELECTRIC PLANER TL1108236 TL1108236-1 TL1108236-4 TL1108236-6 TL1108236-7 TL1108236-8 TL1108236-9 UTL1108236 UTL1108236-9...
-
Page 2: General Power Tool Safety Warnings
| English Original Instructions GENERAL POWER TOOL SAFETY WARNINGS ⚠ WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 3 | English 3) Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 4 | English pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 5 | English THE SYMBOLS IN INSTRUCTION MANUAL Double insulated for additional protection Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
-
Page 6: Additional Safety Warning
| English ADDITIONAL SAFETY WARNING Planer safety warnings Wait for the cutter to stop before setting the tool down. An exposed rotating cutter may engage the surface leading to possible loss of control and serious injury. Hold the power tool by insulated gripping surfaces only, because the cutter may contact its own cord. -
Page 7: Specifications
| English SPECIFICATIONS 1. Lock switch 2. Sawdust ejector 3. Depth adjustment knob 4. Planing depth scale 5. Planer base plate 6. Trigger switch 7. Power cord 8. Belt covers 9. V-grooves Accessories 1. 1 Pcs wrench 2. 1 Pcs hex key 3. -
Page 8: Technical Specifications
| English TECHNICAL SPECIFICATIONS TL1108236, TL1108236-1 TL1108236-4 (IRAM Plug) TL1108236-6 (ISRAEL Plug) UTL1108236-9 Model No. TL1108236-7 (CHILE Plug) UTL1108236 (INMENTRO Plug) TL1108236-8 (BS Plug) TL1108236-9 (INMENTRO Plug) 110- Rated voltage 220-240V~50/60Hz 127~60Hz 120V~50/60Hz Rated power 1050W 1050W 1050W No-load speed... - Page 9 LpA ecceeds 80 dB The sound power level L and its (A): uncertainty K are indicated in the [dB(A)] ..........: manual [dB(A)] ..........: The vibration total value and its uncertainty which is measured in accordance with l.3.
- Page 10 | English OPERATION PICTURE...
-
Page 11: Operation
| English OPERATION Changing hss planer blades Be cautious when replacing the planer blades. Do not grasp the planer blades by the abutting edges. Possible danger of injury due to the sharp cutting edges of the planer blades! Disassembling the planer blade(s) (see Figure A) To reverse the planer blades, rotate the blade drum until the clamping jaw is parallel to the planer base plate. -
Page 12: Starting Operation
| English Starting operation Observe correct mains voltage! The voltage of the power source must agree with the voltage specified on the nameplate of the machine Switching On and Off To start the machine, press the On/Off switch and keep it depressed. - Page 13 | English slowly push the machine forward (1). This tilts the park rest upward (2) so that the rear part of the planer base plate faces on the workpiece again. Guide the machine over the surface to be planed (3) with even feed. Beveling edges (see Figure C) The V-grooves in the front planer base plate allow quick and easy beveling of •...
- Page 14 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure ●The power cord or wiring is broken, Disconnect When the machine is turned power cord plug malfunction; machine from the on, the electric motor does ●...
- Page 15 TOTAL TOOLS WORLD MADE IN CHINA T1023.V02 NEWWAY TECHNOLOGY (SUZHOU) CO., LIMITED No. 20 Dagang Road, Fuqiao Town, Taicang City, China.
