HIKVISION DS-PDTT15AM-LM-WB Quick Start Manual

DS-PDTT15AM-LM-WB
Wireless Tri-Tech AM Detector
Quick Start Guide
E N G L I S H

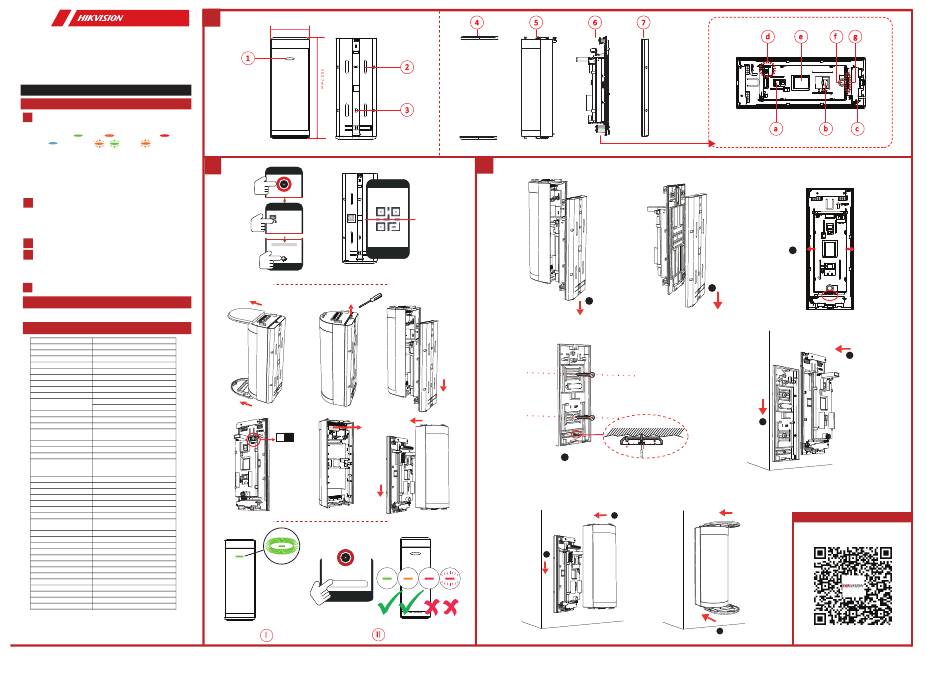

Diagram References

1

Appearance

1. Indicator
PIR Triggered: (top) (bottom) MW Triggered:
Alarm: Masked: Fault:
+
2. Vertical Pole Mount 3. Screw Hole
4. Top/Bottom Cover 5. Front Panel
6. PCBA
a. PIR Module (Top) b. PIR Module (Bottom)
c. Tamper Switch d. Power Switch e. Microwave Module
f. Antenna g. PIR Angle
7. Rear Panel
2

Enrollment

I. Enrollment succeeded.
Note: The front panel should be installed before powering on
successfully.
II. Check signal strength.
3

Installation

4

Detection Range

I. Detection range
1. PIR Angle Settings 2. PIR Distance Settings
II. Masking seal
5

Anti-Masking Alarm

User Manual

Scan the QR code for more information and operation help.

Specification

Detection Method Passive Infrared,Microwave
Detection Range 15 m
Detection Angle 90° @ 180° adjustable
Detection Zones 92
Detectable Speed 0.3～2 m/s
Sensitivity Auto, Low
White Light Filter 10000 lux
Microwave Frequency 24 GHz(24~24.25 GHz)
Pet Immunity 45 Kg
Anti-masking Support
Support
Adaptable Coverage
Pattern mask included
Digital Processing Tri-Signal Logic
Sealed Optics Support
Tamper Protection Front,Rear
Environment Temperature
Support
Indicator
Signal Strength Indicator Support
Anti-Sway Analytics Support
Power Switch Power Up Enrolling
Green(Top PIR), Red(Microwave),
LED Indicator Orange(Bottom PIR), Green+Orange(Mask),
Blue(Alarm)
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 433 MHz(433.1 MHz~433.7MHz)
Transmission Security AES-128 Encryption
Transmission Range(Free Space) 1 Km
Frequency Hopping Support
Enrolling Method Power up,Remote ID,QR Code
5 years in work status (being triggered 20
Standard Battery Life
times per day)
Power Supply Battery Powered
Battery Model CR123A × 5
Typical Voltage 3 V
Low Voltage Value 2.45±0.1 V
Voltage Range Fully charged(new) to 2.45±0.1V(battery)
Operation Temperature -25 °C to 60 °C (-13 °F to 140 °F)
Storage Temperature -25 °C to 60 °C (-13 °F to 140 °F)
Operation Humidity 10% to 90%
IP Rate IP65
Dimension(WxHxD) 75 mm × 202 mm × 73 mm
Weight 600 g
Mounting Height 0.8 to 1.2 m
Mounting Method Wall
Note: This product can only power the camera module
(DS-PDCM15PF-IR) as its accessory.
UD24070B-F
1
74.2 mm
1
2
xxxx
Device
OFF ON
14
Signal Strength Test
I II
Hangzhou Hikvision Digital Technology CO., Ltd.
4 5
2
3
3
13
13
4
8
No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China
6 7
d
2
1
6
7
9
e f g
a b c
3
5
User Manual
