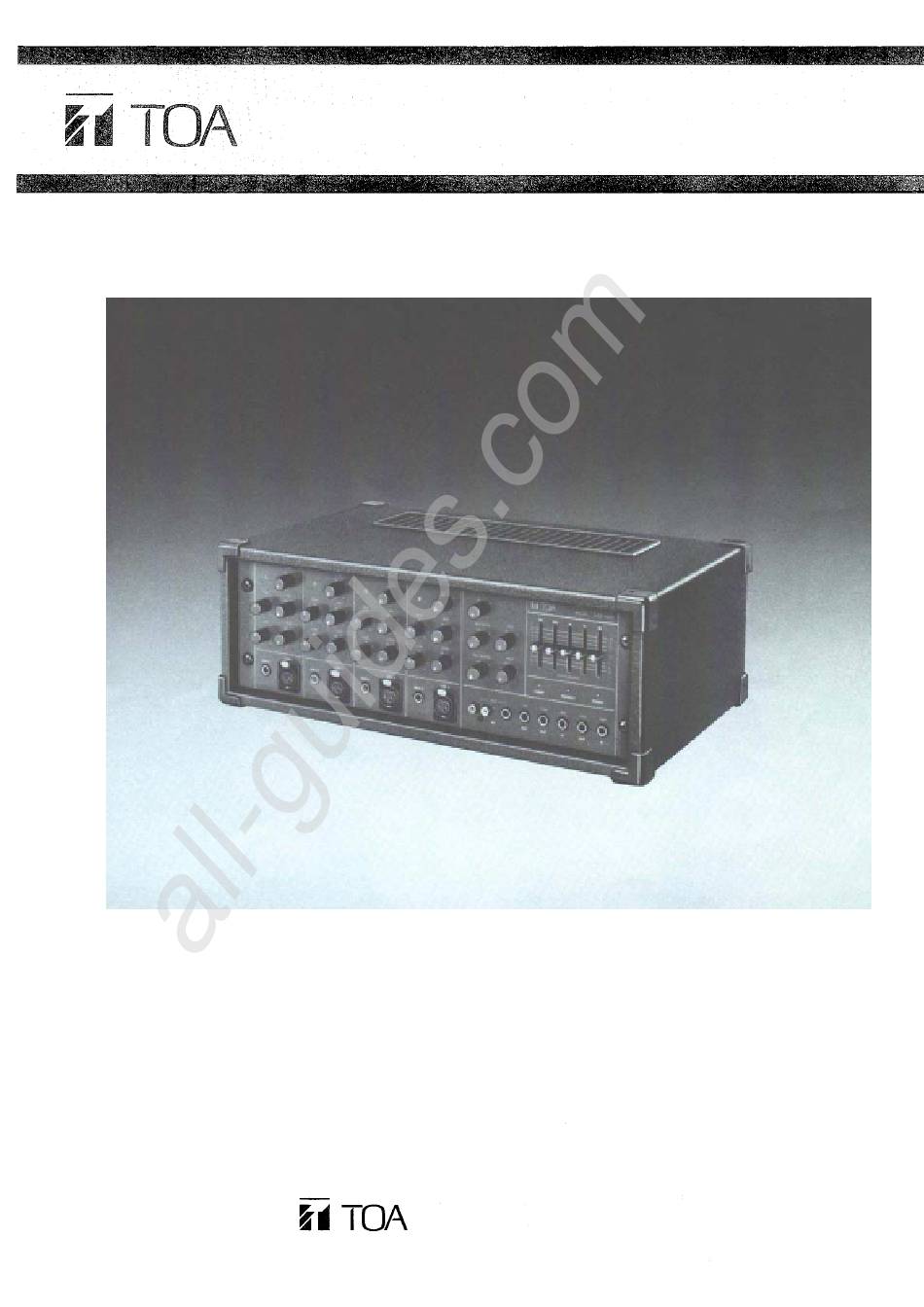

Operating Instruction Manual
POWERED MIXER
Model MX-401
Toa Electric Co., Ltd.
KOBE, JAPAN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-401 and is the answer not in the manual?

Questions and answers

Summary of Contents for Toa MX-401

  • Page 1 All manuals and user guides at all-guides.com Operating Instruction Manual POWERED MIXER Model MX-401 Toa Electric Co., Ltd. KOBE, JAPAN...
  • Page 2: Table Of Contents

    The connectors are wired as follows. The pin 1 is ground (shield), the pin 2 cold (low, minus), the pin 3 hot (high, plus). 2. Description of components and functions on the MX-401. Various descriptions are applied, depending on each manufacturer. In our Operating and Instruction Manual explanation of components and functions is made according to our usage for them.
  • Page 3: General Description

    All manuals and user guides at all-guides.com General Description The TOA MX-401 is a very compact, four channel self-powered mixer. It was designed to deliver maximum features and performance in a cost-effective portable PA package. The MX-401 features four input channels, one program output, and one Foldback output.
  • Page 4: Front Panel [Names Of Components & Their Usage]

    Note: Graphic Equalizer Input Jack The MX-401 p r o t e c t i o n c i r c u i t r y in a corresponding increase in the four independent channel...
  • Page 5: Rear Panel [Names Of Components & Their Usage]

    . The MX-401 s h o u l d always Caution - The ground pin should Operation of the MX-401 w i t h...
  • Page 6: Connection Examples

    All manuals and user guides at all-guides.com Connection Examples (Self powered speakers) SPEAKER SYSTEM MAIN SPEAKER SYSTEM for foldback From Speaker J a c k on Rear Panel Line O u t KEYBOARD Low Z i n p u t should be connected w i t h low impedance (50 ohm ~ 600 ohm) CASSETTE TAPE DECK microphones...
  • Page 7: Input Connections

    As is described in the beginning of the Operating Instructions Manual, t h e connectors of the MX-401 are wired as follows: Pin 1 is ground (shield). Pin 2 is cold (low, minus). Pin 3 is hot (high, plus).
  • Page 8: Block And Level Diagrams

    All manuals and user guides at all-guides.com Block and Level Diagrams BLOCK DIAGRAMS LEVEL DIAGRAM — 7 —...
  • Page 9: Specifications

    All manuals and user guides at all-guides.com Specifications MIXER SECTION Maximum Voltage Gain Frequency Response INPUT to PGM o u t 64dB +0, -3dB 60Hz~20kHz ( i n p u t LEVEL at "5" p o s i t i o n ) INPUT to FB o ut 64dB INPUT t o GEQ o u t...
  • Page 10: Characteristics Diagrams

    All manuals and user guides at all-guides.com Characteristics Diagrams LOW Z HIGH Z IN & INPUT EQ (LEVEL Control) HIGH Z IN. & INPUT EQ (set at "5") POWER AMP POWER BAND WIDTH POWER AMP T.H.D. vs POWER OUTPUT POWER AMP COMPRESSOR REVERBERATION FREQUENCY RESPONSE Appearance 304 (11.97")
