Summary of Contents for Toa MCX-106

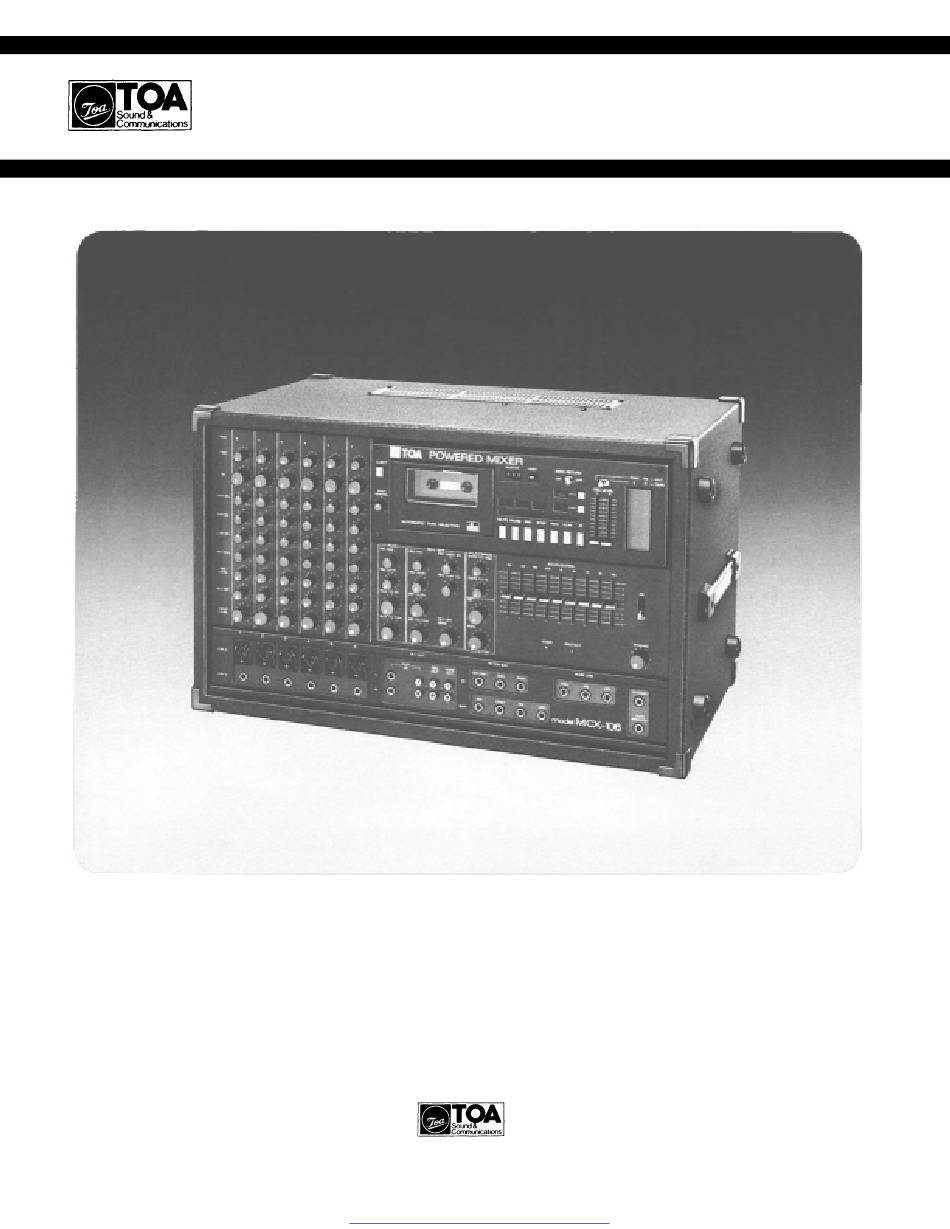

- Page 1 Operating Instruction Manual TOA POWERED MIXER Model MCX-106 TOA ELECTRIC CO., LTD. KOBE, JAPAN Get other manuals https://www.bkmanuals.com...
- Page 2 . MCX-106™ Operating Guide 6. O n e - o c t a v e e q u a l i z e r .
- Page 3 The MCX-106 fe a tu re s: six i n p u t channels, a 300 w a t t power a m p l i f i e r , 9-band graphic equalizer, a u t o m a t i c compressor, reverb e f f e c t , f l u o r e s c e n t b a r g r a p h m e t e r , power a m p l i f i e r p r o t e c t i o n c i r c u i t r y , and a c o m p l e t e p a t c h bay.
- Page 4 Front Panel, Input Section Peak Indicator (PEAK) The peak i n d i c a t o r lights when t h e pre or post EQ signal level reaches 3dB below c l i p p i n g , giving a visual reference for Foldback Control (FB) Input Trim Control (TRIM)
- Page 5 MCX-106...
- Page 6 Front Panel Stereo Cassette Deck Section Counter Reset Button Cue Indicator DBX Button Resets the tape couter t o "000". R e m a i n s l i t d u r i n g o p e r a t i o n of Pressing t h i s b u t t o n a l t e r n a t e l y t h e Cue f u n c t i o n .
- Page 7 . Nominal o u t p u t level is w i t h a d d i t i o n a l MCX-106 u n i t s — l 0 d B w i t h an impedance of 600 or o t h e r a u x i l i a r y equipment.
- Page 8 Connection Examples Low Z i n p u t should be connected SUB MIXER (MCX-106) w i t h low impedance (50 ohm ~ 600 ohm) B u i l t in Power microphones A m p l i f i e r for...
- Page 9 As is described in the beginning of the Operating Instructions Manual, the connectors of the MCX-106 are wired as follows: Pin 1 is ground (shield). Pin 2 is cold (low, minus). Pin 3 is hot (high, plus).
- Page 10 S/N ratio will also be adversely affected. The input level controls are used in general between 6 and Each input channel of the MCX-106 is provided with a TRIM control. Thorough understanding of the function of The peak indicator LED illuminates if the head amplifier a TRIM control will make mixing easier.
- Page 11 Types of Cassette Tape Types of cassette tape openings with adhesive tape if you desire to erase or m i c r o n : 1/1000mm record the tape at a later date. Type C-60 C-90 C-120 C-30 C-46 Tape t r a v e l h o u r 30 m i n .
- Page 12 Block and Level Diagrams BLOCK DIAGRAMS LEVEL DIAGRAM — 11 — Get other manuals https://www.bkmanuals.com...
- Page 13 Specifications MIXER SECTION Maximum Voltage Gain INPUT to PGM out 59dB Frequency Response +0, -3dB 30Hz~20kHz (HIGH Z input TRIM at "0" positio INPUT to EFF out 45dB INPUT to FB out 59dB INPUT to REC out 45dB Total Harmonic Distortion 0.05% +4dBm at 1kHz.
- Page 14 Specifications STEREO CASSETTE DECK SECTION Mechanism Motor 1 Motor 3 Solenoid Mechanism Electronically Governor Control Frequency Response 4 Bit Micro Computer 40 Hz to 12.5 kHz (Metal) (Overall Record/Playback) Tape Noise Reduction Compact Cassette C-30, C-46, C-60 or C90 *DBX type II (IN/OUT Switchable) Track Format Signal to Noise Ratio 4-Track, 2-Channel (Stereo)
- Page 15 Characteristics Diagrams HIGH Z IN. TRIM/MIN . & INPUT EQ POWER AMP POWER BAND WIDTH POWER AMP TOTAL HARMONIC DISTORTION POWER AMP COMPRESSOR REVERBERATION FREQUENCY RESPONSE Appearance — 14 — Get other manuals https://www.bkmanuals.com...
- Page 16 TOA ELECTRIC CO., LTD. KOBE, JAPAN Printed in Japan 133-02-690-80 Get other manuals https://www.bkmanuals.com...
